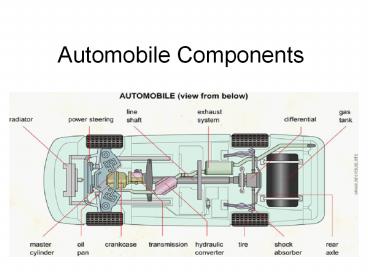

Automobile Components

1
Automobile Components
2
1. Engine

• Converts energy from gasoline into torque.

3
Front Engine Configuration
4
Mid Engine Configuration
5
Rear Engine Configuration
6
Electrical Systems

• Ignition
• Charging
• Accessories
• Lighting
• Starting
• Computer

7
Fuel System

• Mixes air and gasoline for to explode inside
  engine.

8
Cooling System

• Keeps engine at correct operating temperature

9
2. Drivetrain

• Converts engine torque to vehicle movement
• Variety of types
• Front Wheel Drive
• Rear Wheel Drive
• Four Wheel Drive
• All Wheel Drive

10
(No Transcript)
11
Transmission/Transaxle

• Uses different gear ratios to increase torque
  (pulling power) or speed.

12
Differential

• Allows rotational torque to turn 90 degrees.
• Allows wheels to turn at different speeds.

13
Transfer Case

• Sends engine torque to both rear and front
  differentials in four wheel drive vehicles.

14
3. Brakes

• Stops vehicle and keeps it stationary.

15
Disk Brake
16
Drum Brake
17
4. Steering

• Changes vehicle direction.

18
5. Suspension

• Allows the wheels to travel up and down
  independently of the rest of the car.

19
6. Tires

• Connect vehicle to road
• Affect vehicle handling, traction, braking

20
