The Chemistry Behind the Breathalyzer

1

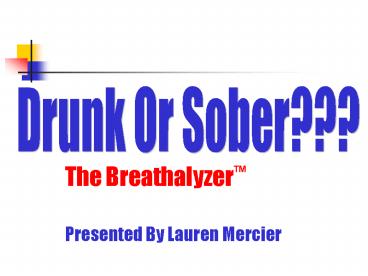

Drunk Or Sober???
The Breathalyzer
Presented By Lauren Mercier
2
What Happens to Alcohol in My Body After I Have a
Drink?

• Ethanol is immediately absorbed into the
• capillaries of body tissues and organs
• When it enters the blood stream,
• ethanol is not metabolized and
• remains a separate component in blood flow
• As blood flows across alveoli in the lungs,
  carbon dioxide molecules are exchanged for oxygen
  molecules
• Ethanol evaporates from the blood into the breath
  since it is volatile, and is released with CO2
  upon exhaling

CH3CH2OH
3
Relating Breath Alcohol to Blood Alcohol

• The ratio of breath alcohol to blood
• alcohol is 2100 1, so 2100 mL of
• alveolar air contains the same amount
• of alcohol as 1 mL of blood
• Blood alcohol content (BAC) can be calculated
  from the content of alcohol in the breath
• BAC g Ethanol x 2100mL
  Breath x 100
  52.5 mL Breath
  1mL Blood
• BAC of 0.08 means there are 0.08 g alcohol per
  100 mL of blood

4
The Breathalyzer

• Measures concentration of alcohol in
• breath sample and determines BAC
• Invented by Dr. Robert F. Borkenstein
• of Indiana State Police Department and has been
  on the market since 1954
• Used to prosecute drunk drivers with BACs above
  legal limit of 0.08
• Involves a wet chemistry reaction, modern
  models employ Infrared spectroscopy and fuel cells

5
Breathalyzer Apparatus

• Mouthpiece and thermostat set at 50C /- 3C
• Sample chamber, contains piston that traps 56.5mL
  breath and delivers 52.5mL breath to reaction
  mixture
• Two sealed glass vials containing reaction
  mixture
• H2SO4 (50 by volume)
• K2Cr2O7 (0.025 )
• AgNO3 (0.025 )
• Light bulb between glass vials and photocells on
  either side
• Meter connected to electrical output
• Alcohol scale

6
Collecting the Sample

• The suspect blows into the mouthpiece and their
  breath travels to a sample chamber
• One glass vial neck is broken (test vial) and a
  glass tube, called a bubbler, is inserted
• The operator turns a control knob to release the
  piston and force the sample through the bubbler
  into the test vial

7
Chemical Reaction

2 K2Cr2O7 3 CH3CH2OH 8
H2SO4 2 Cr2 (SO4)3 2 K2SO4 3 CH3COOH 11
H2O
AgNO3
8
If the Suspect Is Drunk

• Ethanol in the breath reduces dichromate ion to
  chromium ion
• The test vial lightens from pale yellow to a
  bleached yellow colour, like weak lemonade
• More light passes through the lightened test vial
  and hits a photocell causing electrical needle on
  meter to move
• The operator turns a knob to balance needle and
  light moves away from test vial
• When the needle is centered the operator reads
  alcohol meter to determine BAC

9
The Intoxylizer

• Uses Infrared spectroscopy to detect ethanol
  (C-O, O-H, C-H, C-C bonds)
• IR energy passes through sample chamber
  containing breath sample and then through
  narrowband IR filter
• Filtered energy focused on photocell detector
  which converts it to electrical pulses
• Microprocessor interprets pulses and calculates
  BAC

Breath Sample In
Breath Sample Out
Sample Chamber
Photocell
Quartz Lamp
Lenses
Filter Wheel
Microprocessor
10
Examples of Alcohol Detecting Devices
Intoxylizer 400 uses electrochemical fuel cells
Intoxylizer 8000 uses IR spectroscopy
11
Fuel Cell Detectors

• Apparatus consists of two platinum electrodes
• with acidic electrolyte material between them
• Ethanol in breath oxidized at surface of anode
• to give acetic acid, protons, and electrons
• Atmospheric oxygen reduced at cathode to
• give two oxygen atoms
• Protons and electrons from anode travel to
• the cathode and combine with oxygen to
• form water
• Movement of electrons produces a current
• that is proportional to the amount of alcohol in
  the breath sample
• Microprocessor measures the current and
  calculates BAC

12
In Conclusion

• There are several methods available for forensic
  alcohol testing
• Now there are hand held breath alcohol testers to
  take on site or to parties to decrease the number
  of people who drink and drive
• Results provide evidence in DWI trials
• Results can be inaccurate because of temperature
  changes and varying blood to breath ratios
• Tests are non-invasive and fairly accurate but
  require a trained operator

13
