ALLOCATING SAFETY INTEGRITY LEVELS IN PRACTICE

1

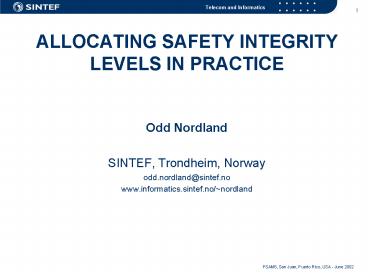

ALLOCATING SAFETY INTEGRITY LEVELS IN PRACTICE

• Odd Nordland
• SINTEF, Trondheim, Norway
• odd.nordland_at_sintef.no
• www.informatics.sintef.no/nordland

2
ALLOCATING SAFETY INTEGRITY LEVELS IN PRACTICE

• Introduction
• Safety Integrity
• Safety Integrity Levels
• Risk Acceptability
• Allocating SILs
• Problems
• Conclusions

3
ALLOCATING SAFETY INTEGRITY LEVELS IN PRACTICE

• Safety Integrity
• Things can go wrong, so we need additional
  functionality
• Safety Functions to reduce the risks
• Safety functions can have varied implementation
  measures
• active functionality
• design properties
• administrative measures
• any combination of the above
• Failure of part of the implementation does not
  mean total loss of the safety function
• Safety Integrity Ability of a safety function
  to continue to be effective in spite of
  deterioration of its implementation

4
ALLOCATING SAFETY INTEGRITY LEVELS IN PRACTICE

• Safety Integrity Levels
• Degree of Safety Integrity is determined by
• number of implementation measures
• how effective they are
• how vulnerable they are
• how independent they are
• ...
• Many different degrees of safety integrity,
  grouped into 5 levels
• SIL 0 no safety integrity at all
• ...
• SIL 4 highest possible level
• For "important" safety functions, a high SIL will
  be demanded
• Safety Integrity Levels depend on Risk
  Acceptability

5
ALLOCATING SAFETY INTEGRITY LEVELS IN PRACTICE

• Risk Acceptability
• ALARP
• Risk shall be brought As Low As Reasonably
  Practicable
• 3 risk zones unacceptable, acceptable,
  negligible
• assumes that we know where the acceptable limit
  is
• GAMAB
• Any modification shall leave a system globally at
  least as good ("Globalement Au Moins Aussi Bon")
  as it was
• allows for redistribution of risks
• assumes current level is already acceptable
• MEM
• Starts with lowest technological mortality rate
  in the population (Minimum Endogenous Mortality)
• a new system should not increase that mortality
  rate significantly
• assumes that the current mortality rate is
  acceptable

6
ALLOCATING SAFETY INTEGRITY LEVELS IN PRACTICE

• Allocating SILs
• Determine risks
• Determine acceptable risk levels
• Identify safety functions
• Based on risk acceptance level, determine safety
  integrity level for each safety function
• Identify implementation measures for each safety
  function
• Based on the safety integrity level for each
  function, determine tolerable failure rates for
  each implementation measure
• OR JUST DEMAND SIL 4 BY DEFAULT!

7
ALLOCATING SAFETY INTEGRITY LEVELS IN PRACTICE

• Problems
• SIL 4 is EXPENSIVE
• Systems that have been working satisfactorily
  don't necessarily fulfil SIL 4 requirements
• Do we always need SIL 4?
• The relationship between failure rates and SILs
  is often misunderstood
• SILs depend on failure rates of safety functions
• Exaggerated demands on equipment
• because non-technical measures are ignored
• Risk acceptability is controversial

8
ALLOCATING SAFETY INTEGRITY LEVELS IN PRACTICE

• Conclusions
• Agreed methods for determining acceptable risk
  levels must be determined
• Demanding the highest safety integrity level by
  default is a political decision a proper
  analysis could show that a lower safety integrity
  level is sufficient
• Non-technical measures for implementing safety
  functions must be included in the analyses
• Apply the standards correctly
• perform risk acceptability analyses first
• identify the safety functions next
• then allocate SILs
