Dynamic Scheduling Using Tomasulo

1

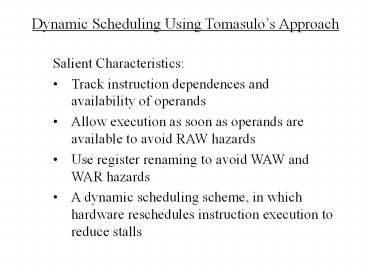

Dynamic Scheduling Using Tomasulos Approach

• Salient Characteristics
• Track instruction dependences and availability of
  operands
• Allow execution as soon as operands are available
  to avoid RAW hazards
• Use register renaming to avoid WAW and WAR
  hazards
• A dynamic scheduling scheme, in which hardware
  reschedules instruction execution to reduce
  stalls

2
The Structure of a DLX FP Unit

• (see Figure 4.8)
• Instructions are issued in FIFO order from
  Instruction Queue
• Reservation stations include the operation and
  the actual operands
• Load buffers hold the results of outstanding
  loads
• All results from FP units or load units are put
  on the common data bus (CDB)

3
Lifecycle of an Instruction

• 1. Issue
• Get an instruction from the Instruction Queue
• Issue it if there is an empty reservation station
• Send operands to the reservation station if they
  are in the registers
• A load/store operation can issue if theres an
  available buffer
• If a buffer or reservation station is not
  available, the instructions stalls due to a
  structural hazard

4
Lifecycle of an Instruction (Contd)

• 2. Execute
• Execute when both operands are available
• Monitor the CDB while waiting for operands
• 3. Write Result
• When the result is available, write it on the CDB
• From CDB, the result is written into the
  registers and any reservation station waiting for
  this result

5
Reservation Stations Fields

• Every reservation station has six fields
• OP - operation to perform
• Qj, Qk - the reservation stations that will
  produce the source operand
• Vj, Vk - the value of the source operands
• Busy - indicates that this reservation station is
  busy
• The register file has a field, Qi
• Qi - the reservation station or buffer that
  contains the operation whose result is to be
  stored into the register

6
Tomasulos Algorithm - Example
LD F6, 34(R2) LD F2, 45(R3) MULTD F0, F2,
F4 SUBD F8, F6, F2 DIVD F10, F0,
F6 ADDD F6, F8, F2 See Figure 4.9 and 4.
10 See Figure 4.11 for steps in the algorithm
7
Tomasulos Algorithm A Loop-Based Example

• Loop LD F0, 0(R1)
• MULTD F4, F0, F2
• SD 0(R1), F4
• SUBI R1, R1, 8
• BNEZ R1, Loop branches if R1 ? 0
• If we predict taken branches, the loop is
  unrolled dynamically by the hardware

8
Scoreboard - Steps in Execution

• 1. Issue The scoreboard issues an instruction if
• a. A functional unit for the instruction is free
• b. No other active instruction has the same
  destination register
• If a structural or WAW hazard exists, the
  instruction issue stalls.
• 2. Read Operands
• The scoreboard monitors the availability of
  operands
• When operands become available, the execution
  begins after reading the operands
• RAW hazards are dynamically resolved here

9
Scoreboard - Step in Execution (Contd)

• 3. Execution
• The functional unit begins execution
• When the result is ready, it notifies the
  scoreboard
• 4. Write a result
• The scoreboard checks for WAR hazard and stalls
  writing the result if needed
