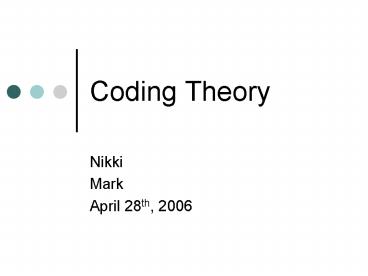

Coding Theory

1
Coding Theory

• Nikki
• Mark
• April 28th, 2006

2
What is Coding Theory?

• Algebraic codes are now used in CD players, fax
  machines, modems, and bar code scanners.
• Algebraic coding has nothing to do with secret
  codes.
• The goal of coding theory is to devise message
  encoding and decoding methods that are reliable,
  efficient, and reasonably easy to implement.

3
Why do we need Coding Theory?

• To motivate this theory, we imagine wanting to
  send one of two signals to a spaceship on Mars.
• 0 to orbit
• 1 to land
• But it is possible that some sort of interference
  (noise) can cause an incorrect message to be
  received.

4
Adding Redundancy to our Messages

• To decrease the effects of noise, we add
  redundancy to our messages.
• First method repeat the digits multiple times.
• Thus, the computer is programmed to take any
  five-digit message received and decode the result
  by majority rule.

5
Majority Rule

• So, if we sent 00000, and the computer receives
  any of the following, it will still be decoded as
  0.
• 00000 11000 Notice that for the
• 10000 10100 computer to decode
• 01000 10010 incorrectly, at least
• 00010 10001 three errors must be
• 00001 etc. made.

6
Independent Errors

• Using the five-time repeats, and assuming the
  errors happen independently, it is less likely
  that three errors will occur than two or fewer
  will occur.
• This is called the maximum likelihood decoding.

7
More complicated numbers

• We are going to send a sequence of 0s and 1s of
  length 500. Assume the probability of an error
  occurring is .01 for any particular digit (and
  they happen independently).
• No redundancy
• P(error free)

8
Three fold Repetition Scheme

• Sending each digit three times, and decoding each
  block of three digits by majority rule, the
  probability increases
• Suppose 1 is sent, it will be decoded as 0 iff
  the block received is 001, 010, 100, 000. The
  probability that this will occur is
• P(error)
• gt P(error free for one digit) gt .9997
• gtP(error free message) gt.9997500 .86

9
A Purdy Picture
Original message 0
Encoded message 00000
Noise
Received message 10001
Decoded message 0
10
Why dont we use this?

• Repetition codes have the advantage of
  simplicity, both for encoding and decoding
• But, they are too inefficient!
• In a five-fold repetition code, 80 of all
  transmitted information is redundant.
• Can we do better?
• Yes!

11
What is a linear code?

• Def An (n,k) linear code over a finite field F
  is a k-dimensional subspace V of the vector space
• n copies
• over F. The members of V are called the code
  words. When F is , the code is called
  binary.

12
A Hamming (7,4) code

• A Hamming code of (n,k) means the message of k
  digits long is encoded into the code word of n
  digits.
• The 16 possible messages
• 0000 1010 0011 1111
• 0001 1100 1110
• 0010 1001 1101
• 0100 0110 1011
• 1000 0101 0111

13
Encoding with a Generating Matrix

• A generating matrix is one of k x n matrix, with
  a k x k Identity matrix adjoined with a k x (n
  k) matrix.
• Our generating matrix
• G

14
Encoding a message

• For each message v, find the left coset vG
• Let v 0 1 1 0
• vG 0 1 1 0
• 0 1 1 0 0 1 1

15
Encoding those messages

• Message ? codeword
• 0000 ? 0000000 0110 ? 0110011
• 0001 ? 0001111 0101 ? 0101010
• 0010 ? 0010110 0011 ? 0011001
• 0100 ? 0100101 1110 ? 1110000
• 1000 ? 1000011 1101 ? 1101001
• 1010 ? 1010101 1011 ? 1011010
• 1100 ? 1100110 0111 ? 0111100
• 1001 ? 1001100 1111 ? 1111111

16
Hamming Distance

• Def The Hamming distance between two vectors of
  a vector space is the number of components in
  which they differ, denoted d(u,v).

Mr. Hamming
17
Hamming Distance

• Ex. 1 The Hamming distance between
• v 1 0 1 1 0 1 0
• u 0 1 1 1 1 0 0
• d(u, v) 4
• Notice d(u,v) d(v,u)

18
Hamming weight of a Vector

• Def The Hamming weight of a vector is the number
  of nonzero components of the vector, denoted
  wt(u).

19
Hamming weight of a code

• Def The Hamming weight of a linear code is the
  minimum weight of any nonzero vector in the code.

20
Hamming Weight

• Ex. 2 The Hamming weight of
• v 1 0 1 1 0 1 0
• u 0 1 1 1 1 0 0
• w 0 1 0 0 1 0 1
• are
• wt(v) 4
• wt(u) 4
• wt(w) 3

21
Theorem 31.1 Properties of Hamming Distance and
Weight

• For any vectors u, v, and w,
• 1) d(u,v) wt(u v).
• 2) d(u,v) lt d(u,w) d(w,v).
• Proof
• 1) Observe that both d(u, v) and
• wt(u v) equal the number of
• positions in which u and v differ.

22
Proving Part 2

• 2) d(u,v) lt d(u,w) d(w,v).
• Proof
• 2) Note that, if u and v differ in the ith
  position and u and w agree in the ith position,
  then w and v differ in the ith position. Refer
  to Example 2.

23
Example of Proof

• v 1 0 1 1 0 1 0
• u 0 1 1 1 1 0 0
• w 0 1 0 0 1 0 1
• d(u,v) 4 d(u,w) 3
• d(w,v) 7
• And d(u,v) lt d(u,w) d(w,v)
• ? 4 lt 3 7.

24
Theorem 31.2 Correcting Capability of a Linear
Code

• If the Hamming weight of a linear code is at
  least 2t 1, then the code can correct any t or
  fewer errors. Alternatively, the same code can
  detect any 2t or fewer errors.
• Example Using our original code, the Hamming
  weight is 3 2(1) 1.
• Thus, it can correct 1 error,
• OR, it can detect 2 errors.

25
Why OR?

• Well do this by counterexample.
• We have our (7,4) Hamming Code, and the weight is
  3 2(1) 1.
• Say we receive the word 0001010.
• It could have had one error, in which 0101010 was
  intended, and we can detect that single error.

26
Why OR, cont.

• It could have had two errors, in which 0000000,
  0001111, 1011010 could be candidates.
• What do we do?
• If we chose detection, we would note that too
  many possibilities exist, and we would ask for
  retransmission.
• If we chose correction, we could potentially make
  a mistake and assume that the message was
  intended to be 0101010.

27
Moral of the story

• We must be careful about detecting and correcting
  errors.
• It is safest to ask for retransmission if
  possible, to eliminate any guess-work.

28
A better check

• If we write the Hamming weight of a linear code
  in the form
• 2t s 1
• We can correct any t errors AND detect any t s
  errors.

29
An example for ya

• Lets assume some linear code has a Hamming
  weight of 5.
• Well, 5 2(1) 2 1
• So we can correct any 1 error and detect up to 3
  errors.
• Or, 5 2(0) 4 1
• So we can detect up to any 4 errors.
• Or, 5 2(2) 0 1
• So we can correct any 2 or fewer errors.

30
Lets Play a Game!

• Yay for Math Horizons!
• This uses the fact that each error is uniquely
  determined.
• Two different code words differ in at least three
  different positions.

31
(No Transcript)
32
Creating the Parity-Check Matrix

• How to make H, the Parity-Check Matrix from G,
  the Generating Matrix.
• G Ik A
• Compute A
• H

33
Homework 1

• From your textbook
• Page 540, numbers 4, 5, and 12.
• Not too bad, we promise!

34
Decoding the Code Words

• Four types of decoding methods for linear codes
• Nearest-neighbor
• Parity-Check Matrix
• Coset Decoding
• Same Coset-Same Syndrome

35
The Steps ofNearest Neighbor Decoding

• This is a comparison between the received code
  word, v, and all possible code words. Look for
  the smallest distance between v and v.
• If v is unique, assume v v.
• If v is not unique, ask for retransmission.

36
Nearest Neighbor Example

• Ex. 3
• We receive 0001110. This is not in our list of
  possible code words from our original list.
• We compare 0001110 to each code word, and see
  that it differs from 0001111 by only 1, and all
  others by more than one.
• We assume 0001110 was intended to be 0001111.
• We decode 0001111 to its original message of 0001.

37
Creating the Parity-Check Matrix

• How to make H, the Parity-Check Matrix from G,
  the Generating Matrix.
• G Ik A
• Compute A
• H

38
How to Use the Parity-Check Matrix to Decode

• For any received word w, compute wH.
• If wH is the zero vector, assume that no error
  was made.
• If there is exactly one nonzero element,
• and a row i of H such that wH is s times row
  i, assume that the sent word was w (0 s 0),
  where s occurs in the ith component. If there is
  more than one such instance, do not decode.
• If wH does not fit into either category, we know
  that at least two errors occurred in
  transmission, and we do not decode.

39
Parity-Check Decoding Example

• Using G
• Create H

40
Example cont.

• We receive 0001110.
• Compute wH
• We get 001.
• 001 is the 7th (last) row of our Parity-Check
  Matrix H.
• Thus we assume there is a problem in position 7.
• Compute 0001110 0000001
• 0001111, which is the intended code word,
  which is decoded to be the message 0001.

41
Theorem 31.3 Parity-Check Matrix Decoding

• Parity-check matrix decoding will correct any
  single error iff the rows of the parity-check
  matrix are nonzero and no one row is a scalar
  multiple of any other row.

42
Example of Thm. 31.3

• A Good! Rows are linearly
  independent
• B Bad! Row 1 and row
• 3 are NOT linearly independent.

43
How to Use Coset Decoding

• To use coset decoding, one must create a
  standard array for the linear code.
• Once the standard array is constructed, find the
  received code word in the array and identify the
  column in which it lies.
• Decode the code word as the number at the top of
  the column minus the coset leader.

44
How to create the dreaded Standard Array

• Use C, the group of code words, as the heading
  for each column.
• Next, look at all the possible vectors, and
  choose the next available one with minimum
  weight.
• This becomes the first coset leader, place this
  vector as the beginning of the second row.

45
Constructing the Standard Array

• C 0000000, 0001111, 0010110, 0011001
• The vector 1000000 is the next number with least
  weight, so it becomes the first coset leader.

46
Continuing the Standard Array

• Next, add the coset leader to each member in C,
  the column headings.
• Of all the code words left, find the one with
  least weight, and this becomes the coset leader
  for the third row.
• Continue this until all possible code words are
  placed in the standard array.

47
Standard Array

• The vector 0100000 is the next code word with
  least weight that is still left, so it becomes
  the next coset leader.

48
The Complete Standard Array

• We cant complete the whole array, itd be 32
  rows, but heres as much as we need to decode
  0001110

49
Decoding with the Standard Array

• We received 0001110. Notice 0001111 is the
  column heading, and 0000001 is the coset leader.

50
Final Decoding

• So, we found 0001110 in the second column, under
  0001111, with a coset leader of 0000001.
• So, we assume the column heading is the intended
  message 0001111.
• We could also do the received word 0001110, plus
  the coset leader, 0000001, to get 0001111.

51
Theorem 31.4 Coset Decoding is Nearest-Neighbor
Decoding

• In coset decoding, a received word w is decoded
  as a code word c such that d(w, c) is minimal.
• Proof
• Let C be a linear code, and let w be any
  received word.
• Suppose that v is the coset leader for the
  coset wC.
• Thus, wC vC.

52
Proof Continued

• Thus, w v c, for some c in C.
• ? w is decoded as c.
• Now, if c is any code word, then w-c exists
  in w C v C, so the
• wt(w-c) gt wt(v), since v was chosen because
  wt(v) is minimal among the members of vC.
• Therefore, d(w,c) wt(w-c) gt wt(v) wt(w-c)
  d(w,c)
• Thus, w is decoded as a code word c such that
  d(w,c) is minimal.

53
The Syndrome

• Def If an (n, k) linear code over F has
  parity-check matrix H, then, for any vector u in
  , the vector uH is called the syndrome of
  u.

54
How to use Syndrome Decoding

• Calculate wH, the syndrome of w.
• Find the coset leader v such that
• wH vH.
• Assume that the vector sent was
• w v.

55
Syndrome Decoding Example

• Let w 0001110
• Let H be our parity-check matrix
• Thus, wH 001
• 1000000H 011
• 0100000H 101
• 0010000H 110
• 0001000H 111
• 0000100H 100
• 0000010H 010
• 0000001H 001
• Thus, v 0000001

56
Syndrome Decoding Continued

• So, we have w 0001110
• And we have v 0000001
• Finally, all we have to do is compute
• w v 0001111. Which was the intended
  message.

57
Theorem 31.5 Same Coset - Same Syndrome

• Let C be an (n, k) linear code over F with a
  parity-check matrix H. Then, two vectors of
  are in the same coset of C iff they have the
  same syndrome.
• Proof
• Two vectors u and v are in the same coset of
  C iff u-v is in C, since C is closed by
  definition. Note, vH 0 iff v is in C.
• Thus, u and v are in the same coset iff 0
  (u-v)H uH vH.
• ? 0 uH vH ? uH vH.

58
Other Codes

• So, we only touched base on linear codes, and
  more specifically, the linear Hamming codes.
• There are many others!
• Reed-Solomon Codes
• Self-Dual Codes
• Golay Codes
• Cyclic Codes
• Quadric Residue Codes
• Bose-Chaudhuri-Hocquenghem (B.C.H.) Codes
• Etc.

59
Any Questions?

• Homework
• Problems from the chapter, page 540
• 17 (and complete the standard array given to you)
  and 29
• Use hint in back of book for 29. Sorry, we had
  to have some Abstract in there for ya!
