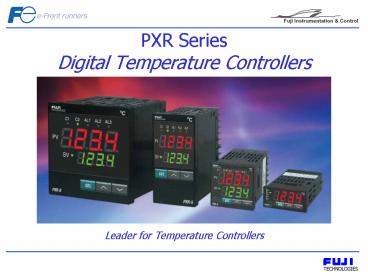

PXR Series Digital Temperature Controllers

1
PXR Series Digital Temperature Controllers

• Leader for Temperature Controllers

2
Fuji provides complete range of temperature
control with PXR series!
PXR series digital controller

• 4 front sizes 24x48, 48x48, 48x96 and 96x96mm
• Various options
• Large display and short depth
• Plug-in PCB structure to reduce parts for
  modification/repair

3
4 front sizes are prepared
PXR series digital controller

• Fulfilling customers choice, 1/32, 1/16, 1/8
  1/4 DIN sizes are available.

4
Various options
PXR series digital controller

• DC 4 to 20mA Re-Transmission Output
• 8 Step Lamp-soak Time Program
• RS485 communication(Modbus Z-ASCII)
• Digital Input (Remote setting function)
• Heat/cool dual control output
• Heater burnout alarm
• Various kind of alarms

5
Large Display
PXR series digital controller

• Easy to read!!

PXW4(Conventional) PXR4 Large display an
essentially important!
6
Short Depth
PXR series digital controller

• Short depth contributes to build a smaller and
  thinner panel machine

PXW4 (Conventional)
PXW5(Conventional)
PXR5 New model
PXR4 New model
7
Front Waterproof IP66/NEMA-4X
PXR series digital controller

• Waterproof front structure enables washing of a
  panel mounting PXR!
• Since waterproof is standard specification of
  PXR, NO additional adder in price is required!

8
PXR series digital controller
Optional

• Adapter for DIN rail mounting

• Protection cover for terminals

Terminal cover
9
Various control functionsinclude fuzzy PID
control, auto-tuning and self-tuning as standard
equipment
PXR series digital controller

• Self-tuning
• At power on, changing a set value or during
  external disturbance, tuning is made
  automatically so that the PID parameters are
  re-optimized.

• Fuzzy control
• Suppressing the overshoot without wasting start
  up time.
• Also quickly reverts to set points at the event
  of external disturbance.

10
PXR series digital controller
11
PXR series digital controller
12
PXR series digital controller
13
PXR series digital controller
14
PXR series digital controller
15
PXR series digital controller
16
PXR series digital controller
17
PXR series digital controller
18
PXR series digital controller
19
Plug-in PCB structure to reduce parts for
modification/repair
PXR series digital controller

• Just 3 plug-in PCBs provide more than 2000
  variety
• PCB I Main PCB with 1st control output
• PCB II Power supply PCB with alarm output(s)
• PCB III Option PCB for 2nd control output and
  various options

20
PCB I, II, III
PXR series digital controller
PCB III (Option)
PCB I (Main)
PCB II (Power supply)
21
Plug-in PCB structure to reduce parts for
modification/repair
PXR series digital controller

• To fulfill ex-stock delivery for various
  customers choice,
• Conventional controller needs
• 2 x 3 x 4 x 6 x 2 x 7 2,016 kinds of parts in
  its inventory
• PXR series just needs
• 5 3 6 14 kinds of parts!!

22
Plug-in PCB structure to reduce parts for
modification/repair
PXR series digital controller

• PCB I Main PCB
• T/C or RTD input
• Voltage/current input

3 small parts for output signal Relay SSR 4-20mA
Can modify easily with soldering iron.
T/C RTD
V/C input
23
PCB I (Main PCB)
PXR series digital controller
(Relay or SSR or 4-20mA)
24
PXR series digital controller
Plug-in PCB reducing parts for modification/repair
PCB II Power supply PCB
Alarm output relay Without alarm or 1 pc 2 pcs
3 pcs
AC power board
DC power board
25
PCB II (Power Supply PCB)
PXR series digital controller
Alarm
26
PXR series digital controller
Plug-in PCB reducing parts for modification/repair

• PCB III Option PCB
• C1
• C2
• C3
• C4
• DI Digital Input, HB Heater Burnout Alarm

RS485 DI
Re-transmission or 2nd control
output Relay SSR 4-20mA
RS485
DI x2
HB
27
PCB III (Option PCB)
PXR series digital controller
Relay (SSR or 4-20mA)
28
PXR series digital controller
Plug-in PCB reducing parts for modification/repair

• 6,048 kinds combination can be made of Front
  panel x 3 14 kinds parts
• PXR4
• PXR5
• PXR9

3 small parts for output signal Relay SSR 4-20mA
T/C RTD
V/C input
AC power board
Alarm output relay Without alarm 1 pc 2 pcs 3
pcs
DC power board
RS485DI
Re-transmission or 2nd control
output Relay SSR 4-20mA
RS485
DI x2
HB
29
Improvement on the conventional controller
Conventional PXW/PXZ New PXR
Control function On-Off, PID, Fuzzy logic, Auto-tuning, Dual-out On-off, PID, Fuzzy logic, Auto-tuning, Self-tuning, Dual-out
Lamp/soak function 4 step 8 step
Front waterproof Option Standard IP66(NEMA-4X)
Other option None RS485 communication DC4 to 20mA re-transmission Timer function Digital input x 2
Alarm output 2 points(at max.) 3 points(at max.)
30
The End
