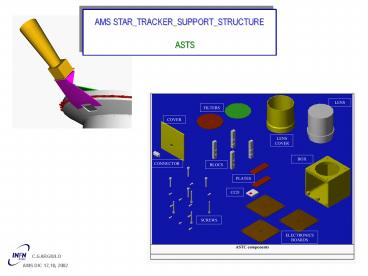

AMS STAR_TRACKER_SUPPORT_STRUCTURE ASTS

2
(No Transcript)
3
ASTS 0o 30o
4
ASTS 0o
Lens-cover-filter
0.768 Kg
Collar M70x1
0.100 Kg (4.8kg/dm3)
CCD board
0.070 Kg
Upper support structure
0.270 Kg (1.6kg/dm3)
Electronics board
0.150 Kg
Lower support structure
0.680 Kg (1.6kg/dm3)
5
ASTS 30o
Upper support structure
0.270 Kg (1.6kg/dm3)
Lower support structure
0.700 Kg (1.6kg/dm3)
6
ASTC
7
ASTS 0o
135
Electronics board
Measures mm
80
185
CCD board
50
50
8
ASTS 30o
135
Electronics board
Measures mm
80
185
ccd board
50
50
9
ASTS Material options
Thermoset resins Toughened epoxies Ciba/Broch
ier Vicotex M18 Fiberite 977-2 Cyanamid Cycom
950-1 Ciba Geigy Fibredux 924 Cyanate
ester YLA RS3 YLA RS12 Fiberite
954-3 Bryte EX-1515 Cyanomid Cycom 785 UHM
Carbon fiber Toray M55J/M60j Mitsubishi Dialed
K135/k137/k139 Nippon Granoc XN-50/XN-70 UHM
CFRP PREPREGS Ciba Geigy/Brochier Vicotex
M18/TorayM55J Cynamid Cycom 950-1/M55J Fiberite
934/M55j YLA RS3 (Cynate Ester)/(XN-50A) YLS50
or M55J
