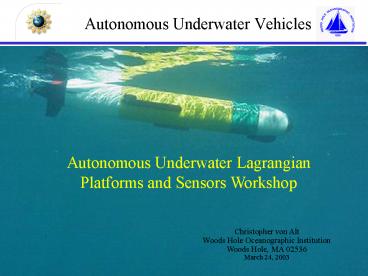

Autonomous Underwater Vehicles

1
Autonomous Underwater Vehicles
Autonomous Underwater Lagrangian Platforms and
Sensors Workshop
Christopher von Alt Woods Hole Oceanographic
Institution Woods Hole, MA 02536 March 24, 2003
2
Outline

• Background
• History
• Current Status
• The Future

WHOI Fast Fish (A. Bradley)
3
Autonomous Under Vehicles

• Driven by a propulsion system
• Controlled and piloted by an onboard computer
• Maneuverable in three dimensions
• Support spatial and time series measurements
• Normally provide superior quality data
• Support multiple vehicle operations
• Can insure adequate spatial and temporal sampling

• Support investigations of spatial and temporal
  coherence

4
Comparison with other Lagrangian Platforms

• Benefits
• Control of survey
• Adequate power for most sensors
• Adequate power to continuously sample
• Drawbacks
• Limited endurance 8 - 50 hours
• Higher platform costs
• Lower number of platforms less access

5
Benefits of AUVsWater column measurements

• Stop and float requires ballast control
• Actively loiter
• Constant altitude above the bottom
• Constant pressure or layer of interest
• Sea saw or saw tooth sample pattern
• Seafloor surveys acoustic or optical

6
Time series measurements
Over 500 km mapped in 100 hours.
7
San Luis Bay Spatial Time Series
REMUS transect
M. Moline California Polytechnic State University
8
Bioluminescence Sensor
Developed by Mark Moline at Cal Poly, Cyril
Johnson, Jim Case at UCSB
9
San Luis Bay Weekly Deployments
.
M. Moline California Polytechnic State University
10
Monterey Bay Spatial Time Series
.
M. Moline California Polytechnic State University
11
August 20, 2002
M. Moline California Polytechnic State University
12
CC Technologies Hugin Vehicle380 sq-km region
13
Temperature and Sound Speed Data
14
HISTORY
15
Odyssey MIT Sea Grant

• Developed in the early 90s
• Operational 94
• Six vehicles developed
• Characteristics
• Displacement 160 kg
• Survey speed 1.5 m/s
• Max depth 6 km
• Endurance 6 hours
• Notable missions
• AOSN missions docking
• Mission depth 1.4 km
• Mission duration 3 hours

16
ABE - Autonomous Benthic Explorer

• Developed in the early 90s
• Operational 94
• Completed 80 science dives
• Characteristics
• Displacement 680 kg
• Survey speed 0.75 m/s
• Max depth 5 km
• Endurance 34 hours
• Notable mission 1996
• Mission depth 2.2 km
• Mission duration 30 hours

17
International Submarine Ltd

• Thesues
• Developed early 90s
• Operational 94
• Characteristics
• Displacement 8,600 kg
• Survey speed 2 m/s
• Max depth 1 km
• Endurance 100 hours
• Most notable mission 1996
• Deployed 190 km of fiber optic cable on the
  seafloor (500 m) under ice
• Mission distance 365 km
• Mission duration 50 hours

18
Naval Oceanographic Office UUV Program

• Draper UUVs
• WHOI Tracking System
• Penn State- Seahorse
• Semi-Autonomous Mapping System
• UUV Fest

19
Southampton Oceanographic Center Autosub

• Developed early 90s
• Operational 98
• Characteristics
• Displacement 1,700 kg
• Survey speed 1.5 m/s
• Max depth 1.6 km
• Endurance 144 hours
• Notable information
• 271missions/750 hours/3596 km
• Deepest mission 1 km
• Longest mission 50 hours

Offered 2.6 m pounds in 1998
20
Commercial Services CC Technologies, Inc.

• Developed late 90s
• Operational 00
• Characteristics
• Displacement 8,600 kg
• Survey speed 2 m/s
• Max depth 3 km
• Endurance 40 hours
• Most notable missions
• System mapped 17,702 km
• Mission depth 3 km

Kongsberg Simrad HUGIN Vehicle - Norway
21
Status 2003
22
Adaptive SamplingAdaptive Mission Planner (AMP)

• The AMP is a separate brain installed on the
  vehicle
• AMP has the ability to take control of the
  vehicle and provide it with external navigation
  and control commands
• Vehicle takes over if AMP tells it to do
  something dangerous
• During normal operations, the vehicle
• Executes a pre-programmed mission
• Navigates from waypoint to waypoint
• AMP
• On board algorithm adaptively modifies plan based
  on inputs received during the mission from its
  sensors

23
Conventional Appraoch
Conc --gt
0 min Time ( as the UUV conducts its mission)
---gt 24 min
24
Adaptive Plume Following
Spatial Map
Plume Tracing
25
Automated Target DetectionHuman in the loop
4. Acoustic modem on vehicle transfers data to
HSV-1 via an RF link
3. Vehicle CPU Assembles message with target
snippet
1. Vehicle surveys area with sidescan sonar
Modem Buoy With RF Link
2. On Board CAD/CAC autonomously scans sonar
files and identifies targets
HSV 1
5. Target data is analyzed on laptop
26
Redirection of Reacquisition Vehicle
Image snippets sent back, displayed
Reacquisition vehicle is directed to survey
targets with high scores from CAD/CAC
The survey mission is sent to the vehicle via the
acoustic modem and RF link - the vehicle
interprets this message and performs the mission.
Operator creates redirection survey on REMUS VIP
27
Human in the loop Redirection Mission with two
vehicles in the water

1. SCM vehicle performs survey
2. Reacquire vehicle loiters
3. CAD/CAC system passes targets to HSV
4. Reacquire vehicle receives new mission and exits
   loiter location
5. SCM vehicle continues the survey seeking another
   target

28
REMUS 6000

• Stand-alone 6 km rated self contained system
• Transportable - one ISO container
• Productive 3 10 times current survey rates
• Affordable - 1 M/vehicle
• Multiple vehicle operations (Two vehicles may be
  stored in one container.)

29
2,500 m Test Area
30
Mission 13 12nm Redirect
Rim - 2,250 m Base - 3,875 m Depth 1,625
m Transect 20,000 m Slope 4.6 deg
Vehicle Transect
31
Descent Down the North Kaibab Trail
Rim 2,512 m Colorado River 739 m Depth
1,773 m Trail Length 22,000 m Slope 4.6 deg.
Bright angel point
32
Future
33
Benefits of AUVsShip based deep water operations

• Increase survey speeds
• Precise feature following
• Acoustic communication
• Uplink sensor data
• Redirect mission or reconfigure sensors
• Superior data quality
• Portability
• Cost effective 40 to 60 savings

34
CC Technologies, Inc.

• Yearly support costs 14 million
• Ship, software engineers, consumables, parts and
  depreciation.
• Adequate utilization main problem not enough
  business to support the capabilities of the
  system.
• Offering 50 days of AUV time per year for 60k/day

35
Cross Shelf and Shelf Break System
