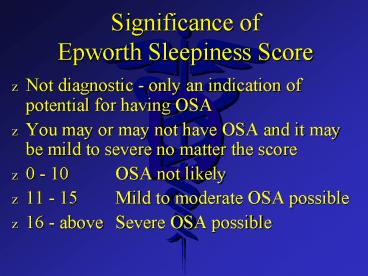

Significance of Epworth Sleepiness Score

1
Significance of Epworth Sleepiness Score

• Not diagnostic - only an indication of potential
  for having OSA
• You may or may not have OSA and it may be mild to
  severe no matter the score
• 0 - 10 OSA not likely
• 11 - 15 Mild to moderate OSA possible
• 16 - above Severe OSA possible

2
Preliminary Diagnosis

• Snoring only
• Snoring and potential upper airway sleep disorder

• Definite disorder OSA or UARS

3
Oral Devices for TreatingSnoring and
Obstructive Sleep Apnea
4
Oral Devices Indications

• Recommended for snoring and mild to moderate
  sleep apnea if CPAP unsuccessful.
• Practice parameters for the treatment of snoring
  and obstructive sleep apnea with oral devices.
  An American Sleep Disorders Association Report.
  Sleep. 199518(6)511-13

5
Problems with MADs after long term use (3 years
or more)

• Minor jaw/facial, tooth, muscle pain 40
• Xerstomia 30
• Very Satisfied 82
• Satisfied 15
• Painless but irreversible change in occlusion -
  26

GT, Sohn JW, Hong CN. Treating obstructive sleep
apnea and snoring assessment of an anterior
mandibular positioning device. J Am Dent Assoc.
2000131765-71.
6
CLINICAL IMPLICATIONS

• Patients with mild-to-moderate OSA who receive a
  two-piece, adjustable MAD should be informed that
  50 percent of patients quit using the device in a
  three-year period and some will experience shifts
  in their occlusion.

7
Good Candidates

• Younger age
• Lower BMI
• Lower AHI
• gt8 mm mandibular protrusion but more side effects
• Neck size lt17 F or lt20 M
• Class II occlusion
• Mild to moderate SDB

Dr. Kathleen Ferguson, MD / Dr. Sheri Katz, DDS
8
Poor Candidates

• Morbid Obesity
• Obesity-Hypoventilation
• Severe OSA
• Significant Hypoxia
• Severe Sleepiness
• Class III occlusion
• Less than 6 8 mm protrusive capacity

Dr. Kathleen Ferguson, MD / Dr. Sheri Katz, DDS
9
Device Treatment Options

• Tongue Retaining Device (TRD)
• Mandibular Advancement Device (MAD)

10
Tongue Retaining Device(TRD)

• Laboratory fee - 150

11
TRD Findings

• Altered the timing of the inspiratory
  genioglossus (GG) activity and the onset of
  inspiration effort
• Oxygen desaturation index dropped to fewer than
  10 events/ h in 75 of patients
• Significantly improved the blood oxygen
  saturation level in infants
• Helped patients with mild to moderate OSA
  however, patients with more severe OSA may also
  be treated effectively

12
Indications for TRDs

• Edentulous patients
• Patients with potential temporomandibular joint
  problems

Problems with TRDs

• Sore tongue
• Tongue elongation

13
Tongue Retaining Device
14
Kelgauge
15
(No Transcript)
16
(No Transcript)
17
(No Transcript)
18
(No Transcript)
19
Mandibular Advancement Devices

• Fixed - 100 - 500
• Adjustable - 300 - 800

20
Fabrication of an Adjustable Laboratory
Fabricated Device
21
Adjustable MADs

• Mx / md diagnostic casts
• 75 protrusive record
• Indicate existing fixed restorations and
  periodontal status of patient
• Minimal insertion time
• Patient adjusts device as needed until snoring
  stops and no discomfort

22
(No Transcript)
23
Practice CR to maximum protruded position
24
(No Transcript)
25
(No Transcript)
26
(No Transcript)
27
(No Transcript)
28
Patient closing in the pre-selected
protruded position
29
An interocclusal recording is made using the
wax matrix
30
(No Transcript)
31
(No Transcript)
32
(No Transcript)
33
(No Transcript)
34
(No Transcript)
35
(No Transcript)
36
(No Transcript)
37
(No Transcript)
38
Adjustment of the device must be made depending
on device fabricated
39
Patient instructions for adjustment(depends on
device but typical)

• No adjust for first 3 nights to allow patient to
  become accustom to device
• Protrude device 0.25 mm per night for 3 4
  nights, stop, check for improvement
• Protrude device 0.25 mm per night for 3 4
  nights, stop, check for improvement
• Continue until symptoms are relieved or reduced
  or TMJ symptoms develop

40
Evaluation

• Following relief of symptoms allow patient to
  wear device for 2 4 weeks
• Have patient wear a Pulse Oximetry device and
  determine success of treatment
• Continue adjustments and followup Pulse Oximetry
  or
• Refer to Physician for reevaluation (2nd
  polysomnography)

41
(No Transcript)
42
Medical-legal Considerations

• Device may initiate TMJ problems
• Permanent tooth movement
• Loss of posterior occlusion overnight
• Potential loosened fixed restorations
• OSA may become more severe with oral devices!
• OSA may be Life Threatening!!!!!!
• You must use a Consent Form

43
Patient Should Expect

• Lips will be very dry - lip balm
• Difficulty going to sleep for a few nights
• Lots of saliva - on pillow
• Teeth may become sensitive - seek care
  immediately - usually slight adjustment

44
Patient Should Expect

• For approximately 20 minutes upon awakening teeth
  will not close together - dont force closure -
  no treatment
• TMJ discomfort - May be sore for a few minutes
  during early adjustment, must be relieved by
  moving mandible posteriorly

45
Is Insurance Coverage Available? Yes and No

• Yes - medical insurance coverage is possible for
  treatment of a sleep apnea problem
• No - medical insurance coverage for a snoring
  only problem
• No - dental insurance coverage for either

46
Treating OSA with Oral Devices
MD exam 100 500 Initial Sleep Study 900
1800 Device and Follow-up 800 2000 Pulse
Oximetry 35 200 Repeat Sleep Study 900
1800 Total 2735 6300
47
Consent Form Before Treating

• Device for treatment of snoring and/or OSA
• May cause existing dental restorations to
  loosened or fail
• Epworth sleepiness score and significance - ie
  low score doesnt eliminate OSA

48
Consent Form Before Treating

• Cease wearing and return to dentist immediately
  if any problems develop - TMJ, occlusal changes,
  etc
• Device may only be partially successful
• Device may increase severity of an existing OSA

49
One Westbrook Corporate CenterSuite
920Westchester, IL 60154(708) 273-9335Annual
Membership 295Quarterly - ADSM
ReportQuarterly Sleep and Breathingwww.
dentalsleepmed.org
Academy of Dental Sleep Medicine
