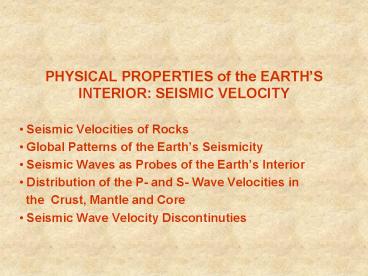

PHYSICAL PROPERTIES of the EARTHS INTERIOR: SEISMIC VELOCITY

1
PHYSICAL PROPERTIES of the EARTHS INTERIOR
SEISMIC VELOCITY

• Seismic Velocities of Rocks
• Global Patterns of the Earths Seismicity
• Seismic Waves as Probes of the Earths Interior
• Distribution of the P- and S- Wave Velocities in

• the Crust, Mantle and Core
• Seismic Wave Velocity Discontinuties

2
Seismic Velocities of Rocks

• The factors affecting the seismic velocity are
• 1) Elastic properties of rock forming minerals
  (rock composition)
• 2) Cracks, fractures and pores
• 3) Anisotropic effects (direction dependency of
  velocity)
• 4) Temperature
• 5) Pressure
• 6) Fluid content
• 7) Saturation
•

3

• The seismic velocity parameters of the Earths
  interior are obtained
• from the following sources
• Meteorites
• Xenoliths
• Seismological observations
• Deep drilling on continents ( maximum depths
  Underground Mining 3 km Petroleum wells 8 km
  Research wells 12 km)
• Laboratory measurements
• Seismic sources (artifical, natural)
• Overthrusts (Ivrea Zone, Italy)

4
(Plummer McGeary, 1991)
5
(Plummer McGeary, 1991)
6
(Plummer McGeary, 1991)
7
(Plummer McGeary, 1991)

• Olivine (Mg,Fe)2 SiO4
• Pyroxene (Mg,Fe) SiO8
• Amphibole Group
• (Ca2Mg5)Si8O22 (OH)2
• Mica Group
• Clay Group
• Kaolinite Al2Si2O5(OH)4

8
Diagram of the crystal structure of olivine
(Plummer McGeary,1991)
9
P? H400 km gt The molecules collapses into a
denser form (Geller Stein, 1986)
10
The common extrusive rocks (Plummer and McGeary,
1991)
11
Most common igneous rocks (Plummer and McGeary,
1991)
12
(Press and Siever, 1997)
13
Sedimentary rocks (Smith, 1981)
14
The metamorphic facies (Plummer McGeary, 1991)
15
Mean-value range of longitudinal and transeverse
wave velocities for groups and types of some
commonly occuring rocks (Schön, 1998)
16
The velocity of elastic waves in different rock
types

• Magmatic and metamorphic rocks
• The velocity variations are caused by the
  influences of
• differences of the rock composition,
• effects of cracks, fractures and pores,
• anisotropic effects (especially metamorphic
  rocks),
• temperature and pressure.
• Sedimentary rocks
• The velocity variations are caused by the
  influence of
• mineralogical composition of the rock matrix,
• consolidation and cementation of the rock
  matrix,
• porosity, pore space and pore content,
• pressure and temperature.

17

• (Schön, 1998)

18
The dependency of elastic wave velocity on
pressure and temperature

• T ? ? V ?
• P ? ? V ?

19
(Plummer McGeary, 1991)

• Global Patterns of the Earths Seismicity

20
(Plummer and McGeary, 1991)
21

• Divergent Plate Boundaries
• A narrow belt of shallow-focus earthquakes
• Oceanic ridges
• Shallow earthquakes
• 15 km depth
• Small magnitude
• Normal Faulting
• Intrusion of basaltic magmas
• Transform Plate Boundaries
• Transform Faults
• Shallow focus earthquakes in the area between
  the ridges
• Subduction Zones
• Intense earthquake activity
• Convergent plate boundaries
• Shallow-intermediate deep earthquakes
• Trenches
• 670 km (max)

22

• Collision Zones
• A wide belt of shallow earthquakes
• The Himalayas the Tibetan Plateau
• No deep earthquakes (no subduction zone)
• Interplate Seismicity
• Plate boundaries
• Continental platforms
• Infrequent scattered shallow focus earthquakes
• Eastern Africa
• Western United States
• Minor shallow earthquakes (only 0.5 of total
  energy releases by this way)
• (Hamblin and Christiansen, 1998)

23
(Press Siever, 1997)

• Seismic Waves as Probes of the Earths Interior

24
(Press Siever, 1997)
25
(Press Siever, 1997)

• Distribution of the P- and S- Wave Velocities
• in the Crust, Mantle and Core

26

• (Bott, 1982)

27

• THE CRUST (Press Siever, 1997)
• Continental crust
• Thickness 25-70 km
• Rock types Felsic (Granitic)
• P-wave velocity 6 km/s
• Density 2.7 g/cm3
• Oceanic crust
• Thickness 8 km
• Rock types Mafic (Basalt Gabbro)
• P-wave velocity 7 km/s
• Density 3.0 g/cm3
• Crust-Mantle Boundary Mohorovicic
• (Andrija Mohorovicic, Yugoslavian
  seismologists, 1909 )
• Upper Mantle
• Rock types Ultramafic (Peridotite)
• P-wave velocity 8 km/s
• Density 3.3 g/cm3

28
(Plummer and McGeary, 1991)
29

• THE MANTLE
• Rock type Peridotite (Olivine and Pyroxene
  minerals)
• Olivine Fe2SiO4 Fayalite
• Mg2SiO4 Forsterite
• Pyroxene MgSiO3 Enstatite
• FeSiO3 Orthoferrosilite
• Depth ?? P ? T ? ? Atoms of Olivine and
  Pyroxene become closer. ? More
• compact structures
• a) Lithosphere (100 km) The S-wave passes
  easily.
• b) Asthenosphere (100-200 km) Vs ?
• The waves are partially absorbed. ? Zone of
  weakness (partially fluid solid)
• At mid-ocean ridges, the asthenosphere is close
  to the surface.
• The asthenosphere is the source of basaltic
  magma.
• c) 200-400 km Depth ?? Vs ? gradually
• d) 400 km P ? T ? ? olivine ? spinel ?
  perovskite (a change in crystal
• structure a repacking of atoms more closely)

30

• e) 450-650 km The velocity of S-wave is almost
  constant.
• f) 670 km The velocity of S-wave increases
  rapidly. The atoms must be
• packed even more closely.
• Spinel phase ? Magnesiowustite (Mg,Fe)O
  Perovskite (Mg, Fe) SiO3
• g) 700-2900 km Lower mantle
• Vs ? gradually (little change in composition and
  crystal structure)
• THE CORE
• 2900-5100 km Outer core (86 Fe,12 S, 2 Ni) ?
  fluid
• P-wave travels but S-wave doesnt.
• 5100-6370 km Inner core (80 Fe, 20 Ni) ?
  solid
• P ? T ? ? The increase in velocity ? solid iron
  core
• Mantle Core Boundaries ? Compositional changes
• 400 600 km Boundaries ? Phase changes ( denser
  minerals)

31

• Press Siever, 1997

32
Moho and Mantle-Core boundary Compositional
changes400 and 670 km discontinuties Phase
changesOlivine Fe2SiO4 (Fayalite), Mg2SiO4
(Forsterite)Pyroxene MgSiO3 (Enstatite), FeSiO3
(Orthoferrosilite)Garnet A3B2(SiO4)3 A Ca,
Mg, Fe B Al, Fe, CrMgWustite (Mg,
Fe)OPerovskite (Mg,Fe)SiO3
(Hamblin Christiansen, 1998)
33
(Bott, 1982)

• Seismic Wave Velocity Discontinuties

34
S-wave velocity versus depth (Smith, 1981)
35
(Hamblin Christiansen, 1998)
36
Appendices
37
(Plummer and McGeary, 1991)
38
(Plummer and McGeary, 1991)
39
(Plummer and McGeary, 1991)
40
(Plummer and McGeary, 1991)
41
REFERENCES

• Bott, M.H.P., 1982, The Interior of the Earth
  its structure, constitution and
• evolution, Elsevier, p 5-10, 30-49, 87-98,
  119-124, 150-161, 229-239
• (ITU Mustafa Inan Library, QE 28.2 .B68).
• Geller and Stein, 1986, Chapter 3, Seismology and
  Earth Structure.
• Hamblin and Christiansen, 1998, Earths Dynamic
  System, Brigham Young
• University, Provo, Utah, p 470-495 (ITU Mustafa
  Inan Library, QE 28.2 .H36)
• Plummer C.C. and McGeary, D. 1991, Physical
  Geology, Wm.C. Brown Pub.,
• p 345-380 (ITU Mustafa Inan Library, QE 28.2
  .P58).
• Press and Siever, 1997, Understanding Earth, W.H.
  Freeman and Company,
• p 459-495 (ITU Mustafa Inan Library QE 28 .P74
  1997)
•
• Schön, J.H., 1998, Handbook of Geophysical
  Exploration, Seismic Exploration, V 18 Physical
• Properties of rocks Fundamentals and Principles
  of Petrophysics, Pergamon press,
• p 149-205 (ITU Mustafa Inan Library, 431.6 P5 S34
  1998).
