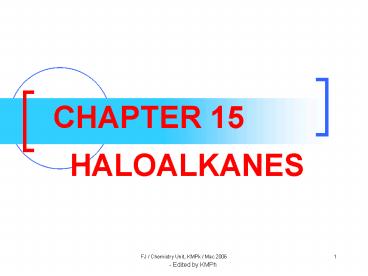

HALOALKANES

1
CHAPTER 15

• HALOALKANES

- Edited by KMPh
2
Learning outcomes

• Give the general formula of haloalkane.
• Draw the structures, classify and name 1?, 2? and
  3? haloalkanes according to the IUPAC
  nomenclature.
• Describe haloalkanes contain polar bond, carbon
  bearing the halogen is susceptible to
  nucleophilic attack.

V1 Intro
3
Introduction

• Haloalkanes or alkyl halides
• - compounds that contains halogen atom as
  functional group.
• - In alkyl halides, halogen atoms are bonded to
  sp3 hybridized carbon atom.
• General formula R-X
• or CnH2n1X (acyclic)
• or CnH2n-1X (cyclic)

• where X halogen atom (F,
  Cl, Br or I)

4
Classification of Haloalkanes
Haloalkanes are classified based on the carbon
atom to which the halogen is directly attached.
5
(No Transcript)
6
Example

• Classify the following haloalkanes

7
IUPAC Nomenclature

• Haloalkanes are named as alkanes with halogen as
  substituents.
• Locate and number the parent chain from the
  direction that gives the substituent encountered
  first the lower number.
• Show halogen substituents by the prefixes
  flouro-, chloro-, bromo- and iodo-, and list them
  in alphabetical order along with other
  substituents.

8
Example

• i.
• ii.

2-bromobutane
1-bromo-3-chloro-4-methylhexane
9
Example

• iii.
• iv.

4-(2-flouroethyl)heptane
2-chloro-1,1-dimethylcyclopentane
10
Example

• v. vi.
• vii.

4-bromocyclohexene
(chloromethyl)benzene
2-chlorotoluene
Video 2 (name class)
11
Structure of Haloalkane

• Alkyl halides are polarized at the carbon-halide
  bond, making the carbon electrophilic
• The polar C X bond causes the carbon bearing
  the halogen is susceptible to nucleophilic attack.

d
d-
electrophilic site
electronegative halogen polarizes C-X bond
?-
?
Nu - attack at positive center
Video 3(Physical Properties)
12
Substitution Reactions
?
?-

• As a result from Nu- attack at electrophilic
  C?, the C-X bond breaks heterolytically and X-
  leaves.
• The group replacing X- is a nucleophile.
• Haloalkanes are reactive and undergo nucleophilic
  substitution.

13
Nucleophilic Substitution Reaction
Heterolysis cleavage
Leaving group
