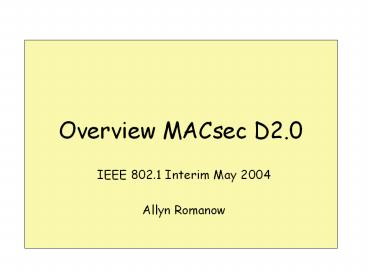

Overview MACsec D2.0

1
Overview MACsec D2.0

• IEEE 802.1 Interim May 2004
• Allyn Romanow

2
Outline

• Disposition of comments for D1.2
• Changes in D2.0 Re-org of material
• Cipher Suite changes no null C.S., E bit
• Keys
• EPON
• Parameter enhancements
• Deployment, Debugging, Other Management
• SecY Operation, Interface with KaY

3
Re-organization of Material(Intro notes to
current draft)

• Cl 8 SecY Operation lt-gt cl 10 MACsec protocol
• State machine cl 15
• EPON support in cl 8.4
• Cl 7 -gt cl 11 MACsec in Systems (ES B), cl 16
  Securing Networks (LAN PB)

4
Keys

• Master Key pre-shared or established by
  authentication, longer lived
• Secure Association Key (SAK)
• Key for the SA, short lived
• Sometimes called transient key
• Shared, private key
• Get a new one from Master Key when PN wraps, or
  timer expires
• Need to store 3 SAKs

5
Interoperability, Migration

• Previously, Null Cipher Suite
• Now, through management controls, E bit saying
  whether there is encryption, cl 10.1 SecY
  Overview, E bit is bit 3 in TCI
• Got rid of Null Cipher Suite and Include Tag-
  reduces unnecessary complexity

6
EPON

• Single Copy Broadcast SCB

7
Management

• Controls, monitors, reports
• Maintains and uses info for
• The SecY
• The CA
• Each SC in the CA
• Each SA that supports and SC
• Operational parameters include
• MAC status (cl 6.4)-- MAC_Enabled,
  MAC_Operational
• Point to point (cl 6.5) --operPointToPointMAC,
  AdminPointToPoint MAC

8
SecY Management Parameters

• SecY Parameters
• List of Cipher Suites
• C. S. selected
• Cipher Suite Parameters
• Confidentiality Provided- E bit
• C.S. identifier
• Secure data length- user data length
• ICV length

9
SecY Management Parameters

• CA Parameters
• Transmit SC
• List of Receiver SCs
• Transmit SC
• SCI
• EncodingSA
• EncipheringSA

10
SecY Management Parameters

• Receiver SC
• SCITransmit or Receive
• SAs(set of 4)
• Statistics
• Transmit SA
• SCI
• AN
• InUse?
• SAK
• Next PN

11
SecY Management Parameters

• Receive SA
• SCI
• AN
• In use?
• SAK
• LastValidatedPN?

12
Deployment Debugging
13
MacSEC Operation
14
SecY Overview
15
KaY Direct Use of SecY Uncontrolled
16
KaY Use of SecY Uncontrolled and Controlled
17
SecY Operation
