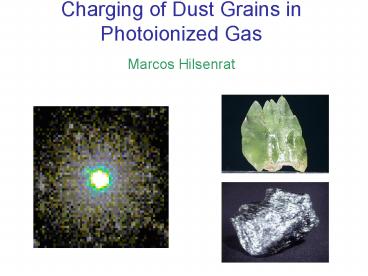

Charging of Dust Grains in Photoionized Gas Marcos Hilsenrat

1
Charging of Dust Grains in Photoionized
GasMarcos Hilsenrat
2
Outline

• AGNs (Brief introduction)
• Gas interaction with ionizing radiation
• Scientific background
• Evidence for dust in AGNs
• Research goals
• Calculations and results
• Basic assumptions
• Calculation steps
• Results and discussion

3
Active Galactic Nuclei

• Energetic phenomena in central regions of
  galaxies which cannot be attributed to stars.
• Strongest persistent sources of ionizing
  radiation in the Universe.
• The ionizing radiation is produced by gas
  accreting onto the central massive black hole.
• The two largest subclasses of AGNs are
• - Seyfert galaxies - LSeyfert Lgalaxy
• - Quasars - Lquasar 100 Lgalaxy

4
Gas interaction with ionizing radiation

• The temperature and ionization state of
  photoionized gas are set by interaction with the
  radiation field.
• Low radiation intensity and energy ? gas tend to
  be cold and neutral.
• Photon flux and energy rises ? gas ionization
  state increases, but its temperature remains
  nearly constant at T 104 K because the line
  cooling effect (Osterbrock 1989).
• Above a critical ionization parameter, U nph/
  ne
• ? high ionization state ? inefficient line
  cooling
• ? runaway to Compton temperature, TC.
• For AGNs, TC 107 K (e.g. Krolik 1999).

5
Gas interaction with ionizing radiation (cont)

• About 1 of the gas mass in the Galactic ISM is
  in the form of small solid grains (e.g. Whittet
  1992).
• Inelastic scattering of electrons on the grains
  is an ionization independent cooling mechanism
  which increases with Te ? dominant at high enough
  U.
• This cooling may stop the gas from reaching TC.
• Grain surface provides a recombination site for
  incident ions ? may lower the ionization state of
  the gas.
• From X-ray absorption spectra ? presence of
  highly, but not fully ionized plasma, not
  reaching TC (e.g. George et al. 1998).
• Dust is rapidly spattered at Te gt 106 K (Draine
  Salpeter 1979).
• Only if Te lt 106 K, dust may have a major effect
  on the temperature and ionization state of
  photoionized dusty gas in AGNs.

6
Gas equilibrium temperature

• Simple analytic estimates suggest that Te may be
  kept below 106 K.
• (Gas Osterbrock 1989, Dust Draine 1978)
• For typical values in a pure H region, the level
  of ionization is
• x nHII/nHI ? 3 x 103 U
• As U increases, x increases, therefore
• nH nHII ? ?gas? 2 x 10-18x-1cm2
• ?dust? 1.4 x 10-21 cm2/ (H atom) is
  independent of U
• For U gt 3 x 10-3 ? ?dust gt ?gas

7
Gas equilibrium temperature (cont.)
8
Gas equilibrium temperature (cont.)
9
Evidence for dust in AGNs
10
Research goals

• Interactions of X-ray photons with grains
• Grain photoelectric yield
• Energy spectrum of ejected photoelectrons
• Heating and cooling rates of gas by dust
• Equilibrium grain charge as a function of grain
  size, composition, gas density and ionizing flux
• Gas equilibrium temperature

11
Basic assumptions

• Ionizing source (relevant to AGNs)
• Luminosity 1044 erg s-1
• Distance 1 pc
• Shape of the radiation field
• Gas (normalizing parameters)
• Composition Hydrogen
• Temperature 104 K
• Density 1 cm-3
• Dust grains (observational data)
• Composition C (graphite) and (MgFe)SiO4
  (olivine) (e.g. Laor Draine 1993)
• Mass fraction ? mdust/ mgas ? 0.01
• Geometrical shape
• Size distribution

12
Basic assumptions (cont.)

• Shape of the radiation field
• Power law spectrum (e.g. Peterson 1997)
• dnph/dE photons s-1 eV ? Eph-?
• 2 ? 3 ? ? 2.5, Eph 104 eV
• Grains geometrical shape
• Low polarization of extincted light (e.g. Draine
  Lee 1984) ? nearly spherical shape
• Grains size distribution
• Stellar light extinction ? MRN grain size
  distribution (Mathis, Rumpl Nordsieck 1977)
• dn(a)/da ? a-3.5, 0.005 ?m a 0.25 ?m
• Optical geometry approach
• Photons travel in straight lines, ignoring
  refraction and reflection inside the grain

13
Basic assumptions (cont.)

• Photoelectron current from grain (e.g. Evans
  1991)
• Incoming current from ions and electrons
  impinging on grain from Draine Sutin (1987)
• In electrostatic equilibrium

14
Calculation steps

• Grain composition and photon energy range
  bound-free absorption cross section
• Grain optical depth parameter and absorption
  efficiency
• Pathlength distribution function
• Energy of photoelectrons at their formation
  points, including Auger electrons
• Electrons range
• Energy distribution of photoelectrons at grain
  surface
• Integration over the power law ionizing continuum
  and next, over the MRN size distribution
• Current of impinging electrons and ions on grain
• Grain potential to obtain a zero total current

15
Bound-free absorption cross section

• Calculated with the fit parameters given by
  Verner Yakovlev (1995)

16
Grain absorption efficiency

• grain optical depth parameter ?? 2an??

17
Absorption efficiency for extreme grain radius in
the MRN grain size distribution
18
Absorption efficiencyaccurate vs. simplified
calculations

• Accurate to 20 above 10 eV, and to better
  than 1 above 100 eV.

19
Pathlength distribution function Distribution of
distances traveled by photoelectrons from their
emission point to the grain surface (Voit
1991)Angular distribution of velocities (Agarwal
1991)

• 1. Distribution of dimensionless escape
  pathlengths
• 2. Probability of photoabsorption between ? and
  ? d ? for a given ??

20
Pathlength distribution function (cont)

21
Pathlength distribution function (cont)
22
Electron energy deposition in matter

• Ee Eph Ebind
• R(Ee) Column density of the material necessary
  to stop an electron with initial energy Ee.
• Fittings from Ashley Anderson (1981) and Ashley
  (1990)

23
Electron ranges(Comparison with Dwek Smith
(1996))
24
Electron energy distribution on grain surface for
specific grain radius
25
Energy carried away by escaping
electrons(Comparison with Dwek Smith (1996))
26
Integration over the power law ionizing continuum
27
Integration over the MRNgrain size distribution
28
Incoming current (Draine Sutin (1987))Maximal
grain potential (Draine Salpeter (1979))
29
Calculation of grain equilibrium charge
30
Equilibrium charge and equilibrium current as
function of grain radius
31
Grain equilibrium potentialHeating and cooling
rates

• Vg(graphite) (993.84 ? 11.13) V
  Vg(silicate) (2274.27 ? 41.03) V

32
Minimal surviving grain size as function of the
distance to the continuum source
33
Summary

• Flexible code
• Build in parameter and assumption
• Grain spherical shape
• Optical geometry approach
• Needed Experimental data in the relevant energy
  regime for electron ranges in matter.
• Inclusion of other physical effects
• Sticking coefficient
• Recombination rates on grain surface
• Grain size time dependence sputtering by ion
  impacts
