Peephole Optimization

1

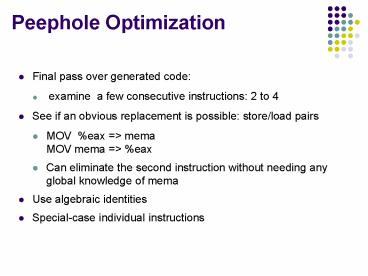

Peephole Optimization

• Final pass over generated code
• examine a few consecutive instructions 2 to 4
• See if an obvious replacement is possible
  store/load pairs
• MOV eax gt memaMOV mema gt eax
• Can eliminate the second instruction without
  needing any global knowledge of mema
• Use algebraic identities
• Special-case individual instructions

2
Algebraic identities

• worth recognizing single instructions with a
  constant operand
• A 2 A A
• A 1 A
• A 0 0
• A / 1 A
• More delicate with floating-point

3
Is this ever helpful?

• Why would anyone write X 1?
• Why bother to correct such obvious junk code?
• In fact one might write
• define MAX_TASKS 1...a b MAX_TASKS
• Also, seemingly redundant code can be produced by
  other optimizations. This is an important effect.

4
Replace Multiply by Shift

• A A 4
• Can be replaced by 2-bit left shift
  (signed/unsigned)
• But must worry about overflow if language does
• A A / 4
• If unsigned, can replace with shift right
• But shift right arithmetic is a well-known
  problem
• Language may allow it anyway (traditional C)

5
Addition chains for multiplication

• If multiply is very slow (or on a machine with no
  multiply instruction like the original SPARC),
  decomposing a constant operand into sum of powers
  of two can be effective
• X 125 x 128 - x4 x
• two shifts, one subtract and one add, which may
  be faster than one multiply
• Note similarity with efficient exponentiation
  method

6
The Right Shift problem

• Arithmetic Right shift
• shift right and use sign bit to fill most
  significant bits
• -5 111111...1111111011
• SAR 111111...1111111101
• which is -3, not -2
• in most languages -5/2 -2
• Prior to C99, implementations were allowed to
  truncate towards or away from zero if either
  operand was negative

7
Folding Jumps to Jumps

• A jump to an unconditional jump can copy the
  target address
• JNE lab1 ...lab1 JMP lab2
• Can be replaced by JNE lab2
• As a result, lab1 may become dead (unreferenced)

8
Jump to Return

• A jump to a return can be replaced by a return
• JMP lab1 ... lab1 RET
• Can be replaced by RET
• lab1 may become dead code

9
Tail Recursion Elimination

• A subprogram is tail-recursive if the last
  computation is a call to itself
• function last (lis list_type) return
  lis_type is
• begin
• if lis.next null then return
  lis
• else return last (lis.next)
• end
• Recursive call can be replaced with
• lis lis.next
• goto start -- added
  label

10
Advantages of tail recursion elimination

• saves time an assignment and jump is faster
  than a call with one parameter
• saves stack space converts linear stack usage to
  constant usage.
• In languages with no loops, this may be a
  required optimization specified in Scheme
  standard.

11
Tail-recursion elimination at the Instruction
Level

• Consider the sequence on the x86
• CALL func RET
• CALL pushes return point on stack, RET in body
  of func removes it, RET in caller returns
• Can generate instead JMP func
• Now RET in func returns to original caller,
  because single return address on stack

12
Peephole optimization in the REALIA COBOL compiler

• Full compiler for Standard COBOL, targeted to the
  IBM PC.
• Now distributed by Computer Associates
• Runs in 150K bytes, but must be able to handle
  very large programs that run on mainframes
• No global optimization possible multiple linear
  passes over code, no global data structures, no
  flow graph.
• Multiple peephole optimizations, compiler
  iterates until code is stable. Each pass scan
  code backwards to minimize address recomputations

13
Typical COBOL code control structures and
perform blocks.

• Process-Balance. if Balance is negative then
  perform Send-Bill else perform
  Record-Credit end-if.Send-Bill.
  ...Record-Credit. ...

14
Simple Assembly perform equivalent to call

• Pb cmp balance, 0 jnl L1
  call Sb jmp L2L1 call
  RcL2 retSb ... retRc
  ... ret

15
Fold jump to return statement

• Pb cmp balance, 0 jnl L1
  call Sb jmp L2 --
  jump to return
• L1 call Rc L2 retSb
  ... retRc ... ret

16
Corresponding Assembly

• Pb cmp balance, 0 jnl L1
  -- jump to unconditional jump
  call Sb
  ret -- folded L1
  jmp Rc -- will become useless
  L2 ret Sb
  ... retRc ... ret

17
code following a jump is unreachable

• Pb cmp balance, 0 jnl Rc --
  folded jmp Sb ret
  -- unreachable L1 jmp
  Rc -- unreachable Sb ...
  retRc ... ret

18
Jump to following instruction is a noop

• Pb cmp balance, 0 jnl Rc
  jmp Sb -- jump to next instruction
  Sb ... retRc ...
  ret

19
Final code

• Pb cmp balance, 0 jnl RcSb
  ... retRc ... ret
• Final code as efficient as inlining.
• All transformations are local. Each optimization
  may yield further optimization opportunities
• Iterate till no further change

20
Arcane tricks

• Consider typical maximum computation
• if A gt B then C Aelse C Bend if
• For simplicity assume all unsigned, and all in
  registers

21
Eliminating max jump on x86

• Simple-minded asm code
• CMP A, B JNAE L1
  MOV AgtC JMP L2L1 MOV BgtCL2
• One jump in either case

22
Computing max without jumps on X86

• Architecture-specific trick use subtract with
  borrow instruction and carry flag
• CMP A, B CF1 if B gt A, CF 0
  if A gt B SBB eax,eax all 1's if B gt A,
  all 0's if A gt B MOV eax, C NOT C
  all 0's if B gt A, all 1's if A gt B
  AND Bgteax B if BgtA, 0 if AgtB AND
  AgtC 0 if B gtA, A if AgtB OR
  eaxgtC B if BgtA, A if AgtB
• More instructions, but NO JUMPS
• Supercompiler exhaustive search of instruction
  patterns to uncover similar tricks
