Phosphoric Acid Fuel cell

1

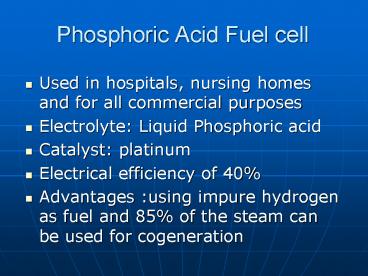

Phosphoric Acid Fuel cell

• Used in hospitals, nursing homes and for all
  commercial purposes
• Electrolyte Liquid Phosphoric acid
• Catalyst platinum
• Electrical efficiency of 40
• Advantages using impure hydrogen as fuel and 85
  of the steam can be used for cogeneration

2
Working Diagram
3
Contd

• The anode and cathode reactions are the same as
  those in the PEM fuel cell with the cathode
  reaction occurring at a faster rate due to the
  higher operating temperature.
• The increased temperature also imparts a slightly
  higher tolerance to impurities and phosphoric
  acid cells can function with 1-2 per cent carbon
  monoxide and a few ppm of sulphur in the reactant
  streams.
• Simple construction, stability and low
  electrolyte volatility

4
Disadvantages

• Disadvantages uses expensive platinum as
  catalyst
• Large size and weight
• Low power and current
• Existing PAFCs have outputs of 200kw and 1Mw are
  being tested

http//www.toshiba.co.jp/product/fc/fce/nature.htm
5
External Reforming Internal Reforming of Fuel

6
Major Fuel cell Plant

7
IMP. LINKS

• Link showing the working of a battery with
  animations
• http//www.dlt.ncssm.edu/core/c17.htm
• Link showing complete overview of phosphoric acid
  fuel cell
• http//www.ch2bc.org/FCHandbook/TechOver1-1F
  CDesc.htm
• Link showing the history of Phosphoric Acid Fuel
  Cell
• http//americanhistory.si.edu/fuelcells/phos/pafcm
  ain.htmTOP

8
Applications

• http//www.fossil.energy.gov/programs/powersystems
  /fuelcells/fuelscells_phosacid.html
• Industrial and other commerical applications are
  in server
• Energy/FC_Materials.doc

9
Activity

• Operating Temperature of Phosphoric Acid Fuel
  Cell?
• 80C
• 600C
• 205C
• 800-1000C

10
Activity

• Electrolyte in phosphoric Acid Fuel Cell?
• Ion exchange membrane
• Phosphoric Acid
• Ceramic
• Liquid Molten Carbonate

11
Activity

• What is the catalyst used in Phosphoric Acid fuel
  Cell?
• Nickel
• Platinum
• Pervoskites
• None

12
Activity

• What Fuel can be used in Phosphoric Acid Fuel
  Cell?
• H2
• CH4 H2O
• COH2O
• All of the above
