Charging By Induction

1
Charging By Induction
Overall (4)
Overall (N)
Sphere (4)
Sphere (4)

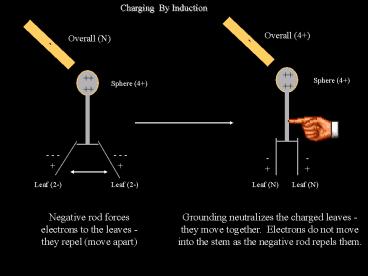

Negative rod forces electrons to the leaves -
they repel (move apart)
Grounding neutralizes the charged leaves - they
move together. Electrons do not move into the
stem as the negative rod repels them.
2
Overall (4)
Overall (4)
Sphere (4)
Remove the rod (-) and the electrons move
throughout the scope again. Its overall charge
is positive so the leaves repel one another.
A negative rod repels the electrons back into the
leaves so they become neutral. They fall back
together.
3
Overall (N)
Sphere (N)
Grounding neutralizes the scope (electrons flow
into it). The entire scope in neutral so the
leaves fall back together.
By using a negative ebony rod and grounding the
electroscope we INDUCED a charge. This is
charging by induction. The process by which an
object having an electric charge produces the
same charge in a neighboring object without
actually touching it.
