Introduction to Truth Maintenance Systems

1

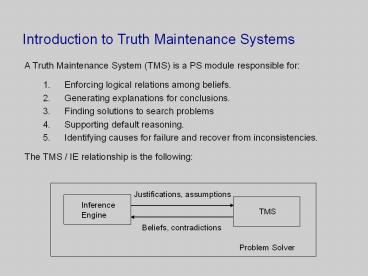

Introduction to Truth Maintenance Systems

• A Truth Maintenance System (TMS) is a PS module
  responsible for
• Enforcing logical relations among beliefs.
• Generating explanations for conclusions.
• Finding solutions to search problems
• Supporting default reasoning.
• Identifying causes for failure and recover from
  inconsistencies.
• The TMS / IE relationship is the following

Justifications, assumptions
Inference Engine
TMS
Beliefs, contradictions
Problem Solver
2

• 1. Enforcement of logical relations
  (constrains) among beliefs.
• Every AI problem which is not completely
  specified requires search. Search
• utilizes assumptions, which may eventually
  change.Changing assumptions
• requires updating consequences of beliefs.
  Re-derivation of those
• consequences is most often not desirable,
  therefore we need a mechanism to
• maintain and update relations among beliefs.
• Example If (cs-501) and (math-218) then
  (cs-570).
• If (cs-570) and
  (CIT-core-completed) then (TMS-related-capstone).
• If (TMS-related-capstone) then
  (AI-experience).
• The following are relations among beliefs
  following from these statements
• (AI-experience) if
  (TMS-related-capstone).
• (TMS-related-capstone) if
  (cs-570), (CIT-core-completed).
• etc.
• Beliefs can be viewed as propositional variables,
  and a TMS can be viewed as

3

• 2. Generation of explanations.
• Solving problems is what PSs do. However, often
  solutions are not enough -
• the PS is expected to provide an explanation for
  the proposed solution so that
• the user can identify the cause of a problem if
  something goes wrong. To
• provide explanations, a TMS uses cached
  inferences.
• The fundamental assumption behind this idea
  is that caching inferences
• once is more beneficial than running
  inference rules that have generated
• these inferences more than once.
• Example Q Shall I have an AI experience after
  completing the CIT program?
• A Yes, because of the TMS
  related capstone.
• Q What do I need to take a TMS
  related capstone?
• A CS-570 and completed core.
• Note There are different types of TMSs that
  provide different ways of explaining
• conclusions (JTMS vs ATMS). In this example,
  explaining conclusions in terms
• of their immediate predecessors works much better.

4

• 3. Finding solutions to search problems.
• Consider the following graph
• B
• A D

• C E
• Assume you want to color the nodes so that every
  node is red, or green, or
• yellow, and adjacent nodes are of different
  colors. Let "1" means "red", "2"
• means "green", and "3" means "yellow". Then, the
  following set of constraints
• describe this problem
• A1 or A2 or A3 not (A1 and B1)
  not (A3 and C3) not (D2 and E2)
• B1 or B2 or B3 not (A2 and B2)
  not (B1 and D1) not (D3 and E3)
• C1 or C2 or C2 not (A3 and B3)
  not (B2 and D2) not (C1 and E1)
• D1 or D2 or D3 not (A1 and C1)
  not (B3 and D3) not (C2 and E2)
• E1 or E2 or E2 not (A2 and C2)
  not (D1 and E1) not (C3 and E3)

5

• To find a solution that satisfies all of the
  constraints, we can use search
• A is red A is
  green A is yellow
• B is red B is green B is yellow
• C is red C is green C is yellow
• D is red D is green D is yellow
• E is red E is green E is yellow

6

• 4. Default reasoning and TMS
• Many real-world problems cannot be completely
  specified. That is, the PS must
• make conclusions based on incomplete information.
  Typically the assumption
• under which such conclusions are drawn is that X
  is true unless there is an
• evidence to the contrary. This is known as the
  Closed-World Assumption
• (CWA). Notice that the CWA helps us limit the
  underlying search space by
• assuming only a certain choice and ignoring the
  others. The reasoning scheme
• that utilizes this assumption is called default
  (or non-monotonic) reasoning.
• Example Consider the following knowledge base
• Bird(tom) and not Abnormal(tom) ?
  Can_fly(tom)
• Penguin(tom) ? Abnormal(tom)
• Ostrich(tom) ? Abnormal(tom)
• Bird(tom)
• -------------------------------------------
  --
• Under the CWA, we assume not Abnormal(tom)
  (because there is no
• evidence that Tom is abnormal). Therefore,
  we can derive can_fly(tom).

7

• 5. Identifying causes for failures and recovering
  from inconsistencies.
• Inconsistencies among beliefs in the KB are
  always possible, especially if the PS
• makes its conclusions based on insufficient
  information. The most common
• reasons for inconsistencies or other failures
  are the following
• -- Wrong data. Example Outside temperature is
  320 degrees.
• -- Impossible constraints. Example (Big-house
  and Cheap-house and
• Nice-house).
• -- Non-monotonic inference. PS is forced to
  jump to a conclusion, because
• of the lack of information, or lack of time to
  derive the conclusion.
• -- Contradictions due to inconsistent data,
  conclusions contradicting the
• existing data, or inconsistent assumptions.
• -- Dynamic data. When the domain evolves, the new
  domain state may be
• considerably different from the previous
  domain state, and inferences
• made in the previous state may no longer be
  valid.
• Cashed dependences among beliefs that TMS
  maintains help identify the reason
• for an inconsistency, and a mechanism, called
  dependency-directed

8
How the TMS and the IE communicate?

• The PS works with
• assertions (facts, beliefs, conclusions,
  hypotheses)
• inference rules
• procedures.
• Each one of these is assigned a TMS node.
• Example
• N1 (rule (student ?x)
• (assert (and (underpaid
  ?x) (overworked ?x))))
• N2 (student Bob)
• Note that the IE and the TMS treat nodes
  differently. Given N1 and N2, the IE
• can infer
• N3 (and (underpaid Bob) (overworked
  Bob))
• This is possible because the IE threats nodes as
  logical formulas, while the TMS
• treats nodes as propositional variables.

9
TMS nodes

• Different types of TMSs support different types
  of nodes. Here are the basic ones
• Premise nodes. These are always true.
• Contradiction nodes. These are always false.
• Assumption nodes. These are nodes, which the IE
  wants to believe no matter whether or not they
  are supported by the existing evidence.
• (Regular) nodes. These are nodes which are
  believed only if there is a valid reason for
  that.
• Each node has a label associated with it. The
  contents and the structure of the
• label depends on the type of TMS. In the simplest
  case, it may only indicate
• whether a node is believed (IN) or not believed
  (OUT).
• Nodes are complex data structures, where
  different node properties are stored.
• Labels are just one of those properties. Other
  properties are node type (premise,
• assumption, etc.), node support (justifications,
  antecedents), node consequences,
• etc.

10
TMS justifications

• Once a new node, N3, is created by the IE, it can
  be reported to the TMS
• together with the fact that it follows from N1,
  N2 and MP. This is recorded in the
• following form, called the justification
• (N3 Modus-Ponens N2 N1)
• Here N3 is called the consequent, Modus-Ponens is
  the informant, N1 and
• N2 are the antecedents of the justification. That
  is, justifications record
• relations among beliefs (N1, N2 and N3 in this
  case), and therefore can be
• used for explaining consequents and identifying
  causes for inconsistencies.
• The general format of justifications is the
  following
• (ltconsequentgt ltinformantgt . ltantecedentsgt)

11
TMS dependency networks

• Nodes and justifications form a dependency
  network. Here is an example
• network
• Node
• Justifications for Node
• one of them is selected to
• be Node's "support", i.e Node's
  consequences these are justifications
• the reason for Node to for other
  nodes of the network, for which Node
• be believed ("IN"). is an
  antecedent.
• See figures 6.8 and 6.9 for examples.

12
TMS / IE interaction

• Responsibilities of the IE
• Adds assertions and justifications.
• Makes premises and assumptions,
• Retracts assumptions.
• Provides advise on handling contradictions

• Responsibilities of the TMS
• Cashes beliefs and consequences and maintains
  labels.
• Detects contradictions.
• Performed belief revision.
• Generates explanations.

13
Propositional specification of a TMS

• As we have already seen, TMS nodes are
  propositional variables. Therefore,
• we can view TMS justifications as propositional
  formulas (implications) of the
• form
• N1 N2 Ni ? Nj
• Here N1, N2, , Ni, Nj are positive literals,
  therefore this implication is a Horn
• formula.
• A TMS can be viewed as a collection
  of Horn formulas.
• There exist polynomial time inference procedures
  for Horn formulas knowledge
• bases. For example, forward chaining -- by just
  applying MP, we can derive all
• formulas that logically follow from the KB. This
  makes it possible for a TMS to
• answer a variety of queries about the current set
  of nodes and justifications.
• The most fundamental query is whether a node
  logically follows from a given
• TMS state.

14
Families of TMSs

• There are several families of TMSs, which differ
  in the representation scheme
• they use and the functionality they support
• Justification-based TMSs. The language used is
  limited to Horn formulas.
• Logic-based TMSs. These use a full propositional
  logic language.
• Assumption-based TMSs. Language limited to Horn
  formulas, but several alternatives (contexts) can
  be explored at the same time.
• Non-monotonic JTMSs. Language limited to Horn
  formulas, but allow non-monotonic justifications,
  thus making it possible to implement default
  reasoning.
• Clause Management Systems. Their representational
  power is equivalent to LTMSs, but like ATMSs can
  support several contexts at the same time.
• Contradiction-tolerant TMSs. Language limited to
  Horn formulas, but support non-monotonic and
  plausible reasoning and deal explicitly with
  contradictions in a single context.
