Data Flow Testing

1

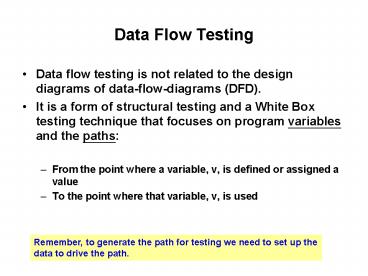

Data Flow Testing

• Data flow testing is not related to the design
  diagrams of data-flow-diagrams (DFD).
• It is a form of structural testing and a White
  Box testing technique that focuses on program
  variables and the paths
• From the point where a variable, v, is defined or
  assigned a value
• To the point where that variable, v, is used

Remember, to generate the path for testing we
need to set up the data to drive the path.
2
Static Analysis of Data

• Static analysis allows us to check (test or find
  faults) without running the actual code, and we
  can apply it to analyzing variables as follows
• A variable that is defined but never used
• A variable that is used but never defined
• A variable that is defined a multiple times prior
  to usage.
• While these are dangerous signs, they may or may
  not lead to defects.
• A defined, but never used variable may just be
  extra stuff
• Some compilers will assign an initial value of
  zero or blank to all undefined variable based on
  the data type.
• Multiple definitions prior to usage may just be
  bad and wasteful logic
• We are more interested in executing the code
  than just static analysis, though.

3
Variable Define-Use Testing

• In define-use testing, we are interested in
  testing (executing) certain paths that a variable
  is defined to - its usage.
• These paths will provide further information that
  will allow us to decide on choice of test cases
  beyond just the earlier discussed paths analysis
  (all statements testing or dd-testing (branch)).

4
Some Definitions

• Defining node, DEF(v,n), is a node, n, in the
  program graph where the specific variable, v, is
  defined its value.
• Usage node, USE(v,n), is a node, n, in the
  program graph where the specific variable, v, is
  used.
• A P-use node is a usage node where the variable,
  v, is used as a predicate (or for a
  branch-decision-making).
• A C-use node is any usage node that is not
  P-used.
• A Definition-Use path, du-path, for a specific
  variable, v, is a path where DEF(v,x) and
  USE(v,y) are the initial and the end nodes of
  that path.
• A Definition-Clear path for a specific variable,
  v, is a Definition-Use path with DEF(v,x) and
  USE(v,y) such that there is no other node in the
  path that is a defining node of v. (e.g. v does
  not get reassigned in the path. )

5
Simple Example
3

• Pseudo-code Sample
• int a, b
• input (a, b)
• if (a gt b)
• then Output (a, a bigger than b)
• else Output (b, b is equal or greater than
  a)
• end

4
6
5
7

• The following are examples of the definitions
• DEF(a, 3) node 3 is a defining node of variable
  a --- a value is assigned to a
• USE(a, 4) node 4 is a usage node of variable
  a
• USE(a, 5) node 5 is a usage node of variable
  a
• USE (a,4) is a P-use node while
• USE(a,5) is C-use node
• Path that begins with DEF(a,3) and ends with
  USE(a,4) is a definition-use path of a
• Path that begins with DEF(a,3) and ends with
  USE(a,5) is a definition-use path of a
• Path that begins with DEF(a,3) and ends with
  USE(a,5) is a definition-clear path of a
• Path that begins with DEF(b,3) and ends with
  USE(b.6) is a definition-use path of b

Note that if we choose the definition-use paths
last two examples above of both variables a and
b, then it is the same as executing the
decision-decision (dd) path or branch testing.
6
Commission Program Partial Example from Text
(pp153-154) on variable locks
(using statement number instead of node)

• we have DEF(locks,13) and DEF(locks,19)
• we have USE(locks,14) and USE(locks,16)
• We can employ the define/use methodology
• and get the following paths
• - path1 DEF(locks,13) to USE(locks,14)
• - path2 DEF(locks,13) to USE(locks,16)
• - path3 DEF(locks,19) to USE(locks14)
• - path4 DEF(locks,19) to USE(locks,16)

other assignments 13. Input (locks)
14. While NOT (locks equals -1)
false
true

• But we have not even tested all the branches!
• Modify Path1 to include nodes lt13,14,21gt and
• call it Path1
• Also modify Path3 to include nodes
• lt19,20,14, 21gt and call it Path3

15. Input( stocks, barrels) 16. Totallocks
Totallocks locks 17. Totalstocks Totalstocks
stocks 18. Totalbarrels Totalbarrels
barrels 19. Input (locks) 20. EndWhile
With Path1, Path2, Path3 and Path4, we
have covered all 4 cases 1) Path1 by-pass
loop, 2) Path2 drop Into loop, 3) Path3
exit loop, and 4) Path4 repeat the loop
21. Output (Locks sold , Totallocks)
continuing other statements
7
Definitions of Definition-Use (DU) testing

• All-Defs contains set of test paths, P, where
  for every variable v in the program, P includes
  definition-clear paths from every DEF(v,n) to
  only one of its use node.
• All-Uses contains set of test paths, P, where
  for every variable v in the program, P includes
  definition-clear paths from every DEF(v,n) to
  every use of v and to the successor node of that
  use node.
• All-P-Use/Some C-Use contains set of test paths,
  P, where for every variable v in the program, P
  contains definition-clear paths from DEF(v,n) to
  every predicate use node of v and if there is
  no predicate-use, then the definition-clear path
  leads to at least one C-use node of v.
• All-C-Use/Some P-Use contains set of test paths,
  P, where for every variable v in the program, P
  contains definition-clear paths from DEF(v,n) to
  every computation-use node of v and if there is
  no computation-use, then the definition-clear
  path leads to at least one predicate-use node of
  v.
• All-DU-paths contains the set of paths, P, where
  for every variable v in the program, P includes
  definition-clear paths from every DEF(v,n) to
  every USE(v,n) and to the succesor node of each
  of the USE(v,n), and that these paths are either
  single loop traversals or they are cycle free.

8
Summarizing hierarchy
All possible paths
All-DU-paths
All-Uses
All-C-Use/some-P-Use
All-P-Use/some-C-Use
All-Defs
Text page 160 has another chain Under
All-P-Use/some-C-Use take a look at that page.
9
Program Slices

• A concept related to dataflow analysis (def-use
  path) is to look at a slice of program that is
  related to some variable of interest and trace
  the program statements that are in the program
  slice. (Program slice was first discussed by Mark
  Weiser in the 1980s)
• Tracing program statements that contribute or
  affect the value of the variable of interest at
  some point of the program e.g. (v,node)
  going backward to include all those statements
  that have affected the variables value is
  considered a slicing of the program with respect
  to that variable.
• The designated program slice then becomes a path
  that one would consider for testing.
• This is also a popular, perhaps subconscious,
  debugging technique used by most of us.

10
A simple example of Program Slice

• - Consider that our variable of interest is y
• at statement 7.
• - But , on second look, we would pick up
  statements
• 7
• 6
• 4 (because the loop influences statement
  6)
• 2
• 1 (because limit influences statement 4)
• Statements lt1,2,4,6,7 gt form a program slice
• related to variable, y
• - We would include this slice as a test case

Pseudo code example 1. int limit 10 2. int y
0 3. int x 0 4. for (int i 0 i lt limit
i) 5. x x i 6. y y i2
7. print ( x , x , y , y)
Note that in executing just this slice, the
value of y is the same at
statement 7 as executing the
whole example
good for tracing bug but testing?
11
Definition of Program Slice
logical prior, may be physically after

• Given a program P and a set of variables, V, in
  P, a slice on the variable set V at some
  statement n, denoted at S(V,n), is a set of all
  statements in P, prior to and at n , that
  contribute to the values of those variables in V
  at that statement fragment n.
• (note that V can be one or more variables ---
  empty set V is not considered )
• Contribute is a key word that should be
  expanded to consider various types of
  contribution ( usage and definition)
• P- use (in predicate)
• C- use (in computation)
• O- use (in outputs)
• L-use (used as pointers to locations)
• I-use (used as part of some iteration counter)
• I- def (defined through input)
• A-def (defined via assignment)

12
More on Program Slicing

• Note that we cant just blindly apply the usage
  rules.

Note that we have modified statement 5 of the
previous example to include y. Now should
S(y,7) include statement 5? Even though there is
C-use of y, statement 5 does not contribute to
the value of y in statement 7. So we do not
include 5 in the slice, S(y,7). Also, p-use of
other variable not in the set V (in this case V
y) may need to be included because it
influences the value of y. In this case, the
variable, limit, in the for statement. So,
statement 4 is included in S(y.7) as before. And
limit is placed into the set V, Variable of
interest.
Pseudo code example 1. int limit 10 2. int y
0 3. int x 0 4. for (int i 0 i lt limit
i) 5. x x i y 6. y y i2
7. print ( x , x , y , y)
Modified to include y
13
Program Slices with Previous Partial Example
other assignments 13. Input (locks)
- For variable, locks, we can see that -
nodes 13 and 19 are input-definition nodes -
node 14 is a predicate use node - node 16
is a c-use node Now lets look at some
examples - S (locks, 13) lt 13 gt - S
(locks, 14) lt13, 14, 19, 20gt (may split this)
- S (locks, 16) lt13, 14, 19, 20gt (may split
this) - S (locks, 19) lt19gt Note that
statement 16 is not included in these slices even
though it is C-use of locks.
14. While NOT (locks -1)
false
true
15. Input( stocks, barrels) 16. totallocks
totallocks locks 17. totalstocks totalstocks
stocks 18. Totalbarrels totalbarrels
barrels 19. Input (locks) 20. EndWhile
For variable, stocks - node 15 is the input-def
node - node 14 influences node 15 - node 13
influences node 14 - node 19 influences node
14 So, Slice(stocks,15) lt13,14,15,19,20gt
21. Output (Locks sold , totallocks)
continuing other statements
14
Program slices

• Although program slice technique is based on the
  define-use dataflow approach, we do not need to
  include all the d-u paths that has no real
  influencing or contribution value to testing ( or
  debugging) a particular variable.
• Program slice requires more analysis, but it
  allows us to focus on only those parts that are
  of interest.
