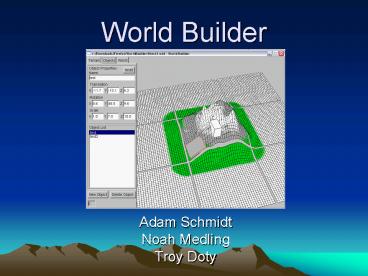

World Builder

1
World Builder

• Adam Schmidt
• Noah Medling
• Troy Doty

2
Problem Definition

• Already existing solutions
• The Elder Scrolls Construction Set
• CryEdit
• Neverwinter Nights
• BattleCraft42

3
The Elder Scrolls Construction Set
4
Neverwinter Nights
5
CryEdit
6
BattleCraft42
7
System Diagram
8
Three Major Parts

• The User Interface Layout
• Troy Doty
• Terrain Editing
• Noah Medling
• Object Editing
• Adam Schmidt

9
Requirements Analysis

• The requirements analysis details how the system
  needs to be built and what functionality it will
  need to be complete

10
Operating Environment

• Will run on any OS
• Developed in Microsoft Visual Studio 6 and .NET
  (7.1)

11
System Components

• User Interface
• - Buttons, Tabs, Input Boxes, etc
• Routines for manipulating heightmaps
• - Brush, Elevation, Smoothing, Color, etc.
• Routines for placing and manipulating 3D objects
  in the world
• -Creation, Scaling, Translating, etc.

12
Software and Libraries

• FLTK (Fast Light Toolkit) libraries
• OpenGL libraries
• FLUID was used for GUI code generation

13
Performance Requirements

• The time to read/write files should be minimized
• Loading/unloading portions of the world should be
  done in reasonable time
• Rendering should be done at a rate pleasing to
  the eye (gt30 frames per second)

14
Evaluation Metrics

• Creation Time - Usability
• Processing Time Frames per second

15
Software Design

• Multiple Classes
• GUI
• GLWindow
• World
• Sector
• Brush
• Object

16
User Interface

• GUI class
• Automatically generated with FLUID
• GLWindow class
• Organizes and provides access to data and
  rendering methods contained in other classes

17
The World

• World class
• Contains a grid of Sectors
• Only stores in RAM those Sectors that have been
  modified
• Sector class
• Contains a grid of vertices (currently 32 x 32)
• Each vertex contains elevation and color

18
Brushes

• Brush class
• Uses a Sector internally to represent influence
• Falloff modes none, linear, parabolic
• Shapes circle, square
• Variable radius

19
Objects

• Object class
• Stores objects that reside separately from the
  terrain data
• Contains orientation in 3D space and an ID
• Will be rendered as loaded 3D models in the game
  itself

20
Difficulties

• OGRE was difficult to use with deformable
  heightmaps.

21
Future Work

• Model loading
• Texturing
• Better file format

22
(No Transcript)
23
(No Transcript)
24
(No Transcript)
25
The End
