Title: SR489 Generator Management Relay


1

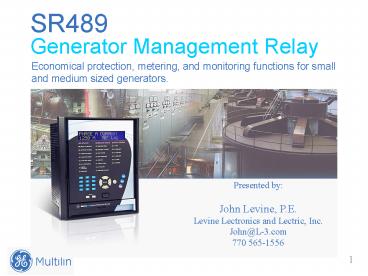

SR489Generator Management Relay
  • Economical protection, metering, and monitoring
    functions for small and medium sized generators.

Presented by John Levine, P.E. Levine
Lectronics and Lectric, Inc. John_at_L-3.com 770
565-1556
2
Outline
  • Overview
  • Theory
  • Hardware
  • Wiring
  • Software
  • Testing

3
  • Overview

4
SR489 Generator Management Relay
  • Product Overview
  • Suitable for protecting Induction and Synchronous
    Generator
  • Generator Protection Features
  • Drawout Case Installation
  • Hardware
  • Communications
  • EnerVista Software
  • Fault Diagnostics
  • Metering
  • Testing and Commissioning
  • Ordering

5
SR489 Generator Management Relay
  • Product Overview
  • Ideal Protection for Induction and Synchronous
    Generators at 25, 50 and 60Hz
  • Complete Generator Protection including
  • Generator Stator Differential
  • 2 Zone Distance Backup
  • 100 Stator Ground
  • High speed sampling, 12 samples per cycle
  • Drawout Case Installation
  • Powerful Fault Recording Waveform, Sequence of
    Events
  • Ethernet and Serial Communications
  • EnerVista Suite of Software supported
  • Metering of all important parameters

6
  • Theory

7
Show Generator Theory General Overview and
Typical System from Training CD
8
Generator Protection
  • Internal and External Short Circuits

9
Generator Protection Review
  • Abnormal Operating Conditions
  • Loss of Synchronism
  • Abnormal Frequency
  • Overexcitation
  • Field Loss
  • Inadvertent Energizing
  • Breaker Failure
  • Loss of Prime Mover Power
  • Blown VT Fuses
  • Open Circuits

10
Generator Protection
  • Abnormal Operating Conditions

11
Small Machine Protection IEEE Buff Book
32 Reverse Power 40 Loss of Excitation 51V
voltage restraint 51G Ground overcurrent 87
Differential
  • Small up to 1 MW to 600V, 500 kVA if gt600V

12
Small Machine Protection IEEE Buff Book
32 Reverse Power 40 Loss of Excitation 46
Negative Sequence 51V voltage restraint 51G
Ground overcurrent 87 Differential
  • Medium up to 12.5 MW

13
Small Machine Protection IEEE Buff Book
32 Reverse Power 40 Loss of Excitation 46
Negative Sequence 49 Thermal Overload 51V voltage
restraint 51G Ground overcurrent 64 Ground
Relay 87 Differential
  • Large up to 50 MW

14
Large Machine ProtectionIEEE C37.102
  • Unit Connected,
  • High Z Grounded

32 Reverse Power 40 Loss of Excitation 46
Negative Sequence 49 Thermal Overload 51V voltage
restraint 51G Ground overcurrent 64 Ground
Relay 87 Differential
15
SR489 Protection Functions
  • Protection Functions Include
  • Generator Stator Differential
  • Backup Distance Protection
  • 100 Stator Ground
  • Generator Unbalance
  • Loss of Excitation
  • Accidental Energization
  • Breaker Fail
  • Phase Overcurrent Voltage Restraint
  • Neutral Inst. / Timed Overcurrent
  • Neg. Sequence Overcurrent
  • Under / Over Voltage
  • Under / Over Frequency
  • Generator Thermal Model
  • RTD Temperature
  • Overexcitation Volts/Hertz

16
Desirable Attributes - Generator
  • Reverse Power (32)
  • Should be sensitive to 0.05 pu to properly detect
    motoring in large steam turbines
  • Existing E/M and Static relays not sensitive
    enough
  • May cause shutdown difficulties
  • Negative Sequence (46)
  • Should be sensitive to low values to detect open
    poles/conductors on system after GSU
  • Existing E/M and Static relays not sensitive
    enough
  • Long time low level events may cause excessive
    rotor heating, thermal tripping and damage rotor
  • 100 Stator Ground (59N / 59D)
  • Protects all of the stator winding
  • Existing schemes typically only see 90
  • Stop low level fault near neutral from degrading
    into a high level fault and causing large amounts
    of damage
  • Very secure

17
Desirable Attributes - Generator
  • Inadvertent Energizing (50/27)
  • High speed tripping of unit after breaker
    accidentally closed on dead machine, also pole
    flashover prior to syncing
  • Most existing schemes do not incorporate
  • Many schemes fail due to complexity (reliance on
    breaker auxiliary switches, yard distance relays,
    etc.
  • If breaker is not tripped rapidly, mechanical and
    electric damage can occur to machine in fractions
    of a second!
  • Pole flashovers must be cleared by high speed
    breaker failure, as the breaker is open!

18
Line Ground faults Delta Connected Generator
19
Line Ground faults Wye Connected Generator
20
SR489 Protection Functions
  • Generator Stator Differential
  • Stator Phase Differential
  • Dual Slope Percent Restraint Operating
    Characteristic
  • Directional Supervision under saturation
    conditions
  • Distance Backup Protection
  • 2 Zone Mho Distance Protection
  • Backup for primary line protection
  • Configurable Reach and Angle Distance
    Characteristic

Dual Slope Phase Differential
  • 100 Stator Ground Protection
  • 95 Fundamental OverVoltage
  • 15 Third Harmonic UnderVoltage

Two Zone Distance Backup
21
SR489 Protection Functions
  • Voltage Protection
  • Phase Overvoltage
  • Phase Undervoltage
  • Neutral Overvoltage (fundamental)
  • Neutral Undervoltage (3rd Harmonic)
  • Voltage Phase Reversal
  • Current Protection
  • Phase, Ground and Negative Sequence
    Overcurrent Tripping
  • IEC, ANSI , IAC and Customizable Overcurrent
    Curves
  • Voltage Restraint increasing sensitivity under
    low voltage conditions

Voltage Restraint Overcurrent
  • Frequency Protection
  • Overfrequency
  • Underfrequency

Undervoltage Trip Curves
22
SR489 Protection Functions
  • Thermal Protection
  • Generator Thermal Model
  • RTD Alarming and Tripping
  • RTD Biased Thermal Model
  • Inadvertent Energization (show Training CD)
  • Prevents Accidentally Closing a Stopped
    Generator onto a Live Line
  • Armed when Generator is Offline and Voltage is
    below a pre-set level

Thermal Model Voltage Dependant Overload
Curves
  • Loss of Excitation (show Training CD)
  • Uses Impedance Circle for loss of excitation
    detection
  • 2 Zones for fault detection and control
  • Volt/Hertz (Overexcitation)
  • Detects changes in the Volts/Hertz ratio of the
    generator or associated transformer

Loss of Excitation
23
  • Hardware

24
SR489 Generator Management Relay
Ordering
  • 489 489 Generator Management Relay
  • P1 - - - - 1 Amp Phase CT Secondary Inputs
  • P5 - - - - 5 Amp Phase CT Secondary Inputs
  • LO - - - 20-60VCD, 20-48VAC Control Power
  • HI - - - 80-300VDC, 70-265VAC Control Power
  • A1 - - 0-1 mA Analog Outputs
  • A20 - - 4-20 mA Analog Outputs
  • - - Basic Display
  • E - Enhanced Display Larger LCD
  • T - Enhanced Display with Ethernet
    (10-Base-T)
  • H Harsh (chemical) environmental conformal
    coating

25
SR489 Physical Access Points
Hardware Connections
  • 6 Form-C Output Relays
  • 10ms Operate Time
  • Make and Carry 30A for 0.2 sec.
  • Carry 10A Continuous
  • 9 Contact Inputs
  • Opto-isolated Dry Contacts
  • 12 RTD Inputs
  • 100 O Platinum
  • 100 O Nickel
  • 120 O Nickel
  • 10 O Copper
  • 4 programmable analog outputs
  • 4-20 or 0-1 mA (as ordered)
  • 29 programmable parameters
  • Pulse Output
  • Configurable Pulse Output based on kwh,
    kvarh, kvarh

26
SR489 Physical Interface
  • Minimize replacement time
  • Large LCD Display
  • Self description
  • Security Audit Trail
  • Revision control/history
  • Alarm indication
  • Asset status
  • System Status
  • Protection, metering, control
  • Event recorder
  • Data logger
  • Waveform analysis
  • RS232 serial port
  • Dedicated control keys
  • Full numerical keypad

27
LEDs
28
  • Wiring

29
(No Transcript)
30
(No Transcript)
31
(No Transcript)
32
(No Transcript)
33
  • Software

34
Example
35
SR489 EnerVista Software
EnerVista Launchpad Easy to use Device Setup
and Document Management Toolset
  • Comprehensive data for fault system
    analysis
  • Complete archive of up-to-date documents
    software
  • Single application for configuring all
    devices
  • Automatic email notification on new updates
  • Scheduled downloads of all new document
    software releases

The most powerful relay management tool
36
SR489 EnerVista Launchpad
  • Settings configuration
  • Intuitive protection settings
  • Document library update
  • Metering
  • Local HMI
  • Status of all inputs and outputs
  • Real-time monitoring of phasors
  • Troubleshooting
  • Search and sorts of event records
  • COMTRADE waveform viewer
  • Real time data logging
  • Role Based Security
  • Restricted access to relay

Simply the most powerful way to manage your SR489
37
SR489 EnerVista Setup Program
  • EnerVista SR489 Setup Program
  • Plug-And-Play communications
  • Setpoint Configuration
  • Metering Values
  • Record Retrieval
  • Oscillography Viewing
  • Event Recorder Viewing
  • Setting File Management
  • Printing Setting Files
  • Simulation mode for testing/training
  • SR489 Firmware Upgrading

38
SR489 EnerVista Viewpoint
Premium Monitoring, Engineering, Maintenance
Toolsets
  • Viewpoint Monitoring
  • Monitoring, control, trending, alarming
    fault data recording
  • Viewpoint Engineer
  • Programming, testing commissioning
  • Viewpoint Maintenance
  • Status security reports, fault diagnostics
    fault data collection

Simplifying every aspect of customer interaction
39
SR489 Viewpoint Monitoring
  • Remotely monitor the relay in real-time
  • . . . Easy to use, one tool for
  • Plug play screens for instant monitoring
  • Single-line monitoring
  • Annunciator alarming
  • Trending
  • Automatic fault data collection

Viewpoint Monitoring
Simplifying every aspect of customer interaction
40
SR489 Viewpoint Maintenance
Viewpoint Maintenance
  • Device Health and Security Reporting
  • Single click retrieval of fault data
  • Setting security report showing history of
    setting changes
  • Health report showing status of protective
    device

Simplifying every aspect of customer interaction
41
SR489 Generator Maintenance Diagnostics
  • Generator Statistical Data
  • Total Generator Running Hours
  • Number of Generator Trips
  • Number of Breaker Operations
  • Generator Fault Recording
  • Last Trip Pre-Trip data Report
  • Sequence of Event Report 256 Events
  • Waveform Fault Capture
  • Automatic Triggering
  • Up to 128 Cycles in length
  • Up to 16 separate Fault Incidents
  • Records 16 Analog data channels

42
SR489 Generator Monitoring
Metering Monitoring
  • Voltage (Phase to Phase Phase to Line)
  • Phase and Ground Current
  • Differential Current
  • Negative Sequence Current
  • Frequency
  • Generator Load
  • Generator Current Unbalance
  • Power (MW, Mvar, MVA)
  • Energy (MWh, Mvarh)
  • Power Factor
  • Demand
  • RTD Temperature
  • Speed (Tachometer)
  • Breaker Status

43
SR489 Enhanced Security
Prevents Unauthorized Access and Provide
Traceability
  • Security Audit Trail
  • Date and time of hardware, firmware or setting
    changes to your relays
  • Logging of the MAC address of computers and users
    making settings changes
  • Track method of how settings changes were made
    (i.e. keypad, serial port, ethernet)
  • Date/time security report was generated
  • Description of the GE Multilin Relay
  • Summary of the last time the configuration was
    changed
  • History of last 10 occurrences the configuration
    was changed

Security strategy conforms to industry and
regulated guidelines
44
Demo the software
  • Connecting to relay
  • Uploading settings
  • Downloading settings
  • File compare
  • Settings
  • Active verses setting group
  • Digital input gt predefined gt dual setpoints

45
  • Testing

46
Simulation Mode
SR489 Simplified Testing
  • Allows testing without external test equipment
  • Simulates all Current and Voltage injection
  • Simulate Pre-fault conditions
  • Simulate Fault Conditions
  • Verify protection element operation
  • Analyze simulated waveforms and relay actions
  • Test output relays
  • Test analog inputs

Ideal for verifying configuration.and for
training employees
47
Questions?
Write a Comment
User Comments (0)
About PowerShow.com
