Barium Titanate

1
Barium Titanate

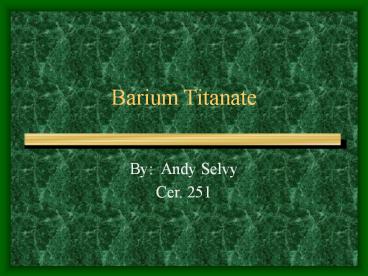

• By Andy Selvy
• Cer. 251

2
Barium Titanate

• General Info
• Commercial uses
• Phase Diagram

3
BaTiO3 Info
BaO TiO2
BaTiO3
4

• BaTiO3 Properties
• Perovskite Structure
• Piezoelectricity
• Density 5.85 g/cm3
• High Dielectric constant

5
Uses for BaTiO3

• Underwater Sonar
• Guided Missiles
• Acoustic Mines
• Sound Reproduction

• Ultrasonic Therapy
• Electronic Materials
• Ultrasonic Cleaning
• Filters

6
Ceramic Capacitors

• Multilayer Ceramic Capacitors (MLCC)

Barium titanate powder, Made into capacitors
7
BaTiO3 Phase Diagram
8
Lets build up the phase diagram.
Start with the empty diagram
9
Lets build up the phase diagram.
BaTiO3
Liquid
Label important phase fields
Ba2TiO4Liq
TiO2 Liq
Ba2TiO4 Hex BaTiO3
BaOBa2TiO4
Cubic BaTiO3 Liq
Ba2TiO4 Cubic BaTiO3
BaTi4O9 TiO2
Cubic BaTiO3BaTi2O5
10
Some finishing touches
Eutectic Points
Congruent Melting Pts
Peritectic Points
Some important points
11
