C. Edward Chow Page 1

1

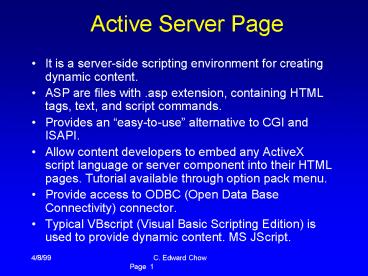

Active Server Page

• It is a server-side scripting environment for
  creating dynamic content.
• ASP are files with .asp extension, containing
  HTML tags, text, and script commands.
• Provides an easy-to-use alternative to CGI and
  ISAPI.
• Allow content developers to embed any ActiveX
  script language or server component into their
  HTML pages. Tutorial available through option
  pack menu.
• Provide access to ODBC (Open Data Base
  Connectivity) connector.
• Typical VBscript (Visual Basic Scripting Edition)
  is used to provide dynamic content. MS JScript.

2
Create ASP with DB access

• Create an Signup MS Access Database, signup.mdb
  on the NT workstation right by Bilbo.
• Transfer the signup.mdb to the c\cs401\scripts
  directory on Frodo NT server.
• Setup ODBC system Data Source Name for the
  signup.mdb.
• Create a virtual directory with aliase
  cs401scripts with physical path c\cs401\scripts
  using MS management console.
• Create a search.htm web page using FrongPage or
  other editor. It asks for the last name in a form
  and submit the request to retrieve the whole
  record of the signup database. Put the
  search.htm in c\cs401\www.
• Create a virtual directory with alias cs401www
  with physical path c\cs401\www using MS
  management console.
• Create an Active Server Page, response.asp, which

• uses VBscript to retrieve the last name from the
  form input,
• accesses the signup database for the record
• return a web page in a table format with all the
  record with last name matching the input.

3
Create a signup MS Access Database

• Select Start Programs Microsoft Access
• Click the "Blank Database" in "Creating a New
  Database Using" pane. Click OK.
• Enter "cs401signup" as the file name for the
  database. Click Create.
• In the table tab (default) of the cs401signup
  database window, click New.
• In new Table, click the Design View and click OK.
• Enter the field names (LastName, FirstName, and
  Address) of the table. You can change the field
  size.
• Save the table name as signup (default is
  table1).

4
Create Database
5
Specify Field names
6
Create table for the DB

• Click x icon on the upper right corner. Click Yes
  to confirm saving the table.
• Enter signup as the table name.
• Click No on creating primary key.
• It shows the signup table was created.
• Double click it or click open.
• Enter several entries of the table.

7
Setup ODBC on NT Server

• Click ODBC Data Sources on control panel.

8
Add MS Access DB

• Click System DSN and Add.
• Select MS Access Driver (.mdb). Click Finish.

9
ODBC MS Access Setup

• Enter Data Source Name (cs401signup)
• Enter Description as (cs401 asp DB)
• Click Select on Database pane and select the
  e\cs401\scripts\cs401signup.mdb

10
Create Script Virtual Directory

• Select Start Programs NT 4.0 option pack MS
  IIS IIS manager
• Select Frodo, default web site
• Select the action menu new virtual server
• Enter alias as cs401scripts
• Enter/browse physical path c\cs401\scripts
• Check only the Allow execute access. Click
  Finish.

11
Create Query Form Web Page

• Create a signup DB search web page with form
  input. It asks for the last name in a form and
  submit the request to retrieve the whole record
  of the signup database.
• ltform METHOD"post" ACTION"/cs401scripts/response
  .aspgt
• LastName ltinput NAME"LastName" SIZE"30"gt
  ltinput TYPE"submit" value"submit"gt
• lt/formgt
• Put the search.htm in c\cs401\www.

12
cs401www Virtual Directory

• Follow the same step to create the cs401www
  virtual directory with cs401www as alias and
  c\cs401\www as physical directory.
• Create an Active Server Page, response.asp, which
• uses VBscript to retrieve the last name from the
  form input,
• accesses the signup database for the record
• return a web page in a table format with all the
  record with last name matching the input.

13
Response.asp

• lt_at_ LANGUAGE VBScript gt
• lt
• ' ON ERROR RESUME NEXT
• Set Conn Server.CreateObject("ADODB.Connecti
  on")
• Set RS Server.CreateObject("ADODB.RecordSet"
  )
• Conn.Open cs401signup"
• key Request.Form("LastName")
• sql"select from cs401signup
  where LastName'" key "'"
• RS.open sql,conn,1,1
• gt

14
Response.asp (2)

• ltHTMLgt
• ltHEADgt
• ltTITLEgt signup response.asp File lt/TITLEgt
• lt/HEADgt
• ltBODY BGCOLOR"WHITE"gt
• ltcentergt
• lt
• IF RS.RECORDCOUNT 0 THEN
• gt
• ltfont size"5"gtltbgtNo match resultlt/bgtlt/fontgt
• lt end if gt

15
Response.asp (3)

• lttable border3 width410gt
• ltDo While Not RS.EOF gt
• lttrgt
• lttd width170 valigntopgt
• ltFONT SIZE4 COLORREDgtlt rs("LastName") gt
  lt/fontgt
• lt/tdgt
• lttd width170 valigntopgt
• ltFONT SIZE4 COLORREDgtlt rs("FirstName") gt
  lt/fontgt
• lt/tdgt
• lttd width170 valigntopgt
• ltFONT SIZE4 COLORREDgtlt rs("Address") gt
  lt/fontgt
• lt/tdgt
• lt/trgt
• lt
• RS.MoveNext
• Loop
• gt

16
Response.asp (4)

• lt
• rs.close
• set connnothing
• gt
• lt/TABLEgt
• lt/BODYgt
• lt/HTMLgt
