Isometric Pictorials

1
Isometric Pictorials

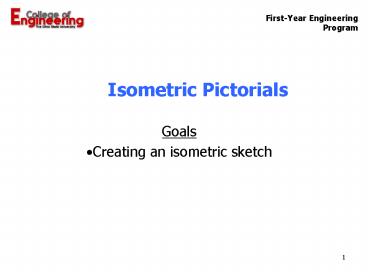

• Goals
• Creating an isometric sketch

2
Introduction to ProjectionsFour Basic Types
Note An Isometric is special case of an
Axonometric
Orthographic Projections
Axonometric
Pictorials
Oblique
Perspective
3
Introduction to Isometric Projection
?CUBE?

• The term Isometric literally means equal measure
• All planes are equally or proportionately
  shortened and
• tilted
• All the major axes (X, Y, Z) are 120 degrees
  apart

4

• Making an Isometric Sketch
• Defining Axis

5

• Making an Isometric Sketch
• Axis Convention

Choose the longest dimension to be the width (or
the depth) for optical stability
Front view
Isometric Axis Convention
6

• Making an Isometric Sketch
• Axis Convention

Choose the longest dimension to be the width or
the depth for optical stability
Front view
Isometric Axis Convention
7
Usage of the Grid Paper
Correct orientation
Incorrect orientation
Note the alignment of the axes
8
The Transformation BetweenThe Isometric Grid
Rectilinear Grid
9
Object for Practice
10
Blocking in the Object Begin with Front Face
11
Blocking in the Object Add Side Face
12
Blocking in the Object Add Top Face
13
Adding Detail Cut Outs Part 1
14
Adding Detail Cut Outs Part 2
15
Adding Detail Cut Outs Part 3
16
Darken Final Lines Part 4
Note All visible edges will be darkened
17
Sketching a Circle

• Draw a square whose sides are the diameter of the
  circle.
• 2. At the center of each side define the point of
  tangency for the circle.
• 3. Draw the diagonals of the square.
• 4. Orient the paper so you can draw equal arcs to
  construct the circle

18
Isometric ellipses

• In an isometric drawing, the object is viewed at
  an angle, which makes circles appear as ellipses.
• Holes
• Cylinders

19
Ellipses Can be in Any of Three Planes
20
Sketching an Isometric of a Hollow Pipe
21
Step 1 - Creating the Base Box
22
Step 2 Ellipse on Front Face(Reference
Technical Graphics, Section 4.2.7)
23
Step 3 Ellipse on Front Face
24
Step 3 Ellipse on Back Face and Profile
25
Step 4 Ellipse for Hole on Front Face
26
Isometric of Hollow Pipe
27
Summary

• Technical drawings are an effective communication
  media
• Projections of various types can be used
• Isometric projections and creating isometric
  sketches has been introduced
• Assignments will emphasize simple isometric
  sketches

28
Review Questions

1. _______ sketches present the object in a single
   view, with all three dimensions represented
2. _______ sketches present the object in a series
   of projections, each one showing only two of the
   objects three dimensions
3. Which among the following is NOT an isometric
   axes (Hint Use the Isometric Grid paper for
   reference)?

29
Tips for Drawing Assignments

• Follow Sketching and Text conventions from the
  reading assignment
• Refer to reading assignment to clarify questions
• Title Information is required. Avoid labels on
  the sketch.
• Leave the construction lines MUCH lighter and
  thinner than the finished lines
• Include centerlines on isometrics

30
Tips for Drawing Assignments

• Do not try to shade drawing this is not a
  pencil sketching class.
• Use grid paper. Try to sketch along grid lines.
  Practice sketching straight lines and curves on a
  grid sheet.

31
Tips for Pictorial Views

• In pictorial views, hidden lines are not shown
  unless absolutely required for clarity
• Non-visible bottom of a blind hole
• Important feature of object not in direct view
• In pictorial views, holes or notches without
  bottom/end visible should be assumed to go
  completely through the object.
• Centerlines are to be shown on all isometric
  pictorials.

32
In Class Assignment

• Drawing 9 TG 2.23, 2.31, 2.37, 2.38 in course
  packet
• Use Isometric Sketch Paper (ISP)

33
Assignments

• Refer to daily assignment list
