Title: Physical Optics


1

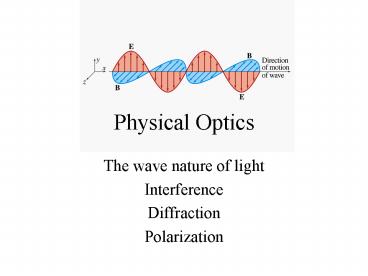

Physical Optics
  • The wave nature of light
  • Interference
  • Diffraction
  • Polarization

2
Huygens Principle
  • Every point on a propagating wavefront serves as
    the source of spherical wavelets, such that the
    wavelets at sometime later is the envelope of
    these wavelets.
  • If a propagating wave has a particular frequency
    and speed, the secondary wavelets have that same
    frequency and speed.

Isotropic
3
Diffraction
a
  • Diffraction Bending of light into the shadow
    region
  • Grimaldi - 17th Century observation of
    diffraction
  • Diffraction vs. Refraction?

4
(No Transcript)
5
Explanation of Snells Law
6
Superposition of waves
Constructive Interference
Destructive Interference
7
Conditions for Interference
  • To observe interference in light waves, the
    following two conditions must be met
  • 1) The sources must be coherent
  • They must maintain a constant phase with respect
    to each other
  • 2) The sources should be monochromatic
  • Monochromatic means they have a single wavelength

8
Youngs Experiment
9
Youngs Experiment
10
Youngs Experiment
Maxima occur when
maxima
Minima occur when
11
What the pattern looks like
12
Intensity Distribution, Electric Fields
  • The magnitude of each wave at point P can be
    found
  • E1 Eo sin ?t
  • E2 Eo sin (?t f)
  • Both waves have the same amplitude, Eo

13
Intensity Distribution, Resultant Field
  • The magnitude of the resultant electric field
    comes from the superposition principle
  • EP E1 E2 Eosin ?t sin (?t f)
  • This can also be expressed as
  • EP has the same frequency as the light at the
    slits
  • The magnitude of the field is multiplied by the
    factor 2 cos (f / 2)

14
Intensity Distribution, Equation
  • The expression for the intensity comes from the
    fact that the intensity of a wave is proportional
    to the square of the resultant electric field
    magnitude at that point
  • The intensity therefore is

15
Resulting Interference Pattern
  • The light from the two slits forms a visible
    pattern on a screen
  • The pattern consists of a series of bright and
    dark parallel bands called fringes
  • Constructive interference occurs where a bright
    fringe occurs
  • Destructive interference results in a dark fringe

16
Example
  • A He-Ne Laser has a wavelength of 633 nm. Two
    slits are placed immediately in front of the
    laser and an interference pattern is observed on
    a screen 10 m away. If the first bright band is
    observed 1 cm from the central bright fringe, how
    far apart are the two slits?
  • At what angle Q is the fourth dark band found?

17
Thin Films
Constructive Interference (maxima)
Destructive Interference (minima)
18
Chapter 35 - Problem 45
Stealth aircraft are designed to not reflect
radar whose wavelength is 2 cm, by using an
anti-reflecting coating. Ignoring any change in
wavelength in the coating, estimate its thickness.
19
Phase shift on reflection
Internal Reflection
External Reflection
Now, If one reflection is internal and one
reflection is external half wavelength path
differences will result in constructive
interference
20
Phase Changes Due To Reflection
  • An electromagnetic wave undergoes a phase change
    of 180 upon reflection from a medium of higher
    index of refraction than the one in which it was
    traveling
  • Analogous to a pulse on a string reflected from a
    rigid support

21
Lloyds Mirror
  • An arrangement for producing an interference
    pattern with a single light source
  • Waves reach point P either by a direct path or by
    reflection
  • The reflected ray can be treated as a ray from
    the source S behind the mirror

22
Lloyds Mirror
23
Interference in Thin Films Again
  • Assume the light rays are traveling in air nearly
    normal to the two surfaces of the film
  • Ray 1 undergoes a phase change of 180 with
    respect to the incident ray
  • Ray 2, which is reflected from the lower surface,
    undergoes no phase change with respect to the
    incident wave
  • For constructive interference
  • d2t (m ½)?n (m 0, 1, 2 )
  • This takes into account both the difference in
    optical path length for the two rays and the 180
    phase change
  • For destructive interference
  • d2t m?n (m 0, 1, 2 )

24
Newtons Rings
Maxima - bright
Minima - dark
25
Chapter 37 Problem 62
Show that the radius of the mth dark Newtons
ring as viewed from directly above is given by
Where R is the radius of curvature of the curved
glass surface and l is the wavelength of the
light used. Assume that the thickness of the air
gap is much less than R at all points and that
xltltR
26
Newtons Rings
Minima
Newtons rings are a special case of Fizeau
fringes. They are useful for testing surface
accuracy of a lens.
Maxima
27
(No Transcript)
28
Wedges Fringes of Equal Thickness
Minima (destructive)
Maxima (constructive)
Fringes of this type are also known as Fizeau
fringes
29
Example thin film of air
30
Michelson Interferometer
  • A lens can be used to form fringes of equal
    inclination (rings)
  • Tilting the mirrors can cause fringes of equal
    thickness.
  • Accurate length measurements are accomplished by
    fringe counting as one of the mirrors is moved.

Detector
31
42. Monochromatic light is beamed into a
Michelson interferometer. The movable mirror is
displaced 0.382 mm, causing the interferometer
pattern to reproduce itself 1 700 times.
Determine the wavelength of the light. What color
is it?
32
5. Youngs double-slit experiment is performed
with 589-nm light and a distance of 2.00 m
between the slits and the screen. The tenth
interference minimum is observed 7.26 mm from the
central maximum. Determine the spacing of the
slits.
7. Two narrow, parallel slits separated by 0.250
mm are illuminated by green light (? 546.1 nm).
The interference pattern is observed on a screen
1.20 m away from the plane of the slits.
Calculate the distance (a) from the central
maximum to the first bright region on either side
of the central maximum and (b) between the first
and second dark bands.
17. In Figure 37.5, let L 120 cm and d 0.250
cm. The slits are illuminated with coherent
600-nm light. Calculate the distance y above the
central maximum for which the average intensity
on the screen is 75.0 of the maximum.
33
32. A thin film of oil (n 1.25) is located on
a smooth wet pavement. When viewed perpendicular
to the pavement, the film reflects most strongly
red light at 640 nm and reflects no blue light at
512 nm. How thick is the oil film?
33. A possible means for making an airplane
invisible to radar is to coat the plane with an
antireflective polymer. If radar waves have a
wavelength of 3.00 cm and the index of refraction
of the polymer is n 1.50, how thick would you
make the coating?
37. A beam of 580-nm light passes through two
closely spaced glass plates, as shown in Figure
P37.37. For what minimum nonzero value of the
plate separation d is the transmitted light
bright?
34
Mach Zehnder Interferometer
Detector
  • No compensating plate needed
  • Test cell easily inserted in one leg.
  • No factor of two as in the Michelson
    interferometer.
  • Difficult to align

35
Sagnac Interferometer
Detector
Ring laser gyro. The rotation effectively
shortens the path taken by one direction over the
other.
36
Phase Angle
