Polymer Process Engineering

1

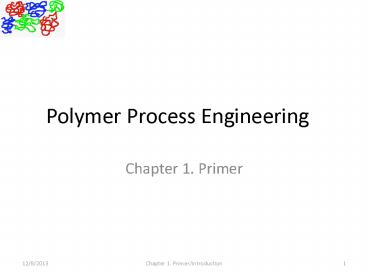

Polymer Process Engineering

• Chapter 1. Primer

2
PRIMER

• Fundamental concepts language
• Nomenclature
• Chemical bonding, chemical interactions,
  entanglements
• Molecular weight
• Thermal transitions

3
WHAT IS A POLYMER?

• Berzelius (1883) Poly (many) mer (unit)
• Polystyrene polymerized in 1938 polyethylene
  glycol made in 1860s
• Early polymer products were based on cellulose-
  gun cotton nitrated cellulose

4
A polymer is

• Long chain molecule, often based on organic
  chemical building blocks (monomers)
• Long molecules (Mw 100,000 Da) have solid-like
  properties
• The chain may be amorphous (no regular
  structure), crystalline (a regular repeating
  structure), crosslinked,
• Dendrimers and oligomers have different
  properties

5
HOW DO YOU BUILD A MOLECULE?

• Chemical structure
• Chain morphology constitution, configuration,
  conformation
• Degree of polymerization number of repeating
  units
• Building block sources hydrocarbons, renewable
  materials

6
Building blocks

• 5 of petroleum goes into polymers
• Sustainable use is possible
• Energy recovery is possible if solid polymers are
  combusted

Type C H O
gas NG 3 1 0
liquid Crude 6 1 0
solid Coal 14 1 0
Renew-able cellulose 6 1 5.3
Hemi-cellulose 6 1 8
lignin 6.8 1 3
protein
7
Building methods

• Chain (addition)

• Step (condensation)

• Example polyethylene (PE) from ethylene
• Small number of reacting chains at any one time,
  which can grow into long molecules prior to
  termination
• Long reaction times needed to achieve high
  conversions

• Example poly(ethylene terephthalate) (PET) from
  terephthalic acid and ethylene glycol
• Endgroups react to build the chain long reaction
  times needed to achieve high polymer

8
Multiple building blocks

• Copolymers, terpolymers,
• Using multiple building blocks leads to polymers
  with intermediate properties or unique properties
  compared to the homopolymers

9
Several copolymer configurations
10
Chain configurations

• Linear repeating units are aligned sequentially
• Branched large segments branch off the main
  chain/carbon backbone
• Crosslinked/network chemical crosslinks between
  chains add mechanical strength
• EXAMPLES?

11
Multiphase systems

• Composites
• Structural
• Random
• Other
• Nanocomposites
• Blends
• Dispersed lamellae, cylinders, spheres

12
HOW DO WE CLASSIFY POLYMERS?

• Structure chemical, configuration
• solid performance (mechanical thermal
  properties)
• other

13
Mechanical Thermal

• Thermoplastic solidified by cooling and
  reheated by melting
• Thermosets retain their structure when reheated
  after polymerization (usually crosslinked)
• Elastomers rubbers, deform readily with applied
  force
• Thermoplastic elastomers
• other

14
WHAT IS IN A COMMERCIAL PRODUCT?

• Very few commercial products are pure
• MWD molecular weight distribution
• additives

15
Polymers vs. metals
Why do we use polymers?
16
Polymeric materials

• Compete well on a strength/weight basis
• Easy to form into 3D shapes
• Creep under load is usually poor this behavior
  is usually corrected by adding fillers or fibers
• Low corrosion in the environment compared to
  metals
• Generally good solvent resistance

17
Thermoplastics

• Commodities 75 of the polymer volume used is
  with 4 polymer families, polyethylene,
  polystyrene, polypropylene and poly(vinyl
  chloride) low cost
• Intermediate higher heat deflection temperatures
• Engineering plastics can be used in boiling
  water
• Advanced thermoplastics extreme properties

18
Thermosets

• High moduli, high flex strengths, high heat
  deflection temperatures
• Shape is retained during thermal cycling
• Often made with step/condensation polymerization
  systems
• Crosslinking is usually used

19
(No Transcript)
20
HOW DO WE MAKE A PART?

• Polymerization
• Formulation
• Fabrication

21
Formulation

• Additives are used to modify properties and/or
  lower costs
• Additives heat stabilizer, light stabilizer,
  lubricant, colorant, flame retardant, foaming
  agent, plasticizer
• Reinforcement particulate minerals, glass
  spheres, activated carbon, fibers
• Blends, alloys, laminates

22
Additives can change

• Processing properties
• Performance properties
• Composites polymers with fiber fillers
• Packaging multiple layers often used

23
Formulation operations

• Thermoplastics melting or solvent processing
• Thermosets additive addition to monomers or to
  prepregs

24
Fabrication

• Varies by industry sector
• Adhesive
• Coating
• Elastomer
• Plastic
• fiber

25
Overview of the polymer industry
Industry General product requirements
adhesive Strong surface forces epoxy, superglue
coatings Film-forming LDPE with good impact
composites Structural materials epoxy fibers
elastomers Large deformation and recovery rubber in tire and seals
fibers High strength/area polyacrylonitrile
foams Light weight, low thermal conductivity polyurethane
plastics Stable deformation under static load HDPE, PP, PVC
26
Commodity plastics
Polymer Major uses
LDPE Packaging film, wire and cable insulation, toys, flexible bottles, housewares, coatings
HDPE Bottles, drums, pipe, conduit, sheet, film, wire and cable insulation
PP Automobile and appliance parts, rope, cordage, webbing, carpeting, film
PVC Construction, rigid pipe, flooring, wire and cable insulation, film, sheet
PS Foam and film packaging, foam insulation, appliances, housewares, toys
27
Film blowing
High strength films are achieved by orienting the
crystallites. The film is biaxially oriented the
wind-up rolls stretch the film in the machine
direction and the expansion of the film radially
provides a hoop stress force.
28
Wire coating
Wire coating speeds can be high, and process
start-up is challenging. Metal wires may need
sizing, or wetting agents in the polymer melt for
good adhesion.
29
Calendaring
Thin and thick section calendaring is used to
make wide sheets (8-12 ft).
30
Bottle blowing
The parison is inflated, developing biaxially
orientation similar to that of blown film. The
sides of the mold provide cooling, quickly
freezing in the orientation developed during
the blowing process. When this process is used to
make soda bottles of PET, the orientation is
critical to achieving low carbon dioxide
permeation rates (and long bottle shelf life).
31
Compression molding
32
Thermoset applications
Polymer Major uses
Phenol-formaldehyde resins (PF) Electrical equipment, automobile parts, utensil handles, plywood adhesives, particleboard binder
Urea-formaldehyde resins (UF) Similar to the above textile coatings and sizings
Unsaturated polyester (UP) Construction, vehicle parts, boat hulls, marine accessories, corrosion-resistant ducts, pipes and tanks, business equipment
Epoxy (EP) Protective coatings, adhesives, electrical parts, industrial flooring, highway paving materials, composites
Melamine-formaldehyde resins (MF) Similar to UF resins decorative panels, counter and table tops, dinnerware
33
Elastomers

• The polymers used for elastomers usually have
  very low heat deflection and melt temperatures
• Solids with good mechanical properties are made
  by crosslinking polymer chains together
• The molecular weight of elastomer parts is the
  size of the object
• Vulcanization of rubber uses sulfur to provide
  crosslinks between the CC bonds of natural
  rubber.

34
Fibers

• Fibers are based on highly crystalline polymers
  that can be oriented axially to have great
  strength. Orientation (cold drawing) develops
  crystal structure in the solid.
• Most natural fibers from biomass are based on
  cellulose spider silk has different compositions
  and is based on a set of copolymers

35
Elastomer polymers
Polymer family description
Styrene-butadiene Copolymers with a range of constitutions SBR styrene-butadiene rubber
Polybutadiene Cis-1,4-polymer
Ethylene-propylene EPD ethylene-propylene-diene monomer the small amounts of diene provide unsaturation
Polychloroprene Poly(2-chloro-1,3-butadiene) this polar elastomer has excellent resistance to non-polar organic solvents (gasoline, diesel)
Polyisoprene Poly(cis-1,4-isoprene) synthetic natural rubber
Nitrile rubber Copolymer of acrylonitrile and butadiene
Butyl rubber Copolymer of isobutylene and isoprene
Silicon rubber Rubber based on polysiloxanes
Urethane rubber Elastomer with polyethers linked via urethane groups
36
Synthetic fibers
Fiber type description
Cellulosic
acetate rayon Cellulose acetate
viscose rayon regenerated cellulose
Non-cellulosic
Polyester Mostly poly(ethylene terephthalate)
Nylon Nylon 6,6 nylon 6, nylon 10 other aliphatic, aromatic polyamides
Olefin Polypropylene copolymers of vinyl chloride acrylonitrile, vinyl acetate, vinylidene chloride
Acrylic gt 80 acrylonitrile modacrylic acrylonitrile vinyl chloride or vinylidene chloride
37
Coatings

• Coatings. Major area for expansion solar cells,
  windows, Supplier base is highly fragmented.
• Paints. Major area for expansion vehicles,
  Materials supplier base is clustered painting
  systems base is clustered user base is
  fragmented

38
Adhesives

• Highly fragmented market.

39
Foams

• Major area insulation for housing, sound
  control,
• Materials polystyrene, polyurethanes,
• Reaction injection molding example

40
Composites

• Thermosets and thermoplastics
• Sheet molding compounds
• Filament winding

41
HOW DO WE NAME POLYMERS?

• Polymer nomenclature is widely varied.
• Trademarks and common names may be
  industry-sector specific.
• Nomenclature Polymer Handbook. Chapter 1.

42
Source-based names

• Source-based name when the polymer is derived
  from a single (original or hypothetical) monomer
  or random co-/ter-polymers
• Poly(vinyl alcohola)
• Poly(styrene-co-butadiene)
• Polyformaldehyde (not polyoxymethylene)b
• Poly(ethylene oxide) (not poly(ethylene glycol)b
• a when the name is long, parentheses are used
  to separate the name from poly
• b - actually the second name is quite common

43
Structure-based names

• Structure-based name when the constitutional
  repeating unit (CRU) has several components
• The CRU is independent of the monomers and
  polymerization methods
• Poly(hexamethylene adipamide)
• Poly(ethylene terephthalate)

44
copolymers
Type Connective Example
unspecified -co- Poly(A-co-B)
statistical -stat- Poly(A-stat-B)
random -ran- Poly(A-ran-B)
alternating -alt- Poly(A-alt-B)
periodic -per- Poly(A-per-B-per-C)
block -block- (-b-) Poly(A-b-B) or Poly A-block-poly B
graft -graft- (-g-) Poly(A-g-B) or Poly A-graft-poly B
45
Source-based name Structure-based name Trade name, abbreviation
polyethylene polymethylene PE, LDPE, HDPE, LLDPE
polypropylene Poly(propylene) PP
polyisobutylene Poly(1,1-dmethylethylene) PIB
polystyrene Poly(1-phenylethylene) Styron, Styrofoam
Poly(vinyl chloride) Poly(1-chloroethylene) PVC
Poly(vinylidene chloride) Poly(1,1-dichlorethylene) Saran
polytetrafluoroethylene Poly(difluoromethylene) Teflon
Poly(vinyl acetate) Poly(1-acetoxyethylene) PVAC
Poly(vinyl alcohol) Poly(1-hydroxyethylene) PVAL
Poly(methyl methacrylate) Poly(1-methoxycarbonyl-1-methylethylene) PMMA Lucite, Plexiglass
polyacrylonitrile Poly(1-cyanoethylene) PAN Orlon, Acrilan fibers
polybutadiene Poly(1-butenylene) BR rubber
polyisoprene Poly(1-methyl-1-butenylene) NR rubber
polychloroprene Poly(1-chloro-butenylene) Neoprene
46
Polymers with other backbones
Source-based name Structure-based name Trade name, abbreviation
polyformaldehyde Poly(oxymethylene) POM
Poly(ethylene oxide) Poly(oxyethylene) PEO
Poly(ethylene glycol adipate) Poly(oxyethylene oxyadipoyl) Polyester 2,6
Poly(ethylene terephthalate) Poly(oxyethylene oxy-terephthaloyl) PET Dacron
Poly(hexamethylene adipamide) Poly(iminoadipoyl imino-hexamethylene) Nylon 6,6
Poly(e-caprolactam) Poly(imino1-oxohexamethylene) Nylon 6
polyglycine Poly(imino1-oxoethylene) Nylon 2
47
WHY ARE LONG CHAIN MOLECULES SOLIDS?

• Bonding along the backbone is not extraordinary.
• With long chains, secondary valence forces,
  integrated over the entire chain, provide
  considerable bonding forces.
• Chain entanglements provide physical linkages.

48
Chemical bonding in polymers

• Most primary bonds along the backbone are
  covalent
• Secondary valence bonds
• Much smaller forces than the covalent bonds, but
  become significant when integrated over the
  entire chain
• Consider the forces acting on this macromolecule
  as it is pulled through the tube surrounding
  its structure in three dimensional space
• As each chain segment moves, it must overcome the
  local interactions at the tube surface
• Longer chains will have more resistance to motion

49
Secondary valence forces

• Secondary valence forces affect the glass
  transition, the melting temperature,
  crystallinity, melt flow,
• They include nonpolar dispersion, polar dipoles,
  polar induction, and hydrogen bonds

Secondary bond Bond energy, kcal/mol Range of action, Angstrom
Dispersion 0.1-5.0 3-5 (r-6)
Dipole-dipole 0.5-5.0 1-2 (r-3)
Dipole-induced dipole 0.05-0.5 1-2 (r-6)
Hydrogen bond 1.0-12 2-3 (r-2)
50
WHAT ARE TYPICAL CHAIN LENGTH DISTRIBUTIONS?

• Few synthetic polymers are monodisperse, i.e.,
  have one chain length.
• Many biological polymers do have specific
  molecular weights, e.g., proteins, DNA,
• The molecular weight distribution has critical
  effects on polymer properties in the melt and
  solid states.

51
Typical effects of molecular weight distributions

• Homopolymers with different molecular weight
  distributions may be insoluble in each other

carbon atoms State Use
1-4 Gas Gaseous fuel
5-11 Low viscosity liquid gasoline
9-16 Medium viscosity liquid kerosene
16-25 High viscosity liquid Oil, grease
25-50 Crystalline solid Paraffin wax
1000-3000 Plastic solid (crystalline amorphous) polyethylene
Linear alkane properties
52
MWD - oligomer

• Poly(a-olefin) PAO6
• Synthetic base oil vehicle use
• Trimer, tetramer, pentamer, hexamer, heptamer
• Based on 1-decene
• Ionic polymerization
• Differential distribution by size exclusion
  chromatography
• PeakFit used for curve deconvolution

53
Two polyethylenes

• Weight frequency, differential distributions
• Number-average molecular weights are the same
• Weight-average molecular weights are different
• Narrow MWD PD 5.7
• Broad MWD PD 15
• Differences in flow, tensile and appearance
  properties

54
HOW DOES CHAIN LENGTH AFFECT PROCESSING?

• In-class exercise

55
HOW DOES CHAIN LENGTH AFFECT PERFORMANCE?

• In-class exercise

56
WHAT ARE IMPORTANT THERMAL TRANSITIONS?

• Thermal properties are often key criteria used to
  select polymers for specific applications.
• Five regions of viscoelastic behavior (many
  polymers have all five) lt glass transition,
  power law region, rubbery plateau, rubbery flow,
  fluid flow
• Other crystalline solids, crosslinked
  elastomers

57
Five regions of viscoelasticity

• Use amorphous polymers below Tg
• Use crystalline polymers below Tm
• Crosslinked elastomers at G
• Melt processing between B and C

58
Typical G vs T plots
59
regions

• Viscoelasticity most polymers creep(slow flow)
  under long-term stress. Creep may not be
  recoverable, i.e., the sample may not recoil to
  its original dimensions. Over short periods of
  time, polymers are elastic.
• Solid yield and fracture elasticity for e lt
  0.1 PS is brittle and fails at low elongations.
  PE yields, and then undergoes cold drawing to gt
  300 elongation.

60
BUILDING A GLOSSARY
61
POLYMER SCIENCE DIRECTIONS

• Medical applications are a rich applications area
  for polymers.
• Local variations in surface roughness at the
  nanoscale can induce strains in cell membranes,
  leading to the growth of F-actin stress fibers
  that span the length of the cell.
• W.E. Thomas, D. E. Discher, V. P. Shastri,
  Mechanical regulation of cells by materials and
  tissues, MRS Bulletin, 35 (2010), 578-583.

62
Cells feel their environment

• Tissues are hydrated natural polymers with
  controlled elasticity
• Most animals cells require adhesion to a solid to
  be viable
• Tissue elasticity ( kPas) is important for
  regulating cell growth, maturation and
  differentiation. Brain 0.2 lt E lt 1 kPa fat 2
  lt E lt 4 kPa muscle 9 lt E lt 15 kPa cartilage
  20 lt E lt 25 bone 30 lt E lt 40 kPa
• Nanoroughness seems to affect a number of cell
  processes
• 3D scaffolding is important
• Mechanotransduction cells adhere to surfaces via
  adhesive proteins attached to adaptor proteins,
  to the actomyosin cytoskeleton.

63
Fibronectin
Fibronectin is a high-molecular weight (440kDa)
glycoprotein of the extracellular matrix that
binds to membrane-spanning receptor proteins
called integrins.1 In addition to integrins,
fibronectin also binds extracellular matrix
components such as collagen, fibrin and heparan
sulfate proteoglycans (e.g. syndecans). Fibronect
in exists as a protein dimer, consisting of two
nearly identical monomers linked by a pair of
disulfide bonds.1 The fibronectin protein is
produced from a single gene, but alternative
splicing of its pre-mRNA leads to the creation of
several isoforms.
Fibronectin plays a major role in cell adhesion,
growth, migration and differentiation, and it is
important for processes such as wound healing and
embryonic development.1 Altered fibronectin
expression, degradation, and organization has
been associated with a number of pathologies,
including cancer and fibrosis.2
64
Lysozyme models
FIG. 1. Structural models of lysozyme. a
Atomistic model. b Residue model.
65
FIG. 3. Graphical elucidation for different parts
of lysozyme.
66
FIG. 7. Configurations of lysozyme orientation on
a negatively charged surface. The direction of
normal to surface is noted as n and the direction
of dipole of lysozyme is noted as m . a Side-on
orientation cos -0.4 b back-on orientation
cos 0.2.
67
FIG. 9. Configurations of lysozyme orientation on
a positively charged surface. The direction of
normal to surface is noted as n and the direction
of dipole of lysozyme is noted as m . a No
adsorption b upper back-on orientation cos
0.43 c up end-on orientation cos 0.73 d
bottom end-on orientation cos -0.81 e lower
back-on orientation cos 0.26.
68
(No Transcript)
69
(No Transcript)
