Introduction To Engineering Section Views - 2

1

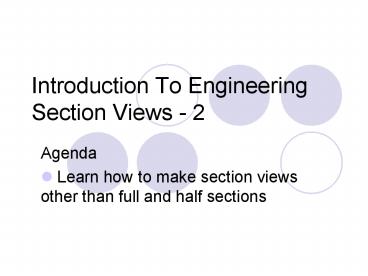

Introduction To EngineeringSection Views - 2

• Agenda
• Learn how to make section views other than full
  and half sections

2
Types of Section Views

• Offset sections
• Broken-out sections
• Revolved sections
• Removed sections

3
Offset sections

• Offset sections are used to show interior
  features that do not lie along a straight line

4
Offset sections
Figure 3.16, pg 79
5
Offset sections
6
Broken Out Sections
A broken-out section view is created by breaking
off part of the object to reveal interior features
7
Broken Out Sections
8
Revolved Sections

• A Revolved section is created by passing a
  cutting plane through the object, then revolving
  the cross section 90

9
Revolved Sections
Revolved Section
10
Removed Sections

• A removed section view is created by making a
  cross section, then moving it to an area adjacent
  to the view.

11
Removed Sections
12
Assignment 33

• Read Bertoline, Chapter 3, Sections 3.1-3.4
• Assignment 33 (in assignment packet)
• Follow the instructions found on the handout
