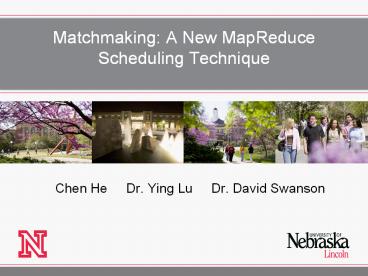

Matchmaking: A New MapReduce Scheduling Technique

1
Matchmaking A New MapReduce Scheduling Technique

• Chen He Dr. Ying Lu Dr. David Swanson

2
Problem Statement

• MapReduce cluster scheduling algorithm becomes
  increasingly important
• Efficient MapReduce scheduler must avoid
  unnecessary data transmission
• We will focus on decreasing data transmission in
  a MapReduce cluster

3
Contributions

• Build a matchmaking algorithm to improve data
  locality of Hadoop MapReduce jobs
• MatchMaking algorithm lead to higher data
  locality rate and shorter map task response time
• We substitute Delay algorithm with MatchMaking
  algorithm in Fair-sharing scheduler and also
  obtain better performance

4
Outline

• Background
• Delay Algorithm
• MatchMaking algorithm
• Evaluation
• Conclusion
• Questions

5
Background

• Hadoop FIFO scheduler
• Scheduler searches local tasks in the first job
  and assign them
• If no local task in the first job, a non-local
  task of the first job will be assigned
• Strict FIFO job order is followed

6
Background

• Hadoop FIFO scheduler

7
Background

• Hadoop FIFO scheduler

8
Background

• Hadoop FIFO scheduler

9
Background

• Hadoop FIFO scheduler

10
Background

• Hadoop FIFO scheduler

11
Background

• Hadoop FIFO scheduler deficiencies
• On the node side, strict FIFO job order reduces
  data locality
• On the job side, FIFO can not provide a fair
  opportunity for each worker node

12
Delay Algorithm

• Driven by Facebook events log saved in their
  Hadoop data warehouse
• Hadoop default FIFO scheduler results in
  unnecessarily long job response time and lack of
  fairness in resource sharing
• Focus on two points fair sharing and data
  locality

13
Delay Algorithm

• Workload

Bin Maps Jobs at Facebook Maps in Benchmark of jobs in Benchmark
1 1 39 1 38
2 2 16 2 16
3 3-20 14 10 14
4 21-60 9 50 8
5 61-150 6 100 6
6 151-300 6 200 6
7 301-500 4 400 4
8 501-1500 4 800 4
9 gt1501 3 4800 4
Matei Zaharia et al Delay scheduling A simple
technique for achieving locality and fairness in
cluster scheduling
14
Delay Algorithm

• Fairness
• Task execution percentage between jobs
• groups
• users
• Data locality
• For Map stage, a map task is running on a node
  that contains its input data
• For Reduce stage?

15
Delay Scheduling

• Fairness VS. Data locality

16
Delay Algorithm

• Fair-sharing principle-hierarchical principle

17
Delay Scheduling-including rack locality
18
Delay Algorithm

• Relax the strict job order
• Scheduler can search other jobs in the job queue
  to find a local task
• Maximum Delay Time (MDT) for a job to avoid
  starvation
• MDT is a user defined maximum time that the
  scheduler can delay a job from assigning its
  non-local map tasks

19
Delay Algorithm
20
Delay Algorithm
21
Delay Algorithm
22
Delay algorithm
23
Delay algorithm
24
Delay algorithm
25
Delay Algorithm Properties

• MDT decides data locality rate
• Rl is an increasing function of MDT but with a
  ceiling value 1
• However, average response time

26
Delay Algorithm Deficiency

• To achieve best response time, we need to
• vary the MDT value
• different types of jobs
• different cluster sizes
• different job execution orders

27
Outline

• Background
• Delay Algorithm
• MatchMaking algorithm
• Evaluation
• Conclusion
• Questions

28
MatchMaking Algorithm

• Relax strict job order
• search all jobs in the queue for local tasks
• To give every node a fair chance to grab its
  local tasks
• when a node fails to find a local task for the
  first time in a row, no non-local task will be
  assigned to it
• when a node fails to find a local task for the
  second time in a row, a non-local task will be
  assigned to it
• A node can be assigned at most one non-local
  task in every heartbeat interval

29
MatchMaking Algorithm
30
MatchMaking Algorithm
31
MatchMaking Algorithm
32
MatchMaking Algorithm
33
MatchMaking Algorithm
34
MatchMaking Algorithm
35
Outline

• Background
• Delay Algorithm
• MatchMaking algorithm
• Evaluation
• Conclusion
• Questions

36
Evaluation

• Environment
• Hardware
• 1 head node with 2 AMD Optron 2.2GHz 64bit, 8GB
  Mem, 1Gbps Ethernet
• 30 worker nodes with same CPUs and network but
  4GB Mem
• Software
• Hadoop 0.21
• Redhat Linux CentOS 5.5
• Test cases
• Loadgen
• Wordcount
• Metrics
• Locality Rate
• Average Response Time

37
Evaluation

• Hadoop Configuration
• HDFS
• Block size is128MB
• 100 Blocks evenly distributed in 30 worker nodes
• Replication number is 2
• MapReduce
• 2 map slots and 1 reduce slot for each worker
  node
• Facebook production workload

Matei Zaharia et al Delay scheduling A simple
technique for achieving locality and fairness in
cluster scheduling
38
Evaluation

• FIFO Scheduler
• Default locality policy
• Delay policy
• Matchmaking policy
• Fair-sharing Scheduler
• Delay policy
• Matchmaking policy

39
Evaluation

• FIFO scheduler locality rate
• loadgen wordcount

40
Evaluation

• FIFO scheduler MTART
• loadgen
  wordcount

41
Evaluation

• Fair sharing scheduler locality rate

42
Evaluation

• Fair sharing scheduler response time

43
Conclusion

• We create MatchMaking algorithm to improve
  MapReduce schedulers data locality without
  tuning
• It obtains good performance in a middle size
  cluster with Facebook production workload
• It can be easily integrated with other scheduler
  like FIFO or Fair-sharing scheduler

44
Disscussion

• Data locality in the Reduce stage

45
Discussion

• Performance in a large cluster and uneven
  distributed environment
• Large cluster may have long hearbeat interval
• Large block size
• ResponseTimeQueuingTimeDataLoadingTimeDataProce
  ssTime
• More replicas
• Data blocks may not be evenly distributed
• Hotspot

46
Discussion

• If the job queue is very long.
• Set a parameter MaxJobConsidered
• Priorities

47
Discussion

• Anything else?

48
Back Page
Questions
This picture is adopted from the Internet
