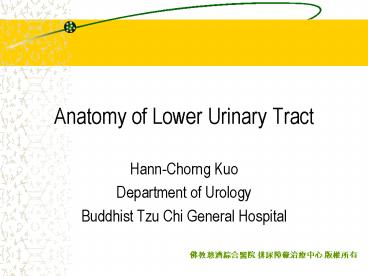

Anatomy of Lower Urinary Tract

• Hann-Chorng Kuo
• Department of Urology
• Buddhist Tzu Chi General Hospital

2
Embryology of Lower Urinary Tract

• Cloaca
• Procodeum- ectodermal depression in hindgut
• Cloacal membrane
• Cloaca separates to urogenital sinus and rectum
• Bladder proper hallow muscular organ
• Detrusor and urethral muscles have the same origin

3
Embryology of Lower Urinary Tract
4
Development of Urogenital Ductsin an 8-week old
fetus
5
Development of Prostate and Female Genital Organs
(12 weeks)
6
Embryology of Genital Tract

• Mesonephric duct ejaculatory duct
• Fused Mullerian duct prostate and membranous
  urethra (M), whole urethra (F)
• Fused Mullerian duct upper 2/3 of vagina,
  uterus, fallopian tubes (F)

7
The Urinary Bladder

• A hallow muscular organ
• Anterior wall behind pubic symphysis
• Apex median umblical ligament umbilicus
• Dome peritoneal covering
• Posterior wall trigone and ureteral orifices
• Bladder neck - urethra

8
Sonography of Urinary Bladder
9
Cystography of Urinary Bladder
10
Structure of the Bladder

• Epithelial lining transitional cell
• Loose submucosal connective tissue
• Muscular wall
• Serosal layer

11
Cystoscopy of Urinary Bladder
12
The Detrusor

• Widely separated coarse muscle bundles
• No definite orientation
• Tree definite layers at the bladder neck
• Longitudinal muscles fused to deep trigone and
  penetrate base of prostate gland
• Muscle fibers wrap around the urethra and return
  to the bladder

13
Bladder Musculature in Cystoscopy
14
Anatomy of Bladder in Image Study

• Smooth wall, well distended, smooth base
• Trabeculation in bladder outlet obstruction
• Bladder neck incompetence in stress incontinence
• Cystocele in pelvic floor weakness
• Bladder base elevation in prostatic enlargement
• No vesico-ureteral reflux

15
Bladder Trabeculation in Cystogram
16
Stress Urinary Incontinence
17
Cystocele
18
Prostate Enlargement and Bladder Base Indentation
19
Blood Supply of the Bladder

• Arterial supply superior, middle,inferior
  vesical arteries branched from hypogastric artery
• Also from inferior gluteal, obturator, uterine
  and vaginal ateries
• Venous drainage hypogastric veins
• Communicating with retropubic venous plexus or
  Santorini plexus

20
Neuroanatomy of Bladder

• Sympathetic nerves T11-T12, L1- L2
• Sympathetic trunk- lumbar splanchic nerves
  hypogastric plexus- pelvic plexus- trigone, lower
  end of ureter, bladder neck
• Parasympathetic nerves S2-S4
• Pelvic parasympathetic plexus- hypogastric plexus
  vesical branches detrusor
• Sensory pathways sympathetic (pain,touch,
  temperature) and parasympathetic nerves (stretch,
  fullness)

21
Neuroanatomy of Urinary Bladder
22
The Ureterovesical junction

• Comprise (1) lower ureter, (2) trigone, (3)
  adjacent bladder wall
• Waldeyers sheath- juxtavesical ureter
• Intravesical ureter intramural segment and
  submucosal segment
• Ureteral muscle fiber continue to the trigone and
  extend to the bladder neck

23
Anatomy of Vesicoureteral Junction
24
The Trigone

• Superficial trigone
• Continuous extension of longitudinal ureteral
  fibers to bladder base and proceed to urethra
• Deep trigone
• Fibers of Waldeyers sheath continue downward
  to bladder base
• Two trigone layers continue with the lower ureter

25
Function of Vesicoureteral Junction

• Free efflux of urine from ureter to bladder
• Prevent reflux of urine from bladder to ureter
• As bladder is filled,the trigone is stretched
• Increased resistance of the intravesical ureter
• During detrusor contraction, trigone contracts
  concomitantly, completely sealing ureter against
  efflux and reflux

26
Vesicoureteral reflux during Voiding Phase
27
Vesicoureteral Reflux and Pseudodyssynergia in
Child
28
Grades of Vesicoureteral Reflux
29
Appearance of Uretreral Orifice
30
The Bladder Neck

• The trigonal musculature- superficial layer
  continue with ureteral muscle, deep layer
  continue with Waldeyers sheath
• Detrusor distributes into three layers inner
  longitudinal, middle circular, outer longitudinal
  m.
• Bladder neck opens during voiding and closed
  during ejaculation

31
Cystoscopy of Bladder Neck
32
Sonography of Bladder Neck
33
Bladder Neck Incompetence in Urgency- Frequency
and SUI
34
The Female Urethra

• A 4-cm muscular tube in females
• Inner longitudinal and outer circular musculature
• Both muscles are connecting with the detrusor
• Surrounded by striated skeletal muscle external
  sphincter, in an omega shape
• Pelvic floor muscles

35
Cystoscopy of Female Urethra
36
Sonography of Female Urethra
37
Relationship of Urethra and Pelvic Floor Muscles
Endopelvic Fascia
Bladder
Smooth muscle
Striated
Symphysis pubis
Striated muscle
Smooth muscle
Urethropelvic ligament
Smooth muscle
38
Relationship of Urethra and External Urethral
Sphincter
???
???
?????
?????
????
?????
?????
????
?????
39
The Male Urethra

• Striated external sphincter bulk around
  membranous urethra and extend over apex of
  prostate, especially anteriorly
• Contains slow twitch (35)-sustained tonus, fast
  twitch fatigable fibers (50), and fast twitch
  fatigue resistant (15)- for emergency
• External sphincter is about 1 inch long and 6 mm
  deep

40
Cystoscopy of Male Urethra
41
Benign Prostate Enlargement
42
Transrectal Sonography of Male Urethra and
Prostate
???
????
? ?
??????
???????
???
43
Anatomy of Male Urethra and Adjacent Organs
44
Sonography of Prostate Enlargement
45
Transrectal Sonography of ProstateProstatic
Transition Zone
46
The Male Urethra

• Prostate urethra, Membranous urethra, Bulbous
  urethra, Penile urethra, Urethral meatus

??
???
?????
??????
?????
????
47
Urethral Pressure Profile in Male
48
The Female Urethra

• Mucosa is transitional epithelium, becoming
  stratified squamous toward meatus
• Submucosa is very vascular
• Innervated by parasympathetic cholinergic fibers
  and sympathetic alpha-adrenergic fibers
• Abundant nitric oxide synthase in smooth muscle
  and striated muscles

49
Urethral Pressure Profile in Women
50
Cross Section of Female Urethra
51
Nitric Oxide Donor Urethral Pressure Profilometry
52
Bladder Outlet Obstruction in Female Urethra
