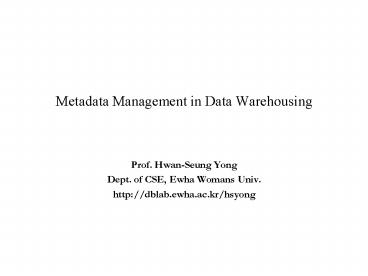

Metadata Management in Data Warehousing

1
Metadata Management in Data Warehousing

• Prof. Hwan-Seung Yong
• Dept. of CSE, Ewha Womans Univ.
• http//dblab.ewha.ac.kr/hsyong

2
Data Environment

• Data is becoming an abundant commodity
• we can get it anywhere and everywhere
• ???? ???? ??? ??? ????? ?? ??/?? ??
• ??? ???? ?? ??? ?!
• like trying to find one specific grain of sand on
  a stretch of beach
• Good business practice
• First, acquiring quality raw data
• second, combining and integrating the data to
  make useful information, and then
• analyzing the information and making high quality
  decisions
• The torrent of raw data has added more choice,
  and therefore complexity, to the process.
• What we need to do is put the data in context,
  give the data meaning, relevance, and purpose,
  and make it complete and accurate

3
Data From Everywhere

• Corporations are coupling together in webs of
  suppliers, partners, and customers, exchanging a
  myriad of information through a spectrum of
  technologies such as
• Electronic Document Interchange (EDI) systems,
• Electronic Funds Transfer (EFT) systems,
• email,
• a host of other data acquisition and networking
  applications
• existing legacy systems within enterprises
  continue to generate
• data on orders, sales, revenues, employee
  information, manufacturing schedules, inventory,
  fleet status, and every other parameter
  imaginable.

4
What we know about the data generated by these
systems

• Each department, division, group, branch, section
  or any other subdivision is today capable of
  generating its own unique caches of data.
• data in one group can have a different meaning in
  another group in the same organization
• This disparate data is exacerbated by
• readily available CASE tools,
• rapid application development tools,
• application and code generators,
• underutilized data models and definitions,
• database products,
• spreadsheets,
• other client friendly products,
• a lack of leadership in management.

5
Approach to solve this disparity

• The concept of a data warehouse has emerged as a
  technology by which management can get a single
  comprehensive view of the state of the
  organization.
• a requirement to under-stand and manage the
  properties of the data
• Metadata attributes about the data, or data
  about data.
• data that sits behind the operational data,
• describes its origin, meaning, derivation, etc
• ?) What is gross sales?
• Dollars or French Francs,
• quarterly or annualized,
• what system does it come from,
• when is it extracted, etc.?)
• ??? ???? ?? ?? (? ??? ?? ?? ??) ?? ??? ????? ????
  ?????? ?!
• range from a conceptual overview of the real
  world to detailed physical specifications for a
  particular database management system.

6
What is Metadata

• 'chain of abstraction concept
• Ex) an actual chair is a pretty concrete item.
• Any specific chair has a host of characteristics

• it is made of wood,
• it has two arms,
• it is a particular shape,
• it has two cushions, and so on
• one step in the chain of abstraction
• Software is abstraction piled on abstraction
• LET BALANCE BALANCE CREDIT
• The source code statement in turn, is an
  abstraction of a banking transaction.
• Metadata is an abstraction from data.
• It is high-level data that describes lower-level
  data.

7
What is Metadata

• Software is full of metadata for example,
• Record descriptions in a COBOL program.
• Logical view descriptions in a data server's
  catalog.
• SQL Create statements.
• Entity-relationship diagrams in a CASE tool's
  repository.
• METADATA IS THE KEY TO DATA
• Metadata is instrumental in transforming raw data
  into knowledge.
• ?1) a given stream of bits can be interpreted as
• a customer's address,
• part of a photographic image,
• a code fragment in a given computer's machine
  language.
• ?2) In Windows 9x, file name extension is another
  metadata
• Should the metadata get mixed up or out of
  alignment, none of the data will make sense.

8
Metadata Status in an Organization

• rushed implementation
• little thought given to coordinating data
  elements with other groups
• so the problem continues
• the metadata situation is worse than the data
  situation
• the disparate data arriving from multiple sources
  from within and outside the corporation,
• multiple tools creating metadata in a variety of
  formats.
• Most companies
• want to rapidly implement data warehousing
  systems
• then discover themselves in a metadata dilemma.

9
Metadata Management Historical Approaches

• Early in the days of Information Technology
• all data was defined and maintained within the
  computer program itself.
• Because the files' metadata was embedded in the
  application's data definitions, no application
  could make sense of another application's files
• There was no need to share data between systems
• In the late 1960's and early '70s, when databases
  were introduced
• one of the greatest advantages they brought was
  that the metadata was stored in the database
  catalog
• data "dictionaries" that were shared by programs
• early implementers of data warehouses
• the idea of a metadata repository was created,
  similar to a data dictionary
• The awareness of the need to manage metadata has
  been an offshoot of the growth of data
  warehousing.

10
Growth of Data Warehousing

• Growth across platforms.
• spans from Microsoft NT, through the UNIX domain,
  and on up into the giants such as NCR, DEC, and
  IBM.
• Growth across tools.
• Success has many parents, and failure is an
  orphan.
• From legacy data extraction tools to maintenance
  and scheduling tools, and yes, even tools that
  purported to handle metadata, vendors and
  products proliferated.
• Growth across departments.
• Success also breeds demand, which is exactly what
  happens when department A gets a new data mart
  and starts showing colleagues in department B how
  easily they can now access consistent data. Soon,
  department B has its own data mart, and
  departments C, D, and E are not far behind.

11
Metadata Management Problem in DW

• the subject of metadata management remained
  fractured and dispersed
• metadata is spread across different components of
  the warehouse,
• in the data extraction/cleansing tools
• in the loading tools,
• in the OLAP tools, which need to present metadata
  to users in order to navigate.
• Business rules are separated from technical
  metadata,
• they are kept by different systems in different
  formats with different user interfaces.
• In the case of multiple data marts spread across
  the enterprise,
• if there is a need for a user in department A to
  use a data mart created by department B, then in
  most cases, that user has to relearn the metadata
  navigation for that system.

12
METADATA USED IN THE DATA WAREHOUSE

• Results from the Data Warehouse
• 1. 739516 13238350 426615 800441 4912313
• 2. "An Inverness Group report dated 4/7/95 states
  that the European market for repository tools
  expanded by 33 in 1994".
• 3. "Leading gadget vendors Protz Group 48,
  Harris Goods 29, Zymurgy Inc. 13"
• How we can interpret this?
• In the first case, The numbers may be
• a firm's sales for different regions,
• population of towns,
• the number of hairs on certain individuals'
  heads.
• a sequence of machine code for some computer.
• In the second case, seems to be self-describing
• the date is ambiguous. Does it mean '4th July
  1995' (British convention) or '7th April 1995'
  (US convention)?

13
METADATA USED IN THE DATA WAREHOUSE

• Results from the Data Warehouse
• 3. "Leading gadget vendors Protz Group 48,
  Harris Goods 29, Zymurgy Inc. 13"
• The third example contains some metadata, but not
  enough.
• Stipulating that 'gadget' has a precise meaning
  to someone in the gadget industry, we still do
  not know whether the market referred to is US,
  world, European,
• what time period is referred to
• how the data was collected or even the source of
  the information.
• Under the circumstances, this example should be
  filed in the data warehouse with a metadata
• note that says 'source unknown, reliability
  unknown, no further details'.

14
METADATA USEDIN THE DATA WAREHOUSE

• In the operational environment,
• metadata is mostly valuable to software
  developers and database administrators.
• Operational databases are only accessed by
  transaction processing applications.
• The end-users - people like bank clerks, travel
  agents and hospital staff -
• do not need to know how information is held in
  the database.
• simply interact with the forms and screens
  provided by the applications they use in the
  course of their everyday work.
• The decision support environment
• data analysts and executives are looking for
  useful facts and correlations
• they need to understand its structure and
  meaning.
• ?) A driver with a complete set of large-scale
  and small-scale maps
• A data warehouse without adequate metadata is
  like a filing cabinet stuffed with papers, but
  without any folders or labels.

15
METADATA REQUIREMENTS

• What tables, attributes, and keys does the data
  warehouse contain?
• Where did each set of data come from?
• What transformation logic was applied in loading
  the data?
• How has the metadata changed over time?
• What aliases exist and how are they related to
  each other?
• What are the cross-references between technical
  and business terms?
• For instance, the field name XVT-351J presumably
  meant something to a COBOL programmer in 1965,
  but what does it mean today?)
• How often does the data get reloaded?
• How much data is there?
• This helps end-users to avoid submitting
  unrealistic queries. Given some means of
  determining the size of tables, staff can tell
  the end-users 'You can do anything you like with
  15,000 rows, but if it turns out to be 15 million
  rows - back off and ask for help!'

16
METADATA COMPONENTS

• The mapping information records how data from
  operational sources is transformed on its way
  into the warehouse.
• Identification of source fields.
• Simple attribute-to-attribute mapping.
• Attribute conversions.
• Physical characteristic conversions.
• Encoding/reference table conversions.
• Naming changes.
• Key changes.
• Defaults.
• Logic to choose from among multiple sources.
• Algorithmic changes.

17
METADATA COMPONENTS (Contd)

• EXTRACT HISTORY
• Whenever historical information is analysed,
  meticulous update records have to be kept.
• The metadata history is a good place to start any
  time-based report.
• MISCELLANEOUS
• Aliases can make the warehouse much more
  use-friendly
• They also come in useful when different
  departments wish to use their own names to refer
  to the same underlying data.
• Status information can be used to keep
  information for instance, tables might be
  classified 'in-design', 'in-test', 'inactive' or
  'active'.
• Often, parts of the same data warehouse may be in
  different stages of development
• Volumetrics could usefully include such
  information as number of rows, growth rate, usage
  characteristics, indexing, and byte
  specifications.
• T he criteria and timescales for purging old
  data.

18
METADATA COMPONENTS (Contd)

• SUMMARISATION ALGORITHMS
• The algorithms for summarising the detail data
• RELATIONSHIP ARTIFACTS AND HISTORY
• Data warehouses implement relationships in a
  different way from production databases.
• Metadata pertaining to related tables,
  constraints, and cardinality with text
  descriptions and ownership records.
• OWNERSHIP/STEWARDSHIP
• to identify the originator of each set of data,
  so that inquiries and corrections can be made to
  the proper group.
• It is useful to distinguish between 'ownership'
  of data in the operational environment and
  'stewardship' in the data warehouse.
• ACCESS PATTERNS
• patterns of access to the warehouse to optimize
  and tune performance.
• Less frequently used data can be migrated to
  cheaper storage media,

19
METADATA COMPONENTS (Contd)

• REFERENCE TABLES/ENCODED DATA
• Reference data is data that is stored in an
  external table and contains commonly used
  translations of values.
• To recover the original unencoded data, together
  with 'effective from' and 'effective to' dates.
• DATA MODEL - DESIGN REFERENCE
• Metadata describing the mapping between the data
  model and the physical design
• This allows an ambiguities or uncertainties to be
  resolved.

20
A Repository

• the vehicle of metadata where information
  (metadata) about an organization's information
  systems components (objects, table definitions,
  fields, business rules and so on) is held.
• also contains tools to facilitate the
  manipulation and query of the metadata.
• a repository can
• aid in the integration of the views of disparate
  systems by helping understand how the data used
  by those systems are related
• support rapid change and assistance in building
  systems quickly by impact analysis and provision
  of standardized data
• facilitate reuse by using object concepts and
  central accessibility
• assist in implementation for data warehousing
• support software development teams.

21
Requirements for Enterprise Repository

• Nonproprietary Relational Database Management
  System
• should use an industry standard DBMS which
  provides significant advantages over
  vendor-developed DBMSs.
• advanced tools and utilities for database
  management (such as backups and performance
  tuning)
• maintainablity and accessibility are enhanced by
  an "open" system.
• Fully Extensible Meta Model
• a complete self-defining, extensible repository
  based on a common entity/relationship diagram.
• The repository should support the following meta
  model extensions
• adding or modifying an entity type,
• adding or modifying a linkage between entity
  types (associations or relationships),
• adding user views to entities or relationships,
• adding, deleting, or modifying attributes of
  relationships or entities,
• modifying the list of allowable values for an
  attribute type,
• adding or modifying commands or user exits,

22
Requirements for Enterprise Repository(Contd)

• An API access to the repository
• can provide with the flexibility needed to create
  a metadata management system which suits their
  unique needs.
• Central Point of Metadata Control
• The repository serves as a central point of
  control for data
• a single place of record about information assets
  across the enterprise.
• documents where the data is located,
• who created and maintains the data,
• what application processes it drives,
• what relationship it has with other data,
• how it should be translated and transformed.
• Impact Analysis Capability
• to provide the total impact of any change.

23
Requirements for Enterprise Repository (Contd)

• Naming Standards Flexibility
• should provide a detailed map of data definitions
  and elements,
• allowing an organization to evaluate redundant
  definitions and elements
• decide which ones should be eliminated,
  translated, or converted.
• By enforcing naming standards,
• assists in reducing data redundancies and
  increasing data sharing,
• making the application development process more
  efficient and therefore less costly.
• Versioning Capabilities
• "versioning" can have many different definitions.

• version control as in test vs. production
  (lifecycle phasing)
• versions as unique occurrences
• versioning by department or business unit and
• version by aggregate or workstation ID.
• facilitate the application lifecycle development
  process by allowing developers to work with the
  same object concurrently.

24
Requirements for Enterprise Repository (Contd)

• Robust Query and Reporting
• The end user tool should seamlessly pass queries
  to its own tool or third party products for
  automatic query generation and execution.
• business users should be able to create detailed
  reports from these tools,
• Data Warehousing Support
• The repository provides information about the
  location and nature of operational data which is
  critical in the construction of a data warehouse.

• It acts as a guide to the warehouse data, storing
  information necessary to define the migration
  environment, mappings of sources to targets,
  translation requirements, business rules, and
  selection criteria to build the warehouse

25
References

• Putting Metadata to Work in the Warehouse,
  http//www.cai.com/products/platinum/wp/wp_meta.ht
  m
• ComputerWire Data Warehousing Tools Bulletin
  Briefing Paper What is Metadata,
  http//www.computerwire.com/bulletinsuk/212e_1a6.h
  tm
