Title: Fall Hazard Standard, c. 1995


1

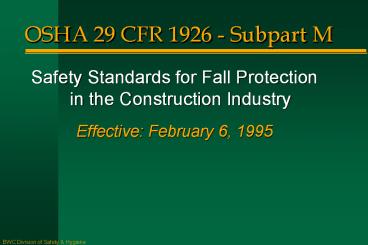

OSHA 29 CFR 1926 - Subpart M
Safety Standards for Fall Protection in the
Construction Industry Effective February 6, 1995
2
Total Construction Fatalities1985-1993
Other 10
Shock 17
Falls From Elevation 33
Struck By 22
Caught In/Between 18
3
Falls From Elevation - Breakdown
Open Sided Floor 4
Suspended Platform/ Vehicle 3
Scaffold 17
Concrete Erection 3
Ladder 8
Aerial Lift Basket 3
Other 16
Steel Erection 10
Floor Opening 7
Roof 27
4
Number of Construction Fatalities Due to Falls
1985-1993
5
Analysis of Heights For Construction Fatalities
Caused by Falls 1985-1993
6
Construction Activity of Total Fatalities 1985
- 1993
Painting, Paper Hanging and Decorations - 63
Plumbing, Heating and Air Conditioning - 31
Heavy Construction, except Highway Street - 15
Highway and Street, except Elevated Highways - 2
Building Construction - Nonresidential - 50
Building Construction - Residential - 29
7
Construction Activity (Contd) of Total
Fatalities 1985 - 1993
Miscellaneous Special Trade Contractors 47
Concrete Work 30
Roofing, Siding and Sheet-Metal Work 73
Masonry, Stonework, Tile Setting and Plastering
62
Carpentry and Floorwork 63
Electrical Work 24
8
1926.500(a)(1) Scope and Application
9
Whos Affected by Subpart M? EVERYONE EXCEPT
  • Employees making an inspection.
  • Employees working on scaffolds. (Subpart L)
  • Employees working on stairways and ladders.
    (Subpart X)
  • Employees working on equipment used in tunneling
    operations. (Subpart S)

10
Whos Affected by Subpart M? EVERYONE EXCEPT
  • Employees engaged in the construction of electric
    transmission, distribution lines, and equipment.
    (Subpart V)
  • Employees working on cranes and derricks.
    (Subpart N)
  • Employees performing steel erection work in
    buildings. (Subpart R)

11
1926.500(b) Definitions
12
1926.501(b)(1) Unprotected Sides and Edges
13
1926.501(b)(2) Leading Edges
14
Exception
When the employer can demonstrate that it is
infeasible or creates a greater hazard to use
these systems, the employer shall develop and
implement a fall protection plan.
15
Definition
Infeasible - means that it is impossible to
perform the construction work using a
conventional fall protection system (i.e.,
guardrail system, safety net system, or personal
fall arrest system) or that it is technologically
impossible to use any of these systems to provide
fall protection.
16
1926.501(b)(3) Hoist Areas
17
1926.501(b)(4) Holes
18
1926.501(b)(5) Formwork and Reinforcing Steel
19
1926.501(b)(6) Ramps, Runways, and Other Walkways
20
1926.501(b)(7) Excavations
21
1926.501(b)(8) Dangerous Equipment
22
1926.501(b)(9) Overhand Bricklaying and Related
Work
23
1926.501(b)(10) Roofing Work On Low-Slope Roofs
24
1926.501(b)(11) Steep Roofs
25
1926.501(b)(12) Precast Concrete Erection
26
Exception
When the employer can demonstrate that it is
infeasible or creates a greater hazard to use
these systems, the employer shall develop and
implement a fall protection plan.
27
1926.501(b)(13) Residential Construction
28
Exception
When the employer can demonstrate that it is
infeasible or creates a greater hazard to use
these systems, the employer shall develop and
implement a fall protection plan.
29
1926.501(b)(14) Wall Openings
30
1926.501(b)(15) Walking/Working Surfaces Not
Otherwise Addressed
31
1926.501(c)(1) Protection From Falling Objects
  • Erect toeboards, screens, or guardrail systems to
    prevent objects from falling.

32
1926.501(c)(2) Protection From Falling Objects
  • Canopy Structure
  • Barricade

33
1926.502(b) GuardrailSystems
34
1926.502 (b)(1), (2) (14)
  • Top edge height shall be 42 /- 3 from
    walking/working level, and able to withstand 200
    lbs. of force.
  • Midrails shall be installed at a height midway
    between top edge and walking/working level, and
    able to withstand 150 lbs. of force.

35
1926.502(b)(9) Guardrail Systems
  • Top rails and midrails shall be at least 1/4 inch
    nominal diameter.
  • Top rail shall be flagged at not more than 6-foot
    intervals with high-visibility material.

36
1926.502 (b)(13)
  • Guardrails at points of access shall be provided
    with gates or offset to that a person cannot walk
    directly into the hole.

37
1926.502(c) Safety Net Systems
38
1926.502(c)(1) Safety Net Systems
  • Install as close as practicable under the
    walking/working surface on which employees are
    working, but in no case more than 30 feet below
    such level.

39
1926.502(c)(2) Safety Net Systems
Net Extension lt 5 feet 8 feet gt 5 feet
and 10 feet lt10 feet gt10 feet
13 feet
40
1926.502(c)(3) Safety Net Systems
  • Install with sufficient clearance to prevent
    contact with any surfaces or structures below.

41
1926.502(c)(4) Safety Net Systems
When the employer can demonstrate that a drop
test is unreasonable, the employer shall certify
that the net and installation can meet an impact
force equivalent to the impact forces of a drop
test.
42
Definition
Competent Person - means one who is capable of
identifying existing and predictable hazards in
the surroundings, or working conditions which are
unsanitary, hazardous, or dangerous to employees,
and who has authorization to take prompt
corrective measures to eliminate them.
43
1926.502(c)(5)(6) Safety Net Systems
  • Inspect nets weekly for wear, damage, and other
    deterioration.
  • Remove any materials, scrap, equipment, and
    tools, that have fallen into net.

44
1926.501(c)(7) Safety Net Systems
  • Maximum mesh opening shall not exceed 36 sq.
    inches nor longer than 6 inches on any side.
  • Mesh crossings shall be secured to prevent
    enlargement of mesh opening.

45
1926.501(c)(8)(9) Safety Net Systems
  • Minimum breaking strength for border rope webbing
    is 5,000 lbs.
  • Connections shall be as strong as net components.
  • Connections shall be spaced not more than 6
    inches apart.

46
1926.502(d) Personal FallArrest Systems
47
1926.502(d) Personal Fall Arrest Systems
Connector means a device which is used to
couple (connect) parts of the personal fall
arrest system and positioning device systems
together. It may be an independent component of
the system, such as a carabiner, or it may be an
integral component of part of the system (such as
a buckle or dee-ring sewn into a body belt or
body harness, or a snap-hook spliced or sewn to a
lanyard or self-retracting lanyard.)
48
1926.502(d)(8) Personal Fall Arrest Systems
  • Horizontal lifelines shall be designed,
    installed, and used, under the supervision of a
    qualified person, as part of a complete personal
    fall arrest system, which maintains a safety
    factor of at least two.

49
Definition - from 1926.32(l)
Qualified Person - means one who, by
possession of a recognized degree, certificate,
or professional standing, or who by extensive
knowledge, training, and experience, has
successfully demonstrated his ability to solve or
resolve problems relating to the subject matter,
the work, or the project.
50
1926.502(d) Personal Fall Arrest Systems
  • Rope Grab means a deceleration device which
    travels on a lifeline and automatically, by
    friction, engages the lifeline and locks so as to
    arrest the fall of an employee.
  • Lanyards and vertical lifelines shall have a
    minimum breaking strength of 5,000 lbs.
  • Each employee shall be attached to a separate
    lifeline.

51
1926.502(d)(12) Personal Fall Arrest Systems
Self-retracting lifeline/lanyard means a
deceleration device containing a drum-wound line
which can be slowly extracted from, or retracted
onto, the drum under slight tension during the
normal employee movement, and which, after onset
of a fall, automatically locks the drum and
arrests the fall.
52
1926.502(d)(12) (15) Anchorage
  • Capable of supporting at least 5,000 lbs. per
    employee attached.
  • Limit free fall distance to 2 ft. or less and
    able to sustain a 3,000 lb. min. tensile load.

53
.5
t (2h/g) or How Long Does It Take To Fall?
Height (feet) Time (seconds) 4
0.5 16 1.0 36 1.5 64
2.0 100 2.5 144 3.0 256
4.0 576 6.0
2
g Gravitational Constant of 32.2 ft/s h
Height of Fall in feet t Time of Fall in
seconds

54
Velocity
  • v (2gh)
  • v Velocity, assuming no initial velocity
  • g Gravitational Constant of 32.2 ft/s
  • h Height of fall in feet

.5
2
55
Momentum Of Fall
  • M Momentum in foot- pounds/second
  • m Mass in pounds
  • v Velocity, assuming no initial velocity
  • M mv

56
Skull Fracture
A skull would fracture at approximately 50
foot- pounds/second . The velocity of a fracture
is expressed in the equation
  • E Kinetic Energy
  • g Gravitational Constant
  • m Weight of an average human head
  • 2Eg
  • m
  • 50 x 2 x 32.2
  • 12
  • 16.3 ft/sec

v


57
Peak Fall Arresting Forces - Forces Generated by
220 lbs Steel Weight Free-Falling 6 ft
Force in lbs.
58
Determining Minimum Anchorage Point Height
  • C Clearance
  • H Anchor Point Height
  • L Distance Between Anchorage Point and D-Ring
  • S Deceleration Distance
  • 5 Harness D-Ring Height
  • Free Fall 5 L - H 6 max. OSHA
  • Clearance 5 L - H S 9.5 Minimum
    Clearance where S 3.5 max. OSHA

59
1926.502(d)(16) (17) Harnesses
  • Limit maximum arresting force to 1,800 pounds.
  • Rigged so that an employee cannot free fall more
    than 6 feet.
  • Attachment point located in center of back near
    shoulder level.

60
1926.502(e) Positioning Device Systems
61
1926.502(f) Warning LineSystems
62
Warning-Line System
  • Erected around all sides of roof work area.
  • 6 feet from edge - 10 feet when using mechanical
    equipment.
  • Two warning lines at points of access, material
    handling, storage, and hoisting areas.
  • Rope, wire, or chain flagged at not more than
    6-foot intervals with high visibility material.

63
Warning-Line System
  • The rope, wire or chain shall be rigged or
    supported so that its lowest point is no less
    than 34 inches and the highest point is no more
    than 39 inches from the walking/working surface.
  • Stanchions shall be capable of resisting, without
    tipping over, a force of at least 16 pounds
    applied horizontally against the stanchion 30
    inches from the walking/working surface.

64
Warning-Line System
  • The rope, wire or chain shall have a minimum
    tensile strength of 500 pounds.
  • The line shall be attached so that pulling on one
    section of the line will not result in slack
    being taken up in adjacent sections.
  • Employees are not permitted between the roof edge
    and warning line unless performing roofing work
    in that area.

65
1926.502(g) Controlled Access Zones
66
1926.502(g)(1) Controlled Access Zones - Leading
Edge
  • Extends parallel along the unprotected or leading
    edge.
  • Control line connected to guardrail system or
    wall.
  • Line situated not less than 6 feet nor more than
    25 feet from edge.

67
1926.502(g)(1) Controlled Access Zones - Leading
Edge (contd)
  • Consists of ropes, wires, and tape with a minimum
    breaking strength of 200 lbs. and is marked with
    high visibility materials at not more than 6 foot
    intervals.
  • Stanchions rigged so that the lowest point is not
    less than 39 inches nor more than 45 inches.

68
1926.502(g)(1) Controlled Access Zones - Precast
Concrete
  • Control line erected not less than 6 feet nor
    more than 60 feet, or half the length of the
    member being erected, whichever is less, from the
    leading edge.

69
1926.502(g)(1) Controlled Access Zones -
Overhand Bricklaying
  • Lines erected not less than 10 ft. nor more than
    15 ft. from the working edge.
  • Lines extended to enclose all employees
    performing overhand bricklaying and related work.
  • Lines erected at each end to enclose zone.
  • Only employees engaged in work permitted in zone.

70
1926.502(h) Safety Monitoring Systems
71
Safety-Monitoring System
  • Competent person to monitor
  • Warns employees nearing hazard
  • On same walking/working surface
  • Within visual Contact
  • Able to communicate orally with workers
  • No mechanical equipment used or stored in
    safety-monitoring system area

A shout may be the last thing a worker hears as
he or she hurtles to the ground.
72
1926.502(i) Covers
73
1926.502 (i) Covers
74
1926.502 (i) Covers
75
1926.502 (i) Covers
76
1926.502 (i) Covers
  • Capable of supporting twice the maximum axle
    load.
  • Capable of supporting twice employee, equipment,
    and material weight.
  • Secured to prevent accidental displacement.
  • Color coded or marked with the word HOLE or
    COVER.

77
1926.502(j) Protection From Falling Objects
78
1926.502(j)(1),(2) (3) Toeboards
  • Erected a sufficient distance to protect
    employees below.
  • Able to withstand a force of 50 lbs. outward and
    downward.
  • Minimum height of 3 and 1/2 inches with no more
    than 1/4 inch gap at walking/working surface.

79
1926.502(j)(5) (6) Guardrail System
  • Erect paneling or screening when material exceeds
    guardrail systems top rail.
  • No materials or equipment stored within 4 feet of
    working edge.

80
1926.502(j)(8) Canopies
  • Canopies used for falling object protection shall
    be strong enough to support and prevent
    penetration by any objects which might fall into
    canopy.

81
1926.502(k) Fall Protection Plan
  • Available for employees engaged in leading edge
    work, precast concrete erection work, or
    residential construction work only.
  • Up to date, site specific plan prepared by
    qualified person, with a copy maintained at the
    job site.
  • Changes to plan must be approved
  • by qualified person.

82
Definition - from 1926.32(m)
Qualified Person - a person who has
successfully demonstrated his ability to solve or
resolve problems relating to the subject matter,
the work, or the project.
83
1926.502(k) Fall Protection Plan (Contd)
  • Plan must document reasons why conventional fall
    protection systems are infeasible or would create
    a greater hazard.
  • Documentation of other measures taken to reduce
    or eliminate fall hazards for workers not using
    conventional fall protection.

84
1926.502(k) Fall Protection Plan(Contd)
  • Plan must identify each location where
    conventional methods cannot be used, and
    locations must be classified as controlled access
    zones.
  • When alternative measures have not been
    implemented, a safety monitoring system shall be
    used.

85
1926.502(k) Fall Protection Plan(Contd)
  • Plan must state name or identify employees who
    are designated to work in controlled access
    zones.
  • If an employee falls, or some other related
    serious incident occurs, the employer must
    investigate the circumstances of the fall or
    incident, and determine if the fall protection
    plan needs to be changed to prevent recurrence.

86
1926.503 Training Requirements
  • The nature of falls in the work area.
  • The correct procedures for erecting, maintaining,
    disassembling, and inspecting the fall protection
    system in use.
  • The use and operation of guardrail systems,
    personal fall arrest systems, safety net systems,
    warning line systems, controlled access zones,
    and other protection to be used.

Certificate of Training
John Doe has successfully completed all the
training provisions of fall protection for
ABC Roofing Company on this date February
6, 1995 Tony Maroni, President
Noah Falls, Safety Director
87
1926.503 Training Requirements
  • The role of each employee when a
  • safety-monitoring system is used.
  • Limitations of mechanical
  • equipment during roofing work on
  • low-sloped roofs.
  • Correct procedures for the use,
  • handling and storage of equipment
  • and materials.
  • The employees role in fall protection
  • plans.

Certificate of Training
John Doe has successfully completed all the
training provisions of fall protection for
ABC Roofing Company on this date February
6, 1995 Tony Maroni, President
Noah Falls, Safety Director
88
Appendix A to Subpart M - Determining Roof Widths
Example B - Sloped Rectangular Shaped Roofs
Example A - Rectangular Shaped Roofs
89
Appendix A to Subpart M - Determining Roof Widths
Example C - Irregularly Shaped Roofs With
Rectangular Shaped Sections
90
Appendix A to Subpart M -Determining Roof Widths
(Contd)
Example D - Separate Non- Contiguous Roof Areas
91
Appendix A to Subpart M -Determining Roof Widths
(Contd)
Example E - Roofs With Penthouses, Open
Courtyards, Additional Floors, etc.
92
Appendix A to Subpart M - Determining Roof
Widths (Contd)
Example F - Irregular, Non-Rectangular Shaped
Roofs
Write a Comment
User Comments (0)
About PowerShow.com
