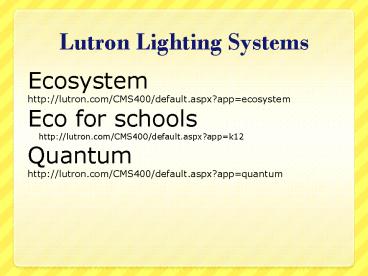

Lutron Lighting Systems

• Ecosystem
• http//lutron.com/CMS400/default.aspx?appecosyste
  m
• Eco for schools http//lutron.com/CMS400/default.a
  spx?appk12
• Quantum
• http//lutron.com/CMS400/default.aspx?appquantum

2
Lutron Ecosystem Quantum

• EcoSystem is a revolutionary lighting control
  system comprised of digital electronic dimming
  ballasts, controls, and environmental sensors.
  EcoSystem can generate energy savings of 50 to
  70, increase occupant comfort, and increase
  space flexibility.

3
Lutron Ecosystem Quantum

• EcoSystem is a revolutionary lighting control
  system, with digital electronic dimming ballasts,
  controls and environments sensors that
• save energy (often 50 of the lighting
  electricity),
• increase comfort and productivity,
• improve space flexibility, and
• reduce maintenance costs.

4
EcoSystem saves energy, flexibly

• Controls when lights are on or off
• Control light levels in occupied spaces by
  automatically dimming
• Lets individuals control their own light levels
• Reprogram EcoSystem as needs change, avoiding
  construction costs.

5
How EcoSystem worksMicroprocessors in the lights

• EcoSystem electronics and sensors communicate to
  maximize energy savings.
• EcoSystem ballasts balance input from multiple
  sensors and controls. In older designs, the
  components don't communicate and minor sensor
  changes can override significant inputs.
• EcoSystem "plug and play" components communicate
  via low voltage wires. As building needs change,
  simply reprogram EcoSystem, without
  re-circuiting.
• Occupants can control their light to improve
  productivity and increase energy savings.
• Facility managers configure EcoSystem themselves
  to maximize occupant comfort and energy savings.
• Quantum adds central control, reporting, load
  shed management, and alerts.

6
Financial Payback
7
Financial Payback

• How you Save?
• Return to Top
• Use Less Energy
• Improve Employee Productivity
• Save During Construction
• Earn Financial Credits
• Reduce Maintenance Costs
• Maintain Control of your Lighting Costs
• Increase Building Valuation

8
Financial Payback

• How you Save?
• EcoSystem shines in corridors, hallways, and
  stairways. Lighting can account for 40 to 60 of
  the energy consumed in corridors and stairways.
  EcoSystem can generate unparalleled energy
  savings.
• Halls require light along their entire length,
  but are often overlit, and windows or skylights
  may offer daylight. Basic occupant sensors are a
  poor choice in these spaces, and can lead to
  tenant complaints and disabled sensors.
• EcoSystem can dim to 10 when nobody is present,
  rise to 80 when in use, and rise to 100 for
  cleaning and during emergencies. This
  configuration will save energy and meet occupant
  needs completely.

9
Financial Payback

• How you Save?
•
• Restrooms are candidates for occupant sensors,
  but standard flourescent lights provide a poor
  overall experience. Standard fluorescent lights
  respond slowly to occupant sensors and have false
  signals, leading facility managers to disable
  them. Many people will not enter a dark restroom
  and everyone will complain when lights go out in
  an occupied restroom.
• EcoSystem offers a superior configuration because
  the lights can be tuned to balance input from
  occupant sensors. Program EcoSystem to drop the
  lights to 10 when unoccupied during business
  hours, rise immediately to 80 when someone
  enters, and rise to 100 for cleaning. This is a
  real-world solution to save energy.
• Use EcoSystem flexibility to maximize energy
  savings.

10
Financial Payback

• How you Save?
• Cafeterias benefit from occupant sensors,
  daylight sensors, multiple scenes, and tuning, to
  generate energy savings and increase utilization.
  Cafeterias often have large windows that offer
  good opportunities to save energy and make the
  space more inviting and usable, on both bright
  and cloudy days. Organizations that use
  cafeterias throughout the day (for meetings and
  work space) will see particular benefits.
• When space is unoccupied, lights are set at a low
  (yet inviting) level.
• Lights rise automatically for employees.
• Wall controls offer scenes that support work
  groups or large group presentations.
• Cafeterias are a particularly good place to
  implement load shedding.
• EcoSystem balances input from multiple controls
  and sensors, without complex logic or programming
  rules. EcoSystem makes it simple to generate
  unparalleled energy savings and productivity
  improvements. EcoSystem will generate value for
  many years.

11
Financial Payback

• How you Save?
• Balance LC packages EcoSystem for classrooms.
  Teachers and professors control the light for
  different activities (lecture, discussion,
  projection) to support their teaching while they
  save energy and money. To learn more about Lutron
  solutions for schools click here.
• EcoSystem integrates and balances input from
  sensors and controls. Older systems require
  intricate programming rules to balance multiple
  inputs, and daylight harvesting can override
  instructor commands. BalanceLC is simple sensors
  and controls work together to generate
  unparalleled energy savings.
• Balance LC wall controls can offer up to four
  pre-set light levels. Classroom choices might
  include
• Reduced general lighting to save energy
  throughout the day,
• High light levels when students work
  independently,
• Raised lights in the lecture area only, and
• Low lighting for safety purposes during a video
  presentation.

12
Components

• Ballasts

• Occupancy Sensors

13
Components

• Daylight Sensor

• Scene Selector

14
Quantum
15
Quantum
16
Quantum

• Quantum is a whole-building light control system
  that
• Saves energy, saves money, and reduces greenhouse
  gases.
• Demonstrates your organization's commitment to
  energy savings.
• Manages electric light and daylight centrally.
• Increases productivity and space flexibility.
• Lowers operating costs and peak demand utility
  charges.
• Integrates with BACnet building management
  systems.
• Supports both new construction and retrofits.
• Improves office buildings, schools, universities,
  and more. Quantum electricity savings overwhelm
  the lighting system cost

17
Quantum

• Quantum manages Lutron EcoSystem fluorescent
  ballasts and digital electric lighting controls,
  Lutron Sivoia QED digital shading systems, and
  Green Glance. Quantum manages, monitors, reports
  upon, and generates alerts from these systems for
  the highest energy performance and and lowest
  maintenance cost.
• lowers energy consumption by up to 70.
• provides occupants with local control of their
  lighting.
• manages, monitors, alerts, and reports energy
  use, lamp outages, occupancy trends, and more.
• simplifies lighting design and reduces
  installation costs.
• integrates with BACnet building management
  systems.
• contributes to LEED certification points
