Vladislav Toronov, Ph. D.

1

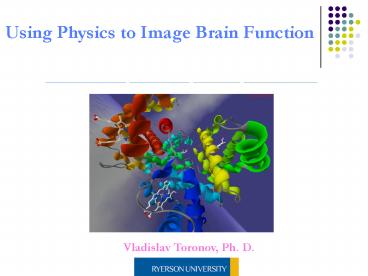

Using Physics to Image Brain Function
____________ _________ _______ ___________
Vladislav Toronov, Ph. D.
2
outline
Functional MRI lack of physiological
specificity Principles of Near Infrared
Spectro-Imaging NIR study of the physiological
basis of fMRI signal NIR imaging of brain function
3
Quantities used in MRI

• Longitudinal relaxation time T1
• Transverse relaxation time T2 (T2)
• Proton density

4
Why MRI provides nice structural images?
Due to the large differences in T1 or T2 between
tissues
5
Can MRI be used for metabolic measurements?

• Answer it is very difficult to do because T1 and
  T2 can depend on many parameters
• Example
• Changes in the blood content during functional
  activity

6
Oxygen Transport to Tissue

• Oxygen is transported in hemoglobin molecules of
  red blood cells
• Deoxy-hemoglobin HHb
• Oxy-hemoglobin HbO2
• Metabolic measurement Can MRI be used to measure
  HHb and HbO2?

7
Blood content vs. blood flow
Conclusion MRI does now allow simple separation
of oxygenation effects from blood volume effects
8
Blood Oxygen Level Dependent effect Oxygen in
the blood modifies T2
Functional brain mapping
9
Quantitative physiological model of the BOLD
signalR. Buxton, 1998
where
DqDHHb/HHb0 DvDtHb/tHb0
Conclusion MRI does not allow simple separation
of oxygenation effects from blood volume effects
10
Near-Infrared Spectro-Imaging

• (NIRSI)

11
Optical Spectroscopy
Beers law
NIRSI
12
Light Propagation in Tissues
NIRSI
13
Boltzmann Transport Equation
Where
- radiance W cm-2 steradian-1
- absorption coefficient cm-1
- scattering coefficient cm-1
- source term W cm-3 steradian-1 s-1
14
Diffusion Approximation
Diffusion Equation
15
Type of the source modulation

• Continuous Wave
• Time Domain (pulse)
• Frequency-Domain

16
Frequency-domain approach

• Light Source
• Modulation frequency gt100 MHz
• AC, DC and phase

NIRSI
17
Absolute measurements withfrequency-domain
spectroscopy
multi-distance method
Frequency-domain solution for Semi-infinite
medium
SF

• ma absorption coefficient
• ms reduced scattering coefficient
• w angular modulation frequency
• v speed of light in tissue
• SF phase slope
• Sac ln(r2ac) slope

Log
Sac
18
Method of quantitative FD measurements
Multi-distance
Detector fiber bundle
Source fibers
Flexible pad
Direct light block
19
Estimation of physiological parameters
Beers law
Total HB
CBV
Oxygenation
NIRSI
20
Near-infrared tissue oximeter
detector bundles
pmt b
RF electronics
pmt a
laser driver 2
laser driver 1
source fibers
multiplexing circuit
laser diodes
NIRSI Instrumentation
21
NIR Imaging System
22
Advantages of NIRSI

• Non-invasive
• Fast ( 1 ms)
• Highly specific (spectroscopy)
• Relatively inexpensive (100 K)
• Can be easily combined with MRI

23
Study of the physiology of the BOLD effect
NIRSI in Functional Magnetic Resonance Imaging
BOLD Blood Oxygen Level Dependent
24
fMRI Mapping of the Motor Cortex
25
BOLD signal model
where
DqDHHb/HHb0 DvDtHb/tHb0
Study of the BOLD effect
26
Multi-distance optical probe
Study of the BOLD effect
27
Collocation of fMRI signal and optical sensor
Optical probe
Motor Cortex
Study of the BOLD effect
28
Activation paradigm
Motor activation
?lock Design - 10s/17s
Time
Study of the BOLD effect
29
Data analysisFolding (time-locked) average
Raw data
Folded data
Study of the BOLD effect
30
Time course of hemodynamicand BOLD signals
stimulation
Study of the BOLD effect
31
BOLD signal model
where
DqDHHb/HHb0 DvDtHb/tHb0
Study of the BOLD effect
32
Biophysical Modeling of Functional Cerebral
Hemodynamics
33
O2 Diffusion Between Blood and Tissue Cells
fout
fin
Modeling
34
Balloon Model
q- normalized Deoxy Hb
v- normalized Total Hb tV0/F0 mean transit time
Oxygen Extraction Fraction
Modeling
35
OEF as function of CBF(Buxton and Frank, 1997)
Modeling
36
Balloon Model
Modeling
q- normalized Deoxy Hb
v- normalized Total Hb
Oxygen Extraction Fraction
37
Functional Changes in Cerebral Blood Flow from
Balloon Model
Stimulation
Modeling
38
Why oxygenation increases?

• The increase in cerebral blood oxygenation during
  functional activation is mostly due to an
  increase in the rCBF velocity, and occurs without
  a significant swelling of the blood vessels.

Washout Effect
Modeling
39
Outcomes

• The time course of the BOLD fMRI signal
  corresponds to the changes in the
  deoxy-hemoglobin concentration
• BOLD fMRI provides no information about the
  functional changes in the blood volume
• This information can be obtained using NIRSI

40
Optical Mapping of Brain Activityin real time
41
Locations of the sources and detectors of light
on the human head
3
2
1
3 cm
4
detectors
B
A
8
light sources
6
5
7
Motor Cortex
Brain mapping
42
Backprojection Scheme
C34.5S3 .5S4
C34.75S3.25S4
1
3
2
34 3 3 3 3 23 2 2 2 2 2 2 12 1 1 1 1 18
34 3 3 3 23 2 2 2 2 2 2 2 2 12 1 1 1 18
4 4 3 3 23 2 2 2 22 22 2 2 2 12 1 1 8 8
4 4 4 34 23 2 2 26 26 26 26 2 2 12 18 8 8 8
4 4 4 45 56 6 6 62 26 26 62 6 6 67 78 8 8 8
4 4 5 5 56 6 6 6 66 66 6 6 6 67 7 7 8 8
45 5 5 5 56 6 6 6 6 6 6 6 6 67 7 7 7 78
45 5 5 5 5 56 6 6 6 6 6 6 67 7 7 7 7 18
8
4
A
B
detectors
6
light sources (758 and 830 nm)
7
5
Brain mapping
43
Real time video of brain activation
D Hb (mM)
-1.0
-0.5
0.0
0.5
Brain mapping
44
3D NIR imaging of brain function using structural
MRI
45
Ln the mean time photon spends in voxel n
relative to the total travel time
A small change in absorption
S
D
46
Solve an equation
Number of measurementsltlt number of voxels
3D imaging
47
Sensitivity is high near the surface and low in
the brain
Source
Detector
3D imaging
48
Using structural MRI info
Scalp
Cerebro- Spinal Fluid
Scull
Brain
CONSTRAINT
3D imaging
49
How do we find Ln the relative voxel time?
50
Monte Carlo Simulation

• Structural MR image
• is segmented in
• four tissue types
• Scalp
• Skull
• CSF
• Brain
• 10,000,000 photons

Source
Detector
3D imaging
51
Image Reconstruction
Underdetermined Problem
YAx
Solution Simultaneous Iterative Reconstruction
Technique
3D imaging
52
Activation of Human Visual Cortex
Flashing or reversing checkerboard
53
EXPERIMENT
50 mm
3D imaging
54
Probe for imaging human visual cortexin the MRI
scanner
55
Placement of the optical probe on the head inside
the birdcage head coil of the MRI scanner
56
(No Transcript)
57
Time course of hemodynamic changes in the
activated region
58
Results of the group statistical analysis of
variance
Using AFNI medical Image processing software
BOLD
-?Hb
?HbO2
3D imaging
59
Outcomes

• In combination with structural MRI,NIRSI can
  be used for non-invasive 3D imaging of
  physiological processes in the human brain
• A two-wavelength NIR imaging provides
  independent spatially-resolved measurements of
  changes in oxy- and deoxyhemoglobin
  concentrations.

60
General Conclusion and Perspective

• Alone or in combination with other imaging
  techniques, NIRSI can be used as a quantitative
  metabolic imaging tool in a variety of biomedical
  applications
• Neuronal activity 10 ms temporal resolution
• Neonatology Babys head has low size and
  absorption
• Mammography Non-ionizing, specific
• Small animals Neuroimaging, fast
  assessment in cancer research
