1

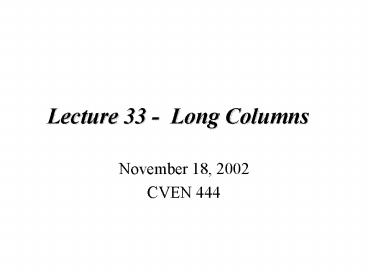

Lecture 33 - Long Columns
  • November 18, 2002
  • CVEN 444

2
Lecture Goals
  • Slender Column Design

3
Columns
Slenderness ratio
  • Long with a relatively high slenderness ratio
    where lateral or shear walls are required
  • Long with a medium slenderness ration that will
    cause a reduction in strength
  • Short where the slenderness ratio is small

4
Long Columns
Slender Columns
Slender Column
Column with a significant reduction in axial load
capacity due to moments resulting from lateral
deflections of the column (ACI Code significant
reduction 5)
5
Long Columns
Less than 10 of columns in braced or
non-sway frames and less than half of columns
in unbraced or sway frames would be
classified as slender following ACI Code
Procedure.
6
Effective Length
The effective length - klu lu - It measures the
clear distance between floors. k - a factor,
which represents the ratio of the distance
between points of zero moments in the columns
7
K Factor
YA and YB are the top and bottom factors of the
column. For a hinged end Y is infinite or 10 and
for a fixed end Y is zero or 1
8
K Factor
For a Braced Frame(Non-sway)
YA and YB are the top and bottom factors of the
column.
9
K Factor
For a Sway Frame a) Restrained _at_both
ends b) One hinged or free end Non-sway
frames Sway frames
10
K Factor
The general assumptions are - Structure consists
of symmetric rectangular frames - The girder
moment at a joint is distributed to columns
according to their relative stiffness - All
columns reach their critical loads at the same
time
11
General Formulation
Modulus of Elasticity Reinforced Moment (ACI
10.11.1)
12
General Formulation
Area Moment of inertia shall be divided by (1
bd) with sustain lateral loads
13
K Factor
Use the Y values to obtain the K factors for the
columns.
14
Long Column
Eccentrically loaded pin-ended column.
Lateral deflection - increases moment
M P( e D )
15
Long Column
Eccentrically loaded pin-ended column.
Do first-order deflection due to Mo Da
second-order deflection due to Po
16
Long Column
Eccentrically loaded pin-ended column.
OA - curve for end moment OB - curve for maximum
column moment _at_ mid-height)
Axial capacity is reduced from A to B due to
increase in maximum moment due to Ds
(slenderness effects)
17
Long Columns
18
Long Column - Slenderness Ratio
Slenderness Ratio for columns
19
Long Column - Slenderness Ratio
Slenderness Ratio for columns
20
Long Column - Slenderness Ratio
Slenderness Ratio for columns in frames
21
Long Column - Slenderness Ratio
Slenderness Ratio for columns in frames
22
Long Column
Unsupported height of column from top of floor to
bottom of beams or slab in floor Radius of
gyration 0.3 overall depth of
rectangular columns 0.25 overall depth of
circular columns
lu
r
23
Long Column
double curvature
singular curvature
24
Long Columns
M1/M2 Ratio of moments at two column ends
where M2 gt M1 (-1.0 to 1.0 range) - single
curvature - double curvature
is typically conservative (non-sway frames)
Note Code (10.12.2) M1/M2 -0.5 non-sway frames
25
Long Column
26
Moment Magnification in Non-sway Frames
If the slenderness effects need to be considered.
The non-sway magnification factor, dns, will
cause an increase in the magnitude of the design
moment. where
27
Moment Magnification in Non-sway Frames
The components of the equation for an Euler
bucking load for pin-end column and the
stiffness, EI is taken as
28
Moment Magnification in Non-sway Frames
A coefficient factor relating the actual moment
diagram to the equivalent uniform moment diagram.
For members without transverse loads For other
conditions, such as members with transverse loads
between supports, Cm 1.0
29
Moment Magnification in Non-sway Frames
The minimum allowable value of M2 is The sway
frame uses a similar technique, see the text on
the components.
30
Design of Long Columns- Example
A rectangular braced column of a multistory frame
building has floor height lu 25 ft. It is
subjected to service dead-load moments M2 3500
k-in. on top and M12500 k-in. at the bottom.
The service live load moments are 80 of the
dead-load moments. The column carries a service
axial dead-load PD 200 k and a service axial
live-load PL 350 k. Design the cross section
size and reinforcement for this column. Given YA
1.3 and YB 0.9. Use a d2.5 in. cover with
an sustain load 50 and fc 7 ksi and fy
60 ksi.
31
Design of Long Columns- Example
Compute the factored loads and moments are 80 of
the dead loads
32
Design of Long Columns- Example
Compute the k value for the braced compression
members Therefore, use k 0.81
33
Design of Long Columns- Example
Check to see if slenderness is going to matter.
An initial estimate of the size of the column
will be an inch for every foot of height. So h
25 in. So slenderness must be considered.
Since frame has no side sway, M2 M2ns, ds 0
Minimum M2
34
Design of Long Columns- Example
Compute components of concrete The moment of
inertia is
35
Design of Long Columns- Example
Compute the stiffness The critical load is
36
Design of Long Columns- Example
Compute the coefficient The magnification
factor
37
Design of Long Columns- Example
The design moment is Therefore the design
conditions are
38
Design of Long Columns- Example
Assume that the r 2.0 or 0.020 Use 14 9
bars or 14 in2
39
Design of Long Columns- Example
The column is compression controlled so c/d gt
0.6. Check the values for c/d 0.6 Check the
strain in the tension steel and compression steel.
40
Design of Long Columns- Example
The tension steel
41
Design of Long Columns- Example
Combined forces
42
Design of Long Columns- Example
Combined force
43
Design of Long Columns- Example
Moment is
44
Design of Long Columns- Example
The eccentricity is Since the e 11.28 in. lt
13.62 in. The section is in the compression
controlled region f 0.65. You will want to
match up the eccentricity with the design.
45
Design of Long Columns- Example
Check the values for c/d 0.66 Check the
strain in the tension steel and compression steel.
46
Design of Long Columns- Example
The tension steel
47
Design of Long Columns- Example
Combined forces
48
Design of Long Columns- Example
Combined force
49
Design of Long Columns- Example
Moment is
50
Design of Long Columns- Example
The eccentricity is Since the e 11.28 in.
The reduction factor is equal to f 0.65.
Compute the design load and moment.
51
Design of Long Columns- Example
The design conditions are
52
Design of Long Columns- Example
Design the ties Provide 3 ties, spacing will be
the minimum of Therefore, provide 3 ties _at_
18 in. spacing.
53
Using Interaction Diagrams
  • Determine eccentricity.
  • Estimate column size required base on axial load.
  • Determine e/h and required fPn/Ag
  • Determine which chart to use.
  • Select steel sizes.
  • Design ties by ACI code
  • Design sketch

54
Homework(11/25/02)
Problem 9.13(a)
Try a 20 in square column and sustained load of
50
