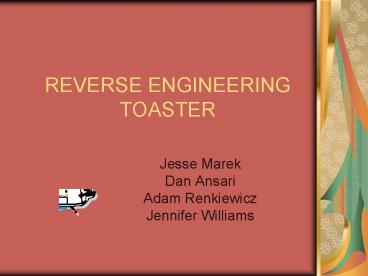

REVERSE ENGINEERING TOASTER

1
REVERSE ENGINEERINGTOASTER

• Jesse Marek
• Dan Ansari
• Adam Renkiewicz
• Jennifer Williams

2
Mechanical Engineering
3
Engineers Job

• The engineers job is to design and determine how
  all the mechanical aspects of a project will work
  together
• To pick the proper materials for the task

4
Lever and Spring

• Some of the aspects are the lever to push the
  toast down
• And the springs to raise the toast up after it is
  done

5
Centering Grid and Heating Element

• The centering grid that prevents the toast from
  burning
• The heating element that that does the toasting
  of the bread

6
Mechanical Engineering Aspects of a Toaster

• The metal tab that holds down the lever so the
  toaster can toast the bread
• It is also the connection between the mechanical
  and electrical engineering aspects

7
Electrical Engineering
8
Toaster Electrical Contents

• Circuit board with various resistors, inductors,
  and capacitors.
• Nickel Chromium wire
• Manual timer
• 120V AC plug - Safety

9
Circuitry

• 120V power input to a electromagnetic inductor.
• Circuit is complete or turned on once the bar is
  pushed down.
• Bar has a piece of metal that is attracted to the
  electromagnet that completes the circuit.

10
Nickel Chromium Wires

• Once circuit is complete nickel chromium wires
  are energized.
• Infrared radiation is emitted to cook the toast

11
Manual Timer Control

• Cooking time controlled by variable resistor.
• A capacitor charges through the variable resistor
  that acts like a timing circuit.
• Manual timer changes capacitor discharge rate
• Once the resistor times out the magnetic
  attraction is lost and the circuit opens.

12
120V plug - Safety

• A hot conductor contact in series with the power
  input.
• Circuit opens if an excessive amount of current
  is passed through the plug.

13
Industrial Engineering
14
Ease of Use

• Knob for temp. control
• Spring and lever for loading bread

15
Ease of Production

• Availability of raw material
• Availability of labor
• Mass production

16
Quality of Toaster

• Cost/benefit analysis
