Chapter 23 Electric Charge and Electric Fields

1

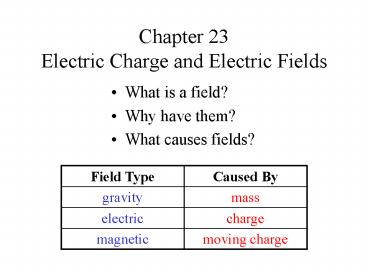

Chapter 23 Electric Charge and Electric Fields

• What is a field?
• Why have them?
• What causes fields?

2
Electric Charge

• Types
• Positive
• Glass rubbed with silk
• Missing electrons
• Negative
• Rubber/Plastic rubbed with fur
• Extra electrons
• Arbitrary choice
• convention attributed to ?
• Units amount of charge is measured in
  Coulombs
• Empirical Observations
• Like charges repel
• Unlike charges attract

3
(No Transcript)
4
Charge in the Atom

• Protons ()
• Electrons (-)
• Ions
• Polar Molecules

5
Charge Properties

• Conservation
• Charge is not created or destroyed, only
  transferred.
• The net amount of electric charge produced in any
  process is zero.
• Quantization
• The smallest unit of charge is that on an
  electron or proton. (e 1.6 x 10-19 C)
• It is impossible to have less charge than this
• It is possible to have integer multiples of this
  charge

6
Conductors and Insulators

• Conductor transfers charge on contact
• Insulator does not transfer charge on contact
• Semiconductor might transfer charge on contact

7
Charge Transfer Processes

• Conduction
• Polarization
• Induction

8
The Electroscope
9
Coulombs Law

• Empirical Observations
• Formal Statement

Direction of the force is along the line joining
the two charges
10
Active Figure 23.7
(SLIDESHOW MODE ONLY)
11
Coulombs Law Example

• What is the magnitude of the electric force of
  attraction between an iron nucleus (q26e) and
  its innermost electron if the distance between
  them is 1.5 x 10-12 m

12
Hydrogen Atom Example

• The electrical force between the electron and
  proton is found from Coulombs law
• Fe keq1q2 / r2 8.2 x 108 N
• This can be compared to the gravitational force
  between the electron and the proton
• Fg Gmemp / r2 3.6 x 10-47 N

13
Subscript Convention
q1
q2
14
More Coulombs Law
q1
q2
Coulombs constant
permittivity of free space
Charge polarity Same sign Force is
right Opposite sign Force is Left
Electrostatics --- Charges must be at rest!
15
Superposition of Forces
Q1
Q2
Q0
Q3
16
Coulombs Law Example

• Q 6.0 mC
• L 0.10 m
• What is the magnitude and direction of the net
  force on one of the charges?

17
Zero Resultant Force, Example

• Where is the resultant force equal to zero?
• The magnitudes of the individual forces will be
  equal
• Directions will be opposite
• Will result in a quadratic
• Choose the root that gives the forces in opposite
  directions

18
Electrical Force with Other Forces, Example

• The spheres are in equilibrium
• Since they are separated, they exert a repulsive
  force on each other
• Charges are like charges
• Proceed as usual with equilibrium problems,
  noting one force is an electrical force

19
Electrical Force with Other Forces, Example cont.

• The free body diagram includes the components of
  the tension, the electrical force, and the weight
• Solve for q
• You cannot determine the sign of q, only that
  they both have same sign

20
The Electric Field

• Charge particles create forces on each other
  without ever coming into contact.
• action at a distance
• A charge creates in space the ability to exert a
  force on a second very small charge. This
  ability exists even if the second charge is not
  present.
• We call this ability to exert a force at a
  distance a field
• In general, a field is defined
• The Electric Field is then

Why in the limit?
21
Electric Field near a Point Charge
Electric Field Vectors
Electric Field Lines
22
Active Figure 23.13
(SLIDESHOW MODE ONLY)
23
Rules for Drawing Field Lines

• The electric field, , is tangent to the field
  lines.
• The number of lines leaving/entering a charge is
  proportional to the charge.
• The number of lines passing through a unit area
  normal to the lines is proportional to the
  strength of the field in that region.
• Field lines must begin on positive charges (or
  from infinity) and end on negative charges (or at
  infinity). The test charge is positive by
  convention.
• No two field lines can cross.

24
Electric Field Lines, General

• The density of lines through surface A is greater
  than through surface B
• The magnitude of the electric field is greater on
  surface A than B
• The lines at different locations point in
  different directions
• This indicates the field is non-uniform

25
Example Field Lines
Line Charge
Dipole
For a continuous linear charge distribution,
Linear Charge Density
26
Active Figure 23.24
(SLIDESHOW MODE ONLY)
27
More Field Lines
Surface Charge Density
Volume Charge Density
28
Superposition of Fields
q1
q2
0
q3
29
Superposition Example

• Find the electric field due to q1, E1
• Find the electric field due to q2, E2
• E E1 E2
• Remember, the fields add as vectors
• The direction of the individual fields is the
  direction of the force on a positive test charge

30
Electric Field of a Dipole (ex. 23.6)
y
-q
q
31
P23.19

• Three point charges are arranged as shown in
  Figure P23.19.
• Find the vector electric field that the 6.00-nC
  and 3.00-nC charges together create at the
  origin.
• (b) Find the vector force on the 5.00-nC charge.

Figure P23.19
32
P23.52

• Three point charges are aligned along the x axis
  as shown in Figure P23.52. Find the electric
  field at
• the position (2.00, 0) and
• the position (0, 2.00).

Figure P23.52
33
in x direction.


34
P23.19

(a)

(b)
35
Continuous Charge Distributions
Single piece of a charge distribution
Single charge
Continuous charge distribution
Discrete charges
36
Finding dq
Cartesian
Polar
Line charge
Surface charge
Volume charge
37
Example Infinitely Long Line of Charge


y-components cancel by symmetry






38
Example Charged Ring (ex 23.8)
y-components cancel by symmetry







39
Check a Limiting Case
When
The charged ring must look like a point source.
40
Uniformly Charged Disk (ex. 23.9)
41
Binomial Expansion Theorem
Quadratic terms and higher are small
42
Two Important Limiting Cases
Large Charged Plate
43
Parallel Plate Capacitor
Q
44
Motion of Charged Particles in a Uniform Electric
Field
45
Example

• A proton accelerates from rest in a uniform
  electric field of 500 N/C. At some time later,
  its speed is 2.50 x 106 m/s.
• Find the acceleration of the proton.
• How long does it take for the proton to reach
  this speed?
• How far has it moved in this time?
• What is the kinetic energy?

46
Motion of Charged Particles in a Uniform Electric
Field
Q
-e
-Q
47
Active Figure 23.26
(SLIDESHOW MODE ONLY)
48
Motion of Charged Particles in a Uniform Electric
Field
Phosphor Screen
This device is known as a cathode ray tube (CRT)
49
Summary
Point Charges
Coulombs Law
Electric Field
These can be used to find the fields in the
vicinity of continuous charge distributions
Line of Charge
Dipole
Charged Plate
