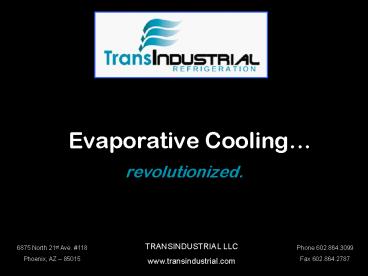

Evaporative Cooling

1
Evaporative Cooling

• revolutionized.

TRANSINDUSTRIAL LLC www.transindustrial.com
Phone [phone] Fax [phone]
6875 North 21st Ave. 118 Phoenix, AZ 85015
2
COMPUTER
Just about everything today is computer-based.
  From your household iron to the engine in
your car Just about everything has a
computer!   Why not your Evaporative Cooler?
3
SCIENCE
Evaporation is a phenomenon of nature that this
industry has yet to completely understand.
TransIndustrial has revisited the basic
principles of evaporation and applied them to
todays computer technology. Through research and
development, they have created the Perfect
Evaporative Cooler.
4
Custom wet section for Southern Nevada Water
Authority

• Virtually no maintenance
• No pump
• No float
• No standing water
• Computer control patented technology

OVERVIEW
Air entry side of wet section with water supply
subassemblies
Custom Control Unit for General Dynamics C4

• Substantial water savings
• Predictable operation
• Modular plug and play design
• Easy to install
• Easy to operate
• Will accommodate any system size requirements

Computer control unit at General Dynamics C4,
Arizona
5
patent pending Evaporative Cooling
Wet Section
Fully Modular Design

• all major components are pre-fabricated,
  pre-assembled modular sub-assemblies
• maximizes design flexibility
• system is easily scaled to accommodate any size
  project
• provides ease of installation
• provides ease of access for service and repair
• minimizes spare parts inventory requirement

Construction

• 304 / 316L Stainless Steel
• all welded structural tube framing
• engineered connectors ensure structural
  integrity of the finished assembly
• removable air dams, water distribution header,
  and dry sump for easy service access
• all Sch 80 PVC plumbing
• all NEMA 4X enclosures and junction boxes

6
patent pending
Evaporative Cooling Wet Section
Water Supply Header

• pre-fabricated modular sub assembly
• slow acting solenoid valve eliminates water
  hammer
• constant flow control valve assures proper flow
  regardless of changes in line pressure
• trim valve for fine tuning delivery of water to
  distribution header

Water Distribution Header

• non-clogging, self-cleaning water distribution
  tubes
• dual water distribution delivery configuration
  for more efficient wetting of media
• consistent delivery of water to the media evenly
  across the full face of the media
• removable water distribution cartridge
  configuration for ease of serviceability
• adjustable positioning of water distribution
  tubes relative to face of media

7
patent pending Evaporative
Cooling Wet Section
Evaporative Cooling Media

• 45/15 cross fluted, rigid 12 deep cellulose
  pad
• equals industry leading quality standards
• equals industry leading performance standards
• 3 year pad life warranty standard

Dry Sump

• no standing water, no algae, no obnoxious odors

• no pump, no float
• 31 design safety ratio for drain water level
  high limit holding capacity
• reduced size requirement allows for greater
  media surface area ratio than other systems
• 1 ½ 30GPM drain standard
• high water level limit with alarm
• removable for easy service access
• innovative media support design

8
patent pending Computer
Control System

• UL 508
• maximizes the efficiency of water use
• optimizes the efficiency of evaporative cooling
  media
• virtually eliminates scaling of media pads
• self regulating / self cleaning system
• independent start-up and shut-down modes
• adjustable bleed and rinse set points
• process monitoring with alarms
• can be configured for data logging
• can be configured for networking and multiple
  unit control
• can be configured for remote access
• can provide MTBF analysis and predictive
  maintenance scheduling
• available with hand held device for system set
  up, component calibration and process parameter
  adjustment

9
patent pending Evaporative
Cooling System with PLC Unit
FEATURES and BENEFITS

• 24/7/365 finite operating control
• eliminates maintenance problems
• easy to install, easy to access, easy to
  service
• media does not scale
• local response to changing weather conditions
• real time communication with system
• reduce unplanned system downtime, reduce spare
  parts inventory
• field set up, calibration, and process
  parameter adjustment
• operate multiple units with 1 controller
• integrate with existing building maintenance
  software
• easy service access for repair and replace

• computer control
• no pump, no float, no standing water, no algae,
  no obnoxious odors
• modular design
• optimizes water use and pad efficiency
• adjustable bleed and rinse set points
• can be configured for remote access
• can provide MTBF analysis and predictive
  maintenance scheduling
• available with hand held device
• can be configured for networking
• can be configured for data logging
• removable air dams, water supply header, water
  distribution header, dry sump

LOWER TCO FASTER ROI
10
TransIndustrials EVAPORATIVE COOLINGWET SECTION

• SOUTHERN NEVADA WATER AUTHORITY
• CONTRACT 310C 01 C1
• IPS-1 LARGE EVAPORATIVE COOLER MODIFICATION

11
(No Transcript)
12
(No Transcript)
13
(No Transcript)
14
(No Transcript)
15
(No Transcript)
16
(No Transcript)
17
(No Transcript)
18
(No Transcript)
19
(No Transcript)
20
(No Transcript)
21
(No Transcript)
22
(No Transcript)
23
(No Transcript)
24
(No Transcript)
25
(No Transcript)
26
(No Transcript)
27
EVAPORATIVE COOLINGWET SECTION

• SOUTHERN NEVADA WATER AUTHORITY
• CONTRACT 310C 01 C1
• IPS-1 LARGE EVAPORATIVE COOLER MODIFICATION

28
FEATURED CUSTOMERS
El Paso Electric generates and distributes
electricity through an interconnected system to
approximately 363,000 customers in the Rio Grande
Valley in west Texas and southern New
Mexico. www.epelectric.com
General Dynamics is a market leader in business
aviation land and expeditionary combat vehicles
and systems, armaments, and
munitions shipbuilding and marine systems and
mission-critical information systems and
technologies. The company employs approximately
92,300 people worldwide. www.generaldynamics.com
The Southern Nevada Water Authority (SNWA) is a
cooperative agency formed in 1991 to address
Southern Nevada's unique water needs on a
regional basis. SNWA officials are charged with
managing the region's water resources and
providing for Las Vegas Valley area residents'
and businesses' present and future water needs.
www.snwa.com
29
