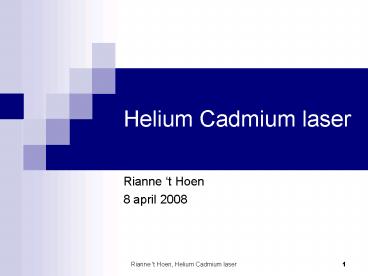

Helium Cadmium laser

1
Helium Cadmium laser

• Rianne t Hoen
• 8 april 2008

2
Content

• He-Cd laser
• Energy level scheme
• Broadening
• Threshold conditions
• Mode profile
• Applications
• Research

3
Helium Cadmium laser
Tube length 0.25-1.5 m Bore 1-2 mm Gas
pressure 5-10 Torr He Gas mixture CdHe at
1001 Gas temperature 600 K Te 15.000
20.000 K

• Metal Vapor Gas laser
• Lasing at 325.0nm, 353.6 nm and 441.6 nm
• Evaporation Cd by cataphorese

4
Energy level scheme
5
Energy level schemeExcitation mechanisms

• Penning ionization
• Electron excitation Cd
• Photo-ionization via emission from He

6
Energy level schemeThree level system
7
Energy level schemeThree level system
8
Broadening

• Natural broadening
• Doppler broadening
• Isotope broadening
• 1.5 GHz

9
Threshold conditions

• Population inversion occurs
• That is unless
• Radiation trapping occurs when

10
Typical parameters
11
Mode profile

• Longitudinal modes 1-15
• TEM00 and multimode
• Power output
• multi-mode at 441.6 nm up to 200mW
• multi-mode at 325.0 nm up to 100mW
• single TEM00 mode at 441.6 nm up to 50mW
• No laser spiking.

12
Applications

• Lithography
• Holography
• Photosensitive materials
• Used in Compact Disk and Laser Disk

13
Recent experiment
Thick film lithography using laser
write simplicity ? shortens the fabrication
duration of X-ray mask
Thick-Film lithography using laser write, Y.Cheng
et al., Microsystem Technologies 9 (2004) 1722
Springer-Verlag 2004
