The metal-insulator transition of VO2 revisited

1

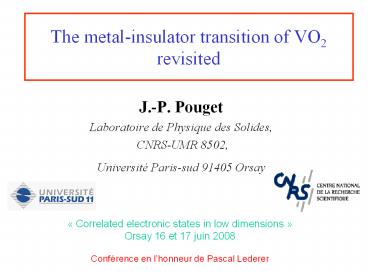

The metal-insulator transition of VO2revisited

• J.-P. Pouget
• Laboratoire de Physique des Solides,
• CNRS-UMR 8502,
• Université Paris-sud 91405 Orsay

 Correlated electronic states in low
dimensions  Orsay 16 et 17 juin 2008 Conférence
en lhonneur de Pascal Lederer
2
outline

• Electronic structure of metallic VO2
• Insulating ground states
• Role of the lattice in the metal-insulator
  transition of VO2
• General phase diagram of VO2 and its
  substituants

3
VO2 1st order metal-insulator transition at 340K

Discovered nearly 50 years ago still the object
of controversy!
in fact the insulating ground state of VO2 is
non magnetic
4
Bad metal
insulator
metal
in metallic phase ? T very short mean free
path V-V distance
P.B. Allen et al PRB 48, 4359 (1993)
5
Metallic rutile phase
A
B
cR
ABAB (CFC) compact packing of hexagonal planes of
oxygen atoms V located in one octahedral cavity
out of two two sets of identical chains of VO6
octahedra running along cR
(related by 42 screw axis symmetry)
6
V 3d orbitals in the xyz octahedral coordinate
frame
eg
V-O s bonding
orbital located in the xy basis of the octahedron
bonding between V in the (1,1,0) plane
(direct V-V bonding along cR 1D band?)
t2g
V-O p bonding
orbitals  perpendicular  to the triangular
faces of the octaedron

bonding between V in the (1,-1,0)
plane in the (0,0,1) plane
7
well splitted t2g and eg bands
LDA
3dx²-y² a1g or t// (1D) band of Goodenough Is
it relevant to the physics of metallic VO2?
t2g
3dyz and 3dxz Eg or p bands of
Goodenough
1d electron of the V4 fills the 3 t2g bands
eg
V. Eyert Ann. Phys. (Leipzig) 11, 650 (2002)

8
Electronic structure of metallic VO2
LDA
Single site DMFT
UHB
LHB
U
t2g levels bandwidth2eV weakly
reduced in DMFT calculations
a1g
Eg
Hubbard bands on both Eg (p) and a1g (d//)
states no specificity of d// band!
Biermann et al PRL 94, 026404 (2005)
9
Fractional occupancy of t2g orbitals
orbital/occupancy LDA single site DMFT
EFG measurements x²-y² (d//) f1
0.36 0.42 0.41 yz (p)
f2 0.32 0.29
0.26-0.28 xz (p) f3 0.32
0.29 0.33-0.31

Biermann et al PRL 94, 026404 (2005) JPP
thesis (1974) 51V EFG measurements between 70C
and 320C assuming that only the on site d
electron contributes to the EFG VXX
(2/7)eltr-3gt (1-3f2) VYY (2/7)eltr-3gt
(1-3f3) VZZ (2/7)eltr-3gt (1-3f1)
10
VO2 a correlated metal?

• Total spin susceptiblity
• Neff (EF)10 states /eV, spin direction
• J.P. Pouget H. Launois, Journal de Physique 37,
  C4-49 (1976)
• Density of state at EF
• N(EF)1.3, 1.5, 2 state/eV, spin
  direction
• LDA Eyert Ann Phys. (Leipzig) 11, 650 (2002),
• LDA Korotin et al cond-mat/0301347
• LDA and DMFT Biermann et al PRL 94, 026404
  (2005)
• Enhancement factor of ?Pauli 5-8

11
Sizeable charge fluctuations in the metallic
state

• DMFT quasiparticle band lower (LHB) and upper
  (UHB) Hubbard bands
• LHB observed in photoemission spectra
• VO2 close to a Mott-Hubbard transition?

LHB
Koethe et al PRL 97, 116402 (2006)
12
Mott Hubbard transition for x increasing inNb
substitued VO2 V1-XNbXO2?

• Nb isoelectronic of V but of larger size
• lattice parameters of the rutile phase strongly
  increase with x
• Very large increase of the spin susceptibility
  with x
• NMR in the metallic state show that this
  increase is homogeneous (no local effects) for
  xltxC
• magnetism becomes more localized when x
  increases (Curis Weiss behavior of ?spin for x
  large)
• beyond xC 0.2 electronic conductivity becomes
  activated
• electronic charges become localized
• local effects (induced by the disorder) become
  relevant near the metal-insulator transition
• metal-insulator transition with x due to
  combined effect of correlations and disorder
• concept of strongly correlated Fermi glass (P.
  Lederer)

13
(No Transcript)
14
Insulating phase monoclinic M1
Short V-O distance
tilted V-V pair
V leaves the center of the octahedron 1- V
shifts towards a triangular face of the
octahedron xz et yz orbitals (p band) shift
to higher energy 2- V pairing along cR x²-y²
levels split into bonding and anti-bonding
states stabilization of the x²-y² bonding level
with respect to p levels
15
Driving force of the metal-insulator transition?
The x²-y² bonding level of the V4 pair is
occupied by 2 electrons of opposite spin
magnetic singlet (S0)

• The 1st order metal- insulator transition induces
  a very large electronic redistribution between
  the t2g orbitals
• Insulating non magnetic V-V paired M1 ground
  state stabilized by
• - a Peierls instability in the d// band ?
• - Mott-Hubbard charge localization effects?
• To differentiate more clearly these two processes
  let us look at alternative insulating phases
  stabilized in
• Cr substitued VO2
• uniaxial stressed VO2

16
R-M1 transition of VO2 splitted into
R-M2-T-M1transitions
V1-XCrXO2 J.P. Pouget et al PRB 10, 1801 (1974)
VO2 stressed along 110R J.P. Pouget et al PRL
35, 873 (1975)
17
M2 insulating phase
(site A)
(site B)
Zig-zag V chain along c
V-V pair along c
Zig zag chains of (Mott-Hubbard) localized d1
electrons
18
Zig-zag V4 (S1/2) Heisenberg chain (site B)
?spin
?tot
M2
T
R
T
M2
In M2 Heisenberg chain with exchange
interaction 2J4t²/U600K50meV Zig-zag
chain bandwidth 4t0.9eV (LDA calculation V.
Eyert Ann. Phys. (Leipzig)11, 650
(2002)) UJ/2t²4eV U value used in DMFT
calculations (Biermann et al)
19
Crossover from M2 to M1via T phase
Dimerization of the Heisenberg chains (V site B)
tilt of V pairs (V site A)
2J intradimer exchange integral on paired sites B
Jintra increases with the dimerization
Value of 2Jintra ( spin gap) in the M1 phase?
20
Energy levels in the M1 phase
AB
??dimer
??
B
S
??dimer
eigenstates of the 2 electrons Hubbard molecule
(dimer)
T
?s
Only cluster DMFT is able to account for the
opening of a gap ?? at EF (LDA and single site
DMFT fail) ??dimer2.5-2.8eV gt??0.6eV
(Koethe et al PRL 97,116402 (2006))
?s?
S
21
Estimation of the spin gap ?s in M1

• Shift of ? between the T phase of V1-XAlXO2 and
  M1 phase of VO2
• 51V NMR line width broadening of site B in the T
  phase of stressed VO2 T1-1 effect
• for a singlet triplet gap ? 1/T1exp-?/kT
• at 300K (1/T1)1800bars2 (1/T1)900bars
• If ??s-?s one gets for s0 (M1phase)
• ?s2400K with ?0.63 K/bar

2J(M1)?s gt2100K
G. Villeneuve et al J. Phys. C Solid State
Phys. 10, 3621 (1977)
M2
T
J.P. Pouget H. Launois, Journal de Physique 37,
C4-49 (1976)
22
The intradimer exchange integral Jintra of the
dimerized Heisenberg chain (site B) is a linear
function of the lattice deformation measured by
the 51V EFG component VYY on site A
M1
Site B
T
M2
Site A
JintraB(K) 270K 11.4 VYYA (KHz)
For VYY 125KHz (corresponding to V pairing in
the M1 phase) one gets Jintra1150K or ?s2300K
23
M1 ground state

• ?s 0.2eVltlt?? is thus caracteristic of an
  electronic state where strong coulomb repulsions
  lead to a spin charge separation
• The M1 ground state thus differs from a
  conventional Peierls ground state in a band
  structure of non interacting electrons where the
  lattice instability opens equal charge and spin
  gaps ?? ?s

24
Electronic parameters of the M1 Hubbard dimer

• Spin gap value ?s 0.2 eV
• ?s -U (U²16t²)1/2/2
• which leads to
• 2t (?s ??intra)1/2 0.7eV
• 2t amounts to the splitting between bonding and
  anti-bonding quasiparticle states
• in DMFT (0.7eV) and cluster DMFT (0.9eV)
  calculations
• 2t is nearly twice smaller than the B-AB
  splitting found in LDA (1.4eV)
• U ??intra-?s 2.5eV
• (in the M2 phase U estimated at 4eV)
• For U/t 7
• double site occupation 6 per dimer
• nearly no charge fluctuations no LHB seen in
  photoemission
• ground state wave function very close to the
  Heitler-London limit

wave function expected for a spin-Peierls ground
state The ground state of VO2 is such that ?s7J
(strong coupling limit) In weak coupling
spin-Peierls systems ?sltJ
25
Lattice effects

• the R to M1 transformation (as well as R to M2 or
  T transformations) involves
• - the critical wave vectors qc of the  R
  point star(1/2,0,1/2) , (0,1/2,1/2)
• - together, with a 2 components (?1,?2)
  irreductible representation for each qC
• ?i corresponds to the lattice deformation of
  the M2 phase
• formation of zig-zag V chain (site B) V-V
  pairs (site A)
• the zig-zag displacements located are in the
  (1,1,0)R / (1,-1,0)R planes for i1 / 2
• M2 ?1? 0, ?2 0 T ?1gt ?2 ? 0
  M1 ?1 ?2 ? 0
• The metal-insulator transition of VO2 corresponds
  to a lattice instability at a single R point
• Is it a Peierls instability with formation of a
  charge density wave driven by the divergence of
  the electron-hole response function at a qc which
  leads to good nesting properties of the Fermi
  surface?
• Does the lattice dynamics exhibits a soft mode
  whose critical wave vector qc is connected to
  the band filling of VO2 ?
• Or is there an incipient lattice instability of
  the rutile structure used to trig the
  metal-insulator transition?

26
Evidences of soft lattice dynamics

• X-ray diffuse scattering experiments show the
  presence of 1,1,1 planes of  soft phonons  in
  rutile phase of
• (metallic)VO2 (insulating)
  TiO2

u//110
110
001
cR/2
smeared diffuse scattering - cR
(001) planes u//cR
R critical point of VO2
G critical point of TiO2 (incipient
ferroelectricity of symmetry A2U and 2x
degenerate EU)
P critical point of NbO2
aR/2
aR/2
EU
A2U
(R. Comès, P. Felix and JPP 35 years old
unpublished results)
27
1,1,1 planar soft phonon modes in VO2

• not related to the band filling (the diffuse
  scattering exists also in TiO2)
• 2kF of the d// band does not appear to be a
  pertinent critical wave vector
• as expected for a Peierls transition
• but the incipient (001)-like diffuse lines
  could be the fingerprint of a 4kF instability
  (not critical) of fully occupied d// levels
• instability of VO2 is triggerred by an incipient
  lattice instability of the rutile structure which
  tends to induce a V zig-zag shift
• ferroelectric V shift along the 110 / 1-10
  direction (degenerate RI?) accounts for the
  polarisation of the diffuse scattering

110
111
cR
1-10
correlated V shifts along 111 direction give
rise to the observed (111) X-ray diffuse
scattering sheets the zig-zag displacement
destabilizes the p orbitals a further
stabilization of d// orbitals occurs via the
formation of bonding levels achieved by V pairing
between neighbouring 111  chains
28
phase diagram of substitued VO2
Sublatices AB
Sublatices A?B
dTMI/dx0
R
dTMI/dx -12K/V3
M1
xV5
x
V3
0.03
0
Oxydation of V4
Reduction of V4
VO2
M
V1-XMXO2
MCr, Al, Fe
MNb, Mo, W
VO2y
VO2-yFy
uniaxial stress // 110R
29
Main features of the general phase diagram

• Substituants reducing V4 in V3 destabilize
  insulating M1 with respect to metallic R
• formation of V3 costs U the energy gain
  in the formation of V4-V4 Heitler-London pairs
  is lost
• dTMI/dx -1200K per V4-V4 pair broken
• Assuming that the energy gain ?U is a BCS like
  condensation energy
• of a spin-Peierls ground state
• ?UN(EF)?s²/2
• One gets ?U1000K per V4 - V4 pair (i.e. per
  V2O4 formula unit of M1)
• with ?s0.2eV and N(EF)2x2states per eV, spin
  direction and V2O4 f.u.
• For large x, the M1 long range order is
  destroyed, but the local V-V pairing remains
• (R. Comès et al Acta Cryst. A30, 55 (1974))

30
Main features of the general phase diagram

• Substituants reducing V4 in V5 destabilize
  insulating M1 with respect to new insulating T
  and M2 phases
• but leaves unchanged metal-insulator transition
  dTMI/dx0
• below R the totally paired M1 phase is replaced
  by the half paired M2 phase
• formation of V5 looses also the pairing energy
  gain but does not kill
• the zig-zag instability (also present in TiO2!)
• as a consequence the M2 phase is favored
• uniaxial stress along 110 induces zig-zag V
  displacements along 1-10

Note the non symmetric phase diagram with respect
to electron and hole  doping  of VO2!
31
Comparison of VO2 and BaVS3

• Both are d1 V systems where the t2g orbitals are
  partly filled
• (but there is a stronger V-X hybridation for XS
  than for XO)
• BaVS3 undergoes at 70K a 2nd order Peierls M-I
  transition driven by a 2kF CDW instability in the
  1D d// band responsible of the conducting
  properties
• at TMI tetramerization of V chains without
  charge redistribution among the t2gs
• (Fagot et al PRL90,196403 (2003))
• VO2 undergoes at 340K a 1st order M-I transition
  accompanied by a large charge redistribution
  among the t2gs
• Structural instability towards the formation of
  zig-zag V shifts in metallic VO2 destabilizes
  the p levels and thus induces a charge
  redistribution in favor of the d// levels
• The pairing (dimerization) provides a further
  gain of energy by putting the d// levels into a
  singlet bonding state
• M1 phase exhibits a spin-Peierls like ground
  state
• This mechanism differs of the Peierls-like V
  pairing scenario proposed by Goodenough!

32
acknowledgements

• During the thesis work
• H. Launois
• P. Lederer
• T.M. Rice
• R. Comès
• J. Friedel
• Renew of interest from recent DMFT calculations
• A. Georges
• S. Biermann
• A. Poteryaev
• J.M. Tomczak

33
Supplementary material
34
Main messages

• Electron-electron interactions are important in
  VO2
• - in metallic VO2 important charge
  fluctuations (Hubbard bands)
• Mott-Hubbard like localization occurs when
  the lattice expands (Nb substitution)
• - in insulating VO2 spin-charge decoupling
• ground state described by Heitler-London
  wave function
• The 1ST order metal-insulator transition is
  accompanied by a large redistribution of charge
  between d orbitals.
• for achieving this proccess an incipient lattice
  instability of the rutile structure is used.
• It stabilizes a spin-Peierls like ground
  state with V4 (S1/2) pairing
• The asymmetric features of the general phase
  diagram of substitued VO2 must be more clearly
  explained!

35
metallic
LDA
36
T0 Spectral function half filling full
frustration
metallic VO2 single site DMFT
D2eV
zig-zag de V phase M2 D0.9eV
?/D
X.Zhang M. Rozenberg G. Kotliar (PRL 1993)
37
LDA phase métallique R phase isolante M1
38
Structure électronique de la phase isolante M1
LDA
LDA
AB
B
a1g
Niveaux a1g séparés en états liants (B) et
antiliants (AB) par lappariement des V Mais
recouvrement avec le bas des états Eg (structure
de semi-métal)

Eg
Pas de gap au niveau de Fermi!
39
Structure électronique de la phase isolante M1
Single site DMFT
Cluster DMFT
UHB
a1g
B
Eg
LHB
AB
UHB
U
LHB
a1g
Eg
Stabilise états a1g
Gap entre a1g(B) et Eg
Pas de gap à EF
40
LDA Phase M2
zig-zag V2
paires V1
