Purposes%20of%20post-translational%20modifications

1

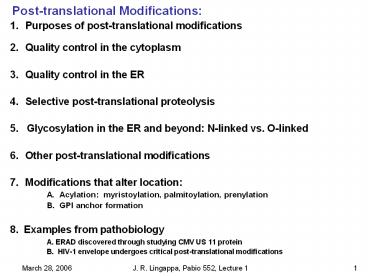

• Purposes of post-translational modifications
• 2. Quality control in the cytoplasm
• Quality control in the ER
• 4. Selective post-translational proteolysis
• 5. Glycosylation in the ER and beyond N-linked
  vs. O-linked
• Other post-translational modifications
• Modifications that alter location
• A. Acylation myristoylation, palmitoylation,
  prenylation
• B. GPI anchor formation
• 8. Examples from pathobiology
• A. ERAD discovered through studying CMV US 11
  protein
• B. HIV-1 envelope undergoes critical
  post-translational modifications

2

• Review of Translation

3

• Purposes of Post-translational Events
  Modifications
• A. Quality Control Chaperones, Glycosylation
• B. Degradation of misfolded proteins
  Ubiquitination, ERAD
• C. Proper protein function Glycosylation,
  Phosphorylation, Ubiquitination
• D. Target protein to proper locations
  Acylation, GPI anchors

4

• 2. Quality Control in the Cytoplasm
• A. Anfinsen's dogma
• All information needed for folding contained in
  the amino acid sequence
• Leads to the concept of spontaneous protein
  folding.
• B. Problems with Anfinsen's dogma (and the
  notion of spontaneous folding)
• Features of cellular environments cause
  misfolding aggregation.
• 1. Some proteins take a very long time to fold
  spontaneously.
• 2. Some protein domains are prone to
  misfolding and aggregation.

5
Protein folding in vivo

• 2. Quality Control in the Cytoplasm
• Problems with Anfinsen's dogma, cont.
• Folding in the cell differs from refolding of a
  denatured protein in vitro due to
• Vectorial nature of protein synthesis in vivo.
• Exposure of hydrophobic regions during synthesis.
• Translation happens more slowly than folding,
  requiring a delay mechanism to allow
  translation to "catch up".
• Highly crowded cytoplasm 300 mg/ml prot.
• Folding in vitro is inefficient (20 - 30) in
  the cell, efficiency close to 100.
• Conditions of stress found in vivo exacerbate
  misfolding and aggregation.

6

• 2. Quality Control in the Cytoplasm
• C. Molecular Chaperones Proteins that mediate
  correct fate of other polypeptides but are not
  part of the final structure.
• Fate includes folding, assembly, interaction
  with other cellular components, transport, or
  degradation.
• A. History
• ?Molecular chaperones initially identified as
  heat shock proteins, i.e. proteins upregulated by
  heat shock and other stresses.
• ?Heat shock causes protein denaturation with
  exposure and aggregation of interactive surfaces.

• ?Heat shock proteins inhibit
  aggregation by binding to exposed surfaces during
  times of stress but also during normal protein
  synthesis
• ?Thus, the stress response is simply an
  amplification of a normal function that is used
  by cells under non-stress conditions.

7

• D. Features of molecular chaperones
• i. Hsp 70 family members
• ?70 kD protein monomers.
• ? Include DnaJ (bacteria) BiP (ER)
• ?Stabilize polypeptide surfaces in an unfolded
  state.
• ?Bind transiently to newly-synthesized
  proteins paradoxically, efficient folding
  requires "antifolding".
• ?Bind permanently to misfolded protein.
• ?Have affinity for exposed hydrophobic
  peptides.
• ?Do NOT bind a specific sequence.
• ?Present in bacteria, eukaryotes all
  compartments.
• ?Regulated by ATP hydrolysis.
• ?Undergo cycles of binding and release
• ?Act with cofactors (i.e. DnaJ, GrpE, Hip, Hop,
  Bag1).

8

• D. Features of molecular chaperones
• ii. Chaperonins (GroEL, Hsp 60, TCP-1)
• ?Facilitate proper folding
• ?Bind and hydrolyze ATP
• ?Bind transiently to 10-15 proteins, but
  2-3fold more w/stress
• ?60 kD proteins that form oligomeric, stacked
  double rings
• ?Bring non-native substrate protein to central
  cavity folding where protected from aggregation
  with other non-native proteins
• ?Cycles of binding and release until the protein
  is properly folded
• ?GroEL (prokaryotic hsp 60) uses a cofactor,
  GroES.
• Others I.e. small heat shock proteins, hsp 90,
  etc.

9

• iv. Cytosolic chaperone co-ordination
• Chaperones act in tandem. Stabilization by Hsp
  70 plus cofactors) may be followed by use of Hsp
  60 for proper folding.

From Frydman, J. Annual Rev. of Biochemistry
70603, 2001
10

• 3. Quality control in the ER
• A. Translation and translocation of proteins
  into the ER
• ? Proteins that translocate into ER of
  mammalian cells include secretory proteins, TM
  proteins, or residents of a membranous
  compartment.
• ? These are targeted to the ER
  CO-TRANSLATIONALLY by an N-terminal signal
  sequence that generally gets cleaved during
  translocation across the ER membrane.

The Signal Hypothesis
SRP and SRP Receptor
11
Translocation of Secretory Protein
Translocation of Single Pass TM Protein
Translocation of Double Pass TM Protein
12

• 3. Quality Control in the ER
• B. Features of the ER
• ?Proteins need to be unfolded to translocate
• ?Until signal sequence cleaved, N terminus of
  protein is constrained "incorrectly
• ?ER lumen is topologically equivalent to
  extracellular space
• ?High oxidizing potential (unlike cytoplasm
  which is highly reduced)
• ?High Ca2 concentration unlike cytoplasm
• ?Many sugars present along with machinery for
  glycosylation
• ?As in cytoplasm high protein conc. (100
  mg/ml) promotes aggregation
• ?As in cytoplasm delay between translation/
  translocation vs. folding
• ?Site of specific post-translational events
  signal cleavage, S-S bond formation, N-linked
  glycosylation and GPI anchor addition

13

• 3. Quality Control in the ER
• C. Specific ER chaperones
• i. HSP 70 family members BiP/GRP78
• ?Recognize hydrophobic sequences in nascent
  chains.
• ?Undergo successive rounds of ATP-dependent
  binding and release.
• ?Essential for translocation of
  newly-synthesized proteins across the ER lumen
  and for retrograde transport into the cytosol
  (see ERAD, below).
• ii. Immunophilins/ FKBP - peptidyl prolyl
  isomerases.
• iii. Thiol-disulfide isomerases - PDI and
  ERp57
• iv. Calnexin and Calreticulin
• ?Unique to the ER
• ?Are lectins (carbohydrate binding proteins)
• ?Calreticulin - lumenal Calnexin - integral
  membrane protein

14

• 3. Quality Control in the ER
• D. Mechanisms
• To pass QC checkpoints, protein must be
  correctly folded (most energetically favorable,
  native state)
• If protein fails to fold properly it must be
  degraded
• I. Example 1 BiP
• BiP (Hsp70 in ER) binds to newly-synthesized and
  unfolded chains.
• BiP stays associated with misfolded (but not
  properly folded) proteins.
• Retention by BiP leads to degradation (see
  proteolysis below).

15
3. Quality Control in the ER

• D. Mechanisms, cont.
• Example 2 Calnexin/calreticulin bind to
  incompletely folded monoglucosylated glycans
• Cycles of binding/release controlled by
• Glucosidase II cleaves glucose from core glycan
• UDP-glucose glucosyltransferase (GT)
  reglucosylates incompletely-folded proteins so
  that they bind lectins again
• Thus GT acts as a folding sensor proteins exit
  the cycle when GT fails to re-glucosylate.
  Glucose is a tag that signifies incomplete
  folding

16

• 3. Quality Control in the ER
• D. Mechanisms, cont.
• iii. Example 3 Trimming of a single mannose is
  a signal for degradation.
• Causes association with ER degradation-enhancing
  mannosidase like protein (EDEM), which is a link
  to ER-associated degradation (see proteolysis
  below)

Tsai, B. et al. Nature Rev. Mol. Cell Bio. 3 246
(2002).
17

• 4. Selective post-translational proteolysis.
• Selective proteolysis is critical for cellular
  regulation.
• 3 steps for proteolysis in the cytoplasm
• identify protein to be degraded
• mark it by ubiquitination
• deliver it to the proteasome, a protease complex
  that degrades it
• A. The Ubiquitin/Proteasome system
• Ubiquitin
• A highly-conserved 76 aa protein present in all
  eukaryotes.
• Covalently attached to e-amino groups in lysine
  side chains,
• Can be a single ubiquitin or multiple branched
  ubiquitins.
• Signal for ubiquitination can be
• 1. Programmed via hydrophobic sequence or
  other motif
• 2. Acquired by 1) phosphorylation, 2) binding
  to adaptor protein, or 3) protein damage due to
  fragmentation, oxidation or aging.

18

• Post-translational Quality Control Selective
  proteolysis.
• B. Ubiquitination requires 3 enzymes
• E1 (ubiquitin-activating enzyme) activates
  ubiquitin (U)
• E2 (ubiquitin-conjugating enzyme) acquires U
  via high-energy thioester
• E3 (ubiquitin ligase) transfers U to target
  proteins
• Hierarchical organization one or few E1s exist,
  more E2s, many E3s.
• Other functions for ubiquitination (to be
  discussed in plasma membrane lecture).

19

• 4. Post-translational Quality Control
  Selective proteolysis
• B. The Proteasome - high molecular weight (28S)
  protease complex that degrades ubiquitinated
  proteins in the cytoplasm
• Present in cytoplasm and nucleus, not ER
• Uses ATP
• Contains a 700 kD protease core and two 900 kD
  regulatory domains.
• Highly conserved and similar to proteases found
  in bacteria.
• Shaped like a cylinder.
• Proteins enter the cavity, and are cleaved into
  small peptides.
• Most but not all proteasome substrates are
  ubiqutinated.

20

• 4. Post-translational Quality Control
  Selective Proteolysis
• Misfolding in the ER results in
• ER-associated degradation (see below)
• Lysosomal degradation (next lecture)
• ER-Associated Protein Degradation (ERAD)
• Earlier notion was that ER had proteases.
• However, in fact most ER proteins targeted for
  degradation undergo retrograde translocation
  into cytosol and delivery to the proteasome.

21

• Glycosylation in the ER and beyond
• Role of sugars in the ER bulky hydrophilic
  groups that maintain proteins in solution, affect
  protein conformation, and allow lectins to
  facilitate folding and exert quality control.
• A. N-linked glycosylation - co-translational
  recognizes Asn-x-Ser/Thr on nascent chain
• Catalyzed by oligosaccharyltransferases -
  integral membrane proteins with active site in
  the lumen. Transfers a preformed "high mannose"
  14-residue sugar(Glc3Man9GlcNAc2) en bloc to
  asparagine residues on the acceptor nascent
  polypeptide chains. Highly conserved in
  mammals, plants, fungi.
• i. Donor molecule is dolichol-P-P-Glc3Man9GlcNAc
  2. Dolichol is a very long lipid carrier.
• ii. Subsequent trimming of residues (also
  called processing) off core sugar attached to
  protein occurs in the ER via glucosidases and
  mannosidases.
• N glycosylation can be prevented using
• Tunicamycin inhibits formation of the
  dolichol-P-P precursor.

22
Bacteria no N-glycosylation via dolichol Yeast
have only oligomannose type N-glycans, because
they don't have the ability to add GlcNac in the
trans Golgi Since bacteria yeast lack
Glc-Nac transferase enzyme, this enzyme
demarcates a fundamental evolutionary boundary
between uni- and multicellular organisms.

• Glycosylation in the ER and beyond
• A. N-linked glycosylation, cont.
• iii. ? -Glucosyltransferase recognizes misfolded
  glycoproteins and reglycosylates them.
• Calreticulin and calnexin serve as sensors by
  binding to mono-glucosylated proteins,
  facilitating their folding and assembly.
• Only glycoproteins that have been correctly
  folded (by calnexin and calreticulin), get
  packaged into ER-to-Golgi transport vesicles.
• In the cis Golgi, further processing addition
  of GlcNac's to form branched structures
• Addition of more sugar residues in the
  trans-Golgi (I.e. fucose and sialic acid) to
  produce the diversity that is seen in mature
  glycans.

23
(No Transcript)
24

• Glycosylation in the ER and beyond
• B. O-linked glycosylation
• Many different types of sugars are added onto
  -OH of serine or threonine residues.
• Most of these are added in ER or Golgi
• However, addition of N-acetylglucosamine
  (GlcNac) can occur in cytoplasm on many different
  types of proteins
• May play an important role in signaling, much
  like phosphorylation
• May act in signaling to oppose phosphorylation

25

• Other post-translational modifications
• A. Disulfide bond formation in the ER
• Protein disulfide isomerase (PDI) in the ER
  catalyzes oxidation of disulfide bonds
• in the cytosol and at the plasma membrane
  reduces disulfide bonds
• Other proteins that act like PDI may be even
  more important in disulfide bond formation
• Requires action of a regenerating molecule (i.e.
  glutathione) NADPH is the source of redox
  equivalents.

26

• 6. Other post-translational modifications, cont.
• B. Phosphorylation
• Kinases phosphorylate proteins at the hydroxyl
  groups of serine, threonine, and tyrosine
• Occurs in cytoplasm and nucleus
• C. Intracellular Proteolytic Cleavage
• Furin - protease that cleaves specific sites,
  located in the trans-Golgi network and in
  endosomes.
• D. Modified amino acids
• hydroxyproline, hydroxylysine,
  3-methylhistidine
• E. Lipidation

27

• 7. Post-translational Modifications that Alter
  Location
• A. Acylation - Lipid attachments that anchor
  proteins to the membranes
• Include myristoylation, palmitoylation,
  prenylation
• Involves addition to protein of fatty acids
  (long hydrocarbon ending in COOH)
• Allows proteins to target to the cytoplasmic
  faces of membrane compartments

28

• 7. Post-translational Modifications that Alter
  Location
• i. Myristoylation addition of C-14 FA
  myristate to N-terminus in cytoplasm
• Donor is myristoyl CoA
• Occurs co-translationally in the cytoplasm can
  occur post-translationally when hidden motif is
  revealed by protein cleavage (i.e. pro-apoptotic
  protein BID)
• Enzyme NMT recognizes consensus sequence at
  N-terminus often revealed by a
• conformational change (myristoyl switch).
• Promotes weak but typically irreversible
  interaction with cytosolic membrane face
• Myristoylated proteins traffic through the
  cytoplasm
• Myristoylation necessary but not sufficient for
  membrane binding
• Second signal needed for membrane binding
  myristate plus basic (basic aas interact with
  acidic phospholipids PS and PI), or myristate
  plus palmitate

Myristoylation
29

• 7. Post-translational Modifications that Alter
  Location
• ii. Palmitoylation - addition of a C-16 fatty
  acid to the thiol side chain of an internal
  cysteine residue.
• Promotes a reversible interaction with membrane
• Palmitoylated proteins traffic to membrane via
  cytoplasm or via secretory pathway
• Enzymes not well understood
• Myristoylated and palmitoylated proteins
  are enriched in caveolae and rafts

Palmitoylation
30

• 7. Post-translational Modifications that Alter
  Location
• iii. Prenylation - addition of prenyl groups
  (two types) to S in internal cysteine
• a. Farnesylation - C15 fatty acid to C
  terminus by thioester linkage
• Occurs at CAAX sequences cys, 2 aliphatic
  residues and C-terminal residue
• After attachment, last 3 residues are removed
  and new C terminal methylated
• Creates a highly hydrophobic C terminus
• b. Geranylgeranylation - similar to above but
  addition of C-20 to C terminal Cys

Farnesylation
31

• 7. Post-translational Modifications that Alter
  Location
• iii. Examples of acylated proteins important
  for pathogenesis
• Myristoylated proteins HIV-1 Gag, HIV-1 Nef
  which target to the PM Arfs involved in coat
  protein binding to vesicles (see ER-Golgi
  lecture)
• Palmitoylated proteins caveolin (see PM
  lecture)
• Dual acylated proteins (myr plus palm) found
  in Src tyrosine kinases, i.e. Lyn, Fyn, Hck, etc.
  (see Signaling overview lecture)
• Met-Gly-Cys signal for dual acylation
• Farnesylation Ras, does not insert into the
  membrane or act in signal transduction unless
  farnesylated.
• Geranylgeranylation Rab GTP-binding proteins
  that mediate initial vesicle targeting events
  (see PM lecture)

32

• 7. Post-translational Modifications that Alter
  Location
• B. GPI anchors - Glycophosphatidyl inositol (GPI)
  attached to the C terminus
• ?Composed of oligosaccharides and inositol
  phospholipids
• ?Provides a mechanism for anchoring cell-surface
  proteins to the membrane
• as a flexible leash that allows the entire
  protein (except for anchor) to be in
  extracellular space (unlike a transmembrane
  protein)
• ?Added to translocated proteins in ER
• ?Targets to PM via secretory pathway
• ?Unlike with N- or O-glycosylation, no more than
  ONE GPI anchor per protein
• ?Unlike acylation, targets proteins to outer
  leaflet of plasma membrane
• ?Can be cleaved by PI-phospholipase C (PI-PLC)
• ?Are minor components on mammalian cells but
  abundant on surfaces of parasitic protozoa (i.e.
  trypanosomes and Leishmania) and yeasts
• ?Concentrated in lipid rafts

33
(No Transcript)
34

• 7. Post-translational Modifications that Alter
  Location
• B. GPI anchors - Functions
• Stronger anchoring to PM than acylation
• Some GPI anchors can be replaced with TM anchors
  and be functional others cannot
• Crosslinking results in signal transdcution
  across bilayer, including Ca influx, tyrosine
  phosphorylation, cytokine secretion, etc.
• Can interact with TM proteins capable of
  intracellular signaling
• Can indirectly modulate activity of cytosolic
  signaling molecules assoc. w/ lipid rafts

35

• 8. Examples from Pathobiology
• ERAD discovered through study of CMV US11 (Wiertz
  et al., Cell 84 769, 1996).
• 1. MHC class I, a TM protein, binds viral
  peptides produced in cells and presents them at
  the cell surface to cytotoxic T cells.
• 2. CMV evades the immune system by targeting
  MHC class I for destruction soon after it is
  synthesized and translocated into the ER. How
  does it do this?
• 3. CMV US11 protein expressed alone causes MHC
  class I destruction.
• 4. US 11 effect is sensitive to proteasome
  inhibitors and involves MHC class I localization
  to cytoplasm, implying movemnt of US 11 out of ER
  into cytoplasm for degradation.
• 5. Before this paper, only forward movement
  thru translocon was thought to occur this paper
  by Ploeghs group studying a CMV protein raised
  the possibility of retrograde movement thru
  translocon.

ERAD
6. Subsequently, retrograde movement thru
translocon for degradation (ERAD) was shown to be
a common in non-infected cells. 7. Note that MHC
class I needs to be poly-ubiquitinated for
retrograde transport to occur, implying a role
for ubiqutination in retrolocation, not just in
targeting for degradation. 8. Additional studies
reveal that other pathogens use this mechanism
I.e. HIV-1 accessory protein Vpu promotes
degradation of CD4 by ERAD.
36

• 8. Examples from Pathobiology
• HIV-1 envelope protein undergoes many critical
  post-translational modifications
• 1. HIV env consists of gp120 soluble portion
  bound non-covalently to TM gp41.
• Role is to bind CD4 and chemokine receptors
  during HIV-1 entry.
• 2. Co-translationally translocated into ER as
  gp160.
• 3. Has 30 potential sites for N-linked
  glycosylation in ER.
• If non-glycosylated wont bind CD4.
• Some glycosylations are dispensible for proper
  folding others are needed.
• 4. Forms 10 disulfide bonds in ER (9 are in
  gp120 portion).
• 5. Trimerization of HIV-1 env in ER
• 6. Proper folding/trimerization equires BiP,
  calnexin, calreticulin, and PDI.
• 7. In Golgi protease-mediated cleavage of
  gp160 to gp120 and gp41.

Land, A. and I. Braakman, Biochimie 83 783
(2001).
37

• Additional Reading
• Tsai, B. et al. Retro-translocation of proteins
  from the endoplasmic reticulum into the cytosol.
  Nature Rev. Mol. Cell Bio. 3 246 (2002).
• Freiman, R. N. and R. Tijan. Regulating the
  regulators Lysine modifications make their
  mark. Cell 112 11 - 17 (2003).
• Resh, M. Fatty acylation of proteins new
  insights into membrane targeting of myristoylated
  and palmitoylated proteins. BBA 1451 1 (1999).
• Land, A. and I. Braakman. Folding of the human
  immunodeficiency virus type I envelope
  glycoprotein in the endoplasmic reticulum.
  Biochimie 83 783 (2001).
• Chatterjee, S. and S. Mayor. The GPI-anchor and
  protein sorting. Cell Mol. Life Sci 58 1969
  (2001).
• McClellan A et al. Protein quality control
  chaperones culling corrupt conformations. Nat
  Cell Biol. 2005 Aug7(8)736-41.
• Gill, G. SUMO and ubiquitin in the nucleus
  different functions, similar mechanisms? Genes
  Dev. 2004 Sep 118(17)2046-59. Review.
