Chapter%202%20THERMAL%20PROCESSING%20PRINCIPLES

1

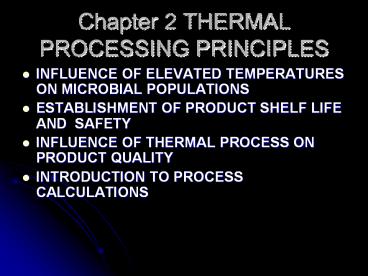

Chapter 2 THERMAL PROCESSING PRINCIPLES

• INFLUENCE OF ELEVATED TEMPERATURES ON MICROBIAL
  POPULATIONS
• ESTABLISHMENT OF PRODUCT SHELF LIFE AND SAFETY
• INFLUENCE OF THERMAL PROCESS ON PRODUCT QUALITY
• INTRODUCTION TO PROCESS CALCULATIONS

2
Vocabulary

• microbial population elevated temperature
  viability vegetative Salmonella spp., Listeria or
  Escherichia coli-any Clostridium botulinum
  function of time logarithmic microbial spores
  abruptly semilogarithmic coordinates decimal
  reduction time, or D--value food spoilage
  microorganisms decimal reduction curve

3
Vocabulary

• thermal resistance curve thermal resistance
  constant or Z--value, thermal death time (F)
  survivor curve linear relationship commercial
  sterilization yeast and molds acidity, or pH
  low--acid anaerobic Low Acid Canned Food
  pathogen Spoilage probability quality attributes
  heat-sensitive nutrients flavor, texture, and
  color over-processing lethal rate lethality

4
Microbial Populations Versus Time
5
Microbial Population Versus Time
6
survivor curve

• When the microbial populations as a function of
  time are presented on semilogarithmic
  coordinates, a linear decrease in microbial
  population with time is observed. It is the
  survivor curve. It is emphasized that these
  relationships occur when the environment around
  the population is at a constant temperature
  throughout the period of exposure.

7
Definition of Decimal Reduction Time

• On survivor curve, the time required for a one
  log cycle reduction in microbial population is
  the decimal reduction time (D), or D--value .

8
Survivor Curves at Different Temp.
9
thermal Resistance Curve

• A plot of decimal reduction time as a function of
  temperature on semilog coordinates results in a
  linear relationship. This linear relationship is
  the thermal resistance curve for a given
  microbial population.

10
Thermal Resistance Curve
11
Definition of Thermal Resistance Constant (Z)

• On Thermal Resistance Curve , the temperature
  increase required to cause a one log cycle
  reduction in the decimal reduction time is
  defined as the thermal resistance constant (Z),
  or Zvalue.

12
Thermal Death Time Curve
13
Definition of Thermal Death Time (F)

• Thermal death time (F) is defined as the time
  required to achieve a stated reduction in the
  microbial population at a given temperature (in
  minutes), or F--value.

14
Relations Between F D

• Each log cycle reduction in the microbial
  population on the thermal death curve represents
  a decimal reduction time, or D-value F--values
  may be expressed as multiples of D--values. The
  most common of these relationships is F 12D for
  Clostridium botulinum in commercial
  sterilization.

15
Thermal Death Time Versus Temperature
16
Establishment of Product Shelf Life

• Factors influence the heat resistance of
  microbial.
• When product safety is concerned.
• When product shelf life is concerned.

17
Factors Influence the Heat Resistance of Microbial

• Species of microorganisms.
• Acidity or pH .
• Oxygen (some of the spores with high thermal
  resistance are anaerobic).
• Water activity
• Food composition

18
Comparison of D for Microbial Population
19
Some Low Acid Foods
20
When product safety is concerned

• The Low Acid Canned Food (LACF)
• Food and Drug Administration
• l2-D process for low--acid canned foods

21
When product shelf life is concerned
22
INFLUENCE OF THERMAL PROCESS ON PRODUCT QUALITY
23
(No Transcript)
24
(No Transcript)
25
F versus T for MP Quality Attributes
26
INTRODUCTION TO PROCESS CALCULATIONS

• Lethal Rate Curve
• Time/Temp. Process LR
• LR Curve for Thermal Process

27
Lethal Rate Curve
28
Time/Temp. Process LR
29
LR Curve for Thermal Process
30
Problems

• What is D-value, What is decimal reduction curve
  or survivor curve,?
• What is Z-value, What is thermal resistance
  curve?
• What is F-value, What is thermal death time
  curve?
• What are the relationships between them?
