Title: Circular Dichroism


1

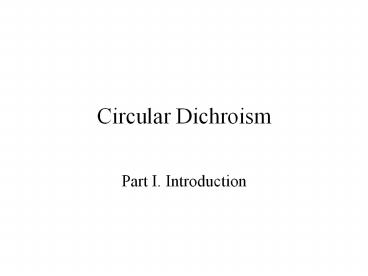

Circular Dichroism
  • Part I. Introduction

2
Circular Dichroism
  • Circular dichroism (CD) spectroscopy measures
    differences in the absorption of left-handed
    polarized light versus right-handed polarized
    light which arise due to structural asymmetry.
    The absence of regular structure results in zero
    CD intensity, while an ordered structure results
    in a spectrum which can contain both positive and
    negative signals.

Jasco J-810 Circular Dichroism System
3
  • Chiral structure can be distinguished and
    characterized by polarized light
  • Optical rotation the rotation of linearly
    polarized light by the sample
  • Optical rotary dispersion the variation of
    optical rotation as a function of wavelength. The
    spectrum of optical rotation.
  • Circular Dichroism the difference in absorption
    of left and right circularly light.

4
Types of polarized light
  • Plane polarized light consists two circularly
    polarized components of equal intensity
  • Two circularly polarized components are like
    left- and right-handed springs
  • As observed by looking at the source,
    right-handed circularly polarized light rotates
    clockwise
  • Frequency of rotation is related to the frequency
    of the light
  • Can be resolved into its two circularly polarized
    components
  • When added together after passing through an
    optically isotropic medium, plane polarized light
    results

5
(No Transcript)
6
Polarized Light
Linear Polarized Light
7
Circular Polarized Light
Passing plane polarized light through a
birefringent plate (in the z-direction) which
splits the light into two plane-polarized beams
oscillating along different axes (e.g., fast
along x and slow along y). When one of the beams
is retarded by 90º (using a quarter-wave
retarder) then the two beams which are now 90º
out of phase are added together, the result is
circularly polarized light of one direction. By
inverting the two axes such that the alternate
beam is retarded than circularly polarized light
of the other direction is generated. The result
of adding the right and left circularly polarized
that passes through the optically active sample
is elliptically polarized light, thus circular
dichroism is equivalent to ellipticity
8
Polarized Light
  • Circularly Polarized Light

Left-handed
right-handed
9
Optical rotary dispersion
  • If the refractive indices of the sample for the
    left and right handed polarized light are
    different, when the components are recombined,
    the plane-polarized radiation will be rotated
    through an angle ?
  • nl, nr are the indices of the refraction for
    left-handed and right-handed polarized light
  • ? is in radians per unit length (from ?)

10
Optical Rotation
n refractive index l wavelength of light
f angle of rotation
11
Optical Rotation
  • Usually reported as a specific rotation ?,
    measured at a particular T, concentration and ?
    (normally 589 the Na D line)
  • Molar rotation ? ??MW?10-2

12
Optical rotary dispersion
  • Concentration of an optically active substance,
    c, expressed in g cm-1 (as density of a pure
    substance)
  • d thickness of the sample in decimeters
  • M molecular weight of the optically active
    component
  • the 10-2 factor is subject to convention and is
    not always included in M

13
Optical rotary dispersion
  • M molecular weight of the optically active
    component
  • n. b. the 10-2 factor is subject to convention
    and is not always included in M

14
Optical rotary dispersion
  • ORD curve is a plot of molar rotation ? or M
    vs ?
  • Clockwise rotation is plotted positively
    counterclockwise rotation is plotted negatively
  • ORD is based solely on the index of refraction
  • So-called plain curve is the ORD for a chiral
    compound that lacks a chromophore
  • Chiral compounds containing a chromophore can
    give anomalous, or Cotton effect, curves

15
Cotton Effect
  • Positive Cotton effect is where the peak is at a
    higher wavelength than the trough
  • Negative Cotton effect is the opposite
  • Optically pure enantiomers always display
    opposite Cotton effect ORD curves of identical
    magnitude
  • Zero crossover point between the peak and the
    trough closely corresponds to the normal UV ?max

16
Circular Polarized Light
17
Circular Polarized Light
18
Circular dichroism
  • Measurement of how an optically active compound
    absorbs right- and left-handed circularly
    polarized light
  • All optically active compounds ex-hibit CD in the
    region of the appropriate absorption band
  • CD is plotted as ?l-?r vs ?
  • For CD, the resulting transmitted radiation is
    not plane-polarized but elliptically polarized

19
Circular Dichroism
q ellipticity l path length through the
sample A absorption
20
Circular dichroism
  • ? is therefore the angle between the initial
    plane of polarization and the major axis of the
    ellipse of the resultant transmitted light
  • A quantity ? is defined such thattan ? is the
    ratio of the major and minor axis of the ellipse
    of the transmitted light
  • ? approximates the ellipticity
  • When expressed in degrees, ? can be converted to
    a specific ellipticity ? or a molar ellipticity
    ?
  • CD is usually plotted as ?

21
Linear polarized light can be viewed as a
superposition of opposite circular polarized
light of equal amplitude and phase
different absorption of the left- and right hand
polarized component leads to ellipticity (CD) and
optical rotation (OR).
22
Circular Dichroism
The difference between the absorption of left and
right handed circularly-polarised light and is
measured as a function of wavelength. CD is
measured as a quantity called mean residue
ellipticity, whose units are degrees-cm2/dmol.
23
ORD and CD
  • CD plots are Gaussian rather than S-shaped.
  • Positive or negative deflections depend on the
    sign of ??? or ? and corresponds to the sign of
    the Cotton effect
  • ORD spectra are dispersive (called a Cotton
    effect for a single band) whereas circular
    dichroism spectra are absorptive. The two
    phenomena are related by the so-called
    König-Kramers transforms.
  • Maximum of the CD occurs at the absorption ?max
  • Where more than one overlapping Cotton effect,
    the CD may be easier to interpret than the ORD
    with overlapping S-shaped bands

24
ORD spectra are dispersive (called a Cotton
effect for a single band) whereas circular
dichroism spectra are absorptive. The two
phenomena are related by the so-called
König-Kramers transforms.
25
(No Transcript)
26
(No Transcript)
27
Sample Preparation
  • Additives, buffers and stabilizing compounds Any
    compound which absorbs in the region of interest
    (250 - 190 nm) should be avoided.
  • A buffer or detergent or other chemical should
    not be used unless it can be shown that the
    compound in question will not mask the protein
    signal.

28
Sample Preparation
  • Protein solution From the above follows that the
    protein solution should contain only those
    chemicals necessary to maintain protein
    stability, and at the lowest concentrations
    possible. Avoid any chemical that is unnecessary
    for protein stability/solubility. The protein
    itself should be as pure as possible, any
    additional protein or peptide will contribute to
    the CD signal.

29
Sample Preparation
  • Contaminants Unfolded protein, peptides,
    particulate matter (scattering particles),
    anything that adds significant noise (or
    artifical signal contributions) to the CD
    spectrum must be avoided. Filtering of the
    solutions (0.02 um syringe filters) may improve
    signal to noise ratio.
  • Data collection  Initial experiments are useful
    to establish the best conditions for the "real"
    experiment. Cells of 0.5 mm path length offer a
    good starting point.

30
Typical Initial Concentrations
  • Protein Concentration 0.5 mg/ml
  • Cell Path Length 0.5 mm
  • Stabilizers (Metal ions, etc.) minimum
  • Buffer Concentration 5 mM or as low as possible
    while maintaining protein stability
