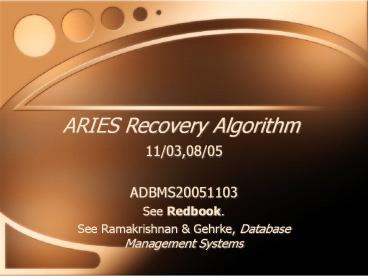

ARIES Recovery Algorithm

1
ARIES Recovery Algorithm

• 11/03,08/05
• ADBMS20051103
• See Redbook.
• See Ramakrishnan Gehrke, Database Management
  Systems

2
ARIES - OVERVIEW (1/2)

• A steal, no-force approach
• Steal if a frame is dirty and chosen for
  replacement, the page it contains is written to
  disk even if the modifying transaction is still
  active.
• No-force Pages in the buffer pool that are
  modified by a transaction are not forced to disk
  when the transaction commits.

3
ARIES - OVERVIEW (2/2)

• After a crash, the recovery manager is invoked.
  Proceed in three phases.
• Analysis identify dirty pages in buffer pool
  (I.e., changes not yet written to disk), and
  identify active transactions at time of crash.
• Redo repeats all actions, starting from proper
  point in log, thus restoring the DB state to what
  is was at time of crash.
• Undo undo actions of transactions that didnt
  commit --gt DB reflects only committed
  transactions.

4
ARIES - the main principles

• Write-ahead logging any change to DB element is
  first recorded in log. The log record is written
  to stable storage before DBs element change is
  written to disk.
• Repeating History During Redo On restart
  following crash, retrace all actions of DBMS
  before crash so system is back to the exact state
  it was at crash time. Then undo (abort)
  transactions still active at time of crash.
• Logging Changes During Undo Changes to DB while
  undoing a transaction are logged to ensure such
  an action is not repeated in the event of
  repeated restarts (from repeated failures).

5
Repeating History

• Because of repeating all actions, ARIES can
  support concurrency control with record-level
  locks (not just page level locks).

6
Simple Example
LSN log record
1 update T1 writes D2
2 update T2 writes D3
3 T2 commit
4 T2 end
5 update T3 writes D1
6 update T3 writes D3
CRASH

• ANALYSIS
• T1, T2 active (-gt undo)
• T2 committed (-gt write)
• D1, D2, D3 possibly
• dirty
• REDO
• do updates 1, 2, 5, 6
• UNDO
• undo 6, 5, 2

7
Logging for ARIES

• Write a log record for
• Updating (update-type record. Also set pageLSN
  for this page (in buffer) to this LSN.
• Commit force-write a commit log record (first,
  append log record then write log tail to disk.
  Then , update any DBMS data structures. Finally
  write commit log record.)
• Abort write log record. Then initiate UNDO for
  this transaction.
• End do DBMS data structures updating, then write
  end record.
• Undoing an update when transaction is rolled
  back or during crash recovery, its updates are
  undone. When an action described by update log
  record is undone, a compensation log record is
  written.

8
ARIES log records

• LSN log sequence number (unique, increasing)
• prevLSN maintain linked list of all log records
• transID ID of transaction generating log rec.
• Type commit, update, etc.

9
ARIES update log record

• prevLSN
• transID
• type
• pageID // page id of modified page
• Length // length of change
• Offset // offset to change
• before-image // value before change
• after-image // value after change
• Redo-only update contains just after-image
• Undo-only update contains just before-image

10
ARIES compensation log record (CLR)

• This record is written just before the change
  recorded in update log record is undone.
• CLR describes the action taken to undo the
  actions recorded in the corresponding update
  record.
• CLR contains field undoNextLSN, the LSN of the
  next log record that is to be undone for the
  transaction that wrote the update record.
• CLR describes an action that will never be
  undone.
• CLR contains information needed to reapply or
  redo, but not to reverse it.

11
OTHER data structures (1/2)

• Transaction Table one entry for each active
  transaction
• transId
• Status // in progress, committed, aborted
• // if C or A, will be eventually cleaned up.
• lastLSN //LSN of most recent log record for
  this transID

12
OTHER data structures (2/2)

• Dirty page table One entry for each dirty page
  in the buffer pool
• recLSN // LSN of first log record that
• caused page to be dirty. This is
• the ealiest log record that may
• need to be redone during restart.

13
WAL

• Before writing a page to disk, every update log
  record describing a change to this page must be
  forced to stable storage.
• So, force all log records upto and including the
  one with LSN equal to pageLSN to stable storage.
  THEN write page to disk.
• SO committed means all log records, including
  the commit record, have been written to stable
  storage.

14
WAL - Commit

• No-force log tail is forced to storage
• Force all pages modified by transaction (not
  just the portion of the log) are forced to
  storage.
• ---gt cost of forcing log-tail is much smaller
  than cost of force writing (all changed pages)

15
ARIES - Three steps for Checkpointing

• Begin_checkpoint written to indicate where
  checkpoint starts.
• End_checkpoint built, including current contents
  of transaction table and dirty page table, and
  appended to log.
• After end_checkpoint is written to storage, a
  master record (has LSN of begin_checkpoint
  record) written to known place on disk. While
  constructing end_checkpoint, DBMS continues
  transactions and logging gt the transaction
  table and dirty page table are accurate at time
  of begin_checkpoint.

16
Example -- building the log and associated tables

• T1
• update x21..23, DEF
• Update y41..43, WXY
• T2
• Update x20..22, KLM
• Update z21..23, QRS
• Example offline -- interleaving T1 and T2.

17
ARIES Recovery Manager

• Analysis Scan down from most recent
  begin_checkpoint to last record.
• Redo Start at smallest recLSN in dirty page
  table at end of Analysis. Redo all changes to any
  page that might have been dirty at crash.
• Undo Starting at end of log, in reverse order,
  undo changes of all transactions at time of crash.

18
Start/End points in the log

• LOG Analysis Redo Undo

Oldest log record of active transactions
Smallest recLSN in dirty page table
Most recent checkpoint
19
Analysis tasks

• Finds point in log to start Redo.
• Finds set of pages in buffer pool that were dirty
  at crash.
• Finds transactions active at crash time that need
  to be redone.

20
Analysis continued

• Find most recent begin_checkpoint
• -gt initialize Dirty Page Table (DPT) and
  Transaction table (TT) to copies of those in the
  next end_checkpoint.
• Scan forward to end of log
• If find Ts end, remove T from TT.
• If T writes any other record, make sure T is in
  TT
• Modify in TT so lastLSN field is set to LSN of
  this record
• If log record is commit, status is set to C,
  otherwise set to U (indicating to be UNDONE)
• If a redoable log record affecting page P is
  found, and P is not in DPT, insert entry to DPT
  with page id P and recLSN equal to LSN of this
  redoable log record

21
Analysis continued

• At end of Analysis,
• TT has correct list of active transactions at
• time of crash (marked with U)
• DPT has dirty pages at time of crash AND
• maybe some pages that were written to
• disk.

22
Redo

• Reapply updates of ALL transactions, committed or
  otherwise.
• If a transaction was aborted before the crash and
  its updates were undone, as indicated by CLRs,
  the actions described in CLRs are also reapplied.
  (AKA repeating history )
• At end of REDO, DB is in same state as it was at
  time of crash.

23
Redo Continued

• Start at log with smallest recLSN of all pages in
  DPT constructed by the Analysis phase -- this is
  the oldest update that may not have been written
  to disk.
• Scan forward to end of log.
• For each redoable record (update or CLR), Redo
  checks to see whether action must be redone.

24
Redo - continued

• If a (logged) action has to be redone
• Reapply the logged action
• The pasgeLSN on the page is set to the LSN of the
  redone log record. No additional log record is
  written.

25
Redo - continued

• Redo the action UNLESS
• The affected page is not in DPT (I.e., changes to
  this page have been written to disk)
• The affected page is in DPT, but the recLSN for
  the entry is greater than the LSN of the log
  record being checked.(I.e., update being checked
  was written to disk)
• The pageLSN (stored on the page) is greater than
  or equal to the LSN of the log record being
  checked. (have to retrieve the page for this one!
  )

26
UNDO

• Scan backward to undo the actions of all
  transactions active at the time of the crash.
• In OTHER WORDS! abort the active transactions.

27
UNDO continued

• Start with TT built byAnalysis (recall, includes
  lastLSN, LSN of most recent log record for each).
• Make a set of all lastLSN ToUNDO
• UNDO repeated choose the largest (most recent)
  LSN value and process it, until ToUNDO is empty.

28
UNDO continued

• Process a log record
• IF CLR and undoNextLSN is not null, the
  undoNextLSN is added to ToUNDO
• If CLR and undoNextLSN is null, write an end
  record for the transaction (because it is
  completely undone) and CLR is discarded.
• If an update record, write a CLR and
  corresponding action is undone. TheprevLSN value
  in the update log record is added to ToUNDO set.

29
UNDO continued aborting a transaction

• Aborting a transaction is like the UNDO, but on a
  single transaction.
