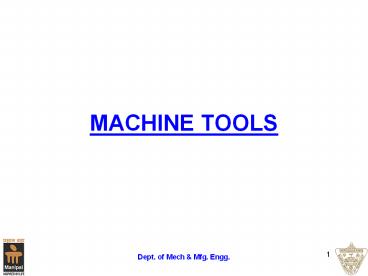

Title: MACHINE TOOLS


1
  • MACHINE TOOLS

2
A Machine tool
  • A machine tool may be defined as a power driven
    machine which accomplishes the cutting or
    machining operations in it.
  • Examples Lathe,
  • Drilling machine,
  • Milling machine,
  • Grinding machine.
  • Shaping machine

3
Functions of Machine Tools
  • To hold and support job/work to be machined
  • To hold and support the cutting tool in position
  • To move the cutting tool, work or both in a
    desired direction
  • To regulate cutting speed and provide feeding
    movement.

4
Working principle of lathe
Chuck
Direction of rotation of work piece
Work piece
Cutting tool
Direction of cutting tool
5
Working principle of a lathe
  • Cutting tool can remove material in the form of
    chips from rotating work pieces to produce
    circular objects
  • Work piece is held rigidly by one of the work
    holding devices known as chuck
  • Uses V shaped cutting tool

6
(No Transcript)
7
Lathe Basics
Spindle Nose
Tailstock Spindle Clamp
Tool Post
Compound Rest
HEADSTOCK
TAILSTOCK
Saddle
Feed Change Lever
Feed Reverse Lever
Lead Screw
BED WAYS
APRON
Bed
Half Nut Lever
Friction-clutch Control
Gear Box
Carriage Hand Wheel
Motor Drive
Cross Slide
8
Explain with neat diagram the principal parts of
an engine lathe.
9
LATHE
10
MAJOR PARTS
  • 1 Bed
  • 2 Head stock
  • 3 Tail stock
  • 4 Main drive
  • 5 Carriage assembly consisting of
  • a) Saddle
  • b) Cross-slide
  • c) Compound rest
  • d) Tool post
  • e) Apron
  • 6 Lead screw
  • 7 Feed rod

11
BED
  • Foundation part of the machine
  • Supports all other parts
  • The top of the bed is formed by
  • two Precession guide ways
  • i) Outer guide way--- Carriage assembly mounted
  • and align it with
    centre line of lathe
  • ii) Inner guide way--- Head stock and Tailstock

  • are mounted

12
  • Headstock
  • Housing comprising of
  • feed gear box
  • stepped cone pulley
  • Rigidly mounted on the inner guide ways of lathe
    bed at its left end.

13
  • MAIN DRIVE
  • Cone pulley
  • Cone pulley which drives the main spindle is
  • driven by the motor.
  • Various spindle speeds can be obtained by
    shifting the belt on different steps of the cone
    pulley.

14
(No Transcript)
15
  • Tailstock
  • Movable part of the lathe that carries the dead
    centre in it.
  • Used to clamp tools like Twist drills
  • Reamers
  • For making holes.
  • Mounted loosely on the inner guide ways of a
    lathe bed
  • Moved and locked in any position.

16
(No Transcript)
17
  • Carriage assembly
  • To support the tool
  • Moves over the outer guide ways longitudinally
    between headstock
  • and tailstock.
  • It is composed of 5 main parts
  • Saddle
  • Cross slide
  • Compound Rest
  • Apron
  • Tool post

18
Lathe Carriage and Apron
Tool Post
Compound Rest
Carriage Lock Screw
Cross Feed Knob
Cross Slide
Apron Hand Wheel
Half Nut Lever
Compound Rest Knob
19
  • Saddle
  • H shaped casting that slides over set of guide
    ways
  • Serves as the base for the cross slide.
  • Cross slide
  • Mounted on the saddle
  • Enables the movement
  • of the cutting tool laterally
  • across the lathe bed by
  • means of cross feed hand wheel.

20
Cross Feed Knob
Used to move cutting tool across the end of the
stock - Facing (Cross Feed)
21
  • Compound Rest
  • Mounted on the top of the cross slide
  • Supports the tool post.
  • Swiveled to any angle in the horizontal plane
  • To facilitate following
  • operations
  • Taper turning
  • Threading operations

22
Apron Hand Wheel
Used to move tool along the work - for Turning
(Longitudinal Feed)
Apron Hand Wheel
23
  • Apron
  • Mounted on the front of the saddle
  • Consists of,
  • - Carriage
  • - Cross slide mechanisms

Tool Post
Compound Rest
  • Tool post
  • Clamps the tool holder in the proper position
    for machining
  • operations.

24
Chuck
Three Jaw Chuck - For holding cylindrical stock
centered.
25
  • Lead Screw
  • A screw rod which moves longitudinally in front
    of the lathe bed.
  • Rotation of the lead screw moves the carriage to
    and fro longitudinally during thread cutting
    operation.

26
  • Feed rod
  • A stationary rod mounted in front of the lathe
    bed
  • Facilitates longitudinal movement of carriage
    during turning and facing operations.

27
Center Drilling
28
Turning Between Centers
