Title: High Electron Mobility Transistors

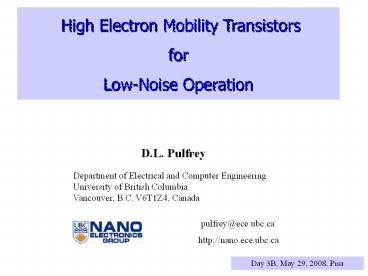

1
High Electron Mobility Transistors for Low-Noise
Operation
Day 3B, May 29, 2008, Pisa
2
High electron-mobility Transistor
  • Note the Schottky barrier

3
Schottky barrier band diagram
4
Schottky barrier under bias
  • Negative potential on n-type semiconductor
  • discontinuity in EF

5
Forward bias in SB- and PN-diodes
2. What is the driving force here?
1. What is the bottleneck here?
FB
-qVa
6
Two heterojunctions in a HEMT
Metal/AlGaAs HJ
AlGaAs/GaAs HJ
2-DEG in the potential "well"
y
Note the doping
7
Simplifying the quantum well
  • Triangular to finite square
  • Finite to infinite square
  • SWE becomes
  • wavenumber is

Ey
a
  • bcs

? E is quantized
  • solution

8
Energy is quantized
?E?1/m ? 10X GaAs vs. Si
Wavefunction
Energy
Probability density
9
For a finite well
  • Wavefunction not completely confined
  • Use undoped spacer

10
Employment of a spacer layer
Provision of electrons from remote donors is
called MODULATION DOPING
11
Formation of sub-bands and 2DEG
2m
2m
Empty
Partially filled 2nd sub-band
  • ns0 ?1013 cm-2

12
2DEG concentration ns
Independent of E !!
13
Controlling ns by VGS
Thick barrier layer
Thick-enough barrier layer
qVGS
qVGS
Threshold condition
Depleting the channel
  • How would you make an enhancement HEMT?

14
  • Often modeled by SPICE LEVEL 1
    IDsatWg?Cg(VGS-VT)2 /2Lg

15
HEMT attributes
  • Excellent lattice match
  • ? no surface scattering (? ?).
  • Electrons and donors separated
  • ? no I I scattering, i.e., ? ? ?
  • Undoped spacer also helps mobility.
  • Electrons confined to a well of width lt ?e
  • i.e., about 15nm for GaAs at 300K.
  • Size-quantization of energy levels
  • - standing waves
  • - only 2-D scattering
  • ? ? ? ? ?
  • and gm ?

16
Start with a high ? and preserve it!
17
High performance HEMT
Why the funny gate?
fT 270 GHz, fmax490 GHz
18
NOISE
Noisy DC signal
dB
?use RMS values
What is a signal of -30dBm ?
19
Thermal noise
So, an equivalent circuit representation of
thermal noise is
Brownian motion
vR gt vd, so present without current
From Nyquist
  • What "colour" is this noise?

This P can be transferred from a real resistor R
to a noiseless resistor R.
  • How much thermal noise in 50 Ohm R? -gt 1nV over
    1Hz

20
Shot noise
Forward-biased junction
microscopically -gt
EC
Transition over barrier is random event
(probability of state occupancy)
Important in HBTs, but not in FETs, except in
sub-threshold operation.
21
Flicker noise
Defects cause ''traps"
Escape time tends to be long
Empirical expression
Colour of this noise?
Prevalent in MOSFET channel. Keep L
short. Use a HEMT.
22
Induced gate noise
  • The induced gate noise is correlated with the
    channel (drain-current) noise.
  • Coupling is via capacitance
  • Impedance decreases with frequency
  • Important at high frequencies

23
Non-Quasi-Static operation
q(x, y, z, t' ) f( VTerminals, t') q(x, y, z,
t' ) ? f( VTerminals, t lt t')
Recall QSA
At high frequencies, this breaks down. Consider
example of charging a capacitor
R
C
q(t')f(v(tltt'))
v(t')
v(t')
q(t')f(v(t'))
Model capacitor by
24
Non-Quasi-Static Equivalent Circuit including
noise sources
vnRg
RG
Cgd
D
G
vns
Rgd


Cgs
Zps

RL
Rgs
vsig
ind

vng
S
25
Noise Figure
Important to have high fmax
26
  • What is Associated Gain?
  • What is the "black" gain?
