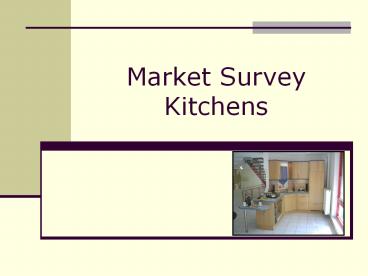

Market Survey Kitchens

1
Market Survey Kitchens
2
(No Transcript)
3

• Popular companies for modular kitchen in India
• Lispo and Italian companies- 2.5 lacs (min.) for
  an average size
• Kaff 1.25 lacs (min.) for an average size
• Cost of any medium level kitchen can be
  calculated as
• Length of kitchen slab x total height of
  cabinets(5 approx.) x 1000/- roughly

4

• Companies for fittings/accessories-
• best in business
• Hettich hinges
• Citch handles and locks
• Decora shutters
• Italic and Eurostar accessories-
• rust free
• Glen and Crymptom appliances
• Standardized shutters for various
• cabinets are available in different
• material/finishes-
• Solid wood
• Mica
• Board
• Compressed wood (water,
• fire heat resistant)- very
• popular in contemporary market.

5
Layouts designed according to the space available
and position of doors and windows.
6
Kitchen Modular Accessories (S.S.)-

• The modular kitchen accessories are available in
  market by-
• By weight i.e. Rs. 125-150/Kg (Variation for
  different brands and qualities)
• By the itemized rates which are described below-

Item Specifications Price
Trolley Width- 15 Height- 4 Rs. 350-450
Cutlery Trolley Width- 15 Height- 4 Rs. 500
Grain Trolley Width- 15 FULL CLEARANCE TILL WORKTOP Rs. 600-700
Bottle Rack Width- 4/6/8 Full Height till worktop with two levels for storage Rs. 300-450
Crousal Unit For 3 X 3 corner space Rs. 1500-2000
Tall Unit - Rs. 2500
Big Trolley Width- 36 For big utensils Rs. 1500
The above said accessories are also available in
widths of 14,15,17,21
7
SR. NO. ITEM_DISCRIPTION PICTURE DIMENSIONS RATES PER PIECE (Rs.)
1 Bottle rack 4 950
2 Grain trolley 15 1150
3 Cutlery racks 15 1175
4 Plates cups racks 15 990
8
5 Multipurpose racks 15 850
6A Tall unit full/ double shutter with adjustable units 52000
6B Tall unit -small/single shutter 22000
9
7 Drying rack fitted above sink 28 1250
8 Sink shutters with detergent holders 350-550
9 Heavy utensil racks 32 (size above 5 litre capacity) 1480
10 Magic corner for baskets etc. 1480
10
11 Party tea-set rack
12 Circular corner 26 3200
13 Overhead cabinets
14 Accessory rod ¾DIA. 75 per metre length
11
15 Chimney Chimney Chimney 6000-25000
16 Cooking range Cooking range Cooking range 20000
17 Independent triple ring burner 22 26000
12
INTERNAL FITTINGS
ITEM DISCRIPTION PICTURE DIMENSIONS LOAD CAPACITY FINISH
Cargo PC PlusSilent System Pull-out unit allowing full access to pantry. Min. inside depth 500mmMin. inside width 261mmInternal height 1860-2219mm 70 or 120kg silver(frame), chrome(baskets)
Dispensa Duo Hinged pull out unit with door mounted baskets Min. inside depth 500mmInside width 412-418mm or 462-468mmInternal height 1100 or 1700mm 70 or 120kg silver(frame), chrome(baskets)
Chef's Pantry Double door 900mm swing open unit Min. internal depth 500mmMin. internal width 862mmInternal height 1270mm 70 or 120kg silver(frame), chrome(baskets)
13
DOOR HOLDERS HETTICH
ITEM DISCRIPTION PICTURE DIMENSIONS MATERIAL/FINISH
Lamp YA-2020Door holder Manually operated 50mm plus Material 304 stainless steelFinish polished
2400SSDoor holder Automatically latches when the door is shut against it. Push lever to release Ø50 x 60mm Materials stainless steel, rubberFinish polished
14
FURNITURE ACCESSORIES
2440SSDoor holder Automatically latches when the door is shut against it. Push lever to release Ø50 x 90mm Materials stainless steel, rubberFinish polished
2037SSDoor holder Automatically latches when the door is shut against it. Push lever to release Ø50 x 55 x 60mm Materials stainless steel, rubberFinish polished
ITEM DISCRIPTION PICTURE DIMENSIONS FINISH
Cable Entry Desk cable entry Drilling diameter 60mm white, beige, grey, brown, black, satin chrome
15
Round feet Furniture feetAdjustable base - 10mm Height 100, 120, 150mm (L) polished, aluminum
Square feet Furniture feetAdjustable base - 10mm Height 100, 120, 150mm (L) polished, aluminum
Large Square feet Furniture feetAdjustable base - 10mm Height 100, 120, 200mm (L) polished, aluminum
16
LID STAYS
ITEM PICTURE MATERIALS FINISH
Lamp 388 SeriesFolding bracket aluminium alumite
Lamp HS SeriesLid stay 304 stainless steel, polyamide satin, white
Lamp L-140SMini lid stay 304/303 stainless steel, polyacetal polished
Lamp L-195Stainless steel lid stay 304 stainless steel satin
Lamp LB-350Stainless steel lid stay 304 stainless steel satin
17
FOLDING DOOR SYSTEMS
Lamp S-91, 92, 93Stainless steel lid stay 304 stainless steel polished
Lamp YT-01, 02Spring loaded lid stay 304 stainless steel, polyacetal polished
ITEM/MODEL DISCRIPTION PICTURE MAX. DOOR WEIGHT DOOR MATERIAL
Slide Line 55Horizontal Sliding Insert medium-sized doors for bedrooms, teenager's rooms, workrooms, offices and hotels. 30 (15) kg timber
Top Line 22Horizontal Sliding Small to large and heavy timber or aluminium frame doors for bedrooms, can be combined with different plinth variants 50 kg timber, alumiunium
18
Wing Line 26 Folding doors for children's bedrooms, overbed units and kitchen cabinets dependant on hinge timber
Wing Line 780 Folding doors with very large opening angle for home offices, entertainment furniture, bedrooms and living rooms 10 kg timber
Wing Line 770 Folding doors with very large opening angle for home offices, entertainment furniture, bedrooms and living rooms 20 kg timber
Wing Line 230 Large doors for utility rooms, offices, hotels, workrooms, doors for walk in cupboards, room dividers 25 kg timber
19
SINKS
Item Size Price
Kaff K/S 518 SSRH, Kitchen Sink Drain in mm 1160 x 500 Depth in mm 200/170 Rs. 20990
kaff K/S 512SS Drain in mm 960 x 480 Depth in mm 200 Rs. 15990
Kaff K/S 518 SSRH Drain in mm 1160 x 500 Depth in mm 200/170 Rs. 20990
Kaff K/S 520 SS Drain in mm 1160 x 500 Depth in mm 200/170 Rs. 20990
kaff K/S 514SS Drain in mm 960 x 480 Depth in mm 180/120 Rs. 18990
20
SR. NO. ITEM/MODEL PICTURE DIMENSIONS FINISH/MATERIAL
1 CanSB LA1400 Height 150mm Internal dimensions 298 x 238mmExternal dimensions 320 x 260mm Stainless steel
2 CanSB LA1401 Height 150mm Internal dimensions 330 x 235mmExternal dimensions 355 x 260mm Stainless steel
21
3 CanSB LA1402 Height 150mm Internal dimensions 330 x 300mmExternal dimensions 350 x 320mm Stainless steel
4 CanSB LA1403 Height 150mm Internal dimensions 340 x 330mmExternal dimensions 360 x 360mm Stainless steel
5 CanSB LA1404 Height 150mm Internal dimensions 300 x 150mmExternal dimensions 320 x 170mm Stainless steel
6 CanSB LA1410 Height 120mm Internal dimensions Ø260mmExternal dimensions Ø290mm Stainless steel
22
7 CanSB LA1411 Height 150mm Internal dimensions Ø300mmExternal dimensions Ø330mm Stainless steel
8 CanSB LA1412 Height 150mm Internal dimensions Ø360mmExternal dimensions Ø390mm Stainless steel
9 CanSB LB1413 Height 120mm Internal dimensions Ø260mmExternal dimensions Ø290mm Bone china
10 CanSB LB1414 Height 150mm Internal dimensions Ø300mmExternal dimensions Ø330mm Bone china
23
11 CanSB LB1415 Height 150mm Internal dimensions Ø360mmExternal dimensions Ø390mm Bone china
12 CanSB LA1440 Height 155mm Internal dimensions Ø340mmExternal dimensions Ø387mm Stainless steel
13 CanSB LA1441 Height 155mm Internal dimensions 450 x 330mmExternal dimensions 510 x 390mm Stainless steel
14 CanSB LA1442 Height 155mm Internal dimensions 450 x 330mmExternal dimensions 529 x 454mm Stainless steel
15 CanSB LD1433 Stainless steel
24
FAUCETS
SR. NO. ITEM/MODEL DISCRIPTION PICTURE
1 CanSB RB1485 Mixer tap chrome plate with swivelling faucet double handed with ceramic valves.
2 CanSB RB1486 Mixer tap chrome plate with swivelling faucet single with ceramicvalves.
3 CanSB RB1491 Combined mixer tap single hand with extractable hand shower complete with flexible hose 2 mt. length.
25
SOFT DOWN/ LIFT UP STAYS
4 CanSB RB1492 Mixer tap single hand with ceramic valves and long swivelling faucet suitable for kitchen sink.
5 CanSB RB1493 Mixer tap single hand with ceramic valves and short swivelling faucet suitable for wash basin.
SR. NO. ITEM/MODEL PICTURE MATERIAL FINISH/COLOUR
1 Lamp NSD-10New Soft-Down Stay zinc alloy, steel bright nickel
26
2 Lamp NSD-20New Soft-Down Stay zinc alloy, steel bright nickel
3 Lamp NSD-35New Soft-Down Stay zinc alloy, steel bright nickel
4 Lamp HDS-10Heavy-Duty Soft-Down Stay plastic, steel Finish nickelColour white, black
5 Lamp HDS-20Heavy-Duty Soft-Down Stay plastic, steel Finish nickelColour white, black
27
6 Lamp HDS-30Heavy-Duty Soft-Down Stay plastic, steel Finish nickelColour white, black
7 Lamp SLUNVertical Swing Lift-Up Mechanism plastic, steel Finish nickelColour grey
8 Lamp HBFNHorizontal Bi-Folding Door Mechanism plastic, steel Finish nickelColour Light grey
28
WOOD- COMMON WOOD TYPES RATE LIST
WOOD TYPE UNIT PRICE (Rs.)
HOLLOCK C.F.T. 900.00
CAL/KAIL 3.3 C.F.T. (SLIPPER- 10X 10X 5) 3500.00
MIRANDI C.F.T. 575.00
IVORY COAST/ NIGERIAN TEAK C.F.T. 1400.00
NAGPUR TEAK/ CP TEAK C.F.T. 1800.00
SAL(RUSSIAN) C.F.T. 1080.00
SHEESHAM C.F.T. 800.00
PARTAL 3.3 C.F.T. (SLIPPER- 10X 10X 5) 2200.00
BROWN BELLY C.F.T. 830.00
DEODAR 3.3 C.F.T. (SLIPPER- 10X 10X 5) 5500.00
29
PLYWOOD-
TYPE RATE PER SQ. FT.
TEAK WOOD PLY (12MM plain) 105.00
12mm W.P. 45.00
6mm 55.00
6mm W.P. 22.00
BOARD (19mm) 58.00
19mm W.P. 75.00
PLYSHEET (19mm) 80.00
THICKNESS(mm) CLUB (BWP) PLY (BWP) THICKNESS(mm) FLEXIPLY
Rs. /sq. m. Rs. /sq. m. Rs. /sq. m.
3 336.00 269.00 1.5 219.00
25 1854.00 1483.00 19 1586.00
30
THICKNESS CLUB BOARD BOARD (BWP) COMMERCIAL BOARD COMPOSED BLOCK BOARD COMPOSED COMMERCIAL BOARD
Rs. /sq. m. Rs. /sq. m. Rs. /sq. m. Rs. /sq. m. Rs. /sq. m.
16 980.00 784.00 686.00 862.00 755.00
32 1801.00 1441.00 1284.00 1585.00 1412.00

• Available Brands - Greenply, National, Century,
  Duro, Euro, etc.

• Available in sizes - 48 x 96

31
Glass-
Item Specifications Price
Glass Thickness-
3mm Float Glass Rs. 17
4mm Float Glass Rs. 25
5mm Float Glass Rs. 30
6mm Float Glass Rs. 35
8mm Float Glass Rs. 57
10mm Float Glass Rs. 65
12mm Float Glass Rs. 80
14mm Float Glass Rs. 125
32
Glass-
Item Specifications Price/ Sq. Ft.
Toughened Glass 12mm Thick Rs. 115
Security Glass 10.625mm Rs. 275
Reflective Glass 5mm Rs. 65
Etching - Rs. 25
Grinding Beveling - Rs. 25/ft.
Stained Glass 12mm Rs. 700
Decorative Glass 12mm Rs. 500
33
Laminates-
Item Specifications Price
Laminates Plain Colours, Wooden Colours Size- 4 X 8 Thickness- 1mm Rs. 850
Size- 4 X 8 Thickness- 0.8mm Rs. 700
Size- 4 X 8 Thickness- 0.7mm Rs. 500
Laminates Brushed Effect, Wooden Textures Size- 4 X 8 Thickness- 1mm Rs. 1000
Metallic Finish Laminates Size- 4 X 8 Thickness- 1mm- 1.5mm Rs. 3000
Decorative Laminates Premium Range Size- 4 X 8 Thickness- 1mm- 1.5mm Rs. 4500- 5500
Available Brands - Greenlam, National, Century,
Duro, Euro, etc.
Wooden Texture Laminates
Metallic Lamintes
34
MARBLE FLOORING-
CATEGORY TYPES RATE (Rs. /S.F.T.)
WHITE MARBLE MOUVARH 100.00-200.00
AGARIA 100.00-200.00
MAKRANA 350.00
WONDER MARBLE 150.00
ITALIAN WHITE 450.00
OFF-WHITE 250.00
COLOURED 300.00-425.00
GRANITE BLACK SPECIAL 175.00
OTHERS 100.00
VADODRA GREEN 50.00
KOTA STONE 23.00

• Available in sizes - 200x200x10 mm, 300x300x10
  mm/12 mm, 400x400x12 mm, 450x450x12 mm,
  600x600x20 mm, 600x300x10 mm, 600x300x12 mm,
  600x600x20 mm. Other sizes on 'Build to Order'
  basis

35
TILES-
ITEM SIZE RATE Rs/SQ.FT
VITRIFIED TILES 2 X 2 35-45 (PLAIN COLORS) 70-130 (COLORED)
VITRIFIED TILES 3.33 X 3.33 120-180
RUSTIC TILES 1 X 1 15-25
2 X 2 35-65
IMPORTED TILES 4 X 1 450-2500
WOODEN FLOORING-
WOODEN TILES 4 X 1 250-350
WOODEN LAMINATE FLOORING 8 X 4 55-140
HARDWOOD FLOORING 8 X 4 300
36
Backsplash Tiles-
Description Cost (in Rs. per sqf.)

Glass Tiles 1x1 552
Brick Glass Mosaics 600
Stained Glass Tiles ¾ x ¾ 552
Loft Glass 660
Art Glass (new) 672
Fusion Glass and stone 696
Glass Tiles 3x6 708
Iridescent Glass 1x1 648
Zen Glass 720
Glass Liners and Pencils 530 per piece
River Rocks 1344
Marble Waterjet Borders 576 per piece
Marble Rails and Pencils 530 per piece
Metal Borders and Decos 530 per piece

37
PLASTER OF PARIS- ISI BRANDED P.O.P. WITH
MATERIAL RATE LIST
Plain false ceiling 24gm G.I. channel Rs. 60.00
Round false ceiling 10 extra
Plain plaster Fanthi Rs. 6.50 C.F.T.
Cornice 2.5x3.5 Rs. 25.00 R.F.T.
Moulding 3x2 Rs. 16.00 R.F.T.
Jali plaster Rs. 35.00/ FT.
Takai Re.1.00/ ft.
38
PAINTS-
Quantity Item Prize (Rs)
1 Lt. Water Primer 100
1 Lt. Oil Primer 120
1 Lt. Enamel White 178
1 Kg Wall Putty 30
1 Lt. Thinner 150
1 Kg Distemper 30
1 Pack Brushes 4 160
1 Pack Brushes 3 65
1 Lt. Varnish 175
1 Lt. Velvet Touch Plastic Paint 310
1 Lt. 3 in 1 White 220
1 Lt. Acrylic Emulsion 170
1 Lt. Weather Shield Max 240
1 Lt. Weather Shield Ordinary 180
1 Lt. Super-cot Exterior Plastic Paint 120
39
PAINT AND POLISH- LABOUR WITH MATERIAL RATE LIST
ITEM RATE (Rs. per sq. ft.)
LIME 6.00
DRY DISTEMPER 8.00
PLATE PAINT 12.00
DISTEMPER ACRYLIC PAINT 10.00
PATI 8.00
ENAMEL PAINT 10.00
PLASTIC PAINT 11.00
RUNNING PAINT/POLISH 15.00
SNOWCEM 6.00
GREEN POLISH 15.00
JHARI PAINT 6.00
SPIRIT POLISH 15.00
PLATE POLISH 15.00
GRILL- TWO SIDES 11.00
JALI- TWO SIDES 11.00
DECO METALLIC 60.00
LACQUER POLISH 25.00
PLANE DECO 50.00
40
CONSUMER LUMINAIRS-
SUPERLITE
SKU Specifications Price (Rs.)
Superlite 18/20 Poly230v 230V 210
Superlite 36/40 Cop240v 230V 250
Superlite 36/40 Poly230v 230V 220

• QUICKLITE
• wall or ceiling mounting batten
• double walled plastic batten
• energy saving 'e-smart' electronic ballast
• supplied with mounting clamps
• sleek in looks

SKU Specifications Price (Rs.)
Quicklite 36/40 Elctrnc 240V, wired with e-star ballast 340
GRACE (TUBES)
SKU Specifications Price (Rs.)
Grace 18/20 BCCB240v 240V, wired with lifestar ballast 570
Grace 36/40 BCCB240v 240V, wired with lifestar ballast 730
41
Fluorescent Tubes-
SKU Specifications Price (Rs.)
20W COOL DAY LITE PLS TUBE cap G-13, glass shell dia 38mm 41
40W COOL DAY LITE PLS TUBE cap G-13, glass shell dia 38mm 43
18W COOL DAY LITE TUBE cap G-13, glass shell dia 26mm 41
36W DAY LIGHT TRULUX cap G-13, glass shell dia 26mm 85
18W CDL TRULUX TUBE cap G-13, glass shell dia 26mm 83
18W WARMLITE TRULUX TUBE cap G-13, glass shell dia 26mm 83
20W COOL DAY LITE TUBE cap G-13, glass shell dia 38mm 43
28W TUBE DL/WHITE cap G-13, glass shell dia 17mm 120
36W COOL DAY LITE TUBE cap G-13, glass shell dia 26mm 43
36W WARMLITE TRULUX cap G-13, glass shell dia 26mm 85
40W COOL DAY LITE TUBE cap G-13, glass shell dia 38mm 45
42
GLS LAMPS-
SKU Specifications Price (Rs.)
25W 230V BC CLEAR 230V, cap BC 11
40W 230V BC SOFTLITE 230V, cap BC 12
25W 230V ES CLEAR 230V, cap ES 12
60W 230V BC SOFTLITE 230V, cap BC 12
40W 230V ES CLEAR 230V, cap ES 12
40W 250V RC 250V, cap BC 12
60W 110V BC CLEAR 110V, cap BC 12
60W 230V ES CLEAR 230V, cap ES 12
60W 250V RC BC CLEAR 250V, cap BC 12
100W 110V BC CLEAR 110V, cap BC 13
100W 110V ESCL 110V, cap ES 12
100W 150V BC CLEAR 150V, cap BC 13
100W 250V RC BC CLEAR 250V, cap BC 12
100W 320C BCCL 230V, cap BC 13
200W 250V ES CLEAR 250V, cap ES 20
300W 250V GES CLEAR 250V, cap ES 62
GLS CLEAR
43
GLS FROSTED
SKU Specifications Price (Rs.)
10W 45mm BC FROSTED 230V, cap BC 12
25W 230V BC FROSTED 230V, cap BC 11
40W 230V BC FROSTED 230V, cap BC 11
60W 230V BC FROSTED 230V, cap BC 12
100W 230V BC FROSTED 230V, cap BC 12
GLS COLOURED
SKU Specifications Price (Rs.)
15W 45mm BC BLUE 250V, cap BC 12
15W 45mm BC GREEN 250V, cap BC 12
15W 45mm BC ORANGE 250V, cap BC 12
15W 45mm BC RED 250V, cap BC 12
15W 45mm BC SOFT LITE 250V, cap BC 12
15W 45mm BC YELLOW 250V, cap BC 12
44
Advanced Lighting-
BLDR DH SL
SKU Specifications Price (Rs.)
BLDR 50 DH SL DH 50 W 225
BLDR 50 DH SL DH 50 W 400
BLTR 01/03
SKU Specifications Price (Rs.)
Set of 3 nos. BLTR 50 DH TF 01/03 with 1 mtr track, Cat Ref BLTR 50 DH DH 50 W 3700
BLTR 02/04
SKU Specifications Price (Rs.)
Set of 3 nos. BLTR 50 DH TF 02/04 with 1 mtr track, Cat Ref BLTR 50 DH DH 50 W 3700
45
BLDR DH SF
SKU Specifications Price (Rs.)
BLDR 50 DH SF 05 DH 50 W 950
BLDR DH FX
SKU Specifications Price (Rs.)
BJDR 50 DH FX DH 50 W 350
To be used with control gear BJDR 50 DH TR DH 50 W 400
BARM
SKU Specifications Price (Rs.)
BARM 236 CFL 'L' type 2 X 36 2840
46
Chimneys-
Item Specifications Price
Faber Classica CF 60 SS, Hood Width in cm 60 Suction m³/h 500 Rs. 5,990 to 8,800
Hindware Princess S (90), Hood Width in cm 90cm Suction m³/h 850 Rs. 18,500
Hindware Prima 60, Hood Width in cm 60cm Suction m³/h 600 Rs. 9900
Hindware Magna, Hood Width in cm 60cm Suction m³/h 1000 Rs. 18990
Faber Brio, Hood Width in cm 90 Suction m³/h 750 Rs. 30,000
Faber Hood 2905, Hood Width in cm 60 Suction m³/h 400 Rs. 4,100
47
Cooking Range-
Item Dimensions No. of burners Capacity lt. Price
Kaff K LG 90 900mm x 600mm x 850mm 4 117.3 Rs.66,990
Faber Corsa 600mm x 570mm x 890mm 4 100 Rs.17,990
Faber FH 6690 600mm x 780mm x 890mm 5 85 Rs.42,990
Faber G 9558 A1MDTXN 600mm x 900mm x 890mm 5 114 Rs.66,990
Faber EV 2631 A1DTX 600mm x 900mm x 890mm 4 100 Rs.45,990
48
Hobs-
Item Specifications Price
Faber MH 40 TR, Cooktop Hob Cutting Dimension in mm (LWH) 555x480x45 Rs. 7,990 to 11,990
Hindware Cathy, Cooktop Hob Cutting Dimension in mm (LWH) 670x470x46 Rs. 12990
Faber FH 36 BAX, Cooktop Hob Cutting Dimension in mm (LWH) 735x430x45 Rs. 15,490
Hindware Trident G Cutting Dimension in mm (LWH) 670x470x46 Rs. 23990
Hindware Contesa-GT Cutting Dimension in mm (LWH) 555x480x45 Rs. 12990
49
Refrigerators-
Item Specifications Price
Samsung RT25 560mm x 640 x 1475mm 250 lt. Rs. 13,800
Hitachi RW660ANDX 838mm x 686mm x 1753mm 660 lt. Rs. 61,650
Videocon 55X DC 437mm x 530mm x 580mm 50 lt. Rs. 5,090
LG GL181PP 541mm x 575mm x 1143mm 175 lt. Rs. 7,300
Samsung RS20CRPS5 855mm x 756mm x 1728mm 550mm Rs. 52,640
50
Ovens-
Item Specifications Price
Faber FEA 07S7X 52 lt. capacity 585mm x 540mm x 564mm Rs.27,200
Faber FM 660 55 lt. capacity 585mm x 540mm x 564mm Rs. 28,400
Faber FEA 771 XS 59 lt capacity 594mm x 496 mm x 598mm Rs. 39,200
Kaff K/OV 60FE SS 56 lt. capacity 575mm x 565mm x 560mm Rs.37,000.
Available Brands- Faber and Kaff
51
Dish washers-
Item Dimensions No. of place settings No.of utensils placed Weight(kgs) Price
IFB NEPTUNE 580mm x 570mm x 850mm 7 95 52 Rs.28,000
Haier WQP 42000 N 440mm x 515mm x 540mm 4 40 19 Rs.12,490
Siemens SE24E251EU 600mm x 600 x 850mm 12 95 40 Rs.45,000
Haier WQP12 AFM 600mm x 600 x 850mm 12 95 43 Rs.20,990
Faber WQP12 9319A 600mm x 600 x 850mm 12 95 48 Rs.36,700
Haier WQP 12 HFEME 600mm x 850mm x 600mm 12 95 43 Rs.29,990
52
Filters-
Item Specifications Price
Maharaja Whiteline Purification Stages 0 - 3 Flow Rate (Litres/Minute) 2 Rs. 5,396
Eureka Forbes Aquaguard Total I Nova Purification Stages 0 - 3 Flow Rate (Litres/Minute) 2 Rs. 8850
Kent Grand Super, Water Filter Purifier Width (mm) 175 Depth (mm) 375 Height (mm) 525 Rs. 14500
Eureka Forbes Aquaguard Compact Purification Stages 0 - 3 Flow Rate (Litres/Minute) 1 Rs. 7190
53
Filters-
Item Specifications Price
Bajaj MAJESTY 3L 3KW Type of geyser Gas Capacity (Liters) 3 Capacity (Liters) 0 - 5 Thermoplastic Body Rs. 3650
Inalsa MSG10 SS Type of geyser Electric Capacity (Liters) 10 Capacity (Liters) 6 - 15 Rs. 4895
Polar Instant with ABS Body Type of Water Heater Electric External Body ABS Shock proof body Additional Features 5 Safety devices Rs. 2900
Bajaj SHAKTI 15L VERTICAL SS TANK Type of geyser Electric Capacity (Litres) 15 Capacity(Litres) 6 - 15 Rs. 5650
54
WASTE BINS-
ITEM/MODEL CAPACITY PICTURE DIMENSIONS FINISH
ClassicDoor Mounted 11 or 13L bin Depth 285mmWidth 340mmHeight 470(13L), 420(11L)mm lid in open position white(13L), silver(11L)
KC15DDoor Mounted Single 15L bin Depth 360mmWidth 260mmHeight 310mm White
KC15HHinged Door Single 15L bin Depth 360mmWidth 260mmHeight 310mm White
55
KC30DDoor Mounted 2 x 15L bin Depth 510mmWidth 300mmHeight 310mm White
KC30HHinged Door 2 x 15L bin Depth 510mmWidth 300mmHeight 310mm White
KC40DDoor Mounted 2 x 20L bins Depth 510mmWidth 300mmHeight 415mm White
KC40HHinged door 2 x 20L bin Depth 510mmWidth 300mmHeight 415mm White
56
KC50DDoor Mounted Single 50L bin Depth 410mmWidth 340mmHeight 590mm White
KC50HHinged Door Single 50L bin Depth 410mmWidth 340mmHeight 590mm White
KK4HHinged Door 2 x 15L binFloor mounted Depth 525mmWidth 300mmHeight 360mm White
KC6DDoor Mounted 2 x 15L binFloor mounted Depth 360mmWidth 260mmHeight 310mm White
57
KK3HHinged Door Single 15L bin Depth 372mmWidth 260mmHeight 360mm White
KK4HHinged Door Single 15L bin Depth 525mmWidth 300mmHeight 360mm White
KK5DDoor Mounted Single 15L bin Depth 372mmWidth 260mmHeight 360mm White
KK6DDoor Mounted 2 x 15L bin Depth 525mmWidth 300mmHeight 360mm White
58
KK7HHinged Door Single 50L bin Depth 415mmWidth 340mmHeight 625mm White
KK8DDoor Mounted Single 50L bin Depth 415mmWidth 340mmHeight 625mm White
KK12HHinged Door 2 x 20L bin Depth 525mmWidth 300mmHeight 450mm White
KK12DDoor Mounted 2 x 20L bin Depth 525mmWidth 300mmHeight 450mm White
