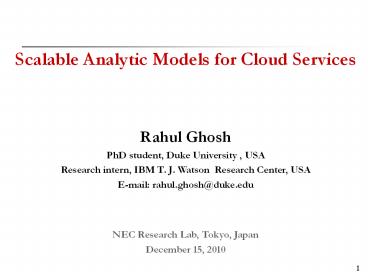

Scalable Analytic Models for Cloud Services

1

• Scalable Analytic Models for Cloud Services
• Rahul Ghosh
• PhD student, Duke University , USA
• Research intern, IBM T. J. Watson Research
  Center, USA
• E-mail rahul.ghosh_at_duke.edu
• NEC Research Lab, Tokyo, Japan
• December 15, 2010

2
Acknowledgments

• Collaborators
• Prof. Kishor S. Trivedi (advisor)
• Dr. Vijay K. Naik (mentor at IBM Research)
• Dr. DongSeong Kim (post-doc in research group)
• Francesco Longo (visiting PhD student in research
  group)
• This research is financially supported by NSF
  and IBM Research

3
Talk outline

• An Overview of Cloud Computing
• Different definitions and key characteristics
• Evolution of cloud computing
• Motivation
• Key challenges and goals of our work
• Performability Analysis of IaaS Cloud
• Joint analysis of performance and availability
  using interacting stochastic models
• Future Research
• Conclusions

4
Talk outline

• An Overview of Cloud Computing
• Different definitions and key characteristics
• Evolution of cloud computing
• Motivation
• Key challenges and goals of our work
• Performability Analysis of IaaS Cloud
• Joint analysis of performance and availability
  using interacting stochastic models
• Future Research
• Conclusions

5
NIST definition of cloud computing

• Cloud computing is a model of Internet-based
  computing
• Definition provided by National Institute of
  Standards and Technology (NIST)
• Cloud computing is a model for enabling
  convenient,
• on-demand network access to a shared pool of
  configurable computing resources (e.g., networks,
  servers, storage, applications, and services)
  that can be rapidly provisioned and released with
  minimal management effort or service provider
  interaction.
• Source P. Mell and T. Grance, The NIST
  Definition of Cloud Computing, October 7, 2009

6
NIST definition of cloud computing

• Cloud computing is a model of Internet-based
  computing
• Definition provided by National Institute of
  Standards and Technology (NIST)
• Cloud computing is a model for enabling
  convenient,
• on-demand network access to a shared pool of
  configurable computing resources (e.g., networks,
  servers, storage, applications, and services)
  that can be rapidly provisioned and released with
  minimal management effort or service provider
  interaction.
• Source P. Mell and T. Grance, The NIST
  Definition of Cloud Computing, October 7, 2009

7
Key characteristics

• On-demand self-service
• Provisioning of computing capabilities, without
  human interactions
• Resource pooling
• Shared physical and virtualized environment
• Rapid elasticity
• Through standardization and automation, quick
  scaling at any time
• Metered Service
• Pay-as-you-go model of computing
• Source P. Mell and T. Grance, The NIST
  Definition of Cloud Computing, October 7, 2009

Many of these characteristics are borrowed from
Clouds predecessors!
8
Evolution of cloud computing

• Cloud is NOT a brand new concept
• Rather it is a technology whose tipping point
  has come
• Time line of evolution

Around 2005-06
Around 2000
Cloud computing
Early 90s
Utility computing
Early 60s
Grid computing
Cluster computing
What are the key characteristics of these early
models which are inherited by Cloud?

• Source http//seekingalpha.com/article/167764-ti
  pping-point-gartner-annoints-cloud-computing-top-s
  trategic-technology

9
Grid vs. cloud computing

• Both are highly distributed computing resources
  and need to manage very large facilities .
• Key components which distinguish a cloud from a
  grid are virtualization and standardization
  /automation of resource provisioning steps.
• Cloud service providers can reduce their costs
  of service delivery by resource consolidation
  (through virtualization) and by efficient
  management strategies (through standardization
  and automation).
• Users of cloud service can also reduce the cost
  of computing due to a pay-as-you-go pricing
  model, where the users are charged based on their
  computing
• demand and duration of resource holding.

10
Cloud Service models

• Infrastructure-as-a-Service (IaaS) Cloud
• Examples Amazon EC2, IBM Smart Business
  Development and Test Cloud
• Platform-as-a-Service (PaaS) Cloud
• Examples Micorsoft Windows Azure, Google
  AppEngine
• Software-as-a-Service (SaaS) Cloud
• Examples Gmail, Google Docs

11
Deployment models

• Private Cloud
• Cloud infrastructure solely for an organization
• Managed by the organization or third party
• May exist on premise or off-premise
• Public Cloud
• Cloud infrastructure available for use for
  general users
• Owned by an organization providing cloud
  services
• Hybrid Cloud
• - Composition of two or more clouds (private or
  public)

12
Talk outline

• An Overview of Cloud Computing
• Different definitions and keycharacteristics
• Evolution of cloud computing
• Service and deployment models, enabling
  technologies
• A quick look into Amazons cloud service
  offerings
• Motivation
• Key challenges and goals of our work
• Performability Analysis of IaaS Cloud
• Joint analysis of performance and availability
  using interacting stochastic models
• Future Research
• Conclusions

13
Key challenges

• Two critical obstacles of a cloud
• Service (un)availability and performance
  unpredictability
• Large number of parameters can affect
  performance and availability
• Nature of workload (e.g., arrival rates, service
  rates)
• Failure characteristics (e.g., failure rates,
  repair rates, modes of recovery)
• Types of physical infrastructure (e.g., number
  of servers, number of cores per server, RAM and
  local storage per server, configuration of
  servers, network configurations)
• Characteristics of virtualization
  infrastructures (VM placement, VM resource
  allocation and deployment)
• Characteristics of different management and
  automation tools

Performance and availability assessments are
difficult!
14
Common approaches

• Measurement-based evaluation
• Appealing because of high accuracy
• Expensive to investigate all variations and
  configurations
• Time consuming to observe enough events (e.g.,
  failure events) to get statistically significant
  results
• Lacks repeatability because of sheer scale of
  cloud
• Discrete-event simulation models
• Provides reasonable fidelity but expensive to
  investigate many alternatives with statistically
  accurate results
• Analytic models
• -Lower relative cost of solving the models
• -May become intractable for a complex real sized
  cloud
• -Simplifying the model results in loss of
  fidelity

15
Our goals

• Developing a comprehensive modeling approach for
  joint analysis of availability and performance of
  cloud services
• Developed models should have high fidelity to
  capture all the variations and configuration
  details
• Proposed models need to be tractable and
  scalable
• Applying these models to solve cloud design and
  operation related problems

16
Talk outline

• An Overview of Cloud Computing
• Different definitions and keycharacteristics
• Evolution of cloud computing
• Service and deployment models, enabling
  technologies
• A quick look into Amazons cloud service
  offerings
• Motivation
• Key challenges and goals of our work
• Performability Analysis of IaaS Cloud
• Joint analysis of performance and availability
  using interacting stochastic models
• Future Research
• Conclusions

17
Introduction

• Key problems of interest
• Characterize cloud services as a function of
  arrival rate, available capacity, service
  requirements, and failure properties
• Apply these characteristics in cloud capacity
  planning, SLA analysis and management,
  energy-response time tradeoff analysis, cloud
  economics
• Proposed approach
• Designing analytical models that allow us to
  capture all the important details of the
  workload, fault load and system
  hardware/software/manage aspects to gain fidelity
  and yet retain tractability
• Two service quality measures service
  availability and provisioning response delay
• These service quality measures are performability
  measures in a sense that they take into account
  contention for resources as well as failure of
  resources

18
Introduction

• Motivation behind this approach
• Measurement based evaluation of the QoS metrics
  is difficult, because
• it requires extensive experimentation with each
  workload, system configuration
• it may not capture enough failure events to
  quantify the effects of resource failures
• Analytic modeling of cloud service is considered
  to be difficult due to largeness and complexity
  of service architecture
• We use interacting Markov chain based approach
• Lower relative cost of solving the models while
  covering large parameter space
• Our approach is tractable and scalable

We describe a general approach to performability
analysis applicable to variety of IaaS clouds
using interacting stochastic process models
19
Novelty of our approach

• Single monolithic model vs. interacting
  sub-models approach
• Even with a simple case of 6 physical machines
  and 1 virtual machine per physical machine, a
  monolithic model will have 126720 states.
• In contrast, our approach of interacting
  sub-models has only 41 states.

Clearly, for a real cloud, a naïve modeling
approach will lead to very large analytical
model. Solution of such model is practically
impossible. Interacting sub-models approach is
scalable, tractable and of high fidelity. Also,
adding a new feature in an interacting sub-models
approach, does not require reconstruction of the
entire model.
What are the different sub-models? How do they
interact?
20
System model

• Main Assumptions
• All requests are homogenous, where each request
  is for one virtual machine (VM) with fixed size
  CPU cores, RAM, disk capacity.
• We use the term job to denote a user request
  for provisioning a VM.
• Submitted requests are served in FCFS basis by
  resource provisioning decision engine (RPDE).
• If a request can be accepted, it goes to a
  specific physical machine (PM) for VM
  provisioning. After getting the VM, the request
  runs in the cloud and releases the VM when it
  finishes.
• To reduce cost of operations, PMs can be grouped
  into multiple pools. We assume three pools hot
  (running with VM instantiated), warm (turned on
  but VM not instantiated) and cold (turned off).
• All physical machines (PMs) in a particular type
  of pool are identical.

21
Life-cycle of a job inside a IaaS cloud
Provisioning response delay

• Provisioning and servicing steps
• (i) resource provisioning decision,
• (ii) VM provisioning and
• (iii) run-time execution

VM deployment
Actual Service
Out
Provisioning Decision
Arrival
Queuing
Instantiation
Resource Provisioning Decision Engine
Run-time Execution
Instance Creation
Deploy
Job rejection due to buffer full
Job rejection due to insufficient capacity
We translate these steps into analytical
sub-models
22
Resource provisioning decision
Provisioning response delay
VM deployment
Provisioning Decision
Actual Service
Out
Arrival
Queuing
Instantiation
Admission control
Job rejection due to buffer full
Job rejection due to insufficient capacity
23
Resource provisioning decision engine (RPDE)

• Flow-chart

24
Resource provisioning decision model CTMC
i,s
i number of jobs in queue, s pool (hot, warm
or cold)
0,0
25
Resource provisioning decision model parameters
measures

• Input Parameters
• arrival rate data collected from publicly
  available cloud
• mean search delays for
  resource provisioning decision engine from
  searching algorithms or measurements
• probability of being able to
  provision computed from VM provisioning model
• N maximum jobs in RPDE from system/server
  specification
• Output Measures
• Job rejection probability due to buffer full
  (Pblock)
• Job rejection probability due to insufficient
  capacity (Pdrop)
• Total job rejection probability (Preject Pblock
  Pdrop)
• Mean queuing delay for an accepted job
  (ETq_dec)
• Mean decision delay for an accepted job
  (ETdecision)

26
VM provisioning
Provisioning response delay
VM deployment
Provisioning Decision
Actual Service
Out
Arrival
Queuing
Instantiation
Admission control
Job rejection due to buffer full
Job rejection due to insufficient capacity
27
VM provisioning model
Hot PM
Hot pool
Resource Provisioning Decision Engine
Warm pool
Service out
Accepted jobs
Running VMs
Idle resources in hot machine
Cold pool
Idle resources in warm machine
Idle resources in cold machine
28
VM provisioning model for each hot PM
Lh is the buffer size and m is max. VMs that
can run simultaneously on a PM
i number of jobs in the queue, j number of
VMs being provisioned, k number of VMs running
i,j,k
29
VM provisioning model (for each hot PM)

• Input Parameters
• can be measured experimentally
• obtained from the lower level run-time
  model
• obtained from the resource provisioning
  decision model
• Hot pool model is the set of independent
  hot PM models
• Output Measure
• prob. that a job can be accepted in the
  hot pool
• where,
  is the steady state probability that a PM can
  accept job for provisioning - from the solution
  of the Markov model of a hot PM on the previous
  slide

30
VM provisioning model for each warm PM
31
VM provisioning model for each cold PM
32
VM provisioning model Summary

• For warm/cold PM, the VM provisioning model is
  similar to hot PM, with the following exceptions
• Effective job arrival rate
• For the first job, warm/cold PM requires
  additional start-up work
• Mean provisioning delay for a VM for the first
  job is longer
• Buffer sizes are different
• Outputs of hot, warm and cold pool models are
  the steady state probabilities that at least one
  PM in hot/warm/cold pool can accept a job for
  provisioning. These probabilities are denoted by
  and respectively
• From VM provisioning model, we can also compute
  mean queuing delay for VM provisioning (ETvm_q)
  and conditional mean provisioning delay
  (ETprov).
• Net mean response delay is given by
  (ETrespETq_decETdecisionETq_vmETprov
  )

33
Run-time execution
Provisioning response delay
VM deployment
Provisioning Decision
Actual Service
Out
Arrival
Queuing
Instantiation
Admission control
Job rejection due to buffer full
Job rejection due to insufficient capacity
34
Run-time model Markov chain
35
Import graph for pure performance models
Outputs from pure performance models
Pure performance models
Resource provisioning decision model
Hot pool model
Warm pool model
Cold pool model
VM provisioning models
Run-time model
36
Fixed-point iteration

• To solve hot, warm and cold PM models, we need
  from resource provisioning decision model
• To solve provisioning decision model, we need
  from hot, warm and cold pool model
  respectively
• This leads to a cyclic dependency among the
  resource provisioning decision model and VM
  provisioning models (hot, warm, cold)
• We resolve this dependency via fixed-point
  iteration
• Observe, our fixed-point variable is
  and corresponding fixed-point equation is of the
  form

37
Availability model

• Hot and warm server can fail at different rates
• Servers can be repaired
• Servers can migrate from one pool to another
• For each state of the availability model, we
  carry out performance analysis with the given
  number of servers in each pool and assign it as
  reward rates
• Expected steady state reward rate computed from
  the availability model will then give us the
  overall measure with contention for resources as
  well as failure/repair being taken into account.
  This is what is referred to as performability
  analysis.

38
Example ( hot 1, warm 1, cold 1)
1,1,1

• State index (i, j, k) denotes number of available
  (or up) hot, warm and cold machines
  respectively
• At the state (1,1,0), a hot or a warm PM can
  fail, so the failure rate is sum of the
  individual failure rates.
• We assume a shared repair policy

39
Availability model

• Model outputs Probability that the cloud service
  is available, downtime in minutes per year

40
Import graph/model interactions Performability
41

• Numerical Results

42
Effect of increasing job service time
43
Effect of increasing VMs
44
Talk outline

• An Overview of Cloud Computing
• Different definitions and keycharacteristics
• Evolution of cloud computing
• Service and deployment models, enabling
  technologies
• A quick look into Amazons cloud service
  offerings
• Motivation
• Key challenges and goals of our work
• Performability Analysis of IaaS Cloud
• Joint analysis of performance and availability
  using interacting stochastic models
• Future Research
• Conclusions

45
Cost analysis

• Providers have two key costs for providing cloud
  based services
• Capital Expenditure (CapEx) and
• Operational Expenditure (OpEx)
• Capital Expenditure (CapEx)
• Example of CapEx includes infrastructure cost,
  software licensing cost
• Usually CapEx is fixed over time
• Operational Expenditure (OpEx)
• Example of OpEx includes power usage cost, cost
  or penalty due to violation of different SLA
  metrics, management costs
• OpEx is more interesting since it varies with
  time depending upon different factors like system
  configuration, management strategy or workload
  arrivals

46
Capacity planning (providers perspective)
Failure of H/W, S/W
Service times priorities vary for different
job types
Cloud service provider
47
SLA driven capacity planning
Large sized cloud, large variability, fixed
configurations
48
Extensions to current models

• Different workload arrival processes
• Different types of service time distributions
• Heterogeneous requests
• Requests with different priorities
• Detailed availability model
• Energy estimation for running cloud services
• Model validation

49
Talk outline

• An Overview of Cloud Computing
• Definition, characteristics, service and
  deployment models
• Motivation
• Key challenges and thesis goals
• Performability Analysis of IaaS Cloud
• End-to-end service quality evaluation using
  interacting stochastic models
• Resiliency Analysis of IaaS Cloud
• Quantification of resiliency of pure performance
  measures
• Future Research
• Conclusions

50
Conclusions

• Stochastic model is an inexpensive approach
  compared to measurement based evaluation of cloud
  QoS
• To reduce the complexity of modeling, we use
  interacting sub-models approach
• - Overall solution of the model is obtained by
  iterations over individual sub-model solutions
• The proposed approach is general and can be
  applicable to variety of IaaS clouds
• Results quantify the effects of variations in
  workload (job arrival rate, job service rate),
  faultload (machine failure rate) and available
  system capacity on IaaS cloud service quality
• This approach can be extended to solve specific
  cloud problems such as capacity planning
• In future, models will be validated using real
  data collected from cloud

51
Thanks!
