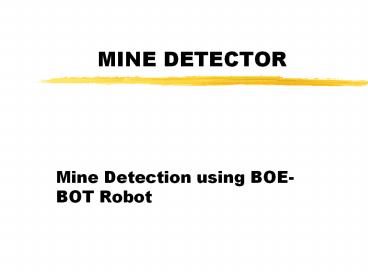

MINE DETECTOR

• Mine Detection using BOE-BOT Robot

2
Working of the robot
Distance?
Ok.. Wait
16 cm
Mine.. Alert
Get back, switch lane
Go Lane 1
Waiting..
Waiting..
Waiting..
3
Working of the robot
4
Working of the robot
5
Working of the robot
6
Working of the robot
7
Working of the robot
8
Working of the robot
9
Working of the robot
10
Working of the robot
11
Working of the robot
12
Working of the robot
13
Working of the robot
Go Lane 2
14
Working of the robot
Go Lane 2
15
Preview

• Detects the land mines used in the recent Gulf
  War!!
• Reports the position of the landmines back to the
  base station.
• Automatically returns to the base station.
• Repeats the navigation process to detect mines in
  all directions.

16
Salient Features

• RF communication and IR Communication sensors for
  communication between the base station and
  mobile robot station.
• Photoresistors to detect the mine based on the
  intensity of light reflected.
• Infrared LEDs to detect obstacles in the path.

17
Working of the Robot

• Initially on pressing Button D2 the robot
  traverses the navigation path to detect the
  presence of landmines.
• It stops on detecting the landmines and returns
  back the distance of the mine from the Base
  station.
• On pressing Button D6 the robot comes back to the
  base station for thr next adventure on the war
  field.

18
Conclusion
19
Visit us online

• http//www.eng.buffalo.edu/ss258/Mech/index.htm
