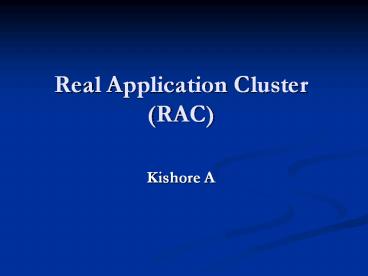

Real Application Cluster (RAC)Kishore A
2
Oracle10g - RAC
  • What is all the hype about grid computing?
  • Grid computing is intended to allow
    businesses to move away from the idea of many
    individual servers, each of which is dedicated to
    a small number of applications. When configured
    in this manner, applications often either do not
    fully utilize the servers available hardware
    resource such as memory, CPU and disk or short of
    these resources during peak usage.
  • Grid computing addresses these problems by
    providing an adaptive software infrastructure
    that makes efficient use of low-cost servers and
    modular storage, which balances work- loads more
    effectively and provides capacity on demand
  • By scaling out with small servers in small
    increments, you get performance and reliability
    at low-cost. New unified management allows you to
    manage everything cheaply and simply in the grid.

3
  • WHAT IS ENTERPRISE GRID COMPUTING?
  • Implement One from Many.
  • Grid computing coordinates the use of clusters
    of machines to create a single logical entity,
    such as a database or an
  • application server.
  • By distributing work across many servers, grid
    computing exhibits benefits of availability,
    scalability, and performance using low-cost
    components.
  • Because a single logical entity is implemented
    across many machines, companies can add or remove
    capacity in small increments, online.
  • With the capability to add capacity on demand
    to a particular function, companies get more
    flexibility for adapting to peak loads, thus
    achieving better hardware utilization and better
    business responsiveness.

4
  • Benefits of Enterprise Grid Computing
  • The primary benefit of grid computing to
    businesses is achieving high quality of service
    and flexibility at lower cost.
  • Enterprise grid computing lowers costs by
  • Increasing hardware utilization and resource
    sharing
  • Enabling companies to scale out incrementally
    with low-
  • cost components
  • Reducing management and administration
    requirements

5
  • New Trends in Hardware
  • Much of what makes grid computing possible
    today are the innovations in hardware. For
    example,
  • Processors. New low-cost, high volume Intel
    Itanium 2, Sun SPARC, and IBM PowerPC 64-bit
    processors now deliver performance equal to or
    better than exotic processors used in high-end
    SMP servers.
  • Blade servers. Blade server technology reduces
    the cost of hardware
  • and increases the density of servers, which
    further reduces expensive
  • data center real estate requirements.
  • Networked storage. Disk storage costs continue
    to plummet even
  • faster than processor costs. Network
    storage technologies such as
  • Network Attached Storage (NAS) and Storage
    Area Networks (SANs) further reduce these costs
    by enabling sharing of storage across systems.
  • Network interconnects. Gigabit Ethernet and
    Infiniband interconnect technologies are driving
    down the cost of connecting servers into clusters.

6
  • Oracle Database 10g
  • Oracle Database 10g builds on the success of
    Oracle9i Database, and adds many new
    grid-specific capabilities.
  • Oracle Database 10g is based on Real
    Application Clusters, introduced in Oracle9i.
  • There are more than 500 production customers
    running Oracles clustering technology, helping
    to prove the validity of Oracles grid
    infrastructure.

7
  • Real Application Clusters
  • Oracle Real Application Clusters enables a
    single database to run across multiple clustered
    nodes in a grid, pooling the processing resources
    of several standard machines.
  • In Oracle 10g, the database can immediately
    begin balancing workload across a new node with
    new processing capacity as it gets re-provisioned
    from one database to another, and can relinquish
    a machine when it is no longer needed--
  • this is capacity on demand. Other databases
    cannot grow and shrink while running and,
    therefore, cannot utilize hardware as
    efficiently.
  • Servers can be easily added and dropped to an
    Oracle cluster with no downtime.

8
RAC 10g Architecture
//
public network
VIP1
VIP2
VIPn
Service
Service
Service
Node 2
Node n
Node1
Listener
Listener
Listener
instance 2
instance n
instance 1
ASM
ASM
ASM
Oracle Clusterware
Oracle Clusterware
Oracle Clusterware
Operating System
Operating System
Operating System
shared storage
Redo / Archive logs all instances
Managed by ASM
Database / Control files
RAW Devices
OCR and Voting Disks
9
Under the Covers
Cluster Private High Speed Network
LMON
LMD0
DIAG
LMON
LMD0
DIAG
LMON
LMD0
DIAG
Global Resource Directory
Global Resource Directory
Global Resource Directory
Instance 2
Instance n
Instance 1
Dictionary Cache
Dictionary Cache
Dictionary Cache
SGA
SGA
SGA
Library Cache
Library Cache
Library Cache
LCK0
LGWR
DBW0
LCK0
LGWR
DBW0
LCK0
LGWR
DBW0
SMON
PMON
LMS0
SMON
PMON
LMS0
SMON
PMON
LMS0
Node 1
Node n
Node 2
Data Files and Control Files
10
Global Resource Directory
  • RAC Database System has two important services.
    They are Global Cache Service (GCS) and Global
    Enqueue Service (GES). These are basically
    collections of background processes.  These two
    processes together cover and manage the total
    Cache Fusion process, resource transfers, and
    resource escalations among the instances.
  • Global Resource Directory
  • GES and GCS together maintain a Global Resource
    Directory (GRD) to record the information about
    the resources and the enqueues. GRD remains in
    the memory and is stored on all the instances.
    Each instance manages a portion of the directory.
    This distributed nature is a key point for fault
    tolerance of the RAC.
  • Global Resource Directory (GRD) is the internal
    database that records and stores the current
    status of the data blocks. Whenever a block is
    transferred out of a local cache to another
    instances cache the GRD is updated. The
    following resources information is available in
    GRD.
  • Data Block Identifiers (DBA)
  • Location of most current version
  • Modes of the data blocks (N)Null,
    (S)Shared, (X)Exclusive
  • The Roles of the data blocks (local or
    global) held by each instance
  • Buffer caches on multiple nodes in the
    cluster
  • GRD is akin to the previous version of Lock
    Directory in the functionality perspective but
    has been expanded with more components. It has
    accurate measure of inventory of resources and
    their status and location.

11
Background Processes in a RAC instance
  • Select name,description from vbgprocess where
    paddr ltgt 00
  • The one specific to a RAC instance are the DIAG,
    LCK, LMON, LMNDn and LMSn process.

12
DIAG Diagnosability Daemon
  • The diagnosability daemon is responsible for
    capturing information on process failures in a
    RAC environment, and writing out trace
    information for failure analysis.
  • The information produced by DIAG is most useful
    when working in conjunction with Oracle Support
    to troubleshoot causes for a failure.
  • Only a single DIAG process is needed for each
    instance

13
LCK Lock Process
  • The lock process (LCK) manages requests that are
    not cache-fusion requests, such as row cache
    requests and library cache requests
  • Only a single LCK process is allowed for each
    instance.
  • LCK maintains a list of lock elements and uses
    this list to validate locks during instance
    recovery

14
LMDLock Manager Daemon Process
  • The global enqueue service daemon (LMD) is a lock
    agent process that coordinates enqueue manager
    service requests. The requests are for global
    cache service enqueues that control access to
    global enqueues and resources.
  • The LMD process also handles deadlock detection
    and remote enqueue requests.

15
LMON Lock Monitor Process
  • LMON is the global enqueue service monitor. It is
    responsible for the reconfiguration of lock
    resources when an instance joins the cluster or
    leaves the cluster, and also is responsible for
    the dynamic lock remastering
  • LMON will generate a trace file whenever a
    reconfiguration occurs (as opposed to remastering
    of a subset of locks).
  • It is the responsibility of LMON to check for the
    death of instances clusterwide, and to initiate
    reconfiguration as quickly as possible

16
LMS Lock Manager Server Process
  • The LMS process (or global cache service process)
    is in charge of shipping the blocks between
    instances for cache-fusion requests. In the event
    of a consistent-read request, the LMS process
    will first roll the block back, creating the
    consistent read (CR) image of the block, and will
    then ship that version of the block across the
    interconnect to the foreground process making the
    request at the remote instance.
  • In addition, LMS must interact with the LMD
    process to retrieve lock requests placed by LMD.
    An instance may dynamically generate up to LMS
    processes, depending on the load

17
Server Control Utility
  • To manage the RAC database and its instances,
    Oracle has provided a new utility called the
    Server Control Utility (SRVCTL). This replaces
    the earlier utility opsctl which was used in
    the parallel server.
  • The Server Control Utility is a single point of
    control between the Oracle Intelligent agent and
    each node in the RAC system. The SRVCTL
    communicates with the global daemon service (GSD)
    and resides on each of the nodes. The SRVCTL
    gathers information from the database and
    instances and acts as an intermediary between
    nodes and the Oracle Intelligent agent.
  • When you use the SRVCTL to perform configuration
    operations on your cluster, the SRVCTL stores
    configuration data in the Server Management
    (SRVM) configuration repository. The SRVM
    includes all the components of Enterprise Manager
    such as the Intelligent Agent, the Server Control
    Utility (SRVCTL), and the Global Services Daemon.
    Thus, the SRVCTL is one of the SRVM Instance
    Management Utilities. The SRVCTL uses SQLPlus
    internally to perform stop and start activities
    on each node.

18
Server Control Utility
  • For the SRVCTL to function, the Global Services
    Daemon (GSD) should be running on the node. The
    SRVCTL performs mainly two types of
    administrative tasks Cluster Database Tasks and
    Cluster Database Configuration Tasks.
  •
  • SRVCTL Cluster Database tasks include
  •         Starts and stops cluster
    databases.
  •         Starts and stops cluster
    database instances.
  •         Starts and stops listeners
    associated with a cluster database instance.
  •         Obtains the status of a cluster
    database instance.
  •         Obtains the status of listeners
    associated with a cluster database.
  •
  •  SRVCTL Cluster Database Configuration tasks
    include
  •         Adds and deletes cluster
    database configuration information.
  •         Adds an instance to, or deletes
    an instance from a cluster database.
  •         Renames an instance name within
    a cluster database configuration.
  •         Moves instances in a cluster
    database configuration.
  •         Sets and unsets the environment
    variable for an instance in a cluster database
  • configuration.
  •         Sets and unsets the environment
    variable for an entire cluster in a cluster
    database
  • configuration.

19
RAW Partitions, Cluster File System and Automatic
Storage Management (ASM)
  • Raw Partitions are a set of unformatted devices
    on a shared disk sub-system.A raw partition is a
    disk drive device that does not have a file
    system set up. The raw partition is portion of
    the physical disk that is accessed at the lowest
    possible level. The actual application that uses
    a raw device is responsible for managing its own
    I/O to the raw device with no operating system
    buffering.
  • Traditionally, they were required for Oracle
    Parallel Server (OPS) and they provided high
    performance by bypassing the file system
    overhead. Raw partitions were used in setting up
    databases for performance gains and for the
    purpose of concurrent access by multiple nodes in
    the cluster without system-level buffering.

20
RAW Partitions, Cluster File System and Automatic
Storage Management (ASM)
  • Oracle 9i RAC and 10g now supports both the
    cluster file system and the raw devices to store
    the shared data. In addition, 10g RAC supports
    shared storage resources from ASM instance. You
    will be able to create the data files out of the
    disk resources located in the ASM instance. The
    ASM resources are sharable and accessed by all
    the nodes in the RAC system.

21
RAW Devices
  • Raw Devices have been in use for very long time.
    They were the primary storage structures for data
    files of the Oracle Parallel Server. They remain
    in use even in the RAC versions 9i and 10g. Raw
    Devices are difficult to manage and administer,
    but provide high performing shared storage
    structures. When you use the raw devices for data
    files, redo log files and control files, you may
    have to use the local file systems or some sort
    of network attached file system for writing the
    archive log files, handling the utl_file_dir
    files and files supporting the external tables.
  • On Raw Devices On Local File
    System
  • Data files
    Archive log files
  • Redo files
    Oracle Home files
  • Control files CRS
    Home files
  • Voting Disk Alert
    log, Trace files
  • OCR file Files
    for external tables

  • utl_file_dir location

22
RAW Devices
  • Advantages
  • Raw partitions have several advantages
  • They are not subject to any operating system
    locking.
  • The operating system buffer or cache is bypassed,
    giving performance gains and reduced memory
    consumption.
  • Multiple systems can be easily shared.
  • The application or database system has full
    control to manipulate the internals of access.
  • Historically, the support for asynchronous I/O on
    UNIX systems was generally limited to raw
    partitions

23
RAW Devices
  • Issues and Difficulties
  • There are many administrative inconveniences and
    drawbacks such as
  • The unit of allocation to the database is the
    entire raw partition. We cannot use a raw
    partition for multiple tablespaces. A raw
    partition is not the same as a file system where
    we can create many files.
  • Administrators have to create them with specific
    sizes. When the databases grow in size, raw
    partitions cannot be extended. We need to add
    extra partitions to support the growing
    tablespace. Sometimes we may have limitations on
    the total number of raw partitions we can use in
    the system. Furthermore, there are no database
    operations that can occur on an individual data
    file. There is, therefore, no logical benefit
    from having a tablespace consisting of many data
    files except for those tablespaces that are
    larger than the maximum Oracle can support in a
    single file.
  • We cannot use the standard file manipulation
    commands on the raw partitions, and thus, on the
    data files. We cannot use commands such as cpio
    or tar for backup purposes. Backup strategy will
    become more complicated

24
RAW Devices
  • Raw partitions cannot be used for writing the
    archive logs.
  • Administrators need to keep track of the raw
    volumes with their cryptic naming conventions.
    However, by using the symbolic links, we can
    reduce the hassles associated with names.
  • For example, a cryptic name like
    /dev/rdsk/c8t4d5s4 or a name like /dev/sd/sd001
    is an administrative challenge. To alleviate
    this, administrators often rely on symbolic links
    to provide logical names that make sense. This,
    however, substitutes one complexity for another.
  • In a clustered environment like Linux clusters,
    it is not guaranteed that the physical devices
    will have the same device names on different
    nodes or across reboots of a single node. To
    solve this problem, manual intervention is
    needed, which will increase administration
    overhead.

25
Cluster File System
  • CFS offers a very good shared storage facility
    for building the RAC database. CFS provides a
    shared file system, which is mounted on all the
    cluster nodes simultaneously. When you implement
    the RAC database with the commercial CFS products
    such as the Veritas CFS or PolyServe Matrix
    Server, you will able to store all kinds of
    database files including the shared Oracle Home
    and CRS Home.
  • However, the capabilities of the CFS products are
    not the same. For example, Oracle CFS (OCFS),
    used in case of Linux RAC implementations, has
    limitations. It is not a general purpose file
    system. It cannot be used for shared Oracle Home.

26
Cluster File System
  • On Cluster File System
  • Data files Archive Log files
  • Redo files Oracle Home Files
  • Control files Alert log,Trace files
  • Voting Disk Files for External Tables
  • OCR File utl_file_dir location
  • A cluster file system (CFS) is a file system that
    may be accessed (read and write) by all the
    members in the cluster at the same time. This
    implies that all the members of the cluster have
    the same view. Some of the popular and widely
    used cluster file system products for Oracle RAC
    include HP Tru64 CFS, Veritas CFS, IBM GPFS,
    Polyserve Matrix Server, and Oracle Cluster File
    system. The cluster file system offers
  • Simple management.
  • The use of Oracle Managed Files with RAC.
  • A Single Oracle Software Installation.
  • Auto-extend Enabled on Oracle Data Files.
  • Uniform accessibility of Archive Logs.
  • ODM compliant File systems.

27
ASM Automatic Storage Management
  • ASM is the new star on the block. ASM provides a
    vertical integration of the file system and
    volume manager for Oracle database files. ASM has
    the capability to spread database files across
    all available storage for optimal performance and
    resource utilization. It enables simple and
    non-intrusive resource allocation and provides
    automatic rebalancing
  • When you are using the ASM for building shared
    files, you would get almost the same performance
    as that of raw partitions. The ASM controlled
    disk devices will be part of ASM instance, which
    can be shared by the RAC database instance. It is
    similar to the situation where raw devices
    supporting the RAC database had to be shared by
    multiple nodes. The shared devices need to be
    presented to multiple nodes on the cluster and
    those devices will be input to the ASM instance.
    There will be an ASM instance supporting each RAC
    instance on the respective node

28
ASM Automatic Storage Management
  • From the ASM instance On local or CFS
  • Data files Oracle
    Home Files
  • Redo files CRS
    Home Files
  • Control files Alert
    log, trace files
  • Archive log files Files for
    external tables
  • ---------------------------
    util_file_dir location
  • Voting Disk and OCR file
  • Are located on raw partitions
  • ASM is for more Oracle specific data, redo log
    files and archived log files.

29
  • Automatic Storage Management
  • Automatic Storage Management simplifies
    storage management for Oracle Databases.
  • Instead of managing many database files,
    Oracle DBAs manage only a small number of disk
    groups. A disk group is a set of disk devices
    that Oracle manages as a single, logical unit. An
    administrator can define a particular disk group
    as the default disk group for a database, and
    Oracle automatically allocates storage for and
    creates or deletes the files associated with the
    database object.
  • Automatic Storage Management also offers the
    benefits of storage technologies such as RAID or
    Logical Volume Managers (LVMs). Oracle can
    balance I/O from multiple databases across all of
    the devices in a disk group, and it implements
    striping and mirroring to improve I/O performance
    and data reliability. Because Automatic Storage
    Management is written to work exclusively with
    Oracle, it achieves better performance than
    generalized storage virtualization solutions.

30
  • Shared Disk Storage
  • Oracle RAC relies on a shared disk architecture.
    The database files, online redo logs, and control
    files for the database must be accessible to each
    node in the cluster. The shared disks also store
    the Oracle Cluster Registry and Voting Disk.
    There are a variety of ways to configure shared
    storage including direct attached disks
    (typically SCSI over copper or fiber), Storage
    Area Networks (SAN), and Network Attached Storage
    (NAS).
  • Private NetworkEach cluster node is connected to
    all other nodes via a private high-speed network,
    also known as the cluster interconnect or
    high-speed interconnect (HSI). This network is
    used by Oracle's Cache Fusion technology to
    effectively combine the physical memory (RAM) in
    each host into a single cache. Oracle Cache
    Fusion allows data stored in the cache of one
    Oracle instance to be accessed by any other
    instance by transferring it across the private
    network. It also preserves data integrity and
    cache coherency by transmitting locking and other
    synchronization information across cluster nodes.

31
  • The private network is typically built with
    Gigabit Ethernet, but for high-volume
    environments, many vendors offer proprietary
    low-latency, high-bandwidth solutions
    specifically designed for Oracle RAC. Linux also
    offers a means of bonding multiple physical NICs
    into a single virtual NIC to provide increased
    bandwidth and availability.
  • Public NetworkTo maintain high availability,
    each cluster node is assigned a virtual IP
    address (VIP). In the event of host failure, the
    failed node's IP address can be reassigned to a
    surviving node to allow applications to continue
    accessing the database through the same IP
    address.
  • Why do we have a Virtual IP (VIP) in 10g? Why
    does it just return a dead connection when its
    primary node fails?

32
  • It's all about availability of the
    application. When a node fails, the VIP
    associated with it is supposed to be
    automatically failed over to some other node.
    When this occurs, two things happen.
  • The new node re-arps the world indicating a
    new MAC address for the address. For directly
    connected clients, this usually causes them to
    see errors on their connections to the old
    address.
  • Subsequent packets sent to the VIP go to the
    new node, which will send error RST packets back
    to the clients. This results in the clients
    getting errors immediately.
  • This means that when the client issues SQL to
    the node that is now down, or traverses the
    address list while connecting, rather than
    waiting on a very long TCP/IP time-out (10
    minutes), the client receives a TCP reset. In the
    case of SQL, this is ORA-3113. In the case of
    connect, the next address in tnsnames is used.
  • Without using VIPs, clients connected to a
    node that died will often wait a 10-minute TCP
    timeout period before getting an error. As a
    result, you don't really have a good HA solution
    without using VIPs (Source - Metalink Note
    220970.1) .

33
  • The Oracle CRS contains all the cluster and
    database configuration metadata along with
    several system management features for RAC. It
    allows the DBA to register and invite an Oracle
    instance (or instances) to the cluster. During
    normal operation, CRS will send messages (via a
    special ping operation) to all nodes configured
    in the clusteroften called the "heartbeat." If
    the heartbeat fails for any of the nodes, it
    checks with the CRS configuration files (on the
    shared disk) to distinguish between a real node
    failure and a network failure.
  • CRS maintains two files the Oracle Cluster
    Registry (OCR) and the Voting Disk. The OCR and
    the Voting Disk must reside on shared disks as
    either raw partitions or files in a cluster
    filesystem.

34
  • The Voting Disk is used by the Oracle cluster
    manager in various layers. The Cluster Manager
    and Node Monitor accepts registration of Oracle
    instances to the cluster and it sends ping
    messages to Cluster Managers (Node Monitor) on
    other RAC nodes. If this heartbeat fails, oracm
    uses a quorum file or a quorum partition on the
    shared disk to distinguish between a node failure
    and a network failure. So if a node stops sending
    ping messages, but continues writing to the
    quorum file or partition, then the other Cluster
    Managers can recognize it as a network failure.
    Hence the availability from the Voting Disk is
    critical for the operation of the Oracle Cluster
    Manager.
  • The shared volumes created for the OCR and
    the voting disk should be configured using RAID
    to protect against media failure. This requires
    the use of an external cluster volume manager,
    cluster file system, or storage hardware that
    provides RAID protection. .
  • Oracle Cluster Registry (OCR) is used to store
    the cluster configuration information among other
    things. OCR needs to be accessible from all nodes
    in the cluster. If OCR became inaccessible the
    CSS daemon would soon fail, and take down the
    node. PMON never needs to write to OCR. To
    confirm if OCR is accessible, try ocrcheck from
    your ORACLE_HOME and ORA_CRS_HOME.

35
  • Cache Fusion
  • One of the bigger differences between Oracle RAC
    and OPS is the presence of Cache Fusion
    technology. In OPS, a request for data between
    nodes required the data to be written to disk
    first, and then the requesting node could read
    that data. In RAC, data is passed along with
    locks.
  • Every time an instance wants to update a
    block, it has to obtain a lock on it to make sure
    no other instance in the cluster is updating the
    same
  • block. To resolve this problem, Oracle does a
    data block ping mechanism that allows it to get
    the status of the specific block before reading
    it from the disk. Cache Fusion resolves data
    block read/read, read/write and write/write
    conflicts among ORACLE database nodes through
    high performance interconnect networks, bypassing
    much slower physical disk operations used in
    previous releases. Using Oracle 9i RAC cache
    fusion feature, close to linear scalability of
    database performance can be achieved when adding
    nodes to the cluster. ORACLE enables better
    Database capacity planning and conserves capital
    investments.

36
Build Your Own Oracle RAC 10g Release 2 Cluster
on Linux and FireWire
  • Contents
  • Introduction
  • Oracle RAC 10g Overview
  • Shared-Storage Overview
  • FireWire Technology
  • Hardware Costs
  • Install the Linux Operating System
  • Network Configuration
  • Obtain Install FireWire Modules
  • Create "oracle" User and Directories
  • Create Partitions on the Shared FireWire Storage
    Device

37
Build Your Own Oracle RAC 10g Release 2 Cluster
on Linux and FireWire
  • Configure the Linux Servers for Oracle
  • Configure the hangcheck-timer Kernel Module
  • Configure RAC Nodes for Remote Access
  • All Startup Commands for Each RAC Node
  • Check RPM Packages for Oracle 10g Release 2
  • Install Configure Oracle Cluster File System
    (OCFS2)
  • Install Configure Automatic Storage Management
    (ASMLib 2.0)
  • Download Oracle 10g RAC Software
  • Install Oracle 10g Clusterware Software
  • Install Oracle 10g Database Software
  • Install Oracle10g Companion CD Software
  • Create TNS Listener Process

38
Build Your Own Oracle RAC 10g Release 2 Cluster
on Linux and FireWire
  • Create the Oracle Cluster Database
  • Verify TNS Networking Files
  • Create / Alter Tablespaces
  • Verify the RAC Cluster Database Configuration
  • Starting / Stopping the Cluster
  • Transparent Application Failover - (TAF)
  • Conclusion
  • Acknowledgements

39
Build Your Own Oracle RAC 10g Release 2 Cluster
on Linux and FireWire
40
Build Your Own Oracle RAC 10g Release 2 Cluster
on Linux and FireWire
41
Build Your Own Oracle RAC 10g Release 2 Cluster
on Linux and FireWire
  • Download
  • - Red Hat Enterprise Linux 4
  • - Oracle Cluster File System Release 2 -
    (1.2.3-1) - Single Processor / SMP /
  • Hugemem - Oracle Cluster File System
    Releaase 2 Tools - (1.2.1-1) - Tools / Console
    - Oracle Database 10g Release 2 EE, Clusterware,
    Companion CD - (10.2.0.1.0) - Precompiled
    RHEL4 FireWire Modules - (2.6.9-22.EL) - ASMLib
    2.0 Driver - (2.6.9-22.EL / 2.0.3-1) - Single
    Processor / SMP / Hugemem - ASMLib 2.0 Library
    and Tools - (2.0.3-1) - Driver Support Files /
    Userspace Library

42
Build Your Own Oracle RAC 10g Release 2 Cluster
on Linux and FireWire
  • Introduction
  • One of the most efficient ways to become
    familiar with Oracle Real Application Clusters
    (RAC) 10g technology is to have access to an
    actual Oracle RAC 10g cluster. There's no better
    way to understand its benefitsincluding fault
    tolerance, security, load balancing, and
    scalabilitythan to experience them directly.
  • The Oracle Clusterware software will be installed
    to /u01/app/oracle/product/crs on each of the
    nodes that make up the RAC cluster. However, the
    Clusterware software requires that two of its
    filesthe Oracle Cluster Registry (OCR) file and
    the Voting Disk filebe shared with all nodes in
    the cluster. These two files will be installed on
    shared storage using OCFS2. It is possible (but
    not recommended by Oracle) to use RAW devices for
    these files however, it is not possible to use
    ASM for these two Clusterware files.
  • The Oracle Database 10g Release 2 software will
    be installed into a separate Oracle Home, namely
    /u01/app/oracle/product/10.2.0/db_1, on each of
    the nodes that make up the RAC cluster. All the
    Oracle physical database files (data, online redo
    logs, control files, archived redo logs), will be
    installed to different partitions of the shared
    drive being managed by ASM. (The Oracle database
    files can just as easily be stored on OCFS2.
    Using ASM, however, makes the article that much
    more interesting!)

43
Build Your Own Oracle RAC 10g Release 2 Cluster
on Linux and FireWire


44
2. Oracle RAC 10g Overview
  • Oracle RAC, introduced with Oracle9i, is the
    successor to Oracle Parallel Server (OPS). RAC
    allows multiple instances to access the same
    database (storage) simultaneously. It provides
    fault tolerance, load balancing, and performance
    benefits by allowing the system to scale out, and
    at the same timebecause all nodes access the
    same databasethe failure of one instance will
    not cause the loss of access to the database.
  • At the heart of Oracle RAC is a shared disk
    subsystem. All nodes in the cluster must be able
    to access all of the data, redo log files,
    control files and parameter files for all nodes
    in the cluster. The data disks must be globally
    available to allow all nodes to access the
    database. Each node has its own redo log and
    control files but the other nodes must be able to
    access them in order to recover that node in the
    event of a system failure.
  • One of the bigger differences between Oracle RAC
    and OPS is the presence of Cache Fusion
    technology. In OPS, a request for data between
    nodes required the data to be written to disk
    first, and then the requesting node could read
    that data. In RAC, data is passed along with
    locks.

45
3. Shared-Storage Overview
  • Fibre Channel is one of the most popular
    solutions for shared storage. As I mentioned
    previously, Fibre Channel is a high-speed
    serial-transfer interface used to connect systems
    and storage devices in either point-to-point or
    switched topologies. Protocols supported by Fibre
    Channel include SCSI and IP.
  • Fibre Channel configurations can support as many
    as 127 nodes and have a throughput of up to 2.12
    gigabits per second. Fibre Channel, however, is
    very expensive the switch alone can cost as much
    as US1,000 and high-end drives can reach prices
    of US300. Overall, a typical Fibre Channel setup
    (including cards for the servers) costs roughly
    US5,000.
  • A less expensive alternative to Fibre Channel is
    SCSI. SCSI technology provides acceptable
    performance for shared storage, but for
    administrators and developers who are used to
    GPL-based Linux prices, even SCSI can come in
    over budget at around US1,000 to US2,000 for a
    two-node cluster.
  • Another popular solution is the Sun NFS (Network
    File System) found on a NAS. It can be used for
    shared storage but only if you are using a
    network appliance or something similar.
    Specifically, you need servers that guarantee
    direct I/O over NFS, TCP as the transport
    protocol, and read/write block sizes of 32K.

46
4. FireWire Technology
  • Developed by Apple Computer and Texas
    Instruments, FireWire is a cross-platform
    implementation of a high-speed serial data bus.
    With its high bandwidth, long distances (up to
    100 meters in length) and high-powered bus,
    FireWire is being used in applications such as
    digital video (DV), professional audio, hard
    drives, high-end digital still cameras and home
    entertainment devices. Today, FireWire operates
    at transfer rates of up to 800 megabits per
    second while next generation FireWire calls for
    speeds to a theoretical bit rate to 1,600 Mbps
    and then up to a staggering 3,200 Mbps. That's
    3.2 gigabits per second. This speed will make
    FireWire indispensable for transferring massive
    data files and for even the most demanding video
    applications, such as working with uncompressed
    high-definition (HD) video or multiple
    standard-definition (SD) video streams.

47
(No Transcript)
48
  • Oracle Clusterware - /u01/app/oracle/product/crs
  • Oracle 10g Software (Without database)
    /u01/app/oracle/product/10.1.0/data_1 -
    (10.2.0.1)

  • Oracle Cluster Registry (OCR) File -
    /u02/oradata/orcl/OCRFile (OCFS2 )
  • CRS Voting Disk - /u02/oradata/orcl/CSSFile
    (OCFS2 )
  • Oracle Database files ASM

49
5. Software Requirements
  • SoftwareAt the software level, each node in a
    RAC cluster needs
  • 1.       An operating system
  • 2.       Oracle Clusterware Software
  • 3.       Oracle RAC software, and optionally
  • An Oracle Automated Storage Management instance.

50
Oracle Automated Storage Management (ASM)
  • ASM is a new feature in Oracle Database 10g that
    provides the services of a filesystem, logical
    volume manager, and software RAID in a
    platform-independent manner. Oracle ASM can
    stripe and mirror your disks, allow disks to be
    added or removed while the database is under
    load, and automatically balance I/O to remove
    "hot spots." It also supports direct and
    asynchronous I/O and implements the Oracle Data
    Manager API (simplified I/O system call
    interface) introduced in Oracle9i.
  • Oracle ASM is not a general-purpose filesystem
    and can be used only for Oracle data files, redo
    logs, control files, and the RMAN Flash Recovery
    Area. Files in ASM can be created and named
    automatically by the database (by use of the
    Oracle Managed Files feature) or manually by the
    DBA. Because the files stored in ASM are not
    accessible to the operating system, the only way
    to perform backup and recovery operations on
    databases that use ASM files is through Recovery
    Manager (RMAN).
  • ASM is implemented as a separate Oracle instance
    that must be up if other databases are to be able
    to access it. Memory requirements for ASM are
    light only 64MB for most systems. In Oracle RAC
    environments, an ASM instance must be running on
    each cluster node.

51
6. Install the Linux Operating System
  • This article was designed to work with the Red
    Hat Enterprise Linux 4 (AS/ES) operating
    environment. . You will need three IP addresses
    for each server one for the private network, one
    for the public network, and one for the virtual
    IP address. Use the operating system's network
    configuration tools to assign the private and
    public network addresses. Do not assign the
    virtual IP address using the operating system's
    network configuration tools this will be done by
    the Oracle Virtual IP Configuration Assistant
    (VIPCA) during Oracle RAC software installation.
  • Linux1
  • eth0- Check off the option to Configure using
    DHCP- Leave the Activate on boot checked- IP
    Address 192.168.1.100- Netmask 255.255.255.0
  • eth1- Check off the option to Configure using
    DHCP- Leave the Activate on boot checked- IP
    Address 192.168.2.100- Netmask 255.255.255.0

52
6. Install the Linux Operating System
  • Linux2
  • eth0- Check off the option to Configure using
    DHCP- Leave the Activate on boot checked- IP
    Address 192.168.1.101- Netmask 255.255.255.0
  • eth1- Check off the option to Configure using
    DHCP- Leave the Activate on boot checked- IP
    Address 192.168.2.101- Netmask 255.255.255.0

53
7. Configure Network Settings
54
7. Configure Network Settings
55
7. Configure Network Settings
  • Note that the virtual IP addresses only need to
    be defined in the /etc/hosts file for both nodes.
    The public virtual IP addresses will be
    configured automatically by Oracle when you run
    the Oracle Universal Installer, which starts
    Oracle's Virtual Internet Protocol Configuration
    Assistant (VIPCA). All virtual IP addresses will
    be activated when the srvctl start nodeapps -n
    ltnode_namegt command is run. This is the Host
    Name/IP Address that will be configured in the
    client(s) tnsnames.ora file (more details later).

56
7. Configure Network Settings
  • Adjusting Network Settings
  • Oracle now uses UDP as the default protocol on
    Linux for interprocess communication, such as
    cache fusion buffer transfers between the
    instances. It is strongly suggested to adjust
    the default and maximum send buffer size
    (SO_SNDBUF socket option) to 256 KB, and the
    default and maximum receive buffer size
    (SO_RCVBUF socket option) to 256 KB. The receive
    buffers are used by TCP and UDP to hold received
    data until is is read by the application. The
    receive buffer cannot overflow because the peer
    is not allowed to send data beyond the buffer
    size window. This means that datagrams will be
    discarded if they don't fit in the socket receive
    buffer. This could cause the sender to overwhelm
    the receiver .
  • To make the change permanent, add the following
    lines to the /etc/sysctl.conf file, which is used
    during the boot process net.core.rmem_default262
    144 net.core.wmem_default262144
  • net.core.rmem_max262144
  • net.core.wmem_max262144

57
8. Obtain and Install a Proper Linux Kernel
  • http//oss.oracle.com/projects/firewire/dist/files
    /RedHat/RHEL4/i386/oracle-firewire-modules-2.6.9-2
    2.EL-1286-1.i686.rpm
  • Install the supporting FireWire modules, as root
  • Install the supporting FireWire modules package
    by running either of the following
  • rpm -ivh oracle-firewire-modules-2.6.9-22.EL-128
    6-1.i686.rpm - (for single processor)- OR -
    rpm -ivh oracle-firewire-modules-2.6.9-22.ELsmp-12
    86-1.i686.rpm - (for multiple processors) Add
    module options
  • Add the following lines to /etc/modprobe.conf
  • options sbp2 exclusive_login0

58
8. Obtain and Install a Proper Linux Kernel
  • Connect FireWire drive to each machine and boot
    into the new kernel
  • After both machines are powered down, connect
    each of them to the back of the FireWire drive.
    Power on the FireWire drive. Finally, power on
    each Linux server and ensure to boot each machine
    into the new kernel
  • Check for SCSI Device
  • 0104.0 FireWire (IEEE 1394) Texas Instruments
    TSB43AB23 IEEE-1394a-2000 Controller (PHY/Link)
  • Second, let's check to see that the modules are
    loaded
  • lsmod egrep "ohci1394sbp2ieee1394sd_modscsi
    _mod"
  • sd_mod 13744 0
  • sbp2 19724 0
  • scsi_mod 106664 3 sg sd_mod sbp2
  • ohci1394 28008 0 (unused)
  • ieee1394 62884 0 sbp2 ohci1394

59
8. Obtain and Install a Proper Linux Kernel
  • Third, let's make sure the disk was detected and
    an entry was made by the kernel
  • cat /proc/scsi/scsi
  • Attached devices
  • Host scsi0 Channel 00 Id 00 Lun 00
  • Vendor Maxtor Model
  • OneTouch Rev 0200 Type Direct-Access ANSI SCSI
    revision 06 Now let's verify that the FireWire
    drive is accessible for multiple logins and shows
    a valid login
  • dmesg grep sbp2
  • ieee1394 sbp2 Query logins to SBP-2 device
    successful
  • ieee1394 sbp2 Maximum concurrent logins
    supported 3
  • ieee1394 sbp2 Number of active logins 1
    ieee1394 sbp2 Logged into SBP-2 device
  • ieee1394 sbp2 Node011023 Max speed S400 -
    Max payload 2048
  • fdisk -l
  • Disk /dev/sda 203.9 GB, 203927060480 bytes 255
    heads, 63 sectors/track, 24792 cylinders Units
    cylinders of 16065 512 8225280 bytes

60
9. Create "oracle" User and Directories (both
nodes)
  • Perform the following procedure on all nodes in
    the cluster!
  • I will be using the Oracle Cluster File System
    (OCFS) to store the files required to be shared
    for the Oracle Cluster Ready Services (CRS). When
    using OCFS, the UID of the UNIX user oracle and
    GID of the UNIX group dba must be identical on
    all machines in the cluster. If either the UID or
    GID are different, the files on the OCFS file
    system will show up as "unowned" or may even be
    owned by a different user. For this article, I
    will use 175 for the oracle UID and 115 for the
    dba GID.
  • Create Group and User for Oracle
  • Let's continue our example by creating the Unix
    dba group and oracle user account along with all
    appropriate directories.
  • mkdir -p /u01/app groupadd -g 115 dba
    useradd -u 175 -g 115 -d /u01/app/oracle -s
    /bin/bash -c "Oracle Software Owner" -p oracle
    oracle chown -R oracledba /u01 passwd oracle
    su - oracle Note When you are setting the
    Oracle environment variables for each RAC node,
    ensure to assign each RAC node a unique Oracle
    SID! For this example, I used
  • linux1 ORACLE_SIDorcl1
  • linux2 ORACLE_SIDorcl2

61
9. Create "oracle" User and Directories (both
nodes)
  • Now, let's create the mount point for the Oracle
    Cluster File System (OCFS) that will be used to
    store files for the Oracle Cluster Ready Service
    (CRS). These commands will need to be run as the
    "root" user account
  • su
  • mkdir -p /u02/oradata/orcl
  • chown -R oracledba /u02
  • Oracle Cluster File System (OCFS) version 2
  • OCFS version 1 is a great alternative to raw
    devices. Not only is it easier to administer and
    maintain, it overcomes the limit of 255 raw
    devices. However, it is not a general-purpose
    cluster filesystem. It may only be used to store
    the following types of files
  • Oracle data files
  • Online redo logs
  • Archived redo logs
  • Control files
  • Spfiles
  • CRS shared files (Oracle Cluster Registry and CRS
    voting disk).

62
10. Creating Partitions on the Shared
FireWire Storage Device
  • Create the following partitions on only one node
    in the cluster!
  • The next step is to create the required
    partitions on the FireWire (shared) drive. As I
    mentioned previously, we will use OCFS to store
    the two files to be shared for CRS. We will then
    use ASM for all physical database files
    (data/index files, online redo log files, control
    files, SPFILE, and archived redo log files).
  • The following table lists the individual
    partitions that will be created on the FireWire
    (shared) drive and what files will be contained
    on them.

Reboot All Nodes in RAC
Cluster fdisk -l /dev/sda
63
11. Configure the Linux Servers
  • Several of the commands within this section
    will need to be performed on every node within
    the cluster every time the machine is booted.
    This section provides very detailed information
    about setting shared memory, semaphores, and file
    handle limits.
  • Setting SHMMAX
  • /etc/sysctl.conf
  • echo "kernel.shmmax2147483648" gtgt
    /etc/sysctl.conf
  • Setting Semaphore Kernel Parameters
  • echo "kernel.sem250 32000 100 128" gtgt
    /etc/sysctl.conf
  • Setting File Handles
  • echo "fs.file-max65536" gtgt /etc/sysctl.conf
  • ulimit
  • unlimited


64
12. Configure the hangcheck-timer Kernel
Module
  • Perform the following configuration procedures on
    all nodes in the cluster!
  • Oracle 9.0.1 and 9.2.0.1 used a userspace
    watchdog daemon called watchdogd to monitor the
    health of the cluster and to restart a RAC node
    in case of a failure. Starting with Oracle
    9.2.0.2, the watchdog daemon was deprecated by a
    Linux kernel module named hangcheck-timer that
    addresses availability and reliability problems
    much better. The hang-check timer is loaded into
    the Linux kernel and checks if the system hangs.
    It will set a timer and check the timer after a
    certain amount of time. There is a configurable
    threshold to hang-check that, if exceeded will
    reboot the machine. Although the hangcheck-timer
    module is not required for Oracle CRS, it is
    highly recommended by Oracle.
  • The hangcheck-timer.o Module
  • The hangcheck-timer module uses a
    kernel-based timer that periodically checks the
    system task scheduler to catch delays in order to
    determine the health of the system. If the system
    hangs or pauses, the timer resets the node. The
    hangcheck-timer module uses the Time Stamp
    Counter (TSC) CPU register, which is incremented
    at each clock signal. The TCS offers much more
    accurate time measurements because this register
    is updated by the hardware automatically.
  • Configuring Hangcheck Kernel Module Parameters
  • su
  • echo "options hangcheck-timer hangcheck_tick30
    hangcheck_margin180" gtgt /etc/modules.conf


65
13. Configure RAC Nodes for Remote Access
  • Perform the following configuration procedures on
    all nodes in the cluster!
  • When running the Oracle Universal Installer on a
    RAC node, it will use the rsh (or ssh) command to
    copy the Oracle software to all other nodes
    within the RAC cluster. The oracle UNIX account
    on the node running the Oracle Installer
    (runInstaller) must be trusted by all other nodes
    in your RAC cluster. Therefore you should be able
    to run r commands like rsh, rcp, and rlogin on
    the Linux server you will be running the Oracle
    installer from, against all other Linux servers
    in the cluster without a password. The rsh daemon
    validates users using the /etc/hosts.equiv file
    or the .rhosts file found in the user's
    (oracle's) home directory. (The use of rcp and
    rsh are not required for normal RAC operation.
    However rcp and rsh should be enabled for RAC and
    patchset installation.)
  • Oracle added support in 10g for using the Secure
    Shell (SSH) tool suite for setting up user
    equivalence. This article, however, uses the
    older method of rcp for copying the Oracle
    software to the other nodes in the cluster. When
    using the SSH tool suite, the scp (as opposed to
    the rcp) command would be used to copy the
    software in a very secure manner.
  • First, let's make sure that we have the rsh RPMs
    installed on each node in the RAC cluster
  • rpm -q rsh rsh-server rsh-0.17-17
    rsh-server-0.17-17


66
13. Configure RAC Nodes for Remote Access
  • To enable the "rsh" service, the "disable"
    attribute in the /etc/xinetd.d/rsh file must be
    set to "no" and xinetd must be reloaded. Do that
    by running the following commands on all nodes in
    the cluster
  • su
  • chkconfig rsh on
  • chkconfig rlogin on
  • service xinetd reload
  • Reloading configuration OK
  • To allow the "oracle" UNIX user account to
    be trusted among the RAC nodes, create the
    /etc/hosts.equiv file on all nodes in the
    cluster
  • su
  • touch /etc/hosts.equiv
  • chmod 600 /etc/hosts.equiv
  • chown root.root /etc/hosts.equiv
  • Now add all RAC nodes to the /etc/hosts.equiv
    file similar to the following example for all
    nodes in the cluster
  • cat /etc/hosts.equiv
  • linux1 oracle
  • linux2 oracle
  • int-linux1 oracle
  • int-linux2 oracle


67
14. All Startup Commands for Each RAC Node
  • Verify that the following startup commands
    are included on all nodes in the cluster!
  • Up to this point, we have examined in great
    detail the parameters and resources that need to
    be configured on all nodes for the Oracle RAC 10g
    configuration. In this section we will take a
    "deep breath" and recap those parameters,
    commands, and entries (in previous sections of
    this document) that you must include in the
    startup scripts for each Linux node in the RAC
    cluster.
  • /etc/modules.conf
  • /etc/sysctl.conf
  • /etc/hosts
  • /etc/hosts.equiv
  • /etc/grub.conf
  • /etc/rc.local


68
15. Check RPM Packages for Oracle 10g Release
1
  • Perform the following checks on all nodes in the
    cluster!
  • make-3.79.1
  • gcc-3.2.3-34
  • glibc-2.3.2-95.20
  • glibc-devel-2.3.2-95.20
  • glibc-headers-2.3.2-95.20
  • glibc-kernheaders-2.4-8.34
  • cpp-3.2.3-34
  • compat-db-4.0.14-5
  • compat-gcc-7.3-2.96.128
  • compat-gcc-c-7.3-2.96.128
  • compat-libstdc-7.3-2.96.128
  • compat-libstdc-
  • devel-7.3-2.96.128
  • openmotif-2.2.2-16
  • setarch-1.3-1
  • init 6


69
16. Install and Configure OCFS Release 2
  • Most of the configuration procedures in this
    section should be performed on all nodes in the
    cluster! Creating the OCFS2 filesystem, however,
    should be executed on only one node in the
    cluster.
  • It is now time to install OCFS2. OCFS2 is a
    cluster filesystem that allows all nodes in a
    cluster to concurrently access a device via the
    standard filesystem interface. This allows for
    easy management of applications that need to run
    across a cluster.
  • OCFS Release 1 was released in 2002 to enable
    Oracle RAC users to run the clustered database
    without having to deal with RAW devices. The
    filesystem was designed to store database related
    files, such as data files, control files, redo
    logs, archive logs, etc. OCFS Release 2 (OCFS2),
    in contrast, has been designed as a
    general-purpose cluster filesystem. With it, one
    can store not only database related files on a
    shared disk, but also store Oracle binaries and
    configuration files (shared Oracle Home) making
    management of RAC even easier.
  • Downloading OCFS (Available in the Red Hat 4
    CDs)
  • ocfs2-2.6.9-22.EL-1.2.3-1.i686.rpm - (for single
    processor)
  • or
  • ocfs2-2.6.9-22.ELsmp-1.2.3-1.i686.rpm - (for
    multiple processors)
  • Installing OCFS
  • We will be installing the OCFS files onto two
    single-processor machines. The installation
    process is simply a matter of running the
    following command on all nodes in the cluster as
    the root user account


70
16. Install and Configure OCFS Release 2
  • su
  • rpm -Uvh ocfs2-2.6.9-22.EL-1.2.3-1.i686.rpm
    \ocfs2console-1.2.1-1.i386.rpm
    \ocfs2-tools-1.2.1-1.i386.rpm


71
17. Install and Configure Automatic Storage
Management and Disks
  • Most of the installation and configuration
    procedures should be performed on all nodes.
    Creating the ASM disks, however, will only need
    to be performed on a single node within the
    cluster.
  • In this section, we will configure Automatic
    Storage Management (ASM) to be used as the
    filesystem/volume manager for all Oracle physical
    database files (data, online redo logs, control
    files, archived redo logs).
  • ASM was introduced in Oracle Database 10g and
    relieves the DBA from having to manage individual
    files and drives. ASM is built into the Oracle
    kernel and provides the DBA with a way to manage
    thousands of disk drives 24x7 for single as well
    as clustered instances. All the files and
    directories to be used for Oracle will be
    contained in a disk group. ASM automatically
    performs load balancing in parallel across all
    available disk drives to prevent hot spots and
    maximize performance, even with rapidly changing
    data usage patterns.


72
17. Install and Configure Automatic Storage
Management and Disks
  • Downloading the ASMLib Packages
  • Installing ASMLib Packages
  • Edit the file /etc/sysconfig/rawdevices as
    follows raw device bindings format ltrawdevgt
    ltmajorgt ltminorgt ltrawdevgt ltblockdevgt example
    /dev/raw/raw1 /dev/sda1 /dev/raw/raw2 8
    5/dev/raw/raw2 /dev/sda2/dev/raw/raw3
    /dev/sda3/dev/raw/raw4 /dev/sda4The raw device
    bindings will be created on each reboot.
  • You would then want to change ownership of all
    raw devices to the "oracle" user account chown
    oracledba /dev/raw/raw2 chmod 660
    /dev/raw/raw2 chown oracledba /dev/raw/raw3
    chmod 660 /dev/raw/raw3 chown oracledba
    /dev/raw/raw4 chmod 660 /dev/raw/raw4
  • The last step is to reboot the server to bind the
    devices or simply restart the rawdevices service
    service rawdevices restart


73
17. Install and Configure Automatic Storage
Management and Disks
  • Creating ASM Disks for Oracle
  • Install ASMLib 2.0 Packages
  • This installation needs to be performed on all
    nodes as the root user account
  • su - rpm -Uvh oracleasm-2.6.9-22.EL-2.0.3-1.i6
    86.rpm \oracleasmlib-2.0.2-1.i386.rpm
    \oracleasm-support-2.0.3-1.i386.rpmPreparing...

    1001oracleasm-support
    332oracleasm-2.6.9-22.E
    L
    673oracleasmlib
    100


74
17. Install and Configure Automatic Storage
Management and Disks
  • su
  • /etc/init.d/oracleasm createdisk VOL1 /dev/sda2
  • Marking disk "/dev/sda2" as an ASM disk OK
  • /etc/init.d/oracleasm createdisk VOL2 /dev/sda3
  • Marking disk "/dev/sda3" as an ASM disk OK
  • /etc/init.d/oracleasm createdisk VOL3 /dev/sda4
  • Marking disk "/dev/sda4" as an ASM disk OK
  • If you do receive a failure, try listing all ASM
    disks using
  • /etc/init.d/oracleasm listdisks
  • VOL1
  • VOL2
  • VOL3


75
17. Install and Configure Automatic Storage
Management and Disks
  • On all other nodes in the cluster, you must
    perform a scandisk to recognize the new volumes
    /etc/init.d/oracleasm scandisks Scanning system
    for ASM disks OK We can now test that the ASM
    disks were successfully created by using the
    following command on all nodes as the root user
    account
  • /etc/init.d/oracleasm listdisks
  • VOL1
  • VOL2
  • VOL3


76
18. Download Oracle RAC 10g Release 2
Software
  • The following download procedures only need to be
    performed on one node in the cluster!
  • The next logical step is to install Oracle
    Clusterware Release 2 (10.2.0.1.0), Oracle
    Database 10g Release 2 (10.2.0.1.0), and finally
    the Oracle Database 10g Companion CD Release 2
    (10.2.0.1.0) for Linux x86 software. However, you
    must first download and extract the required
    Oracle software packages from OTN.
  • You will be downloading and extracting the
    required software from Oracle to only one of the
    Linux nodes in the clusternamely, linux1. You
    will perform all installs from this machine. The
    Oracle installer will copy the required software
    packages to all other nodes in the RAC
    configuration we set up in Section 13.
  • Login to one of the nodes in the Linux RAC
    cluster as the oracle user account. In this
    example, you will be downloading the required
    Oracle software to linux1 and saving them to
    /u01/app/oracle/orainstall.


77
19. Install Oracle 10g Clusterware Software
  • Perform the following installation procedures on
    only one node in the cluster! The Oracle
    Clusterware software will be installed to all
    other nodes in the cluster by the Oracle
    Universal Installer.
  • You are now ready to install the "cluster" part
    of the environment - the Oracle Clusterware. In
    the previous section, you downloaded and
    extracted the install files for Oracle
    Clusterware to linux1 in the directory
    /u01/app/oracle/orainstall/clusterware. This is
    the only node from which you need to perform the
    install.
  • During the installation of Oracle Clusterware,
    you will be asked for the nodes involved and to
    configure in the RAC cluster. Once the actual
    installation starts, it will copy the required
    software to all nodes using the remote access we
    configured in the section Section 13 ("Configure
    RAC Nodes for Remote Access").
  • So, what exactly is the Oracle Clusterware
    responsible for? It contains all of the cluster
    and database configuration metadata along with
    several system management features for RAC. It
    allows the DBA to register and invite an Oracle
    instance (or instances) to the cluster. During
    norma
Write a Comment
User Comments (0)
About PowerShow.com
