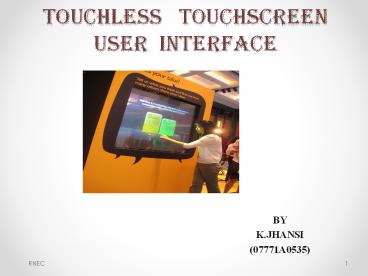

TOUCHLESS TOUCHSCREEN USER INTERFACE

1
TOUCHLESS TOUCHSCREENUSER INTERFACE

• BY
• K.JHANSI
• (07771A0535)

2
OVER VIEW

• Touch Less Touch screen
• TOUCHLESS MONITOR
• WORKING OF
• 1. GBUI
• 2.TOUCH-LESS UI
• 3.TOUCH-LESS SDK
• 4.TOUCH-LESS DEMO
• 5.WINDOWSHOP PIC
• 6.TOUCH WALL
• CONCLUSION

3
Touch Less Touch Screen

• Touch less control of electrically operated
  equipment is being developed by Elliptic Labs.
• This innovative technology lets you control your
  gadgets like Computers, MP3 players or mobile
  phones without touching them.
• This system depends on hand and or finger
  motions, a hand wave in a certain direction
• The sensor can be placed either on the screen or
  near the screen.

4
Technology touch less device

• The device is based on optical pattern
  recognition
• using a solid state optical matrix sensor with
  a lens to detect hand motions.

5
Touch less Monitor

• This monitor is made TouchKo
• Touch less touch screen your hand doesnt have to
  come in contact with the screen at all, it works
  by detecting your hand movements in front of it.
• point your finger in the air towards the device
  and move it accordingly to control the navigation
  in the device
• Designed for applications where touch may be
  difficult, such as for doctors who might be
  wearing surgical gloves

6
3D NAVIGATION OF HAND MOVEMENTS IN
TOUCHLESS S CREEN
7
Touch less UI

• Sensors are mounted around the screen that is
  being used, by interacting in the line-of-sight
  of these sensors the motion is detected and
  interpreted into on-screen movements.
• just point at the screen (from as far as 5 feet
  away), and you can manipulate objects in 3D.
• Gestures are translated into screen commands

8
Touch less monitor
9
GBUI(gesture-based graphical user Interface)
10
Working of touch less UI

• sensors arrayed around the perimeter of the
  device capable of sensing finger movements in 3-D
  space.

11
Touch less-SDK
12
TOUCHLESS-DEMO

• The Touch less Demo is an open source
  application that anyone with a webcam can use to
  experience multi-touch.
• The demo was created using the Touch less SDK and
  Windows Forms with C

13
window shop PIC

• Here that you may need a few cameras in stereo to
  maximize accuracy and you could theoretically
  use your hands as a mouse

14
Touch wall

• Touch Wall it is the first multi touch product
• It refers to the touch screen hardware setup
  itself and software is plex .
• Touch Wall consists of three infrared lasers that
  scan a surface.
• By using a projecter entire walls can easily be
  turned into a multi touch user interface.

15
Conclusion

• The Touch less touch screen user interface can be
  used effectively in computers, cell phones,
  webcams and laptops.
• May be few years down the line, our body can be
  transformed into a virtual mouse, virtual
  keyboard ,Our body may be turned in to an input
  device!

16
