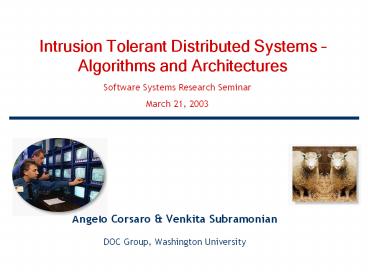

Intrusion Tolerant Distributed Systems
Algorithms and Architectures
Software Systems Research Seminar March 21, 2003

• Angelo Corsaro Venkita Subramonian
• DOC Group, Washington University

2
Security State of the Art

• Most of secure systems are nowadays built by
  trying to prevent attacks
• Several techniques and tools have been developed
  to make more secure systems, detect system
  weakness, and protect systems
• New Programming Languages
• Software Tools like code analyzer, system
  profiler, etc.
• New Hardware/Software components
• etc. etc.

• Yet, systems security keeps being compromised!!!
• Nowadays pervasive interconnectivity introduces
  more challenges for security
• The lesson learned in securing systems is that
  this brute force approach does not work.
• Experience has led to the key observation that it
  isnt practical/feasible to build 100 secure
  systems

3
Classical Secure Distributed Systems

• Classical Secure distributed systems are based on
  the assumption that there exist part of the
  system which is trusted
• The basic and recurrent idea is that of
  connecting distributed components together so as
  to form a global secure infrastructure
• This approach requires large trusted parts on all
  computers on the network

4
Kerberos

• One of the most used and deployed distributed
  security systems is Kerberos
• It was designed and implemented at the MIT as
  part of the Athena project

• The core assumption at the base of Kerbeross
  design are the following
• Client workstations are totally under control of
  the user, i.e., cant be trusted
• Remote services can be accessed only via an
  authentication service
• Servers are trusted, and are physically protected
• The servers are under the complete control and
  responsibility of the administrator
• The master server is replicated on passive
  slaves, which can replace the server when it
  fails

5
Kerberos
6
Kerberos
1

1. Request for a TGS ticket

7
Kerberos
2
1

• Request for a TGS ticket
• Ticket for TGS

8
Kerberos
3
2
1

1. Request for a TGS ticket
2. Ticket for TGS
3. Request for Server Ticket

9
Kerberos
3
2
4
1

1. Request for a TGS ticket
2. Ticket for TGS
3. Request for Server Ticket
4. Server Ticket

10
Kerberos
3
2
4
1
5

1. Request for a TGS ticket
2. Ticket for TGS
3. Request for Server Ticket
4. Server Ticket
5. Request for Service

11
Kerbeross Security Problems

• The security administrator can misuse his
  privileges to performs unauthorized actions
• Replicas (Kerberos uses passive replication) can
  also provide information to intruders if not well
  protected
• If Kerberos server fails, the last DB changes are
  lost
• Nothing is done to prevent covert channels
• There is a single point of failure!!!

12
Security New Trends

• Eliminating flaws that make systems un-secure is
  not feasible (especially for legacy systems)
• Currently adopted solutions for distributed
  systems security have quite a few problems
• How about building systems that can continue
  critical operations in face of attacks?

• Can we build systems that instead of trying to
  prevent attacks can instead tolerate them?

13
Architectures for Intrusion Tolerance
14
Intrusion Tolerance The Idea

• Intrusion Tolerant Systems are designed in such a
  way that they can tolerate a bounded number of
  misuses
• If one or more intruders by-pass the protection
  mechanism and if the number of misuses they do is
  less than a given threshold, the security
  properties of the system
• Confidentiality
• Integrity
• Availability
• Are always ensured!!!
• The key observation at the basis of Intrusion
  Tolerant systems is that an intrusion can be
  though as a Byzantine Fault

15
Types of Intrusion Tolerance

• Confidentiality Read access to a subset of
  confidential data gives no information about the
  data
• Integrity The change of a subset of data does
  not change the data perceived by legitimate users
• Availability The change or deletion of a subset
  of data or of a server does not produce a denial
  of service to legitimate users

• For each property P is defined a threshold Tp
• The reading, modifying or destroying a part X of
  the data or server D such that X lt T

Xlt T Intrusion
16
Intermezzo
17
Data Intrusion Tolerance

• Data intrusion-tolerance techniques have existed
  for a long time
• Confidentiality can be ensured by cryptographic
  tools like the threshold scheme
• The data is shared in shadows, each shadow being
  stored on one security site
• To build the data it is sufficient a number of
  shadows called the threshold
• This scheme ensures availability and integrity
• To prevent denial of service the server are
  replicated
• Different sites cannot take decision
  independently, they must agree by communicating
  data and local decisions
• This last point requires replication and agreement

Site Y
Site X
Site Z
File A
File B
File C
18
Intrusion Tolerant Security Service
19
Intrusion Tolerant Security Server

• The goal of an Intrusion Tolerant Distributed
  Security server is that of providing a trusted
  service out of a set of potentially untrusted
  computers
• This way, the intrusion of one of some of the
  computers wont compromise the security of the
  global system

• All the sites that are part of the security
  service, called security sites, have to provide a
  series of services
• Registration
• Authentication
• Sensitive Data Management
• Audit and Recovery Service

20
Registration Service

• The registration permits a user to be registered
  by the system for future access to secured
  services
• This operation must be carried out independently
  on each security site to prevent a single site
  from using information to impersonate the user
• The operation is done under control of the
  security administrator of each site

21
Authentication Service

• The role of this service is to verify the claimed
  identity of a subject
• In a distributed system with several
  authentication servers, each server must
  independently authenticate the subject
• Notice that the security sites are untrusted and
  one site could fake the authentication
  information
• An agreement protocol is used to make sure that
  the user is authenticated if a majority of server
  succeeded
• Upon authentication the server sends the user
  some session information, such as session id, key
  etc.

22
Authorization Service

• The role of the authorization service is that of
  checking that the access to a secured service by
  a subject is authorized according to its
  access-rights
• Access rights could be implements in a UNIX-like
  manner
• The authorization service is made intrusion
  tolerant by implementing it on security servers

• Authorization phases are
• The client asks the security server for
  permission to access a secured service
• The access rights stored on the security sites
  allow to determine if the client has the proper
  rights
• The security sites vote to decide if the access
  is authorized
• If the sites agree to permit access they send a
  ticket to the client, and another to the server
• Using the ticket the client can now open a
  session with the server

23
Sensitive Data Management Service

• The role of this service is to store, manage and
  retrieve the sensitive information on the
  security servers
• The data management service must enforce the
  three main security properties
• Confidentiality
• Integrity
• Availability
• Integrity property is provided by a modification
  detection mechanism based such as cryptographic
  signatures
• Replication can be used to ensure availability,
  while threshold techniques could be used for
  confidentiality and availability

24
Sensitive Data Management Service

• If data is replicated on N sites, then
• With respect to availability, up to N-1 replicas
  can be lost
• With respect to confidentiality, one replica is
  sufficient to observe the data
• If one data item is shared on N security sites
  using a threshold of T, then
• With respect to availability, N-T shadows can be
  lost
• With respect to confidentiality, T shadows are
  necessary and sufficient to observe the data

25
The Audit and Recovery Service

• The role of this service is to audit the security
  information sent by the services
• There exists two kind of information
• Authorized operations
• Attempted or successful intrusion or misuse
• Notice that it is not a role of the service that
  of determine what constitutes an intrusion or a
  misuse
• Analysis of the audit is done offline by security
  administrators

• The recovery service acts as an error recovery
  mechanism to correct certain modified data

26
Voting Algorithms for Intrusion Tolerance
27
Need for voting algorithms
Authentication
Authorization
28
FT Node architecture
P1
P2
P3
P1
P2
P3
P1
P2
P3
Bus Controller
Bus Controller
Bus Controller
Local broadcast medium
Cluster1
Cluster2

Cluster3
29
Distributed Voting

• Two phases
• Local Computation
• Compute results locally and broadcast results
• Majority reconciliation
• Determine if majority exists
• Initiate fault diagnostics if necessary
• Distributed algorithm for both phases
• Coordinator commits the majority vote

30
Phase2(1/2)

• Distributed algorithm that runs on every voter
• Receive result from all voters
• If my result same as all other results
• we have a unanimous vote
• commit vote
• Else if we have more than 50 of the results the
  same
• we have a majority
• if I am the coordinator and my result NOT same
  as majority result
• select a new coordinator from among the
  majority processors
• commit vote
• if I am the coordinator
• initiate fault recovery in minority nodes
• (continued)

31
Phase2(2/2)

• Else
• we do not have a majority
• start local diagnostics
• if my status okay
• select new coordinator from among okay
  processors
• repeat voting process

32
Choosing a new coordinator

• New coordinator chosen from a processor set
• Candidate processor set
• could be all processors, when there is no
  majority
• or set of processors belonging to the majority
• Check local node status
• If status okay
• broadcast status to other processors
• wait until broadcast from other processors
  arrive
• if my node has the largest node id among okay
  processors
• I declare myself new coordinator

33
Committing a Vote

• Coordinator responsible for committing majority
  vote
• If I am the coordinator
• broadcast result to majority
• wait for ack from all processors in majority
• Else
• wait for result from coordinator
• send ack to coordinator

34
Problems with 2 Phase protocol

• What if coordinator fails right before committing
  majority vote?
• User (client) will receive bad result
• Probability very less
• Within acceptable risk parameters
• But transient faults could have adverse effect on
  security
• An attacker could control what result a user sees
• Majority does not matter any more

35
Security and transient faults

• Transient faults could hamper security
• Illuminating a single transistor in an IC using a
  laser
• Serious threat to Smartcard technology
• Attack invented and perfected by Sergei
  Skorobogatov, Cambridge University

Sergei's work will trigger a generation change
in smartcard technology. The immediate effect of
his work is that many attacks on computer systems
that were developed as theoretical possibilities
by the research communities in the 1990s have
suddenly become practical EE Times, May 2002
36
A Solution

• Algorithm by Castro and Liskov

2
2
voter
voter
voter
3
3
1
Client

• Pros
• Commit done by all voters as opposed to just one
  coordinator, hence more secure than the 2-Phase
  algorithm
• Cons
• Does not scale well, since client has to wait for
  f1 replies

37
Other algorithms

• More algorithms in literature
• Reiter, M., The Rampart Toolkit for Building
  High-Integrity Services, Theory and Practice in
  Distributed Systems,Lecture Notes in Computer
  Science 938, pp. 99-110.
• Malkhi, D., Reiter, M., Byzantine Quorum
  Systems,Proceedings of the 29th ACM Symposium on
  Theory of Computing, May 1997.
• Kihlstrom, K., et al., The SecureRing Protocols
  for Securing Group Communication, Proceedings of
  the 31st Hawaii International Conference on
  System Sciences, Vol. 3, pp. 317-326, Jan 1998.
• Deswarte, Y., et al. Intrusion Tolerance in
  Distributed Computing Systems, Proceedings of
  the 1991 IEEE Symposium on Research in Security
  and Privacy, pp. 110-121, May 1991.

38
Inexact voting

• Drawbacks to the previous algorithms
• Assumes state machine replication in all voters
• Two different non-faulty voters will produce the
  same result
• Some use-cases where this assumption does not
  hold
• E.g., sensor values
• Inexact voting
• Values that fall within a range of tolerance are
  considered equal
• Equivalence classes
• Algorithms can be modified to handle inexact
  voting
• BUT, performance overhead large for multiple
  inexact comparisons to determine majority

39
Proposed Algorithm Assumptions

• Network with
• Atomic broadcast capability
• Bounded message delay
• Fair-sharing of broadcast medium
• No voter will commit answer until all voters
  ready
• Enforced using application dependent thresholds
• Any commits before this threshold are considered
  invalid
• Majority of voters are fault-free for reliable
  working of the system
• Each voter can vote only once
• Enforced by the User Interface module

40
Proposed Algorithm (1/2)
voter
voter
voter
2
2
1
Interface Module
Client
3
1. Commit, if not committed already
2. Compare with committed result
3. Timer expires, send result to client
41
Proposed Algorithm (2/2)
3
3
voter
voter
voter
2
2
1
4
Interface Module
Client
5
1. Commit, if not committed already
2. Compare with committed result
3. Dissent, if no match
4. Commit new vote
5. Reset timer expiry
42
Uniqueness of this algorithm

• Security increased
• No specific coordinator node hence reduced
  vulnerability
• Even if the first commit to User Interface module
  is compromised, it gets invalidated by dissenting
  voters
• Denial of Service (vote-rigging) eliminated
  since a vote from an already committed voter is
  ignored
• Fault-tolerance properties maintained as before
• Result still based on majority
• Concerns about the User-Interface module
• Single point of failure
• BUT, this module is very simple with very little
  computation
• User-Interface module can be isolated from the
  voter complex
• Less intensive computation on the client
• Does not have to reconcile all results from voters

43
Authentication

• Voters must be authenticated by User Interface
  module before accepting commits
• This should not increase the complexity of the
  module
• Strong authentication with minimal interaction
  between voters and the interface module preferred
• Example mechanism
• Use SKEY authentication

44
SKEY authentication scheme
Voter
Interface Module
R

R
f is a one-way function
45
Distributed voting in WAN

• Centralized voting not appropriate in a WAN
  setting
• Multiple hops for vote to reach from voter to
  coordinator
• Link failures could partition the network
• Network congestion in the vicinity of the
  coordinator
• Inexact voting could be computationally very
  intensive
• Sensor data from a vast coverage area
• Single coordinator target for malicious attack

46
Assumptions

• Reliable transport
• Messages are digitally signed and subject to
  verification before delivery to upper layer
• Unverifiable messages are discarded
• Presence of Public-Key infrastructure
• Every voter knows the public key of every other
  voter

47
Secure voting
1
1
voter
voter
voter
2
4
2
3
3
1. Send signed vote to other voters, hash the
result and save it
2. Verify sign and compare with own result
3. Hash senders result, sign it and send
endorsement back
4. Verify the endorsement and compare it with
saved value in step 1
48
Performance

• Time complexity
• Each voter signs its result and broadcasts it -
  O(1)
• Each voter waits to receive one signed vote from
  every other voter O(n)
• Each voter does vote comparison O(1)
• Each voter receives an endorsement from every
  other voter O(n)
• Complexity is O(n)
• Number of messages
• Voter sends vote to every other voter n(n-1)
• Voter sends endorsement to every other voter
  n(n-1)
• O(n2)

49
Concluding Remarks

• The Intrusion Tolerance mechanism described
  provide a much robust way of enforcing security
  that traditional techniques
• The intrusion tolerance mechanism based on
  fragmentation-scattering ensures confidentiality
  and integrity of data and availability of
  services
• Efficient and secure voting algorithms are an
  essential part of intrusion tolerant systems
• More research needed to make intrusion tolerance
  a real technology
• Scope for further research overlapping security
  and fault-tolerance

50
Fault tolerance vs Security
Fault-tolerant Design Secure Design
Guard against faulty system components or random faults Guard against malicious outside attacks
Optimistic Pessimistic
Probabilistic phenomena Directed Intelligent attack
Redundancy as a solution Redundancy as an adversity
51
Redundancy a boon or a bane?
Desired security behavior
Security
Fault tolerance
Effect of redundancy
Degree of redundancy
52
References

• "An Intrusion-Tolerant Security Server for an
  Open Distributed System"
• L. Blain, Y. Deswarte
• Secure and Fault-Tolerant Voting in Distributed
  Systems
• Ben Hardkopf, Kevin Kwait, Shambu Updahyaya
• Exploiting the Overlap of Security and
  Fault-Tolerance
• Ben Hardkopf, Kevin Kwait
